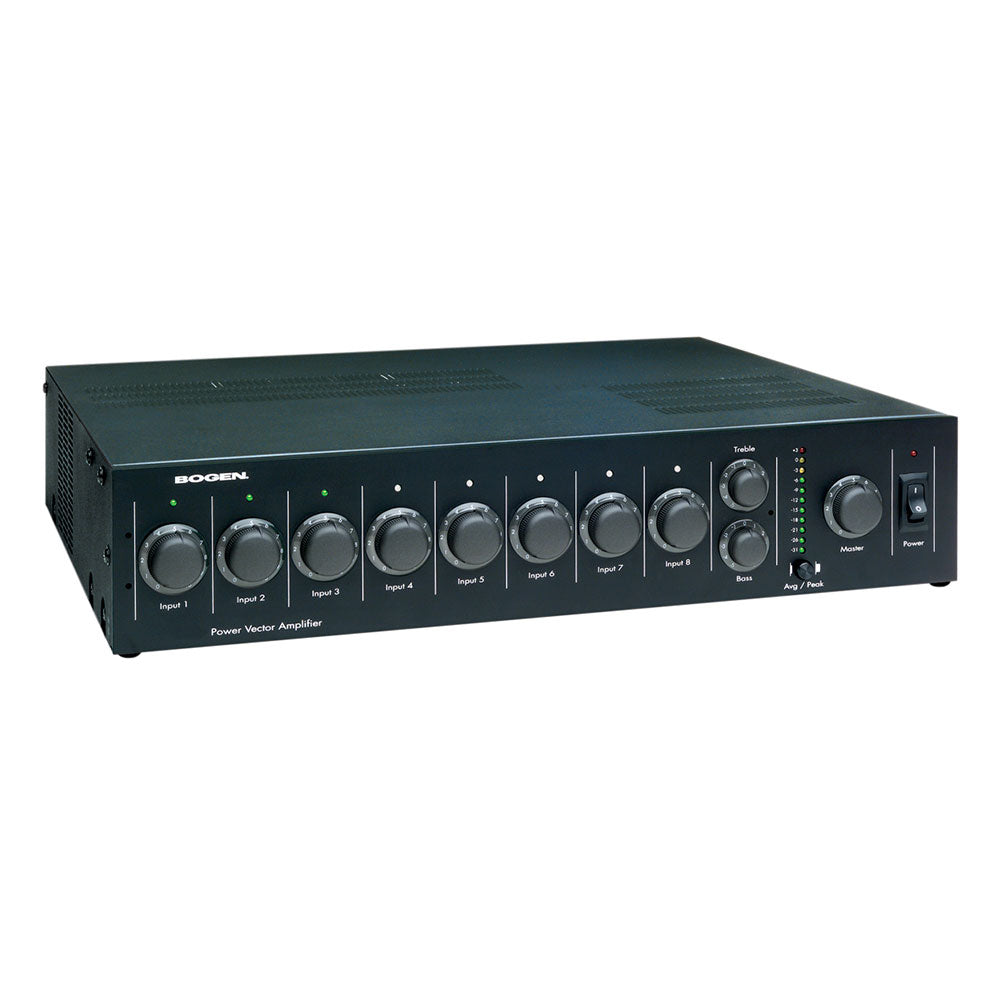

Bogen V35 Power Vector Series Mixer Amplifier with Modular Inputs - 35 Watts

Bogen's Power Vector modular amplifiers offer a wide range of power levels from which to choose, with five models from 35W to 250W. The amplifiers are designed to work with both high- (70/25V) and low- (4/8-ohm) impedance speaker systems. Each model includes eight module bays for plug-in input modules and allows up to four levels of priority between modules. Two module bays are capable of accepting plug-in signal-processing output modules. Each module is controlled by an independent volume control with an associated signal/clip LED for signal status. An 11-segment LED?output meter monitors output signal level. Each model includes a motorized master volume control that can be controlled using a remote volume control panel (RVCP, sold separately).

Features:

• 5 models ranging from 35W to 250W each; a mixer-only version (VMIX) is also available
• Capable of handling 70V, 25V, 8-ohm, and 4-ohm speaker loads
• 8 module bays
• Wide selection of advanced plug-in modules (modules sold separately)
• 4 levels of priority between modules
• 2 module bays capable of handling plug-in signalprocessing output modules
• 11-segment LED?output level meter monitors the output level of the power amplifier with Avg./Peak meter switch
• Motorized master volume control can be remotely operated
• Lockable switch permits user to select either transformer-coupled outputs or a direct lowimpedance output
• 5-position barrier strip, with clamping washers, provides connections for speaker loads
• Bridging In/Out connector
• External access to priority mute buses
• Bridging jack and Mute terminals join multiple Power Vector amps and mixers together
• Independent volume control for each of the eight module bays
• Two-color LED for each channel indicates input signal or clipping
• Bass and treble control with bypass switch (located in module bay 6)
• 125 Hz Low Cut switch (located in module bay 6)
• Signal-processing insert jacks allow external equipment to be inserted between the pre-amp output and the power amp input
• Pre-EQ, unbalanced, buffered output signal ("post" all unit controls, but "pre" any external "Insert" equipment connected)
• Grounded, unswitched AC convenience receptacle with a 500W maximum capacity provided for external equipment
• 8 module security cover/filler plates included with amplifier (PVMC)
• Push-button remote volume control panel (Model RVCP, sold separately)
• Security cover to selectively protect volume, bass, and treble controls (Model PVSC, sold separately)
• Rack mountable (with rack mounting kit RPK87, sold separately)
• 2 rack spaces high (3-1/2")
• Listed to UL Standard 60065 for U.S. and Canada
