Bogen WB1EZ Easy Design Wall Baffle Mounted Loudspeaker
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

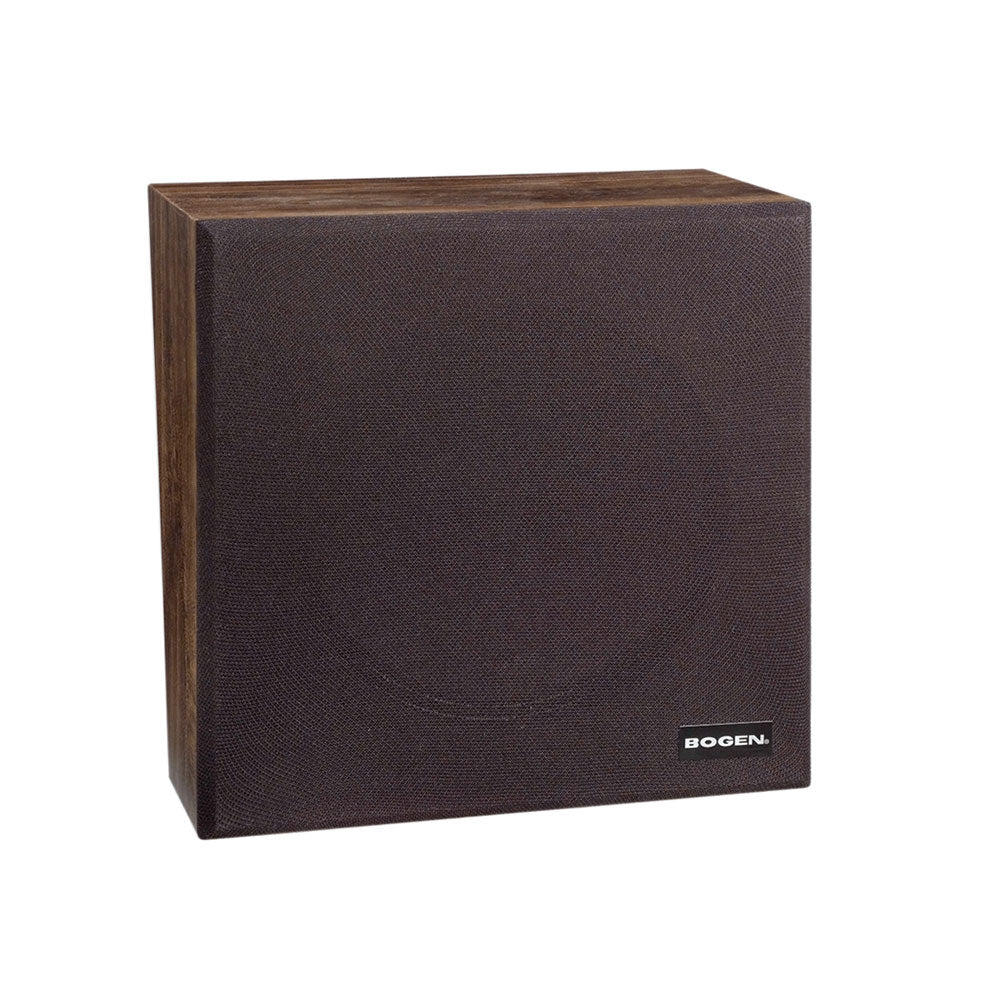

The Bogen WB1EZ Wall Baffle Speaker is an 8" cone speaker enclosed in a simulated walnut-finished wooden enclosure with a black grille cloth on front. The WB1EZ is a 1-watt single-tap speaker with recessed volume control designed for use in 70V amplifier systems. Designed for easy wall-mount installation, the WB1EZ comes pre-assembled.
Features:
- Features screw terminal connections for fast wire lead connection
- 1W single-tap design
- Works with 70V amplifier outputs
- High intelligibility and efficiency
- Simulated walnut vinyl finish
- Designed for easy wall-mount installation
- 8" cone speaker
- Wooden cabinet
- Recessed volume control
| Power Rating (RMS) | 1-watt, continuous |
| Frequency Response | 50 Hz to 12 kHz |
| Impedance | 4900 ohms (for use on 70V amplifier outputs) |
| Sound Pressure Level | 95 dB at 4 ft. with a 1-watt input on axis |
| Dimensions | 9-1/2" W x 9-1/2" H x 5-1/4" D (3-1/4" D @ bottom) |
| Shipping Weight | 19 lb. |
| Finish | Simulated walnut vinyl |
The Bogen WB1EZ Wall Baffle Speaker is an 8" cone speaker enclosed in a simulated walnut-finished wooden enclosure with a black grille cloth on front. The WB1EZ is a 1-watt single-tap speaker with recessed volume control designed for use in 70V amplifier systems. Designed for easy wall-mount installation, the WB1EZ comes pre-assembled.
Features:
- Features screw terminal connections for fast wire lead connection
- 1W single-tap design
- Works with 70V amplifier outputs
- High intelligibility and efficiency
- Simulated walnut vinyl finish
- Designed for easy wall-mount installation
- 8" cone speaker
- Wooden cabinet
- Recessed volume control
| Power Rating (RMS) | 1-watt, continuous |
| Frequency Response | 50 Hz to 12 kHz |
| Impedance | 4900 ohms (for use on 70V amplifier outputs) |
| Sound Pressure Level | 95 dB at 4 ft. with a 1-watt input on axis |
| Dimensions | 9-1/2" W x 9-1/2" H x 5-1/4" D (3-1/4" D @ bottom) |
| Shipping Weight | 19 lb. |
| Finish | Simulated walnut vinyl |
