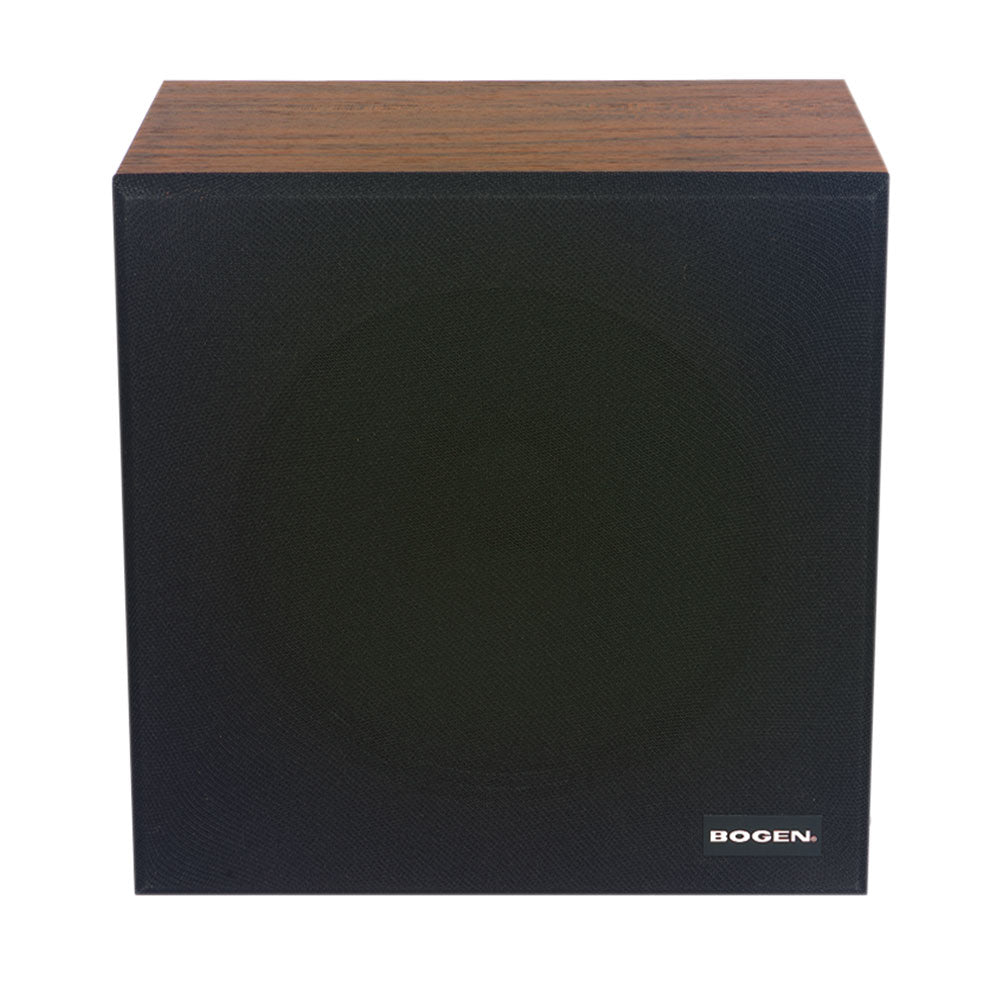

Bogen WBS8T725V Wall Baffle Mounted Loudspeaker with Transformer and Volume Control
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Bogen Wall Baffle Speakers consist of 8" cone speakers (S86 or S810) pre-assembled into a simulated walnut-finished wooden enclosure with a black grille cloth on front.These wall baffles are handsomely styled and ruggedly built with 3/8" particle board reinforced at the corners. Designed for wall mounting, the face is angled downward 13.5 degrees. Available options include recessed volume control and terminal strip.
Features:
- 4-watt capacity
- 6 power taps available (4, 2, 1, 1/2, 1/4, 1/8 watts)
- Works with both 70V and 25V amplifier outputs
- Simulated walnut finish
- Pre-assembled for faster installation
- 8" cone speaker for excellent audio quality
- 6 oz. or 10 oz. magnet weights
- Recessed volume control available (V models only)
- Screw terminals available (BR models only)
- Easy wall-mount installation
- Mounting hardware included
| Power Taps | 4, 2, 1, 1/2, 1/4, 1/8 @25V / 70V |
| Frequency Response | 50 Hz -12 kHz |
| Sensitivity (4 ft./1W) | 95 dBspl |
| Magnet Weight | 6 oz |
| Volume Control | Recessed |
| Shipping Weight (4/Carton) | 20 lbs / carton |
| Dimensions | 9-1/2" W x 9-1/2" H x 5-1/4" D (3-1/4" D @ bottom) |
