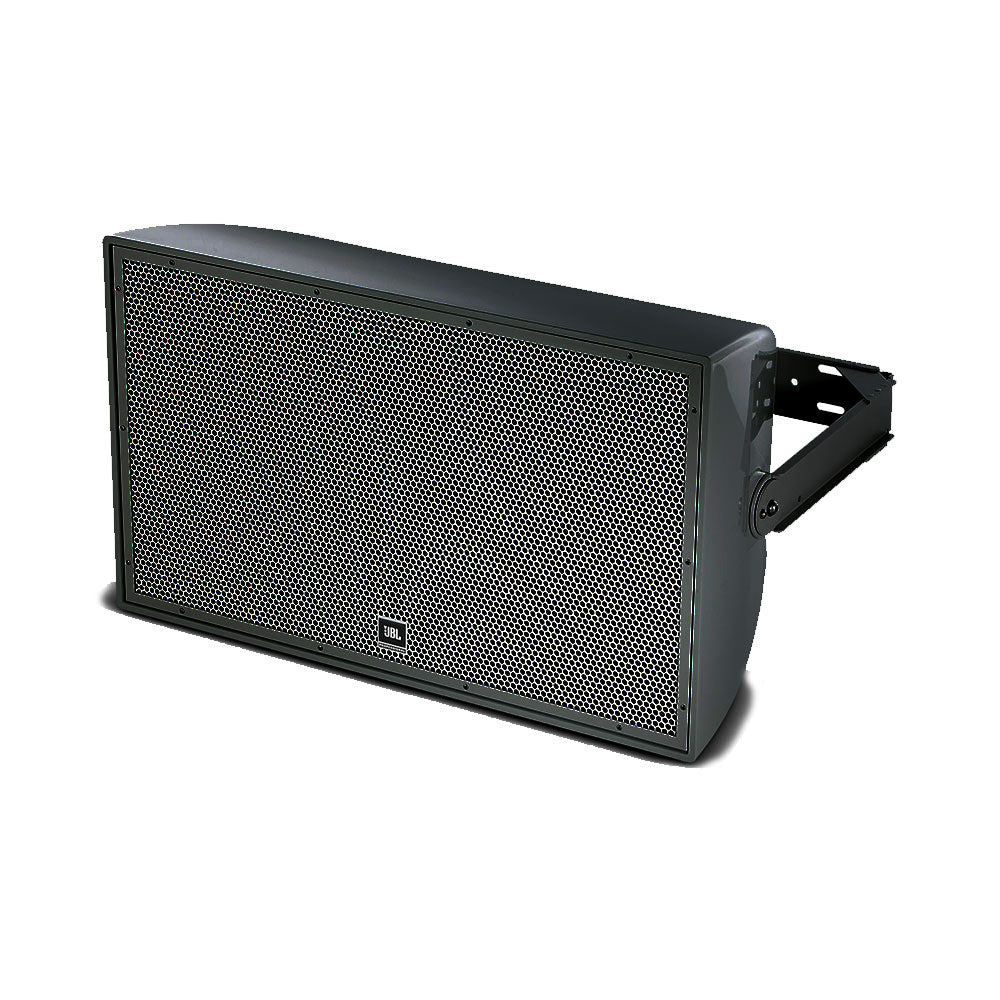

JBL AW595-LS - All-Weather High-Output 15-Inch Install Speaker for Life Safety Applications (Black)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The AW595-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 90° x 50° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. The system is equipped with a 400 W 70/100V transformer.
Features:
- Weather-Resistant, All Fiberglass Enclosure
- EN54-24 Compliant
- 90° x 50° Coverage
- 2265H Differential Drive® Low-Frequency Driver
- 2432H High Frequency Compression Drive
- Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable wave guide for vertical or horizontal orientation
- Available in Gray and Black finish
- 400 W, 70/100V Transformer Included
- U-type Mounting Bracket Included
Applications:
- Sports Facilities
- Themed Entertainment Venues
- Outdoor Entertainment Centers
- Cruise Ships
- Water Parks
| Frequency Range (-10 dB) | 41 Hz Ð 20 kHz |
| Frequency Response (±3 dB): | 88 Hz Ð 19 kHz |
| Coverage Pattern | 90¡ x 50¡, rotatable waveguide |
| Coverage Angle Horizontal Vertical |
500 Hz 1000 Hz 2000 Hz 4000 Hz 136¡ 127¡ 96¡ 99¡ 106¡ 87¡ 64¡ 40¡ |
| Directivity Factor (Q) | 12.6 |
| Directivity Index (DI) | 11 dB |
| Crossover Frequency | 1.2 kHz |
| Long-Term System Power Rating (IEC) | 400 W (1600 W peak), 100 hrs |
| Maximum SPL | 127 dB-SPL cont avg (133 dB peak) |
| Maximum SPL (@ 4m) | 113.34 dB |
| System Sensitivity (1W @ 1m) | 100 dB SPL |
| Sensitivity (1W @ 4m) | 88.43 dB SPL |
| 70V / 100V Transformer Taps | 70V: 400 W, 200 W, 100W 100V: 400W, 200W |
| Low Frequency Driver | 1 x JBL 2265H 380 mm (15 in.) Differential Drive¨ driver with 75 mm (3 in) dual voice coil |
| Nominal Impedance | 8 ohms |
| Sensitivity (1W @ 1m, within operational band) | 98 dB SPL |
| High Frequency Driver | JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil |
| Nominal Impedance | 8 ohms |
| Sensitivity (1W @ 1m) | 113 dB SPL |
| Waveguide | PT-H95HF -1 |
| Enclosure | Hand-Laminated Fiberglass, gray gelcoat (similar to Pantone 420C), available in black (-BK) |
| Suspension Attachment | 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety. |
| Grille | Three layer grille assemblies consisting of 16-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh |
| Input Connector | CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. |
| Environmental Specifications | IP55C per IEC 529 |
| Dimensions (H x W x D in horizontal cabinet orientation) | 485 x 810 x 478 mm (19.1 x 31.9 x 18.8 in) |
| Net Weight | 28.3 kg (62.5 lb) |
The AW595-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 90° x 50° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. The system is equipped with a 400 W 70/100V transformer.
Features:
- Weather-Resistant, All Fiberglass Enclosure
- EN54-24 Compliant
- 90° x 50° Coverage
- 2265H Differential Drive® Low-Frequency Driver
- 2432H High Frequency Compression Drive
- Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable wave guide for vertical or horizontal orientation
- Available in Gray and Black finish
- 400 W, 70/100V Transformer Included
- U-type Mounting Bracket Included
Applications:
- Sports Facilities
- Themed Entertainment Venues
- Outdoor Entertainment Centers
- Cruise Ships
- Water Parks
| Frequency Range (-10 dB) | 41 Hz Ð 20 kHz |
| Frequency Response (±3 dB): | 88 Hz Ð 19 kHz |
| Coverage Pattern | 90¡ x 50¡, rotatable waveguide |
| Coverage Angle Horizontal Vertical |
500 Hz 1000 Hz 2000 Hz 4000 Hz 136¡ 127¡ 96¡ 99¡ 106¡ 87¡ 64¡ 40¡ |
| Directivity Factor (Q) | 12.6 |
| Directivity Index (DI) | 11 dB |
| Crossover Frequency | 1.2 kHz |
| Long-Term System Power Rating (IEC) | 400 W (1600 W peak), 100 hrs |
| Maximum SPL | 127 dB-SPL cont avg (133 dB peak) |
| Maximum SPL (@ 4m) | 113.34 dB |
| System Sensitivity (1W @ 1m) | 100 dB SPL |
| Sensitivity (1W @ 4m) | 88.43 dB SPL |
| 70V / 100V Transformer Taps | 70V: 400 W, 200 W, 100W 100V: 400W, 200W |
| Low Frequency Driver | 1 x JBL 2265H 380 mm (15 in.) Differential Drive¨ driver with 75 mm (3 in) dual voice coil |
| Nominal Impedance | 8 ohms |
| Sensitivity (1W @ 1m, within operational band) | 98 dB SPL |
| High Frequency Driver | JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil |
| Nominal Impedance | 8 ohms |
| Sensitivity (1W @ 1m) | 113 dB SPL |
| Waveguide | PT-H95HF -1 |
| Enclosure | Hand-Laminated Fiberglass, gray gelcoat (similar to Pantone 420C), available in black (-BK) |
| Suspension Attachment | 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety. |
| Grille | Three layer grille assemblies consisting of 16-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh |
| Input Connector | CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. |
| Environmental Specifications | IP55C per IEC 529 |
| Dimensions (H x W x D in horizontal cabinet orientation) | 485 x 810 x 478 mm (19.1 x 31.9 x 18.8 in) |
| Net Weight | 28.3 kg (62.5 lb) |
