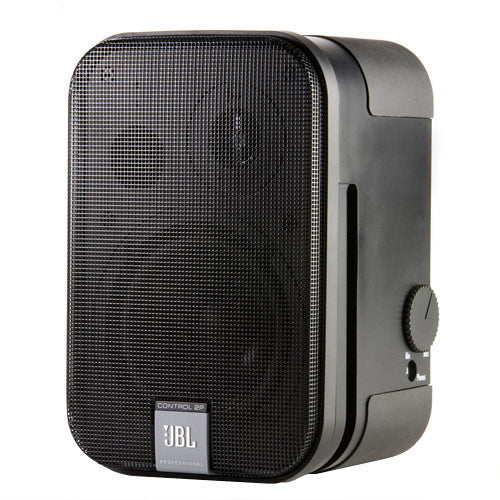

JBL C2PM Control 2P Compact Powered Monitor
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Control 2P Compact Powered Reference Monitor System combines legendary JBL loudspeaker design with powerful amplification to deliver rich, accurate performance for demanding audio applications. The compact design, rugged enclosure, and professional feature-set make the Control 2P Compact Powered Reference Monitor ideal for desk-top recording and video production, audio visual presentations, professional broadcast applications, and monitoring of electronic musical instruments.
Features:
- Studio quality transducers for accuracy, and rich bass response: 80 Hz - 20 kHz
- 35 watt power amplifier and high sensitivity drivers produce exceptional output: 111 dB peak SPL
- Balanced XLR, 1/4", and unbalanced RCAinputs allow connection to a range of signal sources
- Stereo headphone jack allows monitoring using headphones
- Ergonomic, side-mounted volume control
- High frequency adjust control - allows the user to contour HF response to application requirements
- Magnetically-shielded transducers for use near CRT monitors and magnetically sensitive equipment
- Internal peak limiter and overload protection circuit - protects the system from damage caused by continuous over-driving
- Wall-mount capable using optional MTC-2P mounting kit
- Included snap-on pedestal to optimize listening angle for desktop applications
| Frequency Response (+/- 3dB) | 100 Hz Ð 18 kHz |
| Frequency Range (-10dB) | 80 Hz - 20 kHz |
| Maximum Peak SPL C2PM Master Only1 | 111 dB (1) |
| Maximum Peak SPL Per-Pair | 115 dB (1) |
| LF Transducer | 135 mm (5.25 in) low frequency loudspeaker |
| HF Transducer | 19 mm (.75 in) polycarbonate dome tweeter |
| Overload Protection | Internal Peak Limiter and Overload Protectio |
| Crossover Frequency | 4.2 kHz |
| Signal Input Connectors (x2) | Balanced Neutrik¨2 Combo XLR 1/4" TRS; Unbalanced RCA |
| Input Sensitivity | +4 dBu XLR / 1/4"; 0 dBu RCA |
| Amplifier Power | 35 Watts continuous per-channel |
| Power Requirements | 19 VDC / 3.42 A - use only supplied power supply |
| Headphone Jack | 3.5 mm (1/8") |
| Enclosure Material | Polypropylene Structural Foam |
| Finish | Black |
| Dimensions (H x W x D) | 235 x 159 x 143 mm (9.3 x 6.3 x 5.6 in) |
| Net Weight Master Speaker | 2.6 kg (5.5 lb) |
| Net Weight Extension Speaker | 2.2 kg (4.5 lb) |
| Shipping Weight per Pair | 12.5 lb / 5.8 Kg |
| Optional Accessories | MTC-2P Mounting Kit3 |
The Control 2P Compact Powered Reference Monitor System combines legendary JBL loudspeaker design with powerful amplification to deliver rich, accurate performance for demanding audio applications. The compact design, rugged enclosure, and professional feature-set make the Control 2P Compact Powered Reference Monitor ideal for desk-top recording and video production, audio visual presentations, professional broadcast applications, and monitoring of electronic musical instruments.
Features:
- Studio quality transducers for accuracy, and rich bass response: 80 Hz - 20 kHz
- 35 watt power amplifier and high sensitivity drivers produce exceptional output: 111 dB peak SPL
- Balanced XLR, 1/4", and unbalanced RCAinputs allow connection to a range of signal sources
- Stereo headphone jack allows monitoring using headphones
- Ergonomic, side-mounted volume control
- High frequency adjust control - allows the user to contour HF response to application requirements
- Magnetically-shielded transducers for use near CRT monitors and magnetically sensitive equipment
- Internal peak limiter and overload protection circuit - protects the system from damage caused by continuous over-driving
- Wall-mount capable using optional MTC-2P mounting kit
- Included snap-on pedestal to optimize listening angle for desktop applications
| Frequency Response (+/- 3dB) | 100 Hz Ð 18 kHz |
| Frequency Range (-10dB) | 80 Hz - 20 kHz |
| Maximum Peak SPL C2PM Master Only1 | 111 dB (1) |
| Maximum Peak SPL Per-Pair | 115 dB (1) |
| LF Transducer | 135 mm (5.25 in) low frequency loudspeaker |
| HF Transducer | 19 mm (.75 in) polycarbonate dome tweeter |
| Overload Protection | Internal Peak Limiter and Overload Protectio |
| Crossover Frequency | 4.2 kHz |
| Signal Input Connectors (x2) | Balanced Neutrik¨2 Combo XLR 1/4" TRS; Unbalanced RCA |
| Input Sensitivity | +4 dBu XLR / 1/4"; 0 dBu RCA |
| Amplifier Power | 35 Watts continuous per-channel |
| Power Requirements | 19 VDC / 3.42 A - use only supplied power supply |
| Headphone Jack | 3.5 mm (1/8") |
| Enclosure Material | Polypropylene Structural Foam |
| Finish | Black |
| Dimensions (H x W x D) | 235 x 159 x 143 mm (9.3 x 6.3 x 5.6 in) |
| Net Weight Master Speaker | 2.6 kg (5.5 lb) |
| Net Weight Extension Speaker | 2.2 kg (4.5 lb) |
| Shipping Weight per Pair | 12.5 lb / 5.8 Kg |
| Optional Accessories | MTC-2P Mounting Kit3 |
