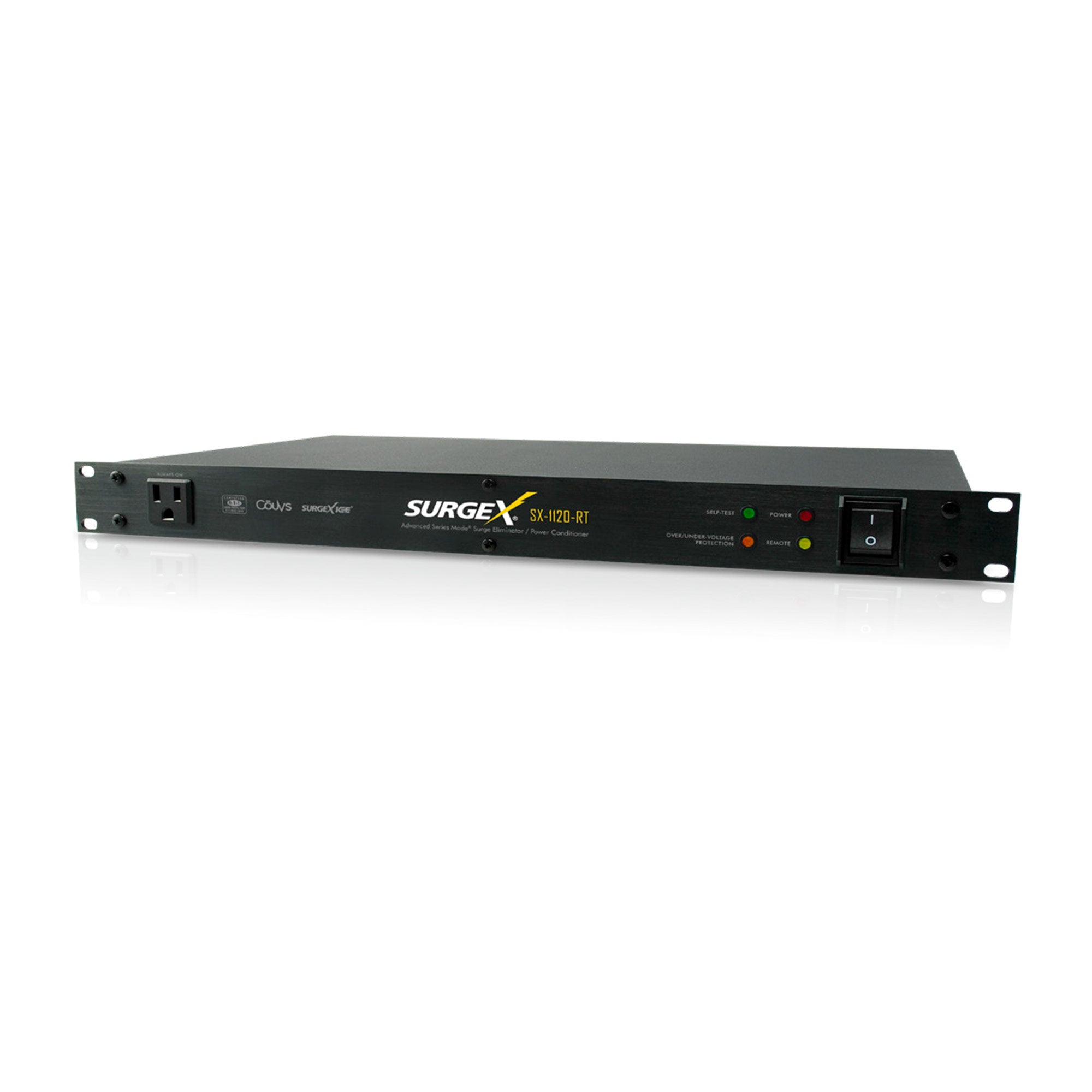

SurgeX SX-1120-RT 9-Outlet Surge Supressor / Power Conditioner
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The SX1120RT provides guaranteed surge protection and power conditioning for audio, video, broadcast and computer equipment. The units are 20-amp load-capable and have 8 industrial grade grounded AC receptacles (6 switched, 2 always on) plus a front panel courtesy receptacle.
The unit features both common mode and normal mode Impedance Tolerant EMI/RFI filtering, SurgeX ICE -Inrush Current Elimination and COUVS -Catastophic Over/Under Voltage Shutdown for a complete power conditioning solution.
SurgeX Advanced Series Mode technology is superior to conventional MOV circuitry or MOV-Hybrid designs and is completely non-sacrificial. Our zero let-through technology provides the most reliable protection available. It stops all surges up to 6,000 volts (unlimited surge current) without producing harmful side effects such as ground contamination or common-mode disturbances
Features:
- Magnetic shielding steel enclosure
- 9' grounded 3-wire #14 line cord
- 8 grounded AC outlets on rear panel (6 switched,
2 always on) - Front panel courtesy receptacle
- Advanced Series Mode surge protection
- Advanced Impedance Tolerant EMI/RFI filtering
- SurgeX ICE inrush current elimination technology
- COUVS catastrophic over/under-voltage shutdown
- Remote turn-on
- Thermal circuit breaker overload protection
- Self-test circuit with visual indicator
- 10-year warranty
- Made in U.S.A.
Switched receptacles can be controlled with an applied voltage (5-30 vdc) or contact closure switch connected to the Phoenix connector on the back panel. The connector can also be used to cascade multiple units or provide status to a central controller.
| Load Rating | 20 amps @ 120 volts |
| Power Requirement (no load) | 15 watts |
| Surge Let-Through Voltage (6000-volt surge) | 0 volts |
| UL 1449 Adjunct Classification Test Results | 1000 surges, 6000 volts, 3000 amps, B3 pulse |
| Federal Guidelines | Grade A, Class 1, Mode 1 (CID A-A-55818) |
| EMI/RFI Filter, Normal Mode (50-ohm load) | 40 dB @ 100 kHz; 50 dB @ 300 kHz; 50 dB @ 3 MHz; 50 dB @ 30 MHz |
| EMI/RFI Filter, Common Mode (50-ohm load) | 18 dB @ 300 kHz; 30 dB @ 1 MHz; 50 dB @ 5 MHz; 50 dB @ 20 MHz |
| Maximum Applied Surge Voltage | 6000 volts* |
| Maximum Applied Surge Current | Unlimited, due to current limiting* |
| Maximum Applied Surge Energy | Unlimited, due to current limiting* |
| Endurance (C62.41-1991 Category B3 pulses) | 1 kV>500,000; 3 kV>10,000; 6 kV>1000 |
| Undervoltage Shutdown | 90 Volts |
| Overvoltage Shutdown | 145 Volts |
| Maximum Load Inrush Current During Power-up | 1000 Joules |
| Remote Turn-on Applied Voltage Range | 5 to 30 volts DC |
| Remote Turn-on Current Draw | Contact Closure: 1.5 mA 5 V DC Applied Voltage: 0.1 mA 12 V DC Applied Voltage: 1.5 mA 24 V DC Applied Voltage: 5.0 mA |
| Auxiliary Relay Output | 1 amp, 30 Vdc |
| LED Output | 12 volts DC, maximum 20 mA (resistor required) |
| Dimensions | 3.5" H x 19.0" W x 10.5" D (8.9 x 48.3 x 26.7 cm) |
| Weight | 16 lbs (7.3 kg) |
| Temperature Range | 5¼ to 35¼ C |
| Humidity Range | 5% to 95% R.H., non-condensing |
| Agency Listings | ETL and cETL (UL 1449, 2nd edition; CSA C22.2 No.8-M1986, R2000) |
| *1.2 x 50 µs pulse, industry standard combination wave surge, as per IEEE C62.41 | |
The SX1120RT provides guaranteed surge protection and power conditioning for audio, video, broadcast and computer equipment. The units are 20-amp load-capable and have 8 industrial grade grounded AC receptacles (6 switched, 2 always on) plus a front panel courtesy receptacle.
The unit features both common mode and normal mode Impedance Tolerant EMI/RFI filtering, SurgeX ICE -Inrush Current Elimination and COUVS -Catastophic Over/Under Voltage Shutdown for a complete power conditioning solution.
SurgeX Advanced Series Mode technology is superior to conventional MOV circuitry or MOV-Hybrid designs and is completely non-sacrificial. Our zero let-through technology provides the most reliable protection available. It stops all surges up to 6,000 volts (unlimited surge current) without producing harmful side effects such as ground contamination or common-mode disturbances
Features:
- Magnetic shielding steel enclosure
- 9' grounded 3-wire #14 line cord
- 8 grounded AC outlets on rear panel (6 switched,
2 always on) - Front panel courtesy receptacle
- Advanced Series Mode surge protection
- Advanced Impedance Tolerant EMI/RFI filtering
- SurgeX ICE inrush current elimination technology
- COUVS catastrophic over/under-voltage shutdown
- Remote turn-on
- Thermal circuit breaker overload protection
- Self-test circuit with visual indicator
- 10-year warranty
- Made in U.S.A.
Switched receptacles can be controlled with an applied voltage (5-30 vdc) or contact closure switch connected to the Phoenix connector on the back panel. The connector can also be used to cascade multiple units or provide status to a central controller.
| Load Rating | 20 amps @ 120 volts |
| Power Requirement (no load) | 15 watts |
| Surge Let-Through Voltage (6000-volt surge) | 0 volts |
| UL 1449 Adjunct Classification Test Results | 1000 surges, 6000 volts, 3000 amps, B3 pulse |
| Federal Guidelines | Grade A, Class 1, Mode 1 (CID A-A-55818) |
| EMI/RFI Filter, Normal Mode (50-ohm load) | 40 dB @ 100 kHz; 50 dB @ 300 kHz; 50 dB @ 3 MHz; 50 dB @ 30 MHz |
| EMI/RFI Filter, Common Mode (50-ohm load) | 18 dB @ 300 kHz; 30 dB @ 1 MHz; 50 dB @ 5 MHz; 50 dB @ 20 MHz |
| Maximum Applied Surge Voltage | 6000 volts* |
| Maximum Applied Surge Current | Unlimited, due to current limiting* |
| Maximum Applied Surge Energy | Unlimited, due to current limiting* |
| Endurance (C62.41-1991 Category B3 pulses) | 1 kV>500,000; 3 kV>10,000; 6 kV>1000 |
| Undervoltage Shutdown | 90 Volts |
| Overvoltage Shutdown | 145 Volts |
| Maximum Load Inrush Current During Power-up | 1000 Joules |
| Remote Turn-on Applied Voltage Range | 5 to 30 volts DC |
| Remote Turn-on Current Draw | Contact Closure: 1.5 mA 5 V DC Applied Voltage: 0.1 mA 12 V DC Applied Voltage: 1.5 mA 24 V DC Applied Voltage: 5.0 mA |
| Auxiliary Relay Output | 1 amp, 30 Vdc |
| LED Output | 12 volts DC, maximum 20 mA (resistor required) |
| Dimensions | 3.5" H x 19.0" W x 10.5" D (8.9 x 48.3 x 26.7 cm) |
| Weight | 16 lbs (7.3 kg) |
| Temperature Range | 5¼ to 35¼ C |
| Humidity Range | 5% to 95% R.H., non-condensing |
| Agency Listings | ETL and cETL (UL 1449, 2nd edition; CSA C22.2 No.8-M1986, R2000) |
| *1.2 x 50 µs pulse, industry standard combination wave surge, as per IEEE C62.41 | |
