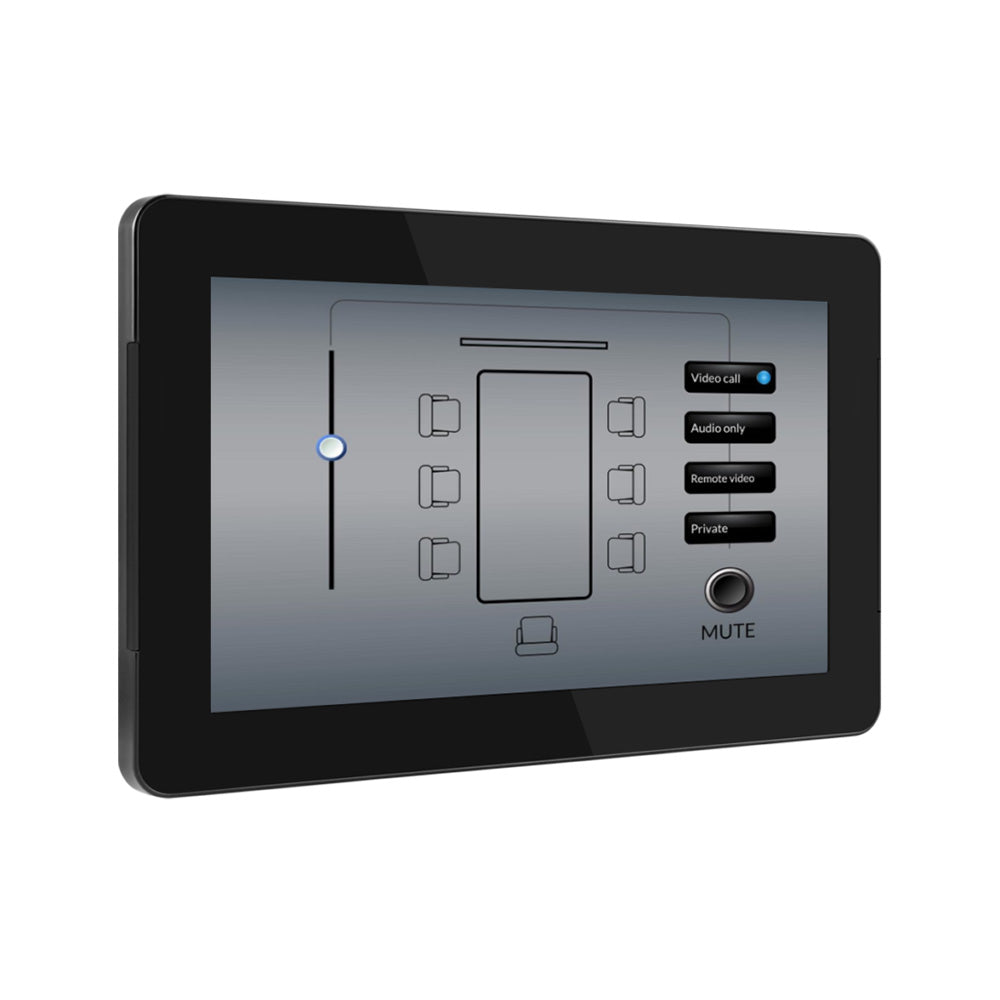

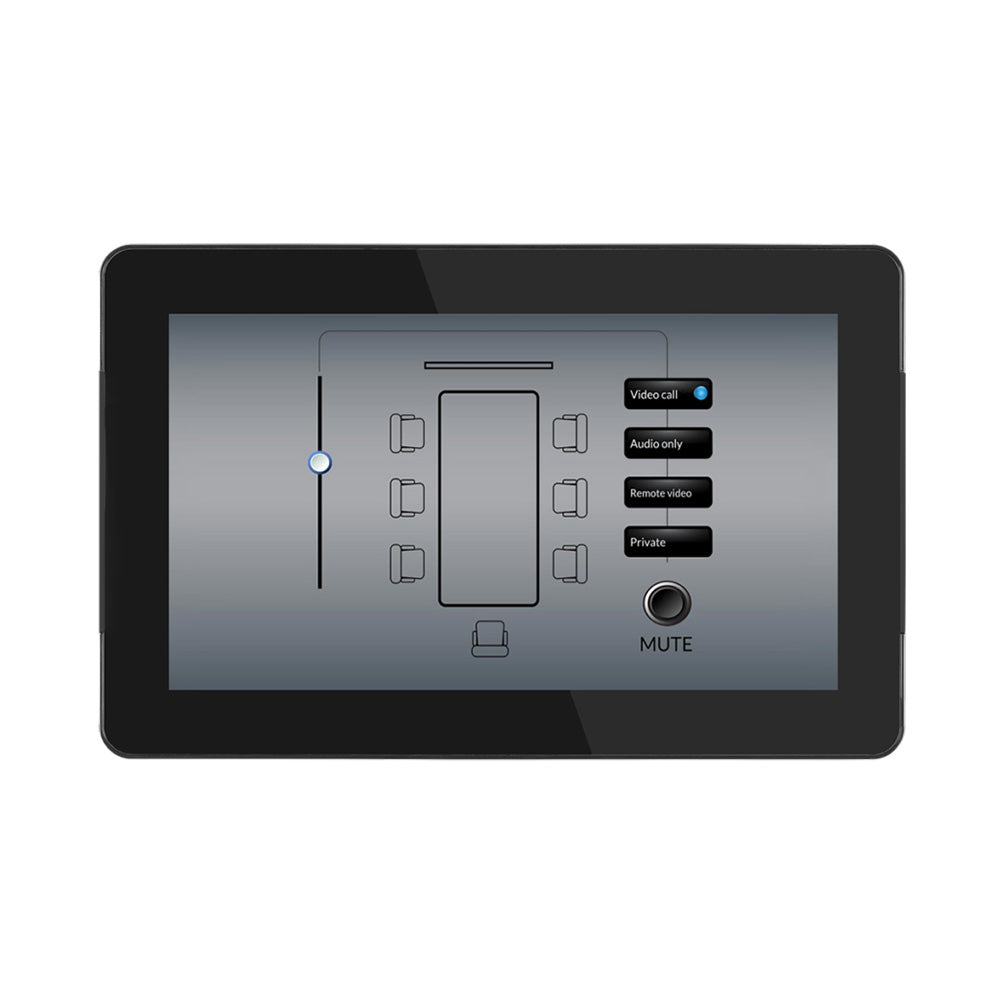

Allen and Heath CC-7 - Touch Controller for AHM or Avantis Systems
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Perfect companions for AHM matrix processors, dLive or Avantis systems in installations, CC-7 and CC-10 are control touch panels for desktop or wall mount use. Powered by the Allen and Heath Custom Control app, they can operate as fixed control devices or complementing a BYOD solution. From simple music source selection to level control, preset recall or paging, they offer an alternative to our range of IP remote controllers for applications where a touchscreen interface is preferred.
Configured to run Custom Control in kiosk mode, the app prevents any unauthorised operation, securing the settings of the panel. The installer, integrator or system admin can exit the app to change the touch panel settings such as IP address or brightness, or to update the software.
Features:
- PoE or DC 12V powered

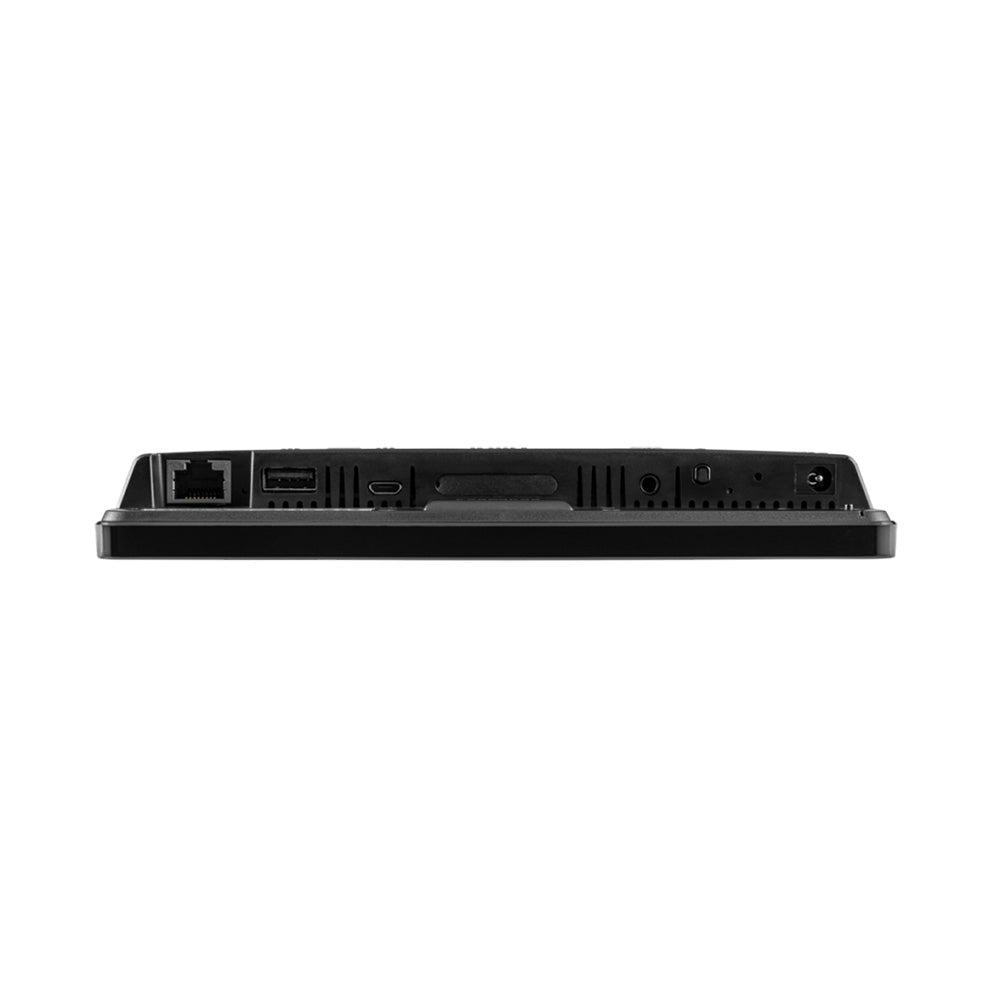

- Gigabit Ethernet port
- USB-A port for Custom Control updates

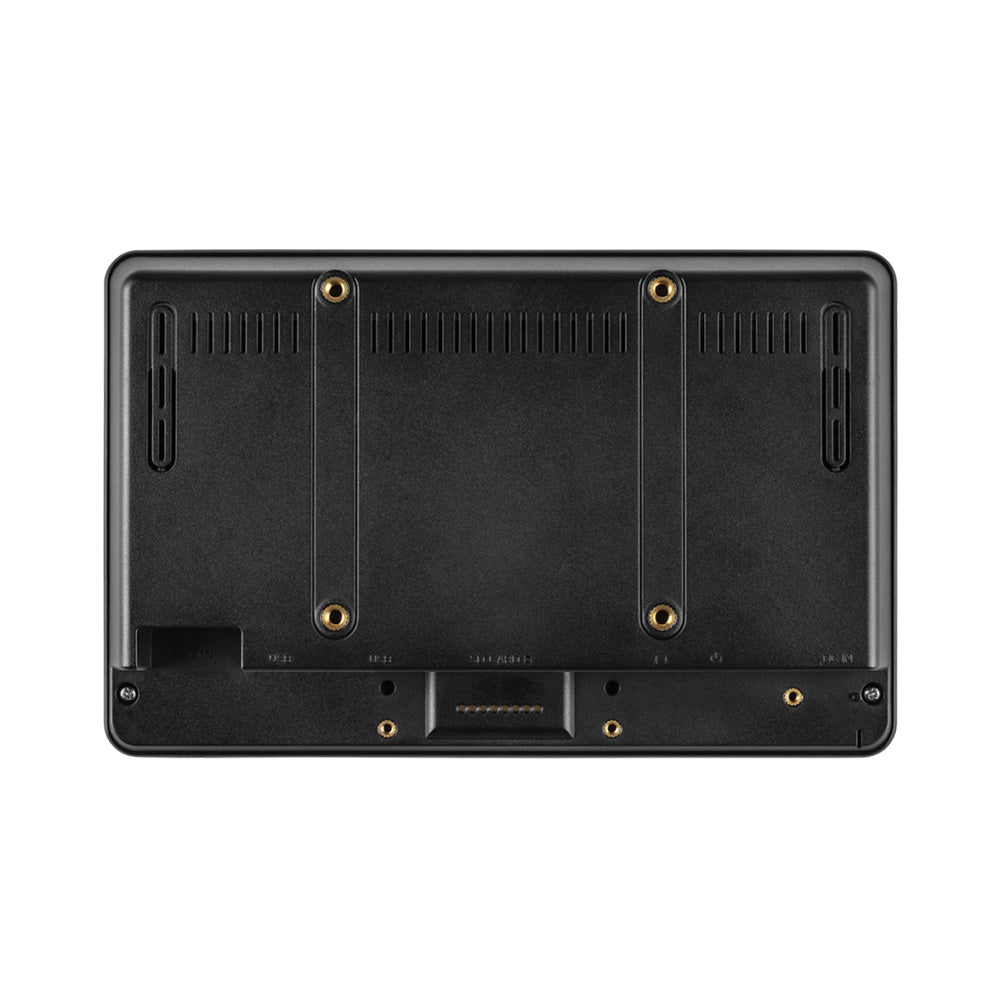

- VESA 75x75 mounting
- Desktop stand (CC-STN) and wall/glass mount bracket (CC-BRK) available
| DC Input | +12V DC 2A |
| Operating Temperature Range | 0¡C to 40¡C (32¡F to 104¡F) |
| PoE Requirements | 802.3af 15W |
| Screen | Capacitive, 10 point touch projected |
| Resolution | 1024x600 |
| Brightness | 240 cd/m2 |
| Viewing Angle | H 140¡ / V 130¡ |
| Contrast Ratio | 600:1 |
| Aspect Ratio | 17:10 |
Perfect companions for AHM matrix processors, dLive or Avantis systems in installations, CC-7 and CC-10 are control touch panels for desktop or wall mount use. Powered by the Allen and Heath Custom Control app, they can operate as fixed control devices or complementing a BYOD solution. From simple music source selection to level control, preset recall or paging, they offer an alternative to our range of IP remote controllers for applications where a touchscreen interface is preferred.
Configured to run Custom Control in kiosk mode, the app prevents any unauthorised operation, securing the settings of the panel. The installer, integrator or system admin can exit the app to change the touch panel settings such as IP address or brightness, or to update the software.
Features:
- PoE or DC 12V powered
- Gigabit Ethernet port
- USB-A port for Custom Control updates
- VESA 75x75 mounting
- Desktop stand (CC-STN) and wall/glass mount bracket (CC-BRK) available
| DC Input | +12V DC 2A |
| Operating Temperature Range | 0¡C to 40¡C (32¡F to 104¡F) |
| PoE Requirements | 802.3af 15W |
| Screen | Capacitive, 10 point touch projected |
| Resolution | 1024x600 |
| Brightness | 240 cd/m2 |
| Viewing Angle | H 140¡ / V 130¡ |
| Contrast Ratio | 600:1 |
| Aspect Ratio | 17:10 |
