API Select SR22 - Dual Channel Compressor with Thrust Circuit
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

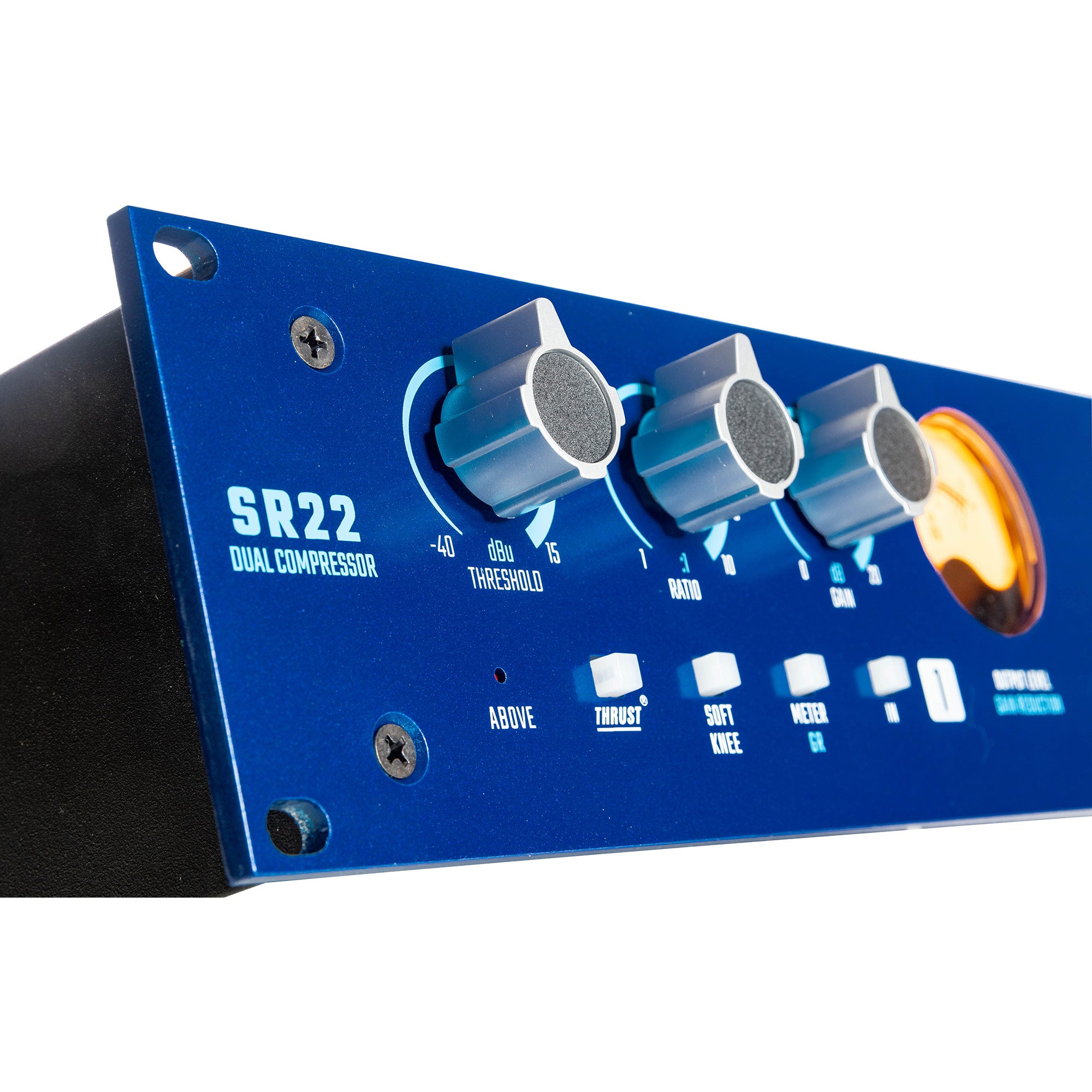

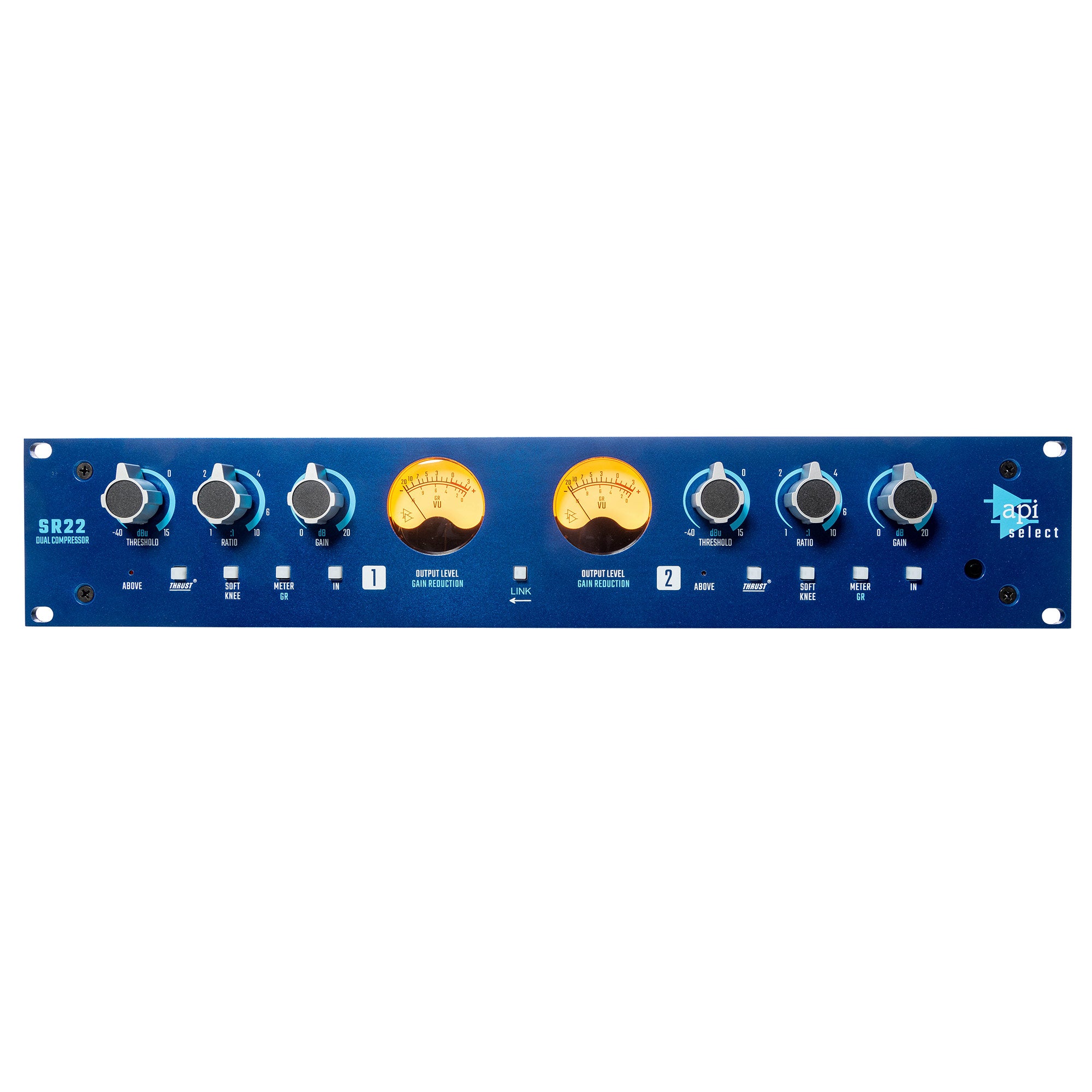

The SR22 Dual Channel Compressor features two channels of API's patented award-winning compressor circuit in a rackmount unit with internal power supply. This same compressor circuit was originally designed into the legendary ATI Paragon analog live mixing console. Each channel includes the patented THRUST® circuit, which protects the sensitive high frequency content of the audio signal, even under the most vigorous of compression ratios. The perfect companion to the new SR24 Dual Channel EQ, the SR22 provides comprehensive, easy-to-use control along with classic analog VU meters for monitoring output and gain reduction. The two channels can also be linked for use as a stereo compressor with true RMS power summing of the left and right signals.
Features:
- Patented THRUST® circuit
- Variable Threshold, Ratio, and Make-up gain controls
- Classic analog VU meters
- Switchable metering of output level and gain reduction
- Peak threshold LED indication
- Switchable Hard of Soft Knee compression
- Linkable for stereo operation with true RMS power summing
- Fully balanced XLR and 1/4" inputs and outputs

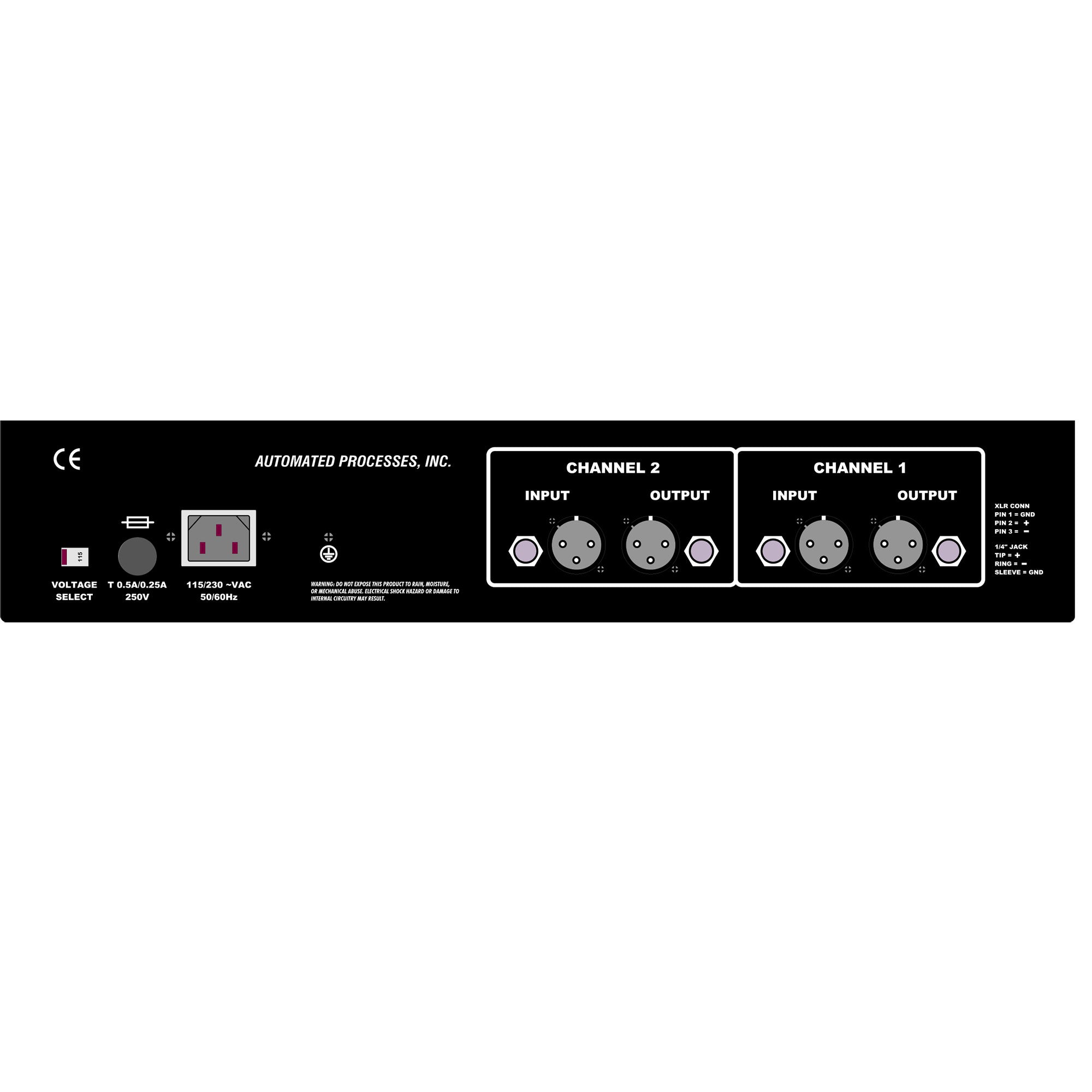

| Inputs: | Balanced XLR (pin 2 hot) and 1/4" jack (wired tip hot) (1/4" normalled priority) | ||||||||||
| Outputs: | Balanced XLR (pin 2 hot) and 1/4" (wired tip hot) parallel jacks | ||||||||||
| Input Impedance: | 15k Ohms Balanced | ||||||||||
| Bandwidth: | +/- 0.5dB, 20Hz - 50kHz | ||||||||||
| THD+N @ 1kHz, +4dBu: | <0.005% | ||||||||||
| Maximum Level: | +19dBu | ||||||||||
| Signal-to-Noise Ratio: | -88dBu (comp in), -92dBu (bypass), -106dB | ||||||||||
| Crosstalk: | <84dB @ 20kHz | ||||||||||
| Stereo Link: | True RMS Power Summing | ||||||||||

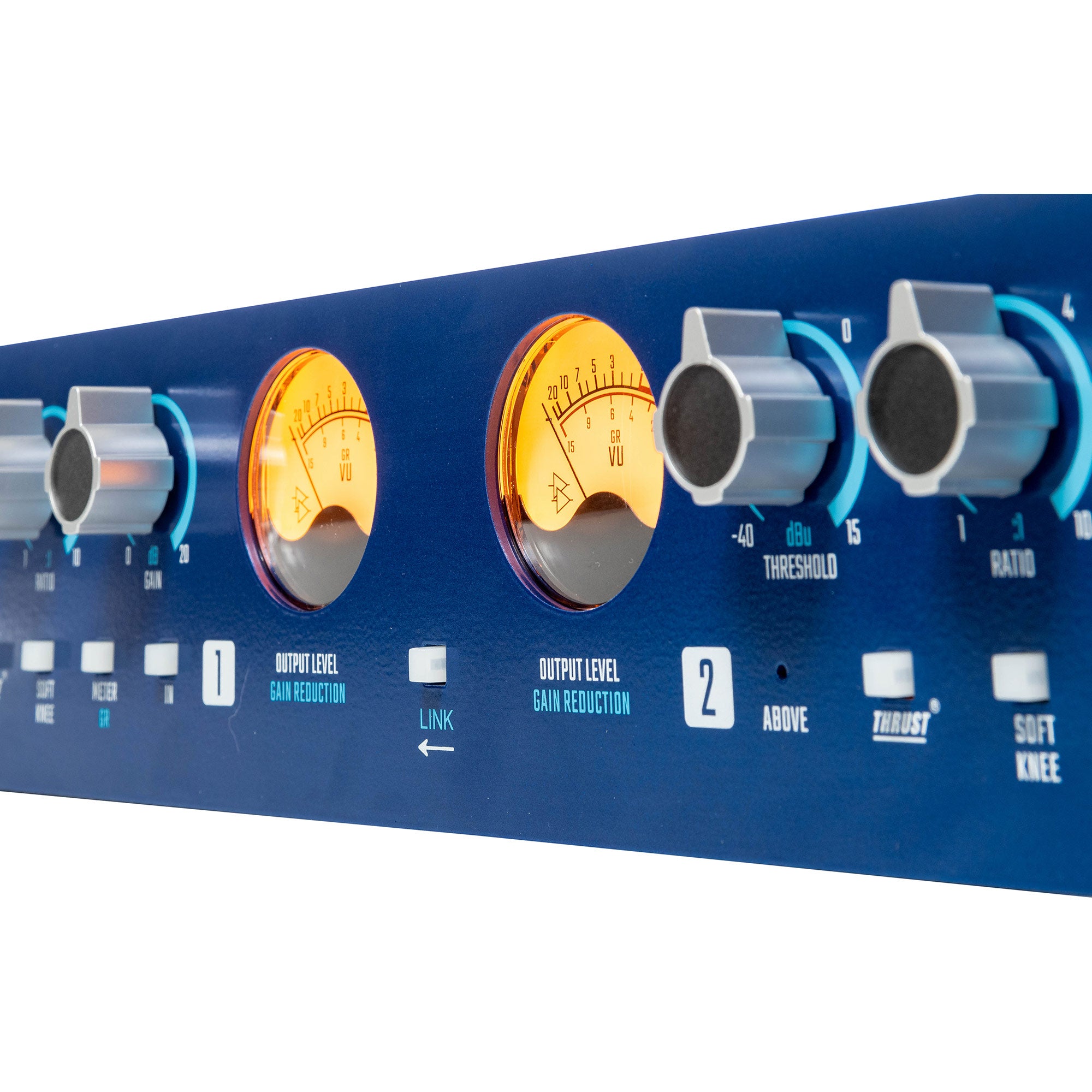

| Meter: | -20 to +3 VU Output Level, 0 to -15 dB Gain Reduction, switchable | ||||||||||
Compressor Controls:
|
|||||||||||
| Power Consumption: | 12W | ||||||||||
| Dimensions:: | 2U EIA 19" Rack | ||||||||||
| Size: | 19" x 3.5" x 10" Deep | ||||||||||
| Weight: | 12 lbs. | ||||||||||
The SR22 Dual Channel Compressor features two channels of API's patented award-winning compressor circuit in a rackmount unit with internal power supply. This same compressor circuit was originally designed into the legendary ATI Paragon analog live mixing console. Each channel includes the patented THRUST® circuit, which protects the sensitive high frequency content of the audio signal, even under the most vigorous of compression ratios. The perfect companion to the new SR24 Dual Channel EQ, the SR22 provides comprehensive, easy-to-use control along with classic analog VU meters for monitoring output and gain reduction. The two channels can also be linked for use as a stereo compressor with true RMS power summing of the left and right signals.
Features:
- Patented THRUST® circuit
- Variable Threshold, Ratio, and Make-up gain controls
- Classic analog VU meters
- Switchable metering of output level and gain reduction
- Peak threshold LED indication
- Switchable Hard of Soft Knee compression
- Linkable for stereo operation with true RMS power summing
- Fully balanced XLR and 1/4" inputs and outputs
| Inputs: | Balanced XLR (pin 2 hot) and 1/4" jack (wired tip hot) (1/4" normalled priority) | ||||||||||
| Outputs: | Balanced XLR (pin 2 hot) and 1/4" (wired tip hot) parallel jacks | ||||||||||
| Input Impedance: | 15k Ohms Balanced | ||||||||||
| Bandwidth: | +/- 0.5dB, 20Hz - 50kHz | ||||||||||
| THD+N @ 1kHz, +4dBu: | <0.005% | ||||||||||
| Maximum Level: | +19dBu | ||||||||||
| Signal-to-Noise Ratio: | -88dBu (comp in), -92dBu (bypass), -106dB | ||||||||||
| Crosstalk: | <84dB @ 20kHz | ||||||||||
| Stereo Link: | True RMS Power Summing | ||||||||||
| Meter: | -20 to +3 VU Output Level, 0 to -15 dB Gain Reduction, switchable | ||||||||||
Compressor Controls:
|
|||||||||||
| Power Consumption: | 12W | ||||||||||
| Dimensions:: | 2U EIA 19" Rack | ||||||||||
| Size: | 19" x 3.5" x 10" Deep | ||||||||||
| Weight: | 12 lbs. | ||||||||||
