Blackmagic Design Mini Converter Analog to SDI

  • Dale #:

    BLMG-CONVMAAS2
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Mini Converters are the world's most advanced and easy-to-use SDI converters. Built with the highest quality components and connectors, Mini Converters automatically switch between SD, HD and 3Gb/s video standards. Whether you want to convert to or from SDI, move between different SDI video forma... Read More

Contact us

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Mini Converters are the world's most advanced and easy-to-use SDI converters. Built with the highest quality components and connectors, Mini Converters automatically switch between SD, HD and 3Gb/s video standards. Whether you want to convert to or from SDI, move between different SDI video formats or distribute SDI signals to multiple destinations, you get the highest quality broadcast technology in a compact and affordable design. Choose from a range of 12 models, all featuring low SDI jitter and SDI re-clocking so you can use the longest SDI cable lengths and maintain pristine quality images.

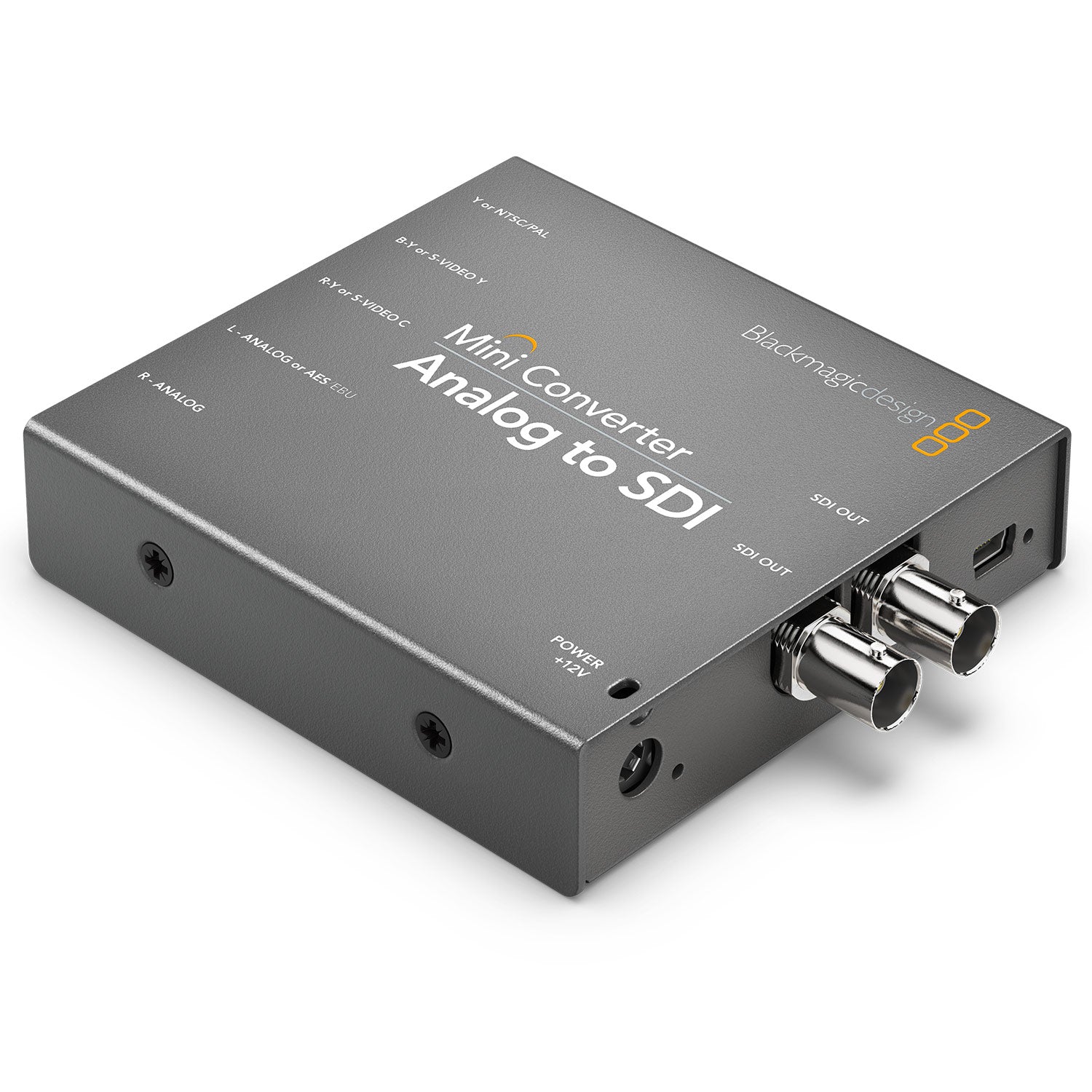

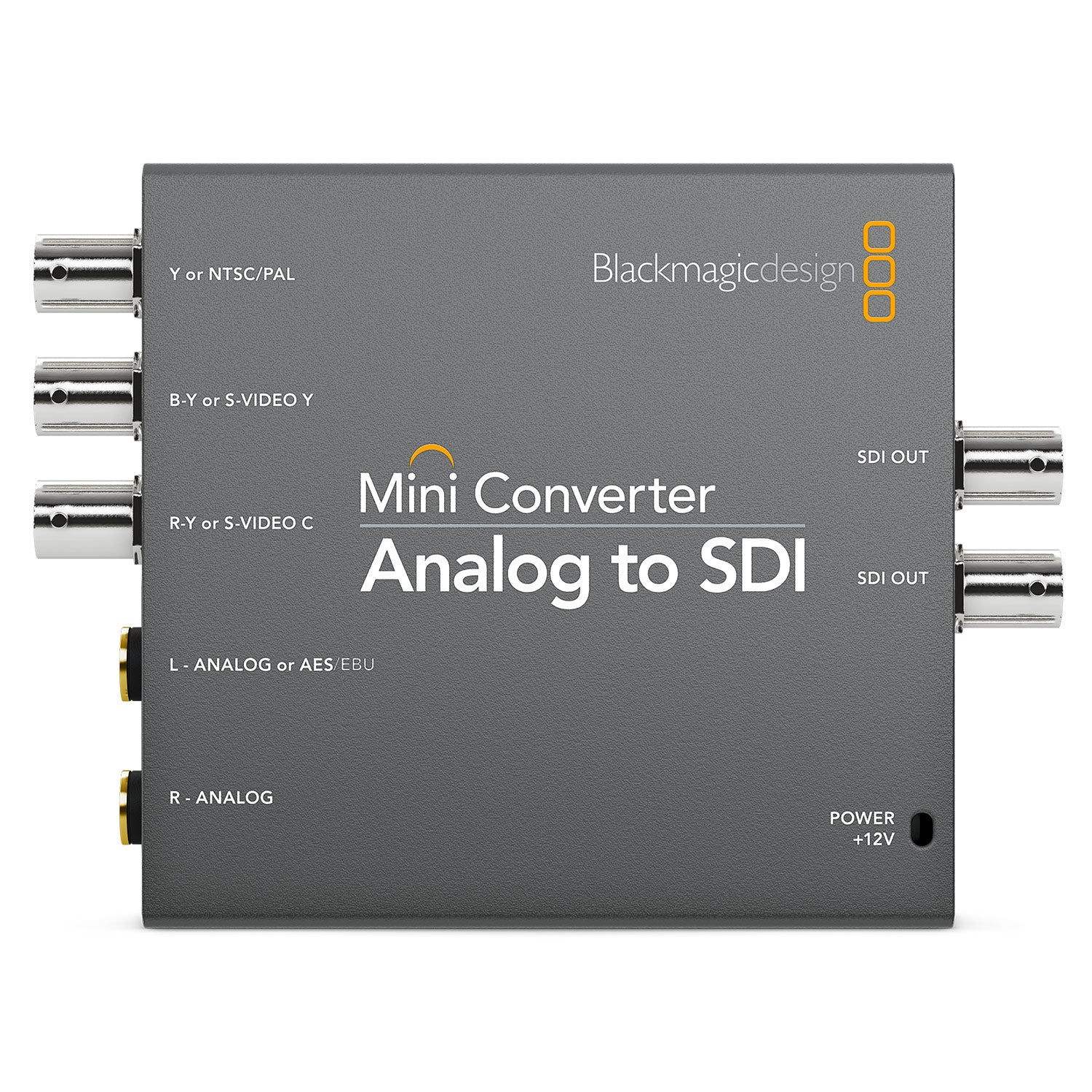

The Analog to SDI Mini Converter is perfect for converting from analog HD/SD component, NTSC, PAL or S-Video to SDI out with balanced jack AES/EBU and analog audio embedding. Now you can convert analog devices such as Betacam SP, VHS, set top boxes, gaming consoles and HDV cameras to incredible quality SD/HD-SDI video.

More +

Product Specs

Connections
SDI Video InputNone
SDI Video OutputAutomatically matches the SD and HD video input.
Analog VideoComponent SD/HD, NTSC, PAL and S-Video.
Analog Audio2 channels of professional balanced analog audio with standard 1/4 inch jack connections.
AES/EBU Digital Audio2 channels of professional balanced digital with standard 1/4 inch jack connections.
SDI Redundant InputNone
Multi Rate SupportAuto detection of HD or standard definition SDI inputs.
Updates and ConfigurationVia USB 2.0 high speed. (480 Mb/s)
ReclockingYes
åÊ
Standards
SD ComplianceSMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656 and ITU-R BT.601.
SDI Video RatesSDI video connections are switchable between standard definition and high definition.
SDI Video Sampling4:2:2
SDI Audio SamplingTelevision standard sample rate of 48 kHz and 24 bit.
SDI Color Precision4:2:2
SDI Color SpaceYUV
SDI Auto SwitchingAutomatically selects between SD SDI, HD-SDI and 3 Gb/s SDI.
SDI Format Support625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60.
Analog Format Support625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60.
Analog Color SpaceYUV
Analog Color Precision4:2:2
HDMI Format SupportN/A
HDMI Color SpaceN/A
HDMI Color PrecisionN/A
Copy ProtectionN/A
åÊ
Extras
Software ControlMac OS X䋢 and Windows䋢 software upgrade via USB.
Internal Software UpgradeVia included updater application.
Settings ControlMini Switches or USB software.
Format ConversionNone
Power Supply+12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Consumption6.50 Watts
Operational Voltage Range12 - 31 Vdc
Product Warranty3 Year Limited Manufacturer's Warranty.
