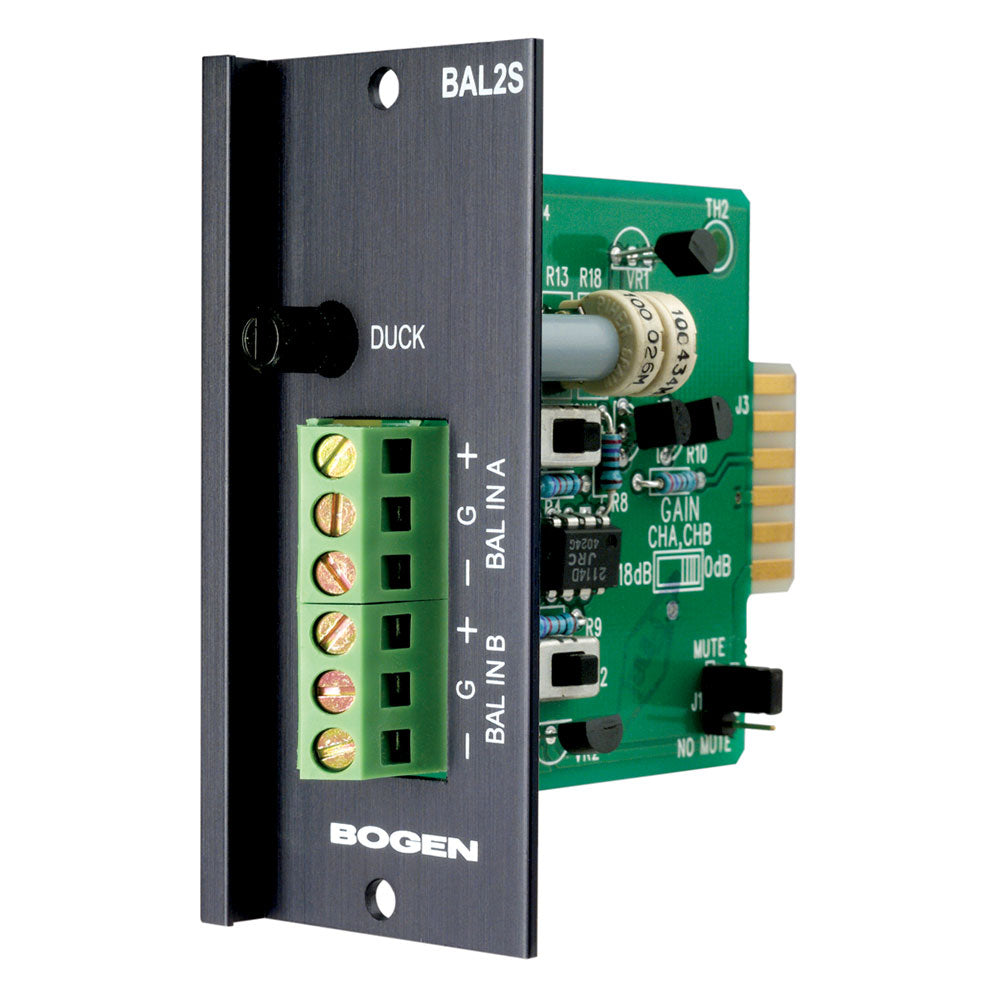

Bogen BAL2S Stereo Balanced Input Module for Matrix Products
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Bogen's advanced plug-in modules provide a wide range of functions to support a variety of applications. These modules support different signal-source requirements, including the ability to interface to balanced and unbalanced high- and low-level inputs, stereo or mono, telco systems, and microphones.
Features:
- Stereo, high-impedance, balanced inputs
- Professional-quality, low noise performance
- Selectable gain of 0 or 18 dB
- Mutable by higher priority modules
- Variable ducking level when muted
- Fade back from mute
- Screw terminal connections
| Gain | 0 dB (or +18 dB; switch selectable per channel) |
| Frequency Response | +0/-3 dB, 5 Hz-100 kHz |
| S/N (20 Hz - 20 kHz) | -100 dBV |
| Distortion | < 0.005%, 20 Hz-20 kHz |
| Input Impedance | 10k ohms (unbalanced) 20k ohms (balanced) |
| Ducking (level) | -10 dB to -48 dB |
| CMRR | > 80 dB @ 1 kHz |
| Controls | Ducking |
| Priority | Lowest or none |
| Connector | 6-position barrier strip |
| Dimensions | 1-3/8" W x 3-1/8" H x 3-1/2" D |
| Weight | 2.8 oz. |
