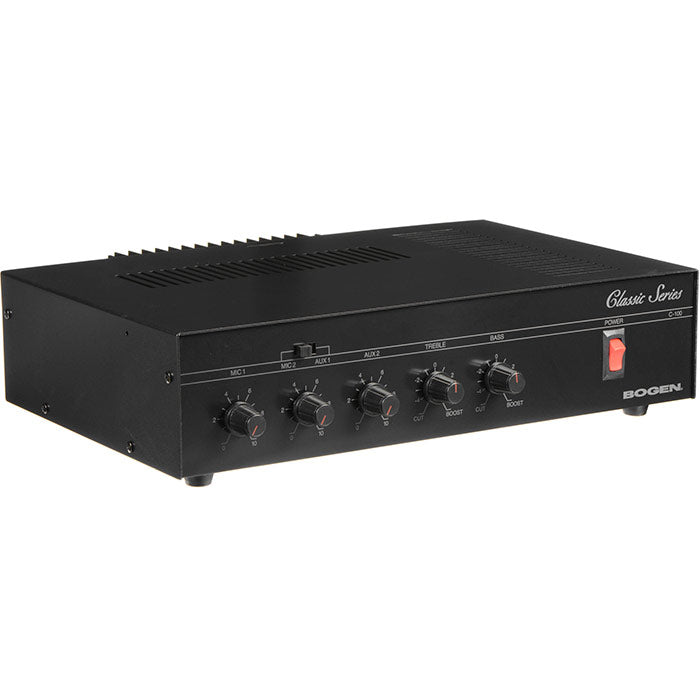

Bogen C100 Classic Series Solid State Public Address 100 watt amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Bogen Classic Series Model C100 is a public address mixer amplifier that provides mixing of microphones, telephone, and auxiliary sources. Output screw terminals are provided for 4-ohm (direct) and 8-ohm, 16-ohm, 25V and 70V (transformer-coupled) speaker systems. Output jacks let you connect to a tape recorder or an additional booster amplifier, or feed a 600-ohm telephone line when an accessory transformer (Model WMT1A) is used.
Features:
- 100 watts
- 4 inputs: 1 MIC (Lo-Z), 1 AUX (Hi-Z), 1 TEL, plus 1 selectable MIC or AUX
- Each input controlled by an independent volume control
- Treble and bass controls
- AUX muting by external contact closure for pushto- talk mic's
- Tel input for telephone paging applications
- TEL input voice-activated (VOX) mute over AUX input
- Variable threshold for TEL input voice-activated AUX mute
- Audio output for tape recorder or booster amplifier
- Outputs for 4-ohm (direct), 8-ohm, and 16-ohm, 25V and 70V speaker systems (transformer coupled)
- Output jack to connect a tape recorder or booster amplifier
- Output jack to connect a general-purpose 600-ohm matching transformer (model WMT1A)
- Thermal protection and electronic shutdown
- Rack mountable with accessory mounting kit (model RPK50)
- UL and CSA listed
| Power Output (RMS) | 100W |
| Frequency Response / Distortion | Transformer Ð 70 - 16 kHz (± 2 dB) @ 1% max. 4-Ohm Direct Output Ð 20 - 20 kHz (± 1 dB) @ 0.5% max. |
| Hum and Noise | MIC 55 dB below rated output AUX 70 dB below rated output TEL 70 dB below rated output |
| Input Sensitivity | MIC Lo-Z Balanced Ð 600μV AUX Ð 85mV TEL Ð 75mV |
| Outputs | 8, 16 ohms, 25V, 70V transformerisolated balanced or unbalanced; 4 ohms direct unbalanced |
| Output Connections | Screw terminal strip,TAPE/BOOSTER jack;WMT1A jack (requires accessory transformer) |
| Input Connections | Screw terminals for MIC and TEL, two AUX Hi-Z jacks |
| Controls | MIC1, MIC2/AUX (switch selected), AUX 2, BASS,TREBLE,TEL,VOX |
| Tone Control | Treble, ±11 dB @ 10 kHz Bass ±11 dB @ 100 Hz |
| Power Requirements | 120V AC, 60 Hz 220W |
| Dimensions | 14-1/2" W x 3-3/4" H x 11" D |
| Shipping Weight | 20 lb. |
The Bogen Classic Series Model C100 is a public address mixer amplifier that provides mixing of microphones, telephone, and auxiliary sources. Output screw terminals are provided for 4-ohm (direct) and 8-ohm, 16-ohm, 25V and 70V (transformer-coupled) speaker systems. Output jacks let you connect to a tape recorder or an additional booster amplifier, or feed a 600-ohm telephone line when an accessory transformer (Model WMT1A) is used.
Features:
- 100 watts
- 4 inputs: 1 MIC (Lo-Z), 1 AUX (Hi-Z), 1 TEL, plus 1 selectable MIC or AUX
- Each input controlled by an independent volume control
- Treble and bass controls
- AUX muting by external contact closure for pushto- talk mic's
- Tel input for telephone paging applications
- TEL input voice-activated (VOX) mute over AUX input
- Variable threshold for TEL input voice-activated AUX mute
- Audio output for tape recorder or booster amplifier
- Outputs for 4-ohm (direct), 8-ohm, and 16-ohm, 25V and 70V speaker systems (transformer coupled)
- Output jack to connect a tape recorder or booster amplifier
- Output jack to connect a general-purpose 600-ohm matching transformer (model WMT1A)
- Thermal protection and electronic shutdown
- Rack mountable with accessory mounting kit (model RPK50)
- UL and CSA listed
| Power Output (RMS) | 100W |
| Frequency Response / Distortion | Transformer Ð 70 - 16 kHz (± 2 dB) @ 1% max. 4-Ohm Direct Output Ð 20 - 20 kHz (± 1 dB) @ 0.5% max. |
| Hum and Noise | MIC 55 dB below rated output AUX 70 dB below rated output TEL 70 dB below rated output |
| Input Sensitivity | MIC Lo-Z Balanced Ð 600μV AUX Ð 85mV TEL Ð 75mV |
| Outputs | 8, 16 ohms, 25V, 70V transformerisolated balanced or unbalanced; 4 ohms direct unbalanced |
| Output Connections | Screw terminal strip,TAPE/BOOSTER jack;WMT1A jack (requires accessory transformer) |
| Input Connections | Screw terminals for MIC and TEL, two AUX Hi-Z jacks |
| Controls | MIC1, MIC2/AUX (switch selected), AUX 2, BASS,TREBLE,TEL,VOX |
| Tone Control | Treble, ±11 dB @ 10 kHz Bass ±11 dB @ 100 Hz |
| Power Requirements | 120V AC, 60 Hz 220W |
| Dimensions | 14-1/2" W x 3-3/4" H x 11" D |
| Shipping Weight | 20 lb. |
