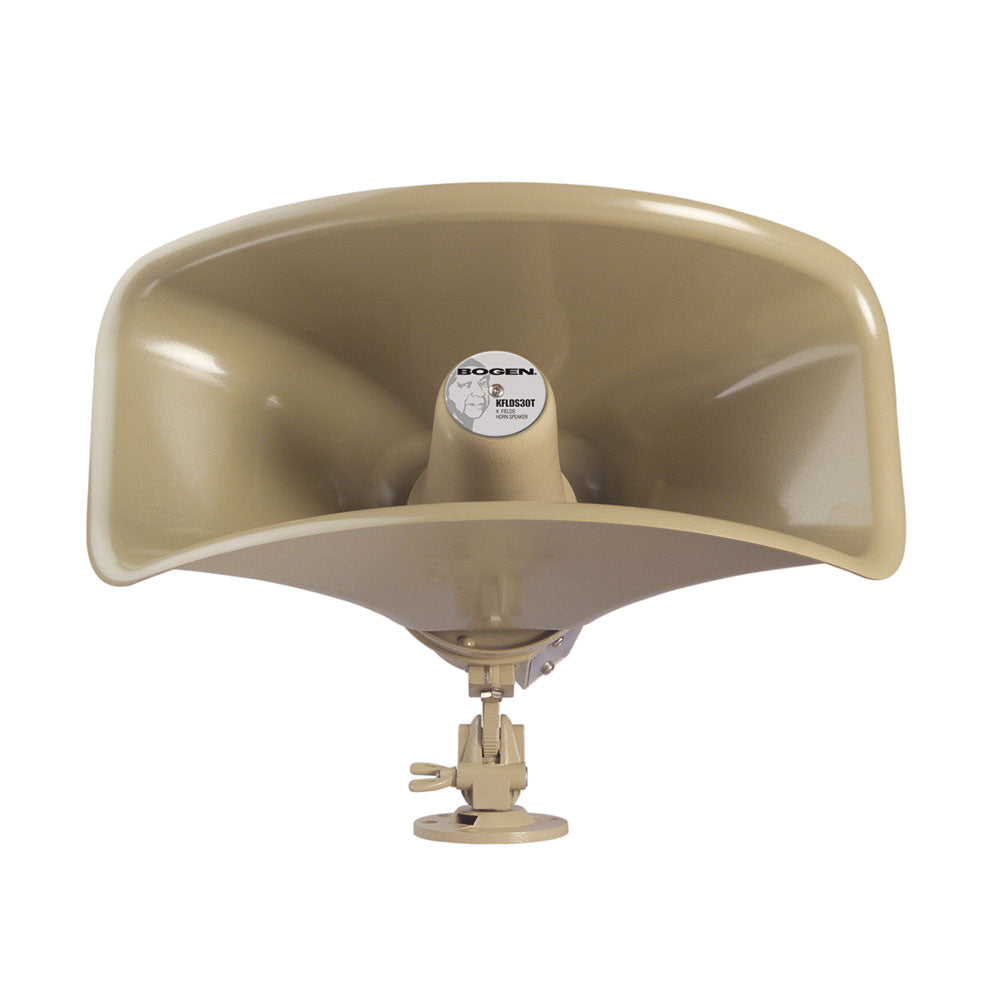

Bogen KFLDS30T Wide Dispersion Reentrant Horn Loudspeaker


  • Dale #:

    BOGE-KFLDS30T
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The Bogen KFLDS30T is a wide dispersion, high-intelligibility, reentrant-type horn loudspeaker designed for applications where wide angle projection and directivity is a necessity. The flare-shaped horn can be rotated to project wider dispersion in either the horizontal or vertical plane. The spe... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Bogen KFLDS30T is a wide dispersion, high-intelligibility, reentrant-type horn loudspeaker designed for applications where wide angle projection and directivity is a necessity. The flare-shaped horn can be rotated to project wider dispersion in either the horizontal or vertical plane. The speaker’s all-purpose tilt-and-swivel base simplifies installation and positioning. Its sturdy, weatherproof, polycarbonate and aluminum construction is ideal for both indoor and outdoor use. Screw terminals make installation fast and easy. A plastic cover protects the connectors and 70V/25V tap selector switch, as well as provides strain relief for the audio line.

Features:

  • 30 Watts max. @ 70 volts or 15 Watts max. @ 25 volts
  • Weatherproof polycarbonate and aluminum construction
  • Driver enclosed in weatherproof housing
  • 70° × 95° dispersion with rotatable horn flare
  • All-purpose mounting bracket provides precise positioning in the vertical and horizontal planes with a single adjustment
  • Seven-position, weather-sealed tap selector switch
  • Rotary switch-selected power tap
  • Tap settings for 70V: 30, 15, 7.5, 3.7, 1.8 watts; for 25V: 15, 7.5, 3.7, 1.8, 0.9, 0.5, 0.25 watts
  • Self-aligning, field-replaceable diaphragm
  • High-intelligibility and efficiency
  • Screw terminals for easy audio line connection
  • Plastic cover protects connectors and tap selector switch, also provides strain relief for the audio line
  • Textured mocha enamel finish on aluminum, matching polycarbonate horn flare
  • Limited lifetime warranty
  • Mountable to I-beam flange using Bogen’s BC1 Beam Clamp (sold separately)
  • Mountable to electrical box using Bogen’s HSES10 mounting strap (sold separately)
  • Terminal Cover (TCSPT1) allows connection of conduit fittings to horn speakers (sold separately)

More +

Product Specs

Power Rating (RMS) 30 Watts continuous (70V amplified systems);
15 Watts continuous (25V amplified systems)
Frequency Response 300 Hz to 12 kHz
Impedance 25/70 volts
Power Taps 70V: 1.8, 3.7, 7.5, 15, or 30 watts
25V: 0.25, 0.5, 0.9, 1.8, 3.7, 7.5, or 15 watts
Sound Pressure Level 119 dB @ 1m on axis @ 30 watts (avg 400 Hz to 3 kHz)
104 dB @ 1m on axis @ 1 watt (avg 400 Hz to 3 kHz)
Dispersion 70° x 95°, rotatable horn flare
Dimensions 14-3/8" W × 8-1/4" H × 12-7/8" D
Product Weight 6 lb.
Finish Textured mocha enamel finish on aluminum, matching polycarbonate horn flare
