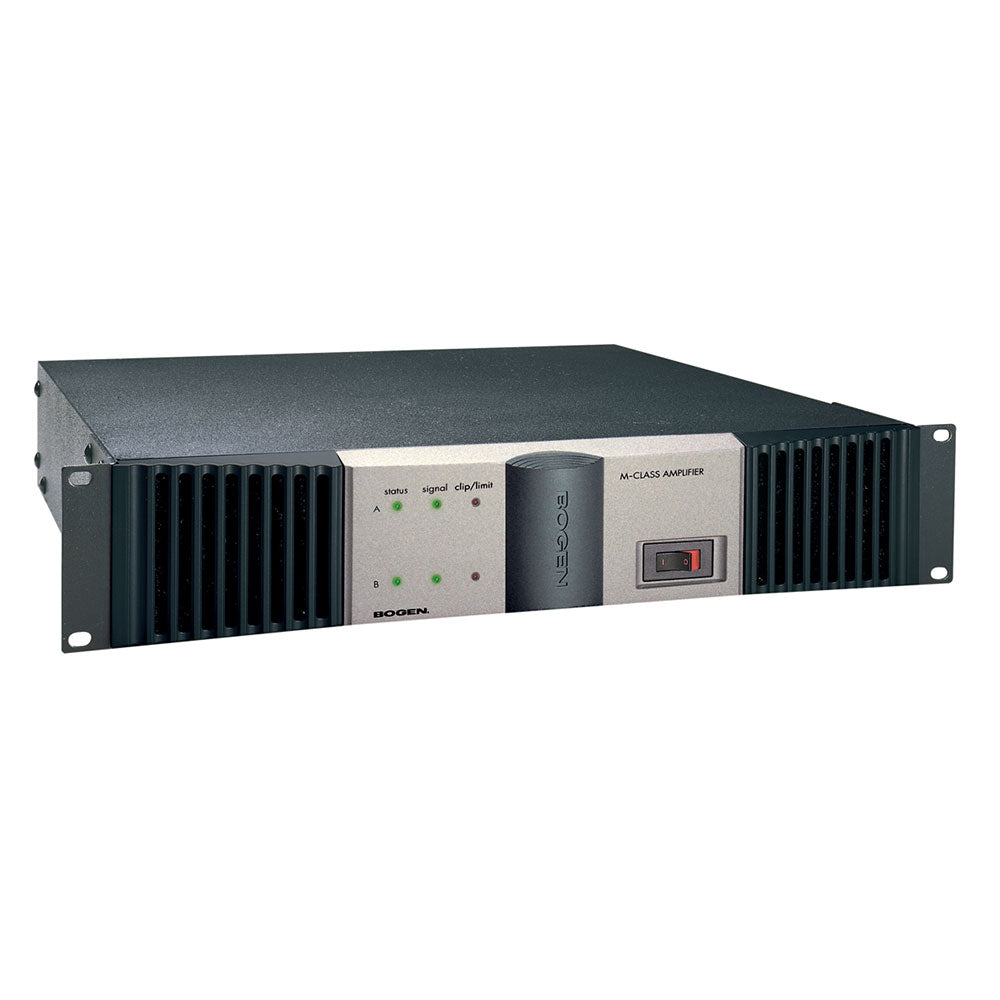

Bogen M600 Dual-Channel Install Power Amplifier with Modular Input Options


  • Dale #:

    BOGE-M600
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

Bogen's M-Class delivers on what professional sound installers need most – Flexibility, Power, and Reliability. Flexibility – 3 modes of operation: Stereo, 70V Mono, or Dual Mono; and 2 modular input bays for a variety of prioritized input types. Power – up to 600W/ch stereo or 1200W of 70V mono ... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Bogen's M-Class delivers on what professional sound installers need most – Flexibility, Power, and Reliability. Flexibility – 3 modes of operation: Stereo, 70V Mono, or Dual Mono; and 2 modular input bays for a variety of prioritized input types. Power – up to 600W/ch stereo or 1200W of 70V mono power. Reliability – Massive power toroid and heat sinks; heavy 14-gauge chassis; patented Back-Slope™ AC voltage stabilization; Clip limiters, DC voltage, over-current, and thermal protection circuits.

Features:

  • Mono power: 1200W for 70V speaker systems
  • Stereo power: 600W per channel @ 4 ohms
  • 3 modes of operation to choose from - Stereo, Dual Mono, or 70V Mono
  • Low noise, low distortion, and high slew rate
  • Flexible modular input capability (2 module capacity)
  • Professional, dual-channel (balanced or unbalanced), high-impedance input module with gain selection included
  • 3 selectable low-frequency, roll-off choices
  • 2x1 mixer function when in mono modes
  • Insert connections for outboard equipment (in mono modes)
  • Post- and Pre-EQ Output Feeds (summed mono out in stereo mode)
  • DC, overload, short circuit, and thermal protection circuits
  • Clip limiting circuits for speaker protection
  • Power-saving Sleep Mode for intermittent use applications
  • Status, Signal, and Clip/Limit indicators
  • Back-Slope AC voltage stabilization for dependable performance over varying AC line voltage
  • Heavy-gauge steel chassis with cast aluminum front panel
  • Recessed volume control knobs with snap-on protective cover
  • Mounts in 2 rack spaces (3-1/2") directly stackable without need for extra space above or below
  • 2 independent, continuously variable, cooling fans for dependable and quiet operation
  • Easily removable front fan grilles with filters
  • Stable into 2-ohm loads
  • Listed to UL Standard 60065 for US and Canada

More +

Product Specs

Power Output 70V Mono: 1200W @ 5.5 ohms
4-ohm: 600W per channel
8-ohm: 400W per channel
Input Sensitivity
At Backplane Connector or using Standard Input Module (incl.)
1.161V for 600W @ 4 ohms
S/N Ratio (20kHz BW) 109 dB ref. 8 ohms, F.P.
Class of Operation H
Product Weight 46 lb.

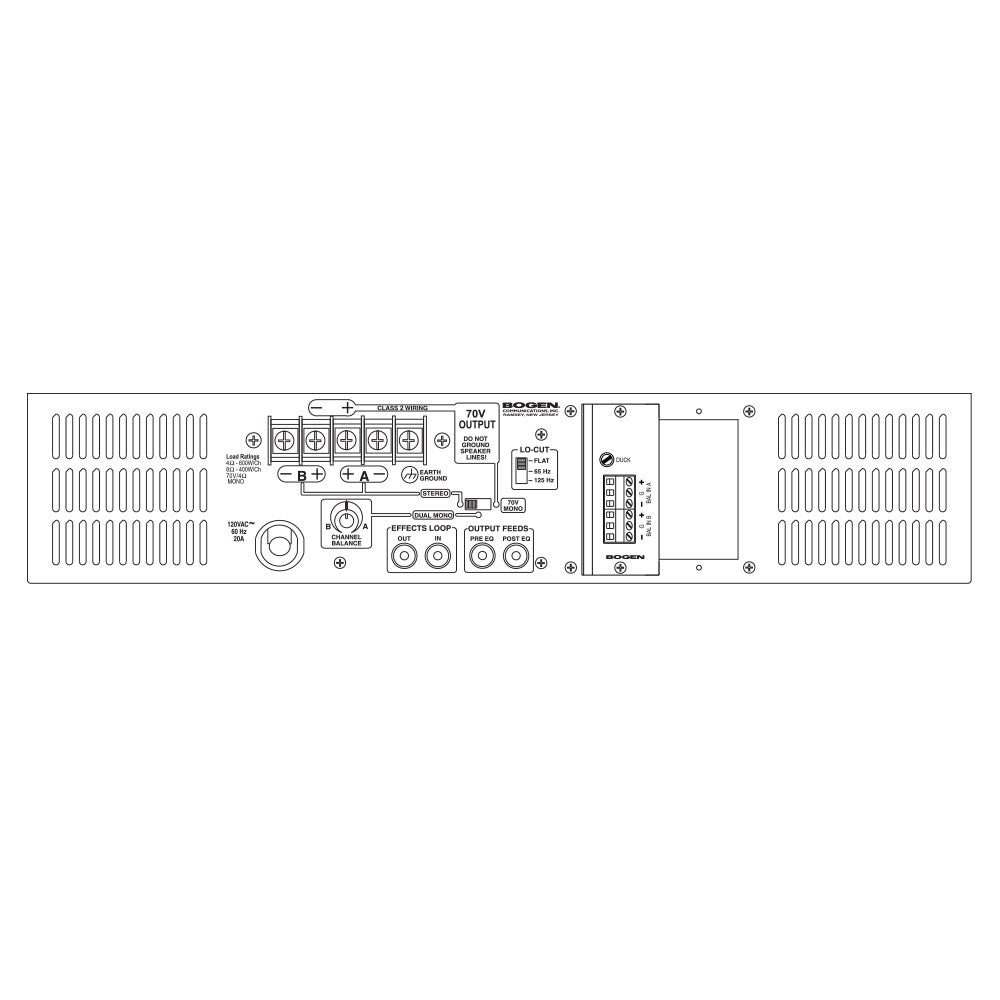

Connectors
Power 20A line cord
Input Dependent on modules installed (stereo, high-impedance balanced input module w/screw terminals included) /RCA (Mono/70V mode, unbalanced)
Output 5-pin "touch-proof" Barrier Strip, RCA Pre- & Post-EQ Output
Power Bandwidth 20 Hz to 40 kHz .5% THD
THD @ 1 kHz rated power less than .02%
Load Impedance 4-8 ohms, 70V
Minimum Load Impedance (Stereo) 3.2 ohms
Frequency Response @ 1 watt 20 Hz to 20 kHz +/- 0.25 dB
Output Regulation 1 kHz direct: 0.5 dB @ 8 ohms
1 kHz bridged: 1.5 dB @ 70V
Inputs (Plug-in modules) Electronically balanced, high-impedance module standard, other modular input types available
AC Input Voltage Range 95 to 130V AC, 60Hz
Maximum AC Current 20A
Indicators Status (On/Protect/Sleep), Clip/Limit, Signal
Temperature Range 15 to 105 degrees F
Thermal Emissions 1913 BTU/hr.
Cooling Forced Air Variable Speed Fan
Physical Dimensions (W x H x D) 17" X 3-1/2" x 18-1/2" (not including brackets)
Protection RF, DC, Low-frequency, Thermal, Low-Impedance, Circuit-Breaker, Short Circuit
Special Features Sleep Mode, Back-Slope regulation, Stereo, Dual Mono, 70V Mono Operation, Toroidal Power Transformer
