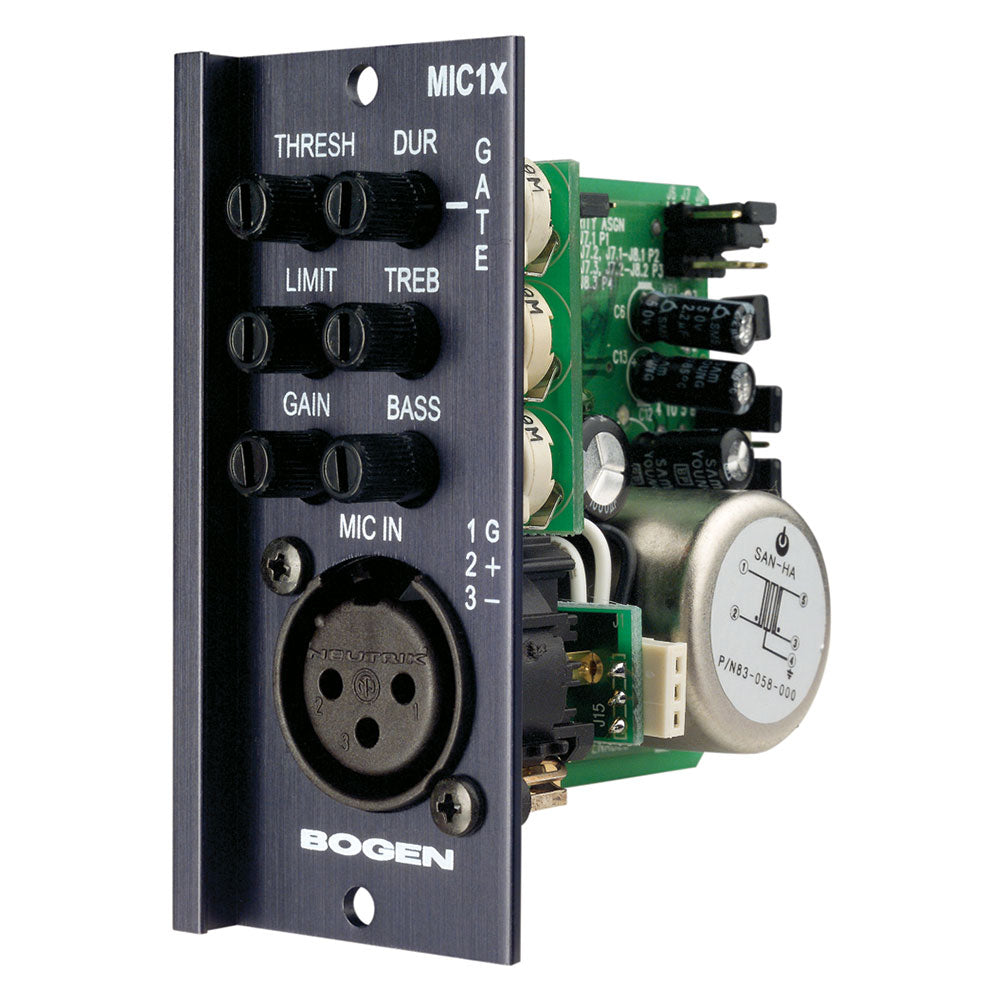

Bogen MIC1X Microphone Input Module with XLR Connection (for Bogen Matrix Systems)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
Bogen's advanced plug-in modules provide a wide range of functions to support a variety of applications. These modules support different signal-source requirements, including the ability to interface to balanced and unbalanced high- and low-level inputs, stereo or mono, telco systems, and microphones.
Features:
- Gain/Trim control
- Bass & Treble controls
- Noise gate w/Threshold & Duration
- Limiter w/Threshold control
- Limiter activity LED
- 24V Phantom power
- Mute send & receive
- 4 Priority levels
- Bus assignable
- Balanced, transformer-isolated
- XLR connector
| Gain | 28 dB to 62 dB |
| Frequency Response | +0/-3 dB, 10 Hz-20 kHz |
| S/N (20 Hz - 20 kHz) | -71 dBV @ 60 dB gain, -131 dBV EIN |
| Distortion | < 0.5%, 20 Hz-20 kHz |
| Input Impedance | 500 ohms |
| Tone | ±10 dB @ 100 Hz / 10 kHz |
| Limit (threshold) | -10 dBV to off |
| Gate Threshold | 3 mV to 30 mV |
| Gate Duration | 0.5s to 5s |
| CMRR | > 80 dB @ 1 kHz |
| Priority | Four levels |
| Phantom Power | 24V DC (defeatable) |
| Controls | Gain, Bass, Treble, Limit, Gate Threshold, Gate Duration |
| Connector | XLR |
| Dimensions | 1-3/8" W x 3-1/8" H x 3-1/2" D |
| Weight | 3.6 oz. |
