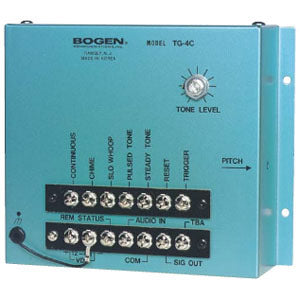

Bogen TG4C Multiple Tone Signal Generator


  • Dale #:

    BOGE-TG4C
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The Model TG4C Multiple Tone Generator is a compact, reliable unit designed to generate four distinct signals: pulsed tone; slow whoop; repeating chime; and steady tone. It is an excellent source for alarm or pre-announce signals in public address or telephone paging systems. The TG4C will accept... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Model TG4C Multiple Tone Generator is a compact, reliable unit designed to generate four distinct signals: pulsed tone; slow whoop; repeating chime; and steady tone. It is an excellent source for alarm or pre-announce signals in public address or telephone paging systems. The TG4C will accept a Hi-Z input from a program source, such as a tuner, turntable, CD player, etc., and will maintain precedence over the program material for the duration of the contact closure.

Features

  • 4 types of tones: steady, pulsed alarm, slow whoop, and chime
  • Tones triggered by external contact closure (momentary or long duration)
  • Choice of continuous or two-burst tone (except for steady tone)
  • Tone generation reset available
  • Adjustable tone level and pitch
  • Operates on 12 - 48V DC, positive or negative ground
  • Built-in precedence over interconnected program source
  • Accessory AC adapter (Model PRS40C) available for operation from a 120V AC, 60 Hz source
  • 600-ohm output
  • Line-matching transformer (Model WMT1A) available for standard 600-ohm telephone line connections
  • Screw terminal connections

More +

Product Specs

Rated Output1 volt RMS
Load Impedance600 ohms or higher
Signal Specifications PulsedSquare wave with cycle On/Off timing of 1.2 seconds on, 0.4 seconds off, 1.6 seconds on, and frequency range of 650-1300 Hz
Slow WhoopSlowly ascending, low to high swept signal with cycle On/Off timing of 1.2 seconds on, 0.4 seconds off, 1.6 seconds on, and frequency range of 500-1200 Hz
ChimeSignal with exponential decay slope of 6.5 seconds, cycle On/Off timing of 0.3 seconds on, 0.7 seconds off, and frequency range of 650-1300 Hz
SteadySquare wave with adjustable frequency range of 650-1300 Hz
Modes of OperationChoice of continuous signal (until interrupted) of any of four types or two bursts of pulsed, slow whoop, or chime tone
ControlsTone Level, Pitch
TerminationScrew terminals
Semiconductors7 ICs, 4 transistors, 21 diodes
Power Requirements12-48V DC (30 mA @ 24V DC), positive or negative ground
Dimensions6-3/4" W x 5-3/4" H x 2" D
Product Weight2 lb.
FinishSilver gray
Associated EquipmentModel PRS40C 120V AC, 60 Hz Power Supply;
Model WMT1A Line-Matching Transformer
