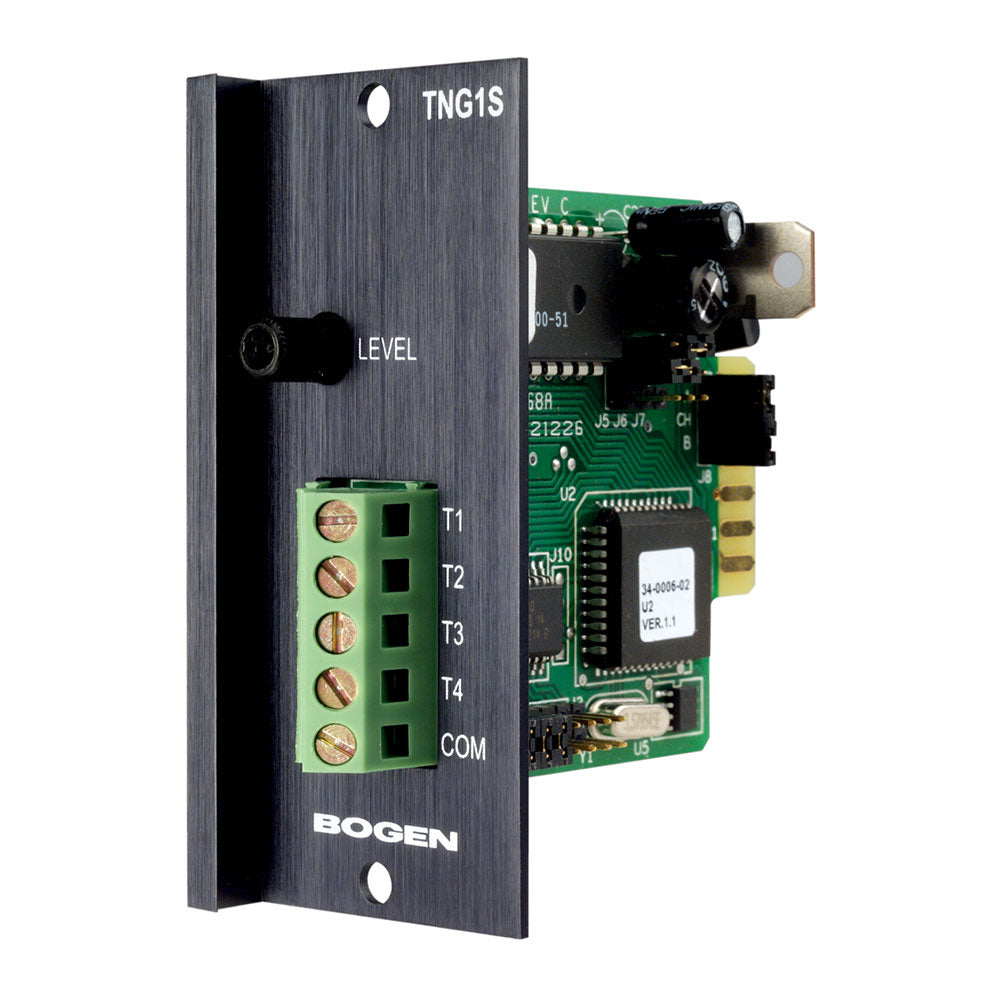

Bogen TNG1 Tone Generator Module (for Bogen Matrix Systems)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Bogen's advanced plug-in modules provide a wide range of functions to support a variety of applications. These modules support different signal-source requirements, including the ability to interface to balanced and unbalanced high- and low-level inputs, stereo or mono, telco systems, and microphones.
Features:
- Select 4 of 8 tones to trigger
- 512 Hz Burst/steady, slow whoop, siren, mechanical bell, Klaxon, night ringer, double chime, & doorbell tones
- Momentary & continuous playback modes
- Screw terminal trigger connections
- Level control
- Microprocessor-controlled operation
- Mute send & receive
- 4 Priority levels
| Max. Output Level | 1.8V |
| Max. Contact Resist. | 100 ohms |
| Tones | 8 total, 4 selectable; 512 Hz Burst/steady, slow whoop, siren, mechanical bell, Klaxon, night ringer, double chime, / doorbell |
| Priority | Four levels |
| Controls | Level |
| Connector | 5-position barrier strip |
| Dimensions | 1-3/8" W x 3-1/8" H x 3-1/2" D |
| Weight | 2 oz. |
Bogen's advanced plug-in modules provide a wide range of functions to support a variety of applications. These modules support different signal-source requirements, including the ability to interface to balanced and unbalanced high- and low-level inputs, stereo or mono, telco systems, and microphones.
Features:
- Select 4 of 8 tones to trigger
- 512 Hz Burst/steady, slow whoop, siren, mechanical bell, Klaxon, night ringer, double chime, & doorbell tones
- Momentary & continuous playback modes
- Screw terminal trigger connections
- Level control
- Microprocessor-controlled operation
- Mute send & receive
- 4 Priority levels
| Max. Output Level | 1.8V |
| Max. Contact Resist. | 100 ohms |
| Tones | 8 total, 4 selectable; 512 Hz Burst/steady, slow whoop, siren, mechanical bell, Klaxon, night ringer, double chime, / doorbell |
| Priority | Four levels |
| Controls | Level |
| Connector | 5-position barrier strip |
| Dimensions | 1-3/8" W x 3-1/8" H x 3-1/2" D |
| Weight | 2 oz. |
