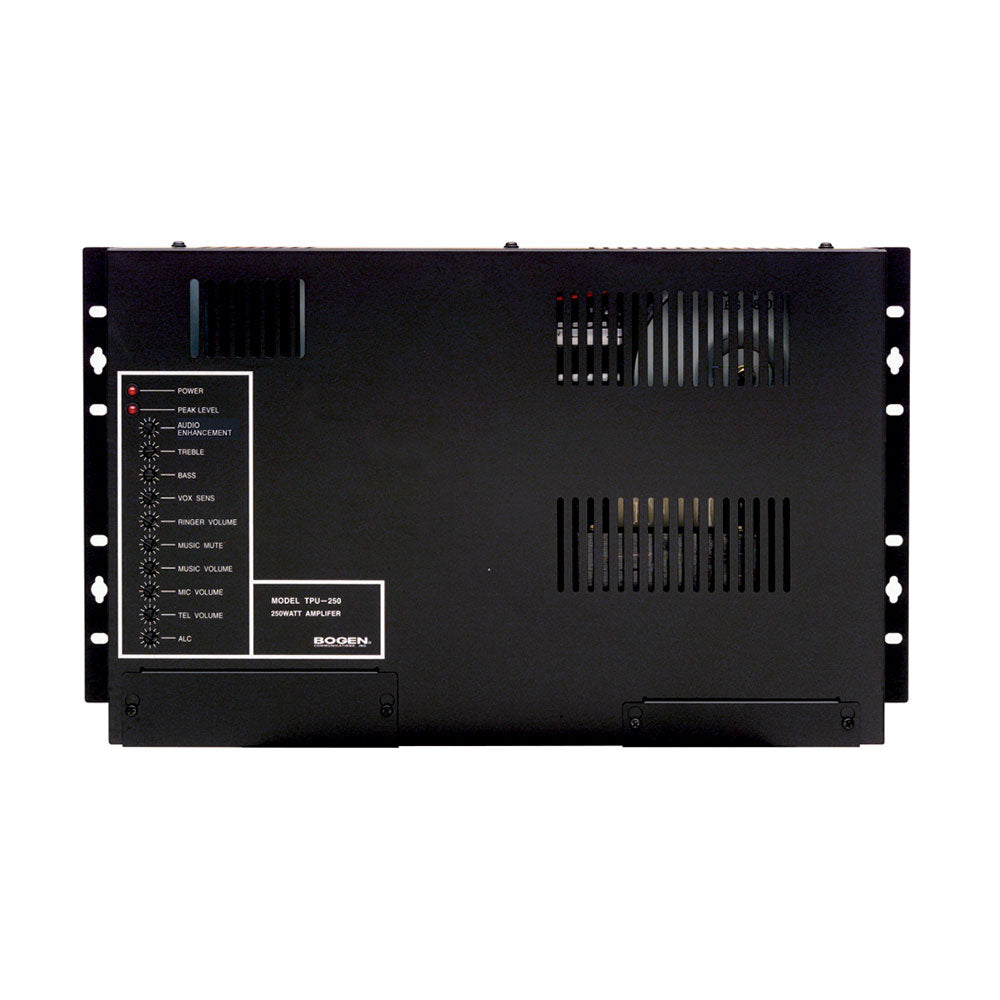

Bogen TPU250 Telephone Paging Amplifier - 250 Watts


  • Dale #:

    BOGE-TPU250
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Bogen TPU models are wall-mounted telephone paging amplifiers. They can also be rack-mounted. These TPU amplifiers permit paging from telephone and/or microphone; music input through an RCA jack or screw terminals; and voice-activated, variable level, music mute with fade back after page. These T... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Bogen TPU models are wall-mounted telephone paging amplifiers. They can also be rack-mounted. These TPU amplifiers permit paging from telephone and/or microphone; music input through an RCA jack or screw terminals; and voice-activated, variable level, music mute with fade back after page. These TPU amps include a night ringer which sends an electronic ringing tone signal through all speakers, alerting personnel of incoming calls. Jacks are also provided to bridge two TPU amplifiers to double the number of inputs and output power.

Features:

  • Inputs for 600-ohm balanced telephone line, Lo-Z balanced microphone, and background music
  • Music input (RCA jack or screw terminals)
  • Integral automatic level control (ALC) circuit for controlling pages made by persons with varying voice levels and paging techniques
  • Page from telephone and/or microphone
  • Signal-activated paging channel automatically mutes background music
  • Adjustable background music muting level during a page
  • Music gradually returns to its normal level after a page
  • Audio Enhancement circuit increases intelligibility, improves perceived loudness (with no increase in power), and reduces listener fatigue
  • Separate controls for page volume, music volume, night ringer, music mute, and Audio Enhancement
  • Bass and treble controls
  • Built-in night ringer activated by contact closure or by 90V ring signal
  • Balanced or unbalanced 16-ohm, 25V, 25V CT, and 70V outputs are available for the TPU35B/60B/100B models; 25V and 70V outputs are available on the TPU250
  • VOX sensitivity level control eliminates accidental transmission of background noise from a paging telephone
  • Thermal and electronic overload protection
  • Jacks provided for bridging additional TPU amplifiers
  • Brackets are attached to each model for easy wall mounting
  • TPU-B models can be rackmounted with RPK82 mounting kit (sold separately)
  • Peak level indicator lights when amplifier is driven into clipping
  • 120V AC, 60 Hz power source
  • Listed to UL Standard 60065 for U.S. & Canada

More +

Product Specs

Power Output 250W RMS
Frequency Response 70 Hz to 15k Hz ±1 dB
Distortion Less than 1%
Hum & Noise (20 Hz to 20 kHz) MUSIC: -70 dB; TEL: -70 dB; MIC: -55 dB
Sensitivity MUSIC: 85mV; TEL: -20 dBm (77mV); MIC: 600μV
Tone Control BASS: ±9 dB @ 100 Hz; TREBLE: ±9 dB @ 10 kHz
Regulation 2 dB
Inputs TEL: 600-ohm balanced line, transformer-isolated
MUSIC: Hi-Z source, RCA jacks or screw terminals
MIC: Lo-Z balanced, screw terminal connection (dynamic only)
MUSIC MUTE: Mutes music when shorted
CONTACT RING: Sounds night ringer tone when customer-supplied dry contacts are closed
TEL RING: Sounds night ringer in response to 90V ring signal
BRIDGING: Permits bridging of two amplifiers
Outputs 25V, 25VCT, and 70V, 16 ohms balanced or unbalanced for 35/60/100-watt models;
25V and 70V for TPU250. Provision for WMT1A line-matching transformer
Controls & Indicators POWER & PEAK LEVEL LED indicators. ENHANCE, TREBLE, BASS, VOX SENS,
RINGER VOLUME, MUSIC MUTE, MUSIC VOLUME, MIC VOLUME, TEL VOLUME, ALC controls (screwdriver-adjustable)
Overload Protection All models have thermal and electronic overload protection.
Electrical Protection 6.0A slow blo fuse, 120V AC circuit breaker
Power Requirements (120V AC, 60 Hz) 5A
Thermal Emissions (Full Power) 853.8 BTU/hr.
Dimensions 19" W x 10-1/2" H x 3-7/8" D
Product Weight 28 lb.
