Bogen V150 Power Vector Series Mixer Amplifier with Modular Inputs - 150 Watts


  • Dale #:

    BOGE-V150
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

Bogen's Power Vector modular amplifiers offer a wide range of power levels from which to choose, with five models from 35W to 250W. The amplifiers are designed to work with both high- (70/25V) and low- (4/8-ohm) impedance speaker systems. Each model includes eight module bays for plug-in input mo... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

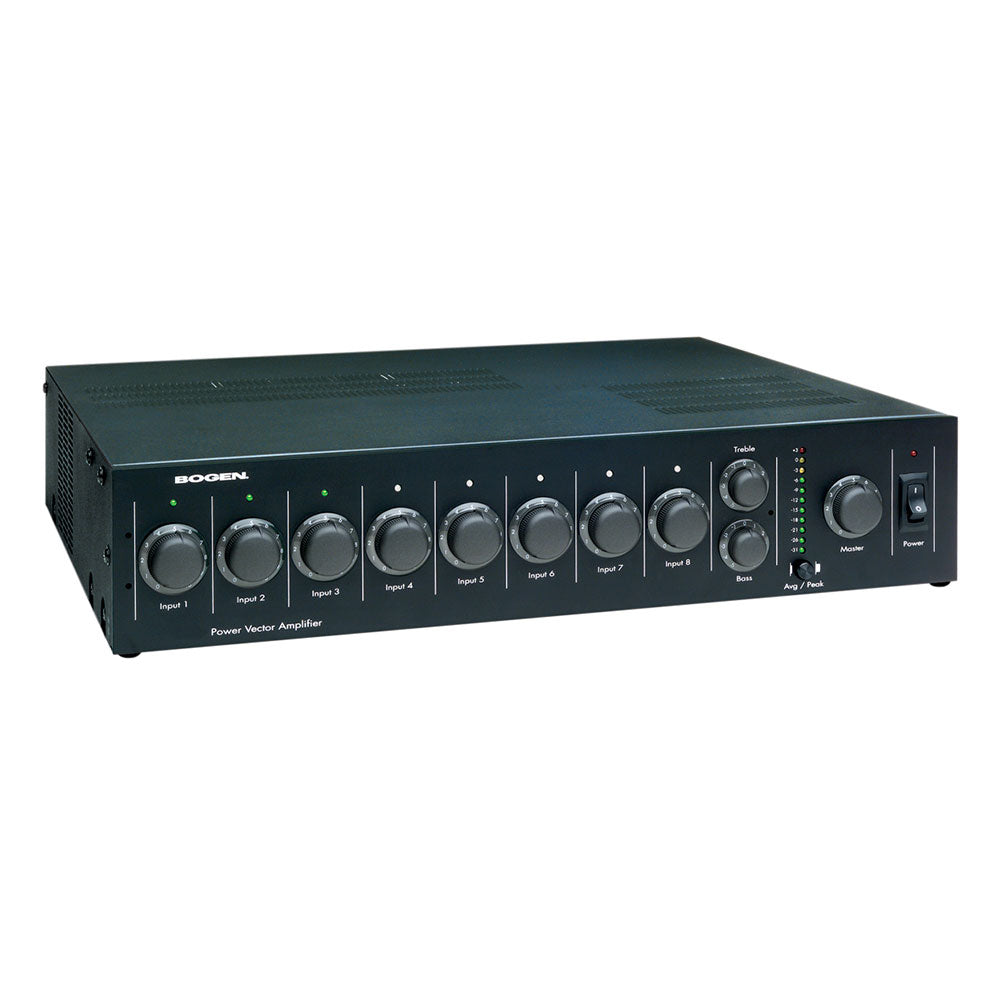

Bogen's Power Vector modular amplifiers offer a wide range of power levels from which to choose, with five models from 35W to 250W. The amplifiers are designed to work with both high- (70/25V) and low- (4/8-ohm) impedance speaker systems. Each model includes eight module bays for plug-in input modules and allows up to four levels of priority between modules. Two module bays are capable of accepting plug-in signal-processing output modules. Each module is controlled by an independent volume control with an associated signal/clip LED for signal status. An 11-segment LED output meter monitors output signal level. Each model includes a motorized master volume control that can be controlled using a remote volume control panel (RVCP, sold separately).

Features:

  • 5 models ranging from 35W to 250W each; a mixer-only version (VMIX) is also available
  • Capable of handling 70V, 25V, 8-ohm, and 4-ohm speaker loads
  • 8 module bays
  • Wide selection of advanced plug-in modules (modules sold separately)
  • 4 levels of priority between modules
  • 2 module bays capable of handling plug-in signalprocessing output modules
  • 11-segment LED output level meter monitors the output level of the power amplifier with Avg./Peak meter switch
  • Motorized master volume control can be remotely operated
  • Lockable switch permits user to select either transformer-coupled outputs or a direct lowimpedance output

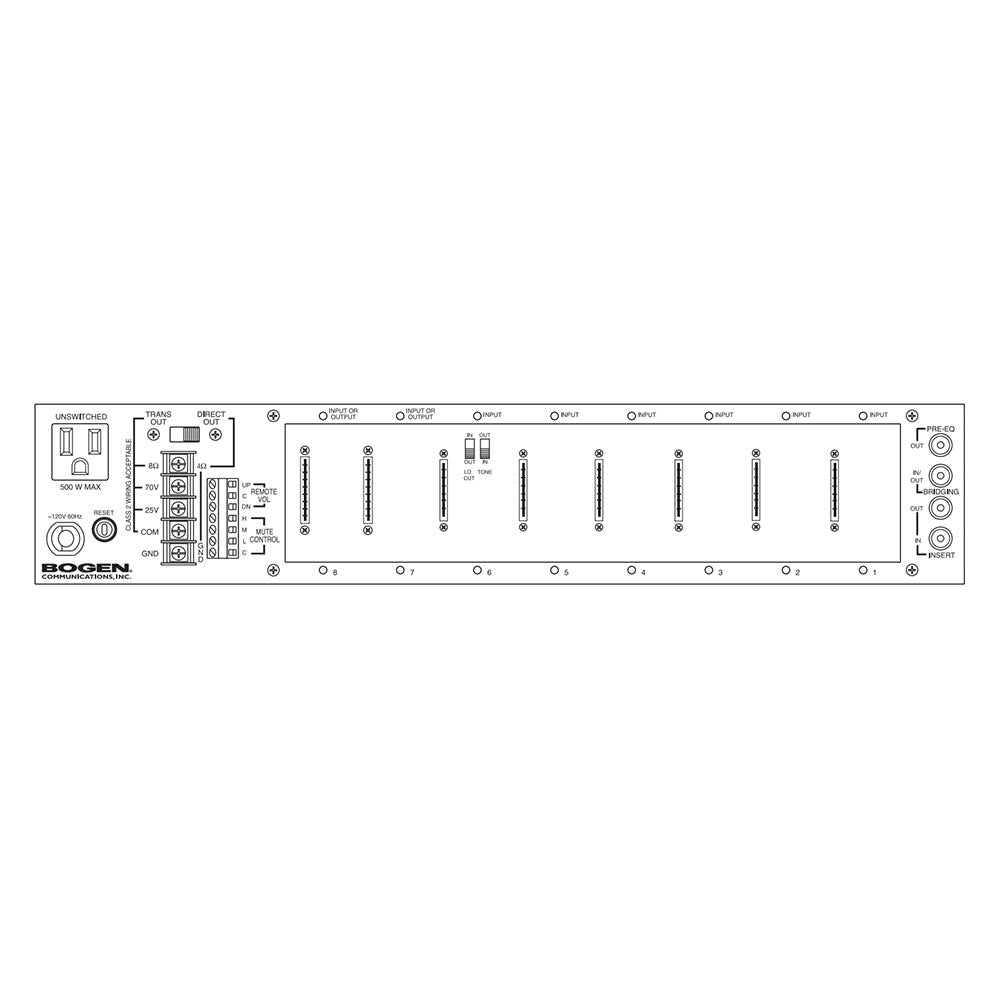

  • 5-position barrier strip, with clamping washers, provides connections for speaker loads
  • Bridging In/Out connector
  • External access to priority mute buses
  • Bridging jack and Mute terminals join multiple Power Vector amps and mixers together
  • Independent volume control for each of the eight module bays
  • Two-color LED for each channel indicates input signal or clipping
  • Bass and treble control with bypass switch (located in module bay 6)
  • 125 Hz Low Cut switch (located in module bay 6)
  • Signal-processing insert jacks allow external equipment to be inserted between the pre-amp output and the power amp input
  • Pre-EQ, unbalanced, buffered output signal (“post” all unit controls, but “pre” any external “Insert” equipment connected)
  • Grounded, unswitched AC convenience receptacle with a 500W maximum capacity provided for external equipment
  • 8 module security cover/filler plates included with amplifier (PVMC)
  • Push-button remote volume control panel (Model RVCP, sold separately)
  • Security cover to selectively protect volume, bass, and treble controls (Model PVSC, sold separately)
  • Rack mountable (with rack mounting kit RPK87, sold separately)
  • 2 rack spaces high (3-1/2")
  • Listed to UL Standard 60065 for U.S. and Canada

More +

Product Specs

Power Output (RMS) Rated: 150W
Typical @ 1KHz: 200W
Frequency Response Transformer: 45 Hz to 20 kHz; +0/-2 dB
Direct: 20 Hz to 20 kHz; +0/-1 dB
Distortion Transformer: < 0.5%
Direct: < 0.1% (.05 typical @ 1 kHz)
Signal-to-Noise Fundamental: -94 dB
With SAX1R Module: -70 dB
With MIC1S Module: -60 dB
With TEL1S Module: -70 dB
Tone Controls Bass Frequency: @100 Hz (+/- 10 dB minimum)
Treble Frequency: @10 kHz (+/- 10 dB minimum)
Low Cut Frequency: @125 Hz (-6 dB/octave)
Sensitivity 0.4V (at backplane connector)
Output Regulation 2 dB or better, no load to full load
Output Impedance Transformer-Coupled: 70V, 25V, 8 ohms (bal or unbal)
Direct Coupled: 4 ohms (minimum)
Thermal Emissions (BTU/hr.) 696.7
Inserts Insert "OUT" Level: 1VRMS (@FRP)
Insert "OUT" Impedance: 50 ohms maximum
Insert "IN" Sensitivity: 1VRMS
Insert "IN" Impedance: 10k ohms minimum
Bridging In/Out Bus Level: 250 mVRMS (@FRP)
Bus Impedance: 10k ohms maximum
Pre-EQ Output Output Level: 4VRMS (@FRP)
Output Impedance: 50 ohms maximum
AC Power Receptacle 500 watts maximum power, unswitched
AC Voltage 120V AC, 60 Hz
AC Current 3.5A
Product Weight (lb.) 31
Dimensions 17-1/4" W x 3-7/8" H x 14-3/4" D
