Description

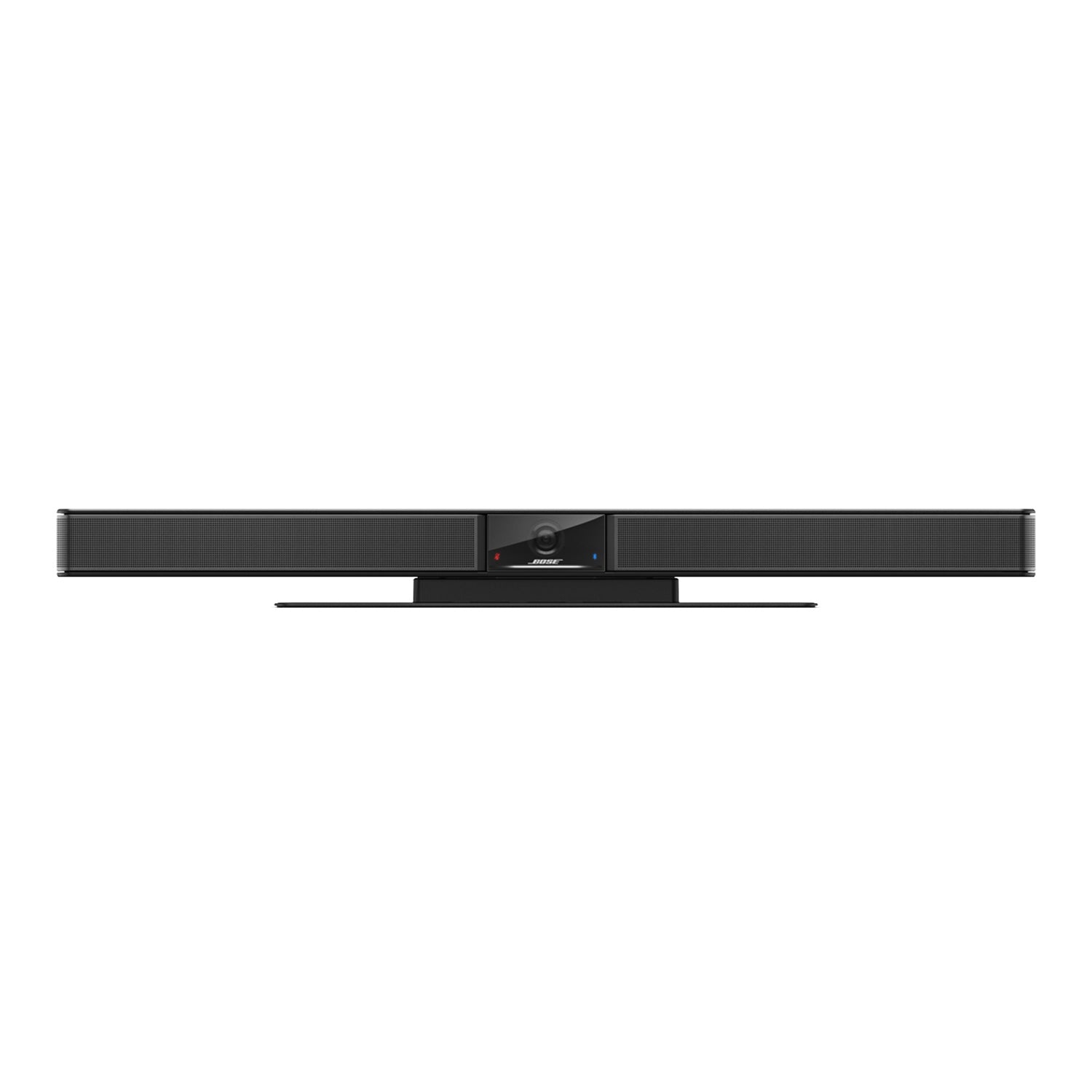

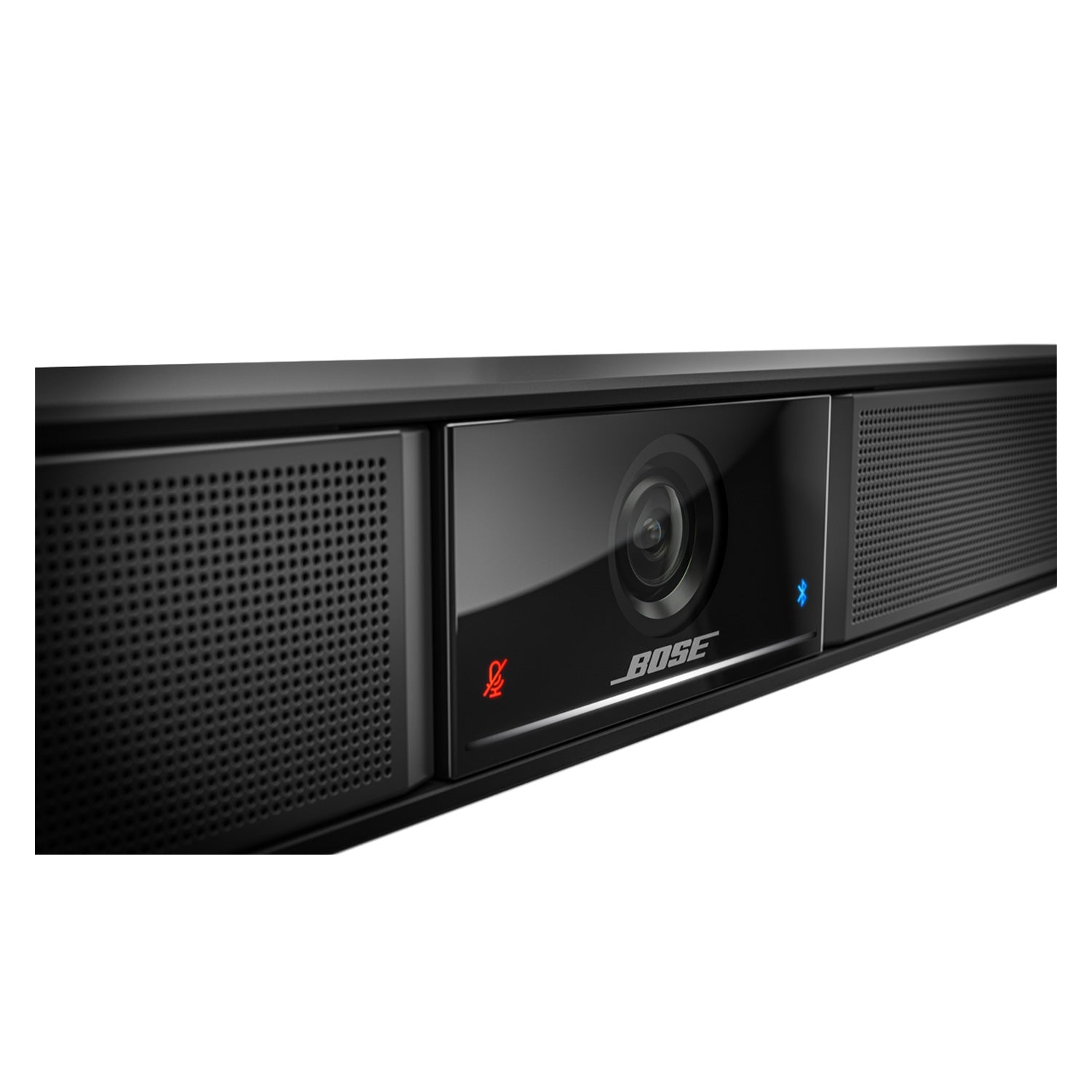

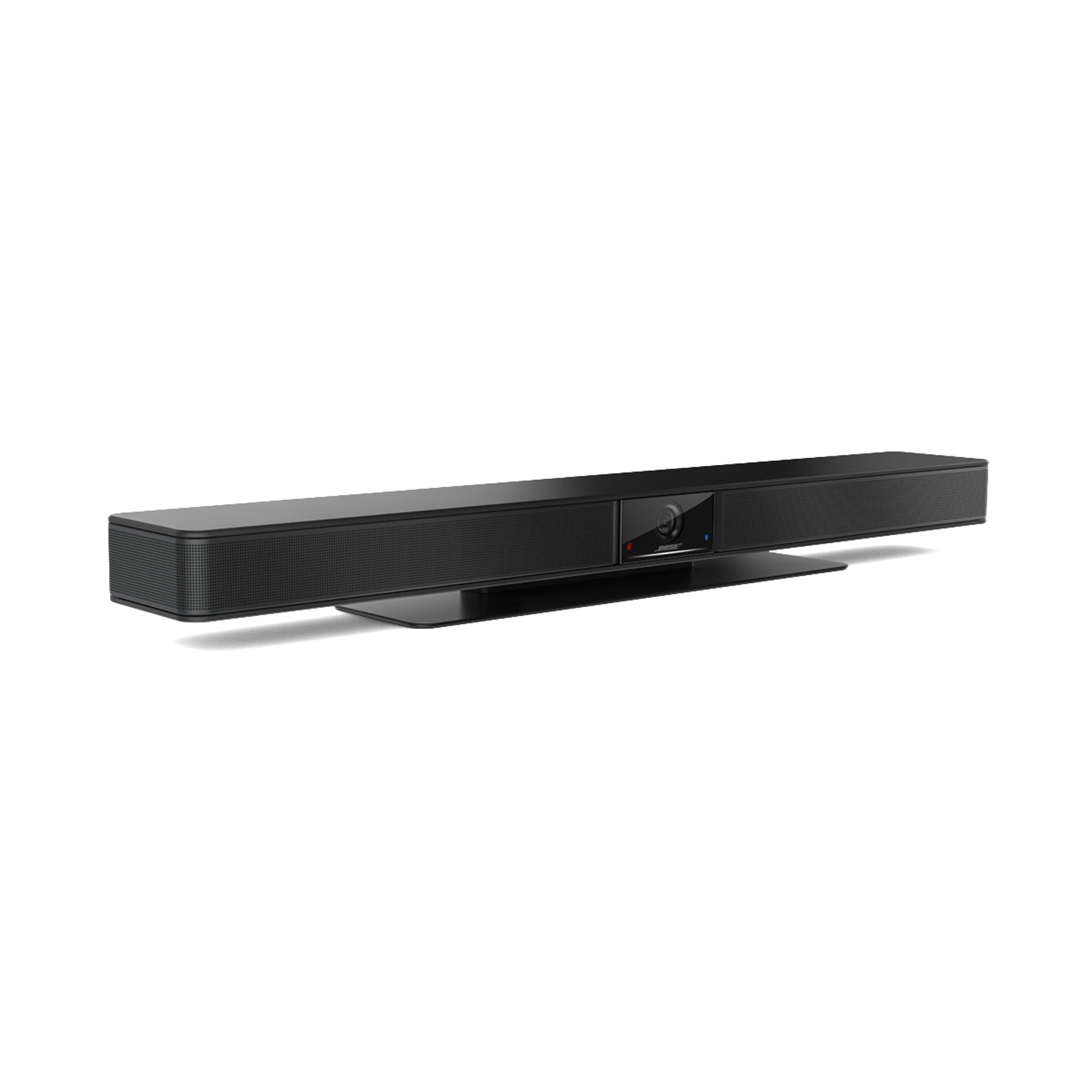

The Bose Videobar VB1 is an all-in-one USB conferencing device that brings premium audio and video to small meeting areas — from huddle spaces to medium-sized rooms. Be seen clearly. Be heard and understood fully. Six beam-steering microphones automatically focus on voices in the room and reject noise. A 4K ultra-HD camera with autoframing delivers crystal-clear video, helping remote participants feel like they're in the room. Proprietary Bose sound supports multimedia presentations, plays Bluetooth® audio, and ensures voices on the call sound natural. Single-cable connectivity means there's no need for separate audio and video cables at the table, reducing clutter. Whether it's a quick morning check-in or a fullafternoon workshop, the Bose Videobar VB1 helps you huddle up, see more, hear more, and work better.
Features:
- Bring the Bose experience to huddle spaces and medium-sized conference rooms with an all-in-one solution that requires minimal setup and delivers premium audio and video performance
- Make conversation more natural with six beam-steering microphones that actively focus on voices and reject noise; and auto EQ that delivers optimized audio to all participants
- Communicate and be seen more clearly — a 4K ultra-HD camera with autoframing allows everyone to see and understand the presenter, whiteboard, flipchart, or other in-room objects — and feel more like they're together in the same room
- Bring enhanced video and audio performance to popular Unified Communications platforms such as Microsoft Teams, Google Meet, Zoom, and more
- Support multimedia presentations with premium audio with Bose-proprietary transducers that deliver room-filling sound from a USB-connected laptop or wireless Bluetooth device
- Clean up the conferencing experience with single-cable connectivity that eliminates clutter and an elegant low-profile design that complements the room and improves aesthetics
- Mount easily in multiple ways with included table stand and wall-mount kit or optional mud ring and display mounting kit
- Connect to existing network infrastructure, making installation and troubleshooting faster and allowing for remote updates, management, and monitoring
- Configure easily with Bose Work Configuration software, available as an app or via web browser; and manage remotely with the Bose Work Management software which displays real-time status and allows for easy single-unit or system-wide changes
- Control settings in real time from a smartphone using the Bose Work mobile app to easily adjust volume, mute, pan, tilt, zoom, zoom presets, and Bluetooth pairing
- Easily connect a smartphone via Bluetooth connectivity to use as a standalone speakerphone or stream music
LOUDSPEAKER ARRAY | |
Configuration | Stereo loudspeakers, ported enclosure |
Amplifier Power | 20 W per channel, < 0.3% distortion over frequency range |
Frequency Response (Ð10 dB) | 85 Ð 20,000 Hz |
Maximum SPL @ 1 m | 89 dB (IEC 60268-5, mono input, wall-mounted) |
MICROPHONE ARRAY | |
Configuration | 6 microphones |
Frequency Response (±3 dB) | 20 Ð 15,000 Hz |
Pickup Range | 6.0 m (19.7 ft) |
Technology | Static and adaptive dynamic beam-forming, 3 exclusion zones, stereo acoustic echo cancellation (AEC), digital noise suppression |
CAMERA AND VIDEO | |
Field of View (FOV) | 123¡ diagonal _ 115¡ horizontal _ 81¡ vertical |
Image Sensor | 8 MP |
Focus Distance | 0.5 m (1.6 ft) to ´ |
Lens | Up to 5x digital zoom, detachable camera privacy cover (included) |
Positioning | Autoframing capability or manual pan-tilt-zoom (PTZ) with 3 configurable presets (Home, 1, 2) |
Processing | Automatic white balance, automatic brightness, digital noise reduction |
USB Device Video Class (UVC) | v1.1 |
Supported Video Resolutions | UHD 2160p (4K), 1080p, 720p, 960_480, 848_480, 640_480, 640_360, 432_240 (30 fps) |
Video Encoding | H.264, M-JPEG |

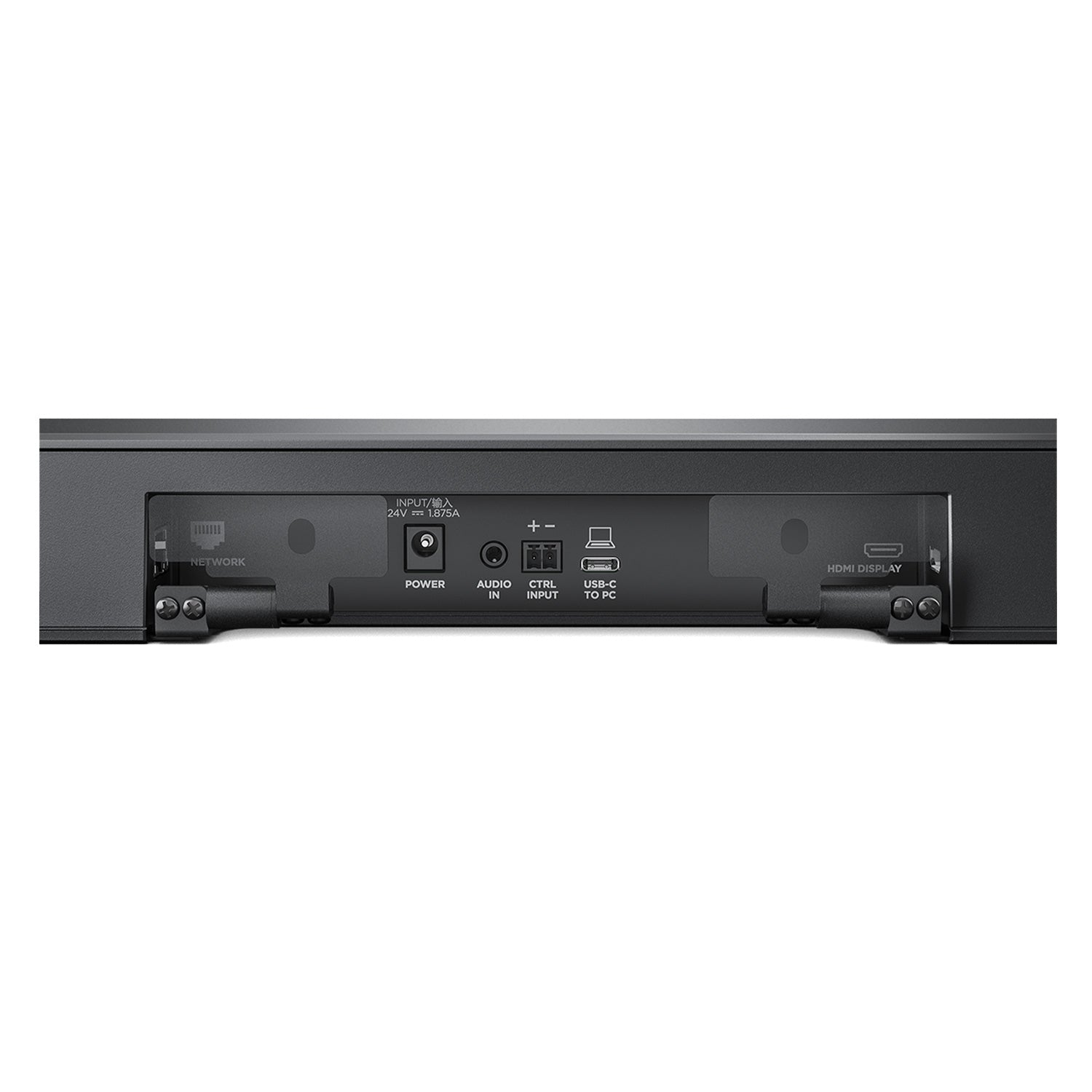

CONNECTIONS | |
USB | USB Type-C¨ to host computer (with DisplayLink) (USB 3.0 UAC, UVC, HID) |
Network | Wired: RJ-45, 1 Gbps Ethernet (IEEE 802.3) Wireless: Wi-Fi 802.11ac |
Bluetooth | Bluetooth 4.2 HSP, A2DP, AVRCP, BLE |
Display | HDMI 1.4b and 2.1 output (to display, from host computer) |
Analog Audio | Stereo 3.5 mm (1/8 in) input |
General Purpose | 2-pin Euroblock general-purpose input |
Power | Via external power supply with localized power cord (included) Input: 110 Ð 240 VAC, 50/60 Hz, 1.5 A max. Output: 24 VDC, 1.875 A |
SOFTWARE APPLICATIONS | |
Control/Configuration | Bose Work Configuration software (available for Windows and macOS or via web browser) Bose Work Management software (available for Windows) Bose Work mobile app (available for iOS and Android) |
SYSTEM REQUIREMENTS | |
Operating System | Windows 7, 8.1, or 10 macOS 10.10 or higher Chrome OS (Google Chromebook) |
REGULATORY | |
Safety | IEC/UL/EN 60065:2014/A11:2017, IEC/UL/EN 62368-1:2014/A11:2017 |
EMC | FCC Part 15B Class B, ICES-003 Class B, CISPR 13, EN55032 Class B, EN55035, EN61000-3-2, EN61000-3-3, BSMI CNS13439 |
Wi-Fi and Bluetooth | FCC Part 15C, RSS-GEN, RSS-247, RSS-102, EN300328, EN301893, EN301489 |
Environmental | RoHS |
PHYSICAL | |
Operating Temperature | 0 ¡C to 40 ¡C (32 ¡F to 104 ¡F), 90% non-condensing humidity |
Storage Temperature | -40 ¡C to 70 ¡C (-40 ¡F to 158 ¡F), 93% relative humidity |
Mounting | Table stand with Kensington lock slot and mounting hardware (included) Wall-mount bracket with mounting hardware (included) Display mounting kit (optional) Mud ring (optional) |
Product Dimensions (Width _ Height _ Depth) | 686 mm _ 48 mm _ 96 mm (27.0 in _ 1.9 in _ 3.8 in) |
Net Weight | 2.5 kg (5.6 lb) |
Shipping Weight | 5.4 kg (12.0 lb) |
Included Accessories | Bose Videobar VB1 HDMI 2.0 cable, 1.5 m (4.9 ft) USB-C¨ 2.0 cable, 5.0 m (16.5 ft) Infrared remote control with 2 AAA batteries Wall-mount bracket with mounting hardware Table stand with hardware Power supply with localized power cord Cable management kit with mounting hardware Camera privacy cover USB-A-to-C adapter 2-pin Euroblock connector Quick start guide, table-mount setup guide, wall-mount setup guide, safety instructions |
Optional Accessories | Display mounting kit Right-angle USB 3.1 cable, 2.0 m (6.5 ft) Mud ring |
