CEDAR Audio ADA - Stereo AD - DA Converter
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

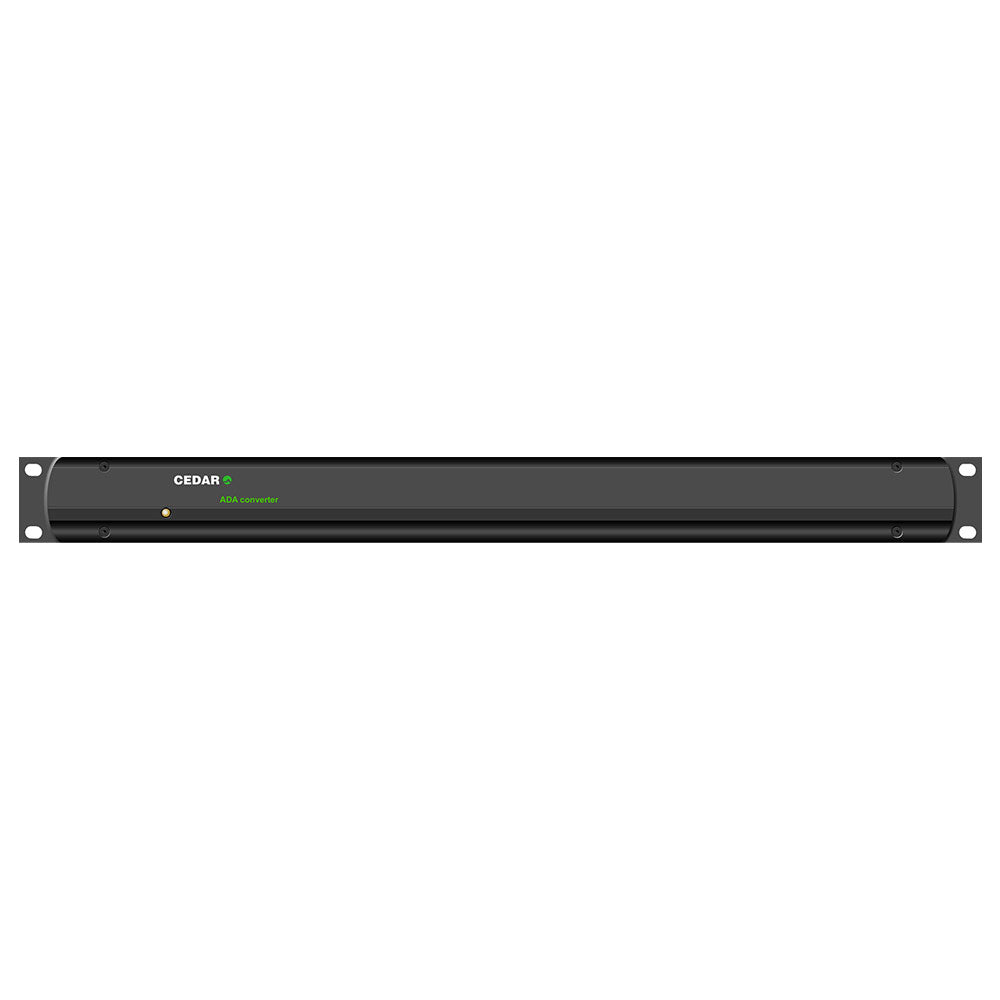

The CEDAR ADA is a 24-bit, 96kHz 1U rackmount unit that produces an AES/EBU or SPDIF digital audio output from a balanced or unbalanced analogue stereo audio input. It also produces a stereo balanced or unbalanced analogue output from an incoming AES/EBU or SPDIF digital input signal.

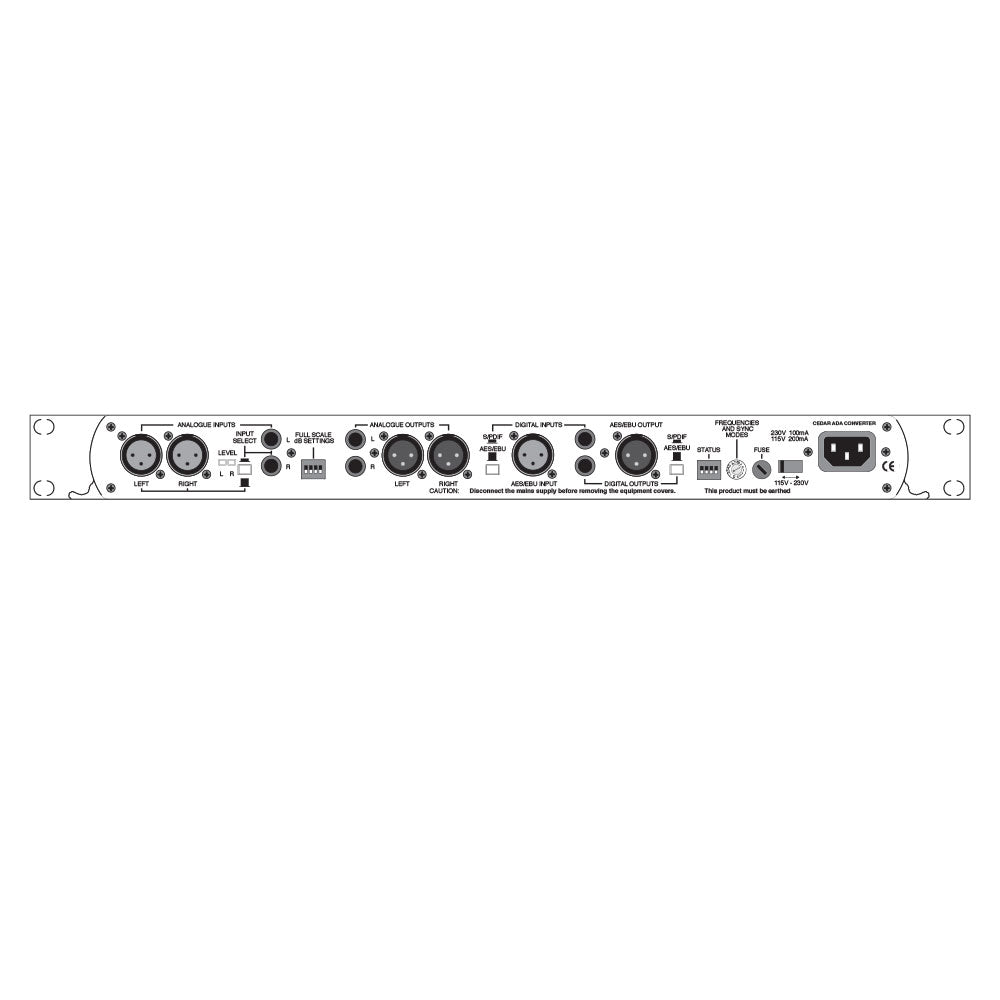

| A/D Connections | |
| Analogue Inputs | 2 x XLR 3-pin (balanced) (L / R) 2 x RCA phono (unbalanced) (L / R) |
| Digital Outputs | 1 x AES/EBU XLR 3-pin plug 1 x SPDIF RCA phono socket |
| A/D Audio Specification | |
| Maximum Input Level | +27dBu (balanced inputs) |
| Maximum Input Level | +17dBu (unbalanced inputs) |
| Input Impedance | >10k½ bridging (balanced inputs) |
| Input Impedance | >20k½ (unbalanced inputs) |
| Input Levels | User selectable +12dBu, +18dBu, +24dBu for FSD |
| Gain Range | Adjustable 3dB loss to 3dB gain (L and R adjust) |
| Signal to Noise | Better than 109dBfs (RMS A-weighted at 24bit) |
| Dynamic Range | >110dB |
| D/A Connections | |
| Digital Inputs | 1 x AES/EBU XLR 3-pin socket 1 x SPDIF RCA phono |
| Analogue Outputs | 2 x XLR 3-pin male (balanced) (L / R) 2 x RCA phono (unbalanced) (L / R) |
| D/A Audio Specification | |
| Max Output Level | +24dBu (balanced outputs) |
| Max Output Level | +14dBu (unbalanced outputs) |
| Output Impedance | <50½ (balanced outputs) |
| Output Impedance | <75½ (unbalanced outputs) |
| Dynamic Range | >100dB |
| Output Level (bal) | User selectable 12dBu, 18dBu or 24dBu |
| Output Level (unbal) | User selectable 2dBu, 8dBu or 14dBu |
| Mains Power | |
| Mains Input | IEC, 110-120VAC or 220-240VAC switchable, 50-60Hz |
| Consumption | 10W max |
| Physical | |
| Dimensions | 480mm (W) x 108mm (D) x 44mm (H) (nominally 1U) |
| Dimensions (Boxed) | 530mm (W) x 205mm (D) x 60mm (H) |
| Weight | 2.2kg (Gross) 1.6kg (Net) |
The CEDAR ADA is a 24-bit, 96kHz 1U rackmount unit that produces an AES/EBU or SPDIF digital audio output from a balanced or unbalanced analogue stereo audio input. It also produces a stereo balanced or unbalanced analogue output from an incoming AES/EBU or SPDIF digital input signal.
| A/D Connections | |
| Analogue Inputs | 2 x XLR 3-pin (balanced) (L / R) 2 x RCA phono (unbalanced) (L / R) |
| Digital Outputs | 1 x AES/EBU XLR 3-pin plug 1 x SPDIF RCA phono socket |
| A/D Audio Specification | |
| Maximum Input Level | +27dBu (balanced inputs) |
| Maximum Input Level | +17dBu (unbalanced inputs) |
| Input Impedance | >10k½ bridging (balanced inputs) |
| Input Impedance | >20k½ (unbalanced inputs) |
| Input Levels | User selectable +12dBu, +18dBu, +24dBu for FSD |
| Gain Range | Adjustable 3dB loss to 3dB gain (L and R adjust) |
| Signal to Noise | Better than 109dBfs (RMS A-weighted at 24bit) |
| Dynamic Range | >110dB |
| D/A Connections | |
| Digital Inputs | 1 x AES/EBU XLR 3-pin socket 1 x SPDIF RCA phono |
| Analogue Outputs | 2 x XLR 3-pin male (balanced) (L / R) 2 x RCA phono (unbalanced) (L / R) |
| D/A Audio Specification | |
| Max Output Level | +24dBu (balanced outputs) |
| Max Output Level | +14dBu (unbalanced outputs) |
| Output Impedance | <50½ (balanced outputs) |
| Output Impedance | <75½ (unbalanced outputs) |
| Dynamic Range | >100dB |
| Output Level (bal) | User selectable 12dBu, 18dBu or 24dBu |
| Output Level (unbal) | User selectable 2dBu, 8dBu or 14dBu |
| Mains Power | |
| Mains Input | IEC, 110-120VAC or 220-240VAC switchable, 50-60Hz |
| Consumption | 10W max |
| Physical | |
| Dimensions | 480mm (W) x 108mm (D) x 44mm (H) (nominally 1U) |
| Dimensions (Boxed) | 530mm (W) x 205mm (D) x 60mm (H) |
| Weight | 2.2kg (Gross) 1.6kg (Net) |
