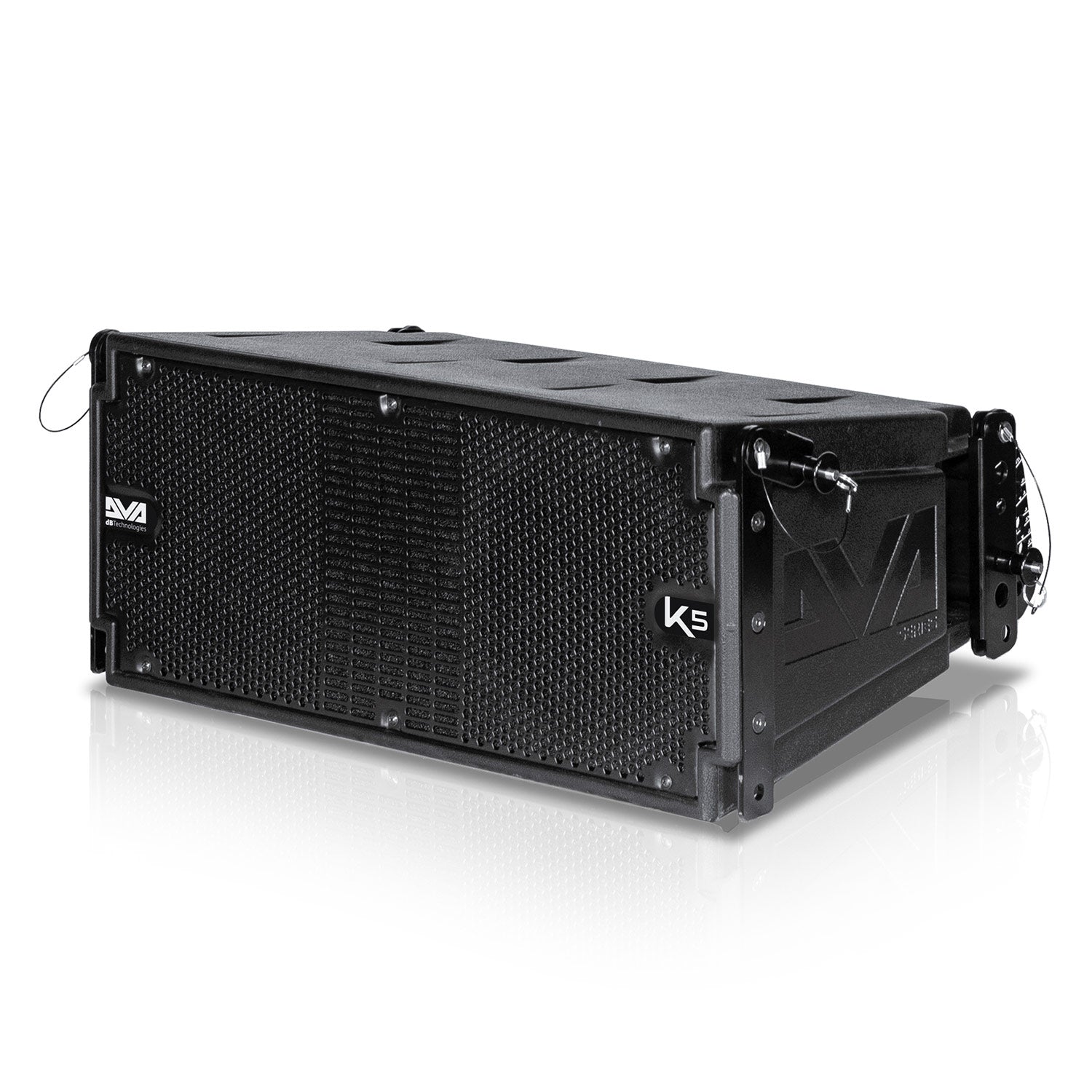

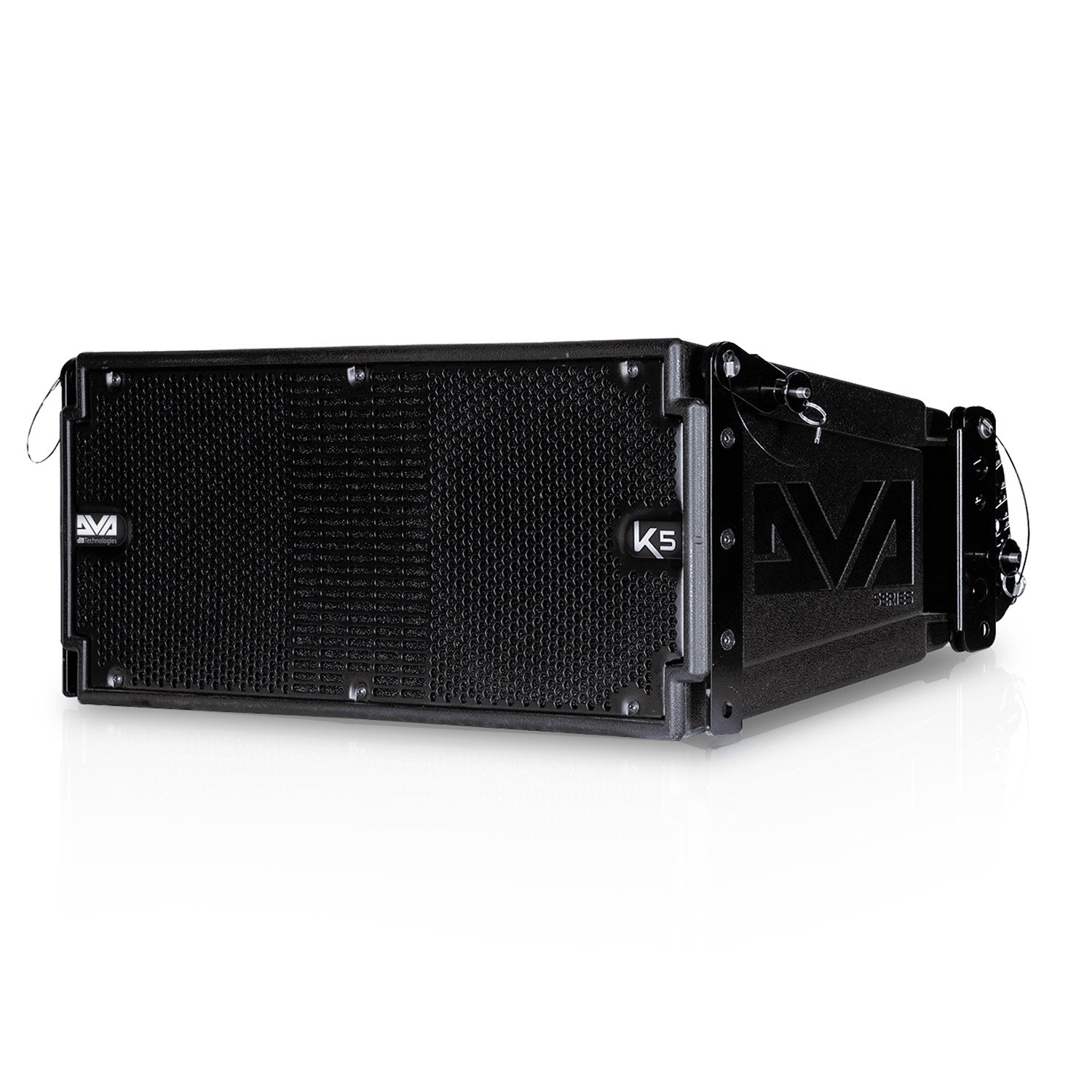

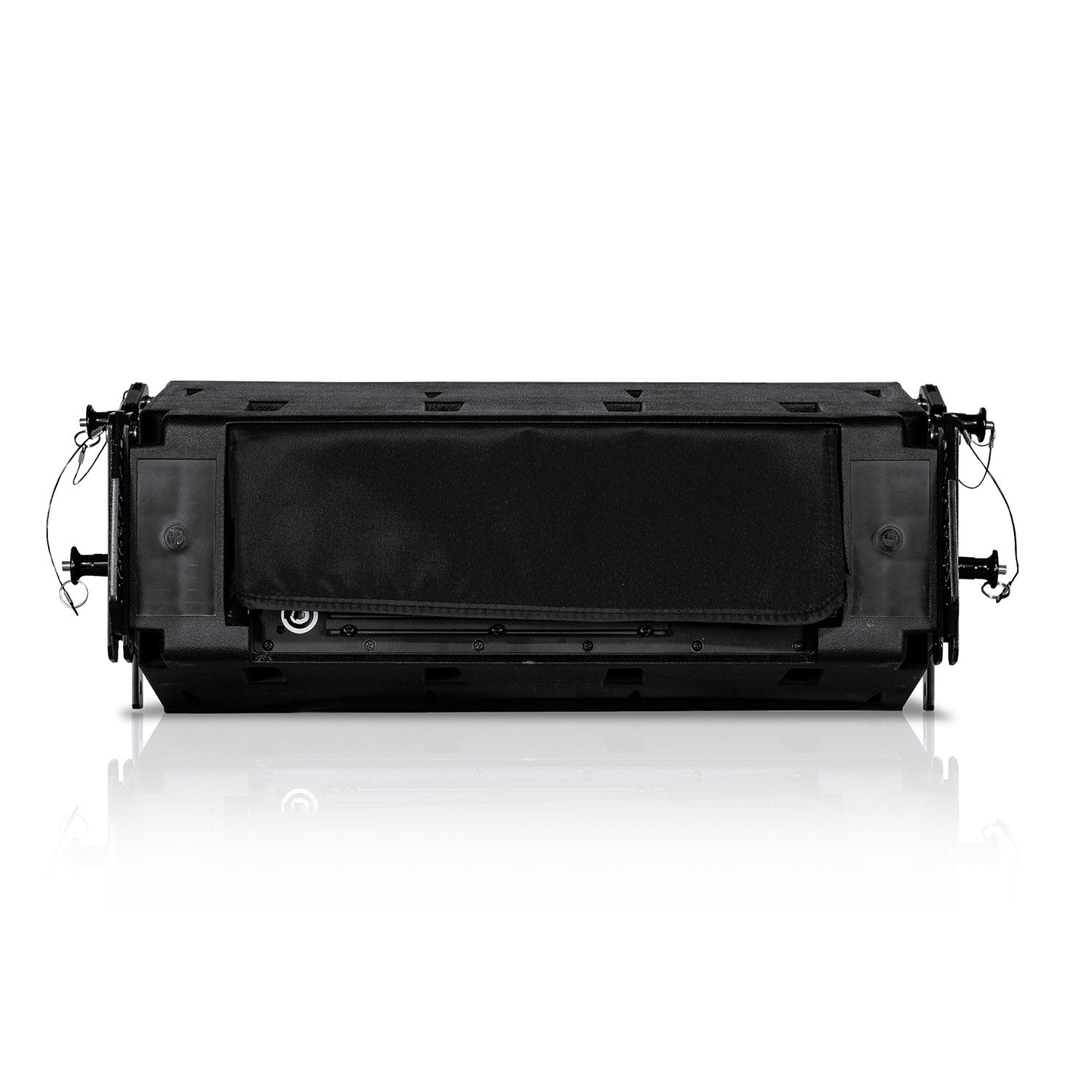

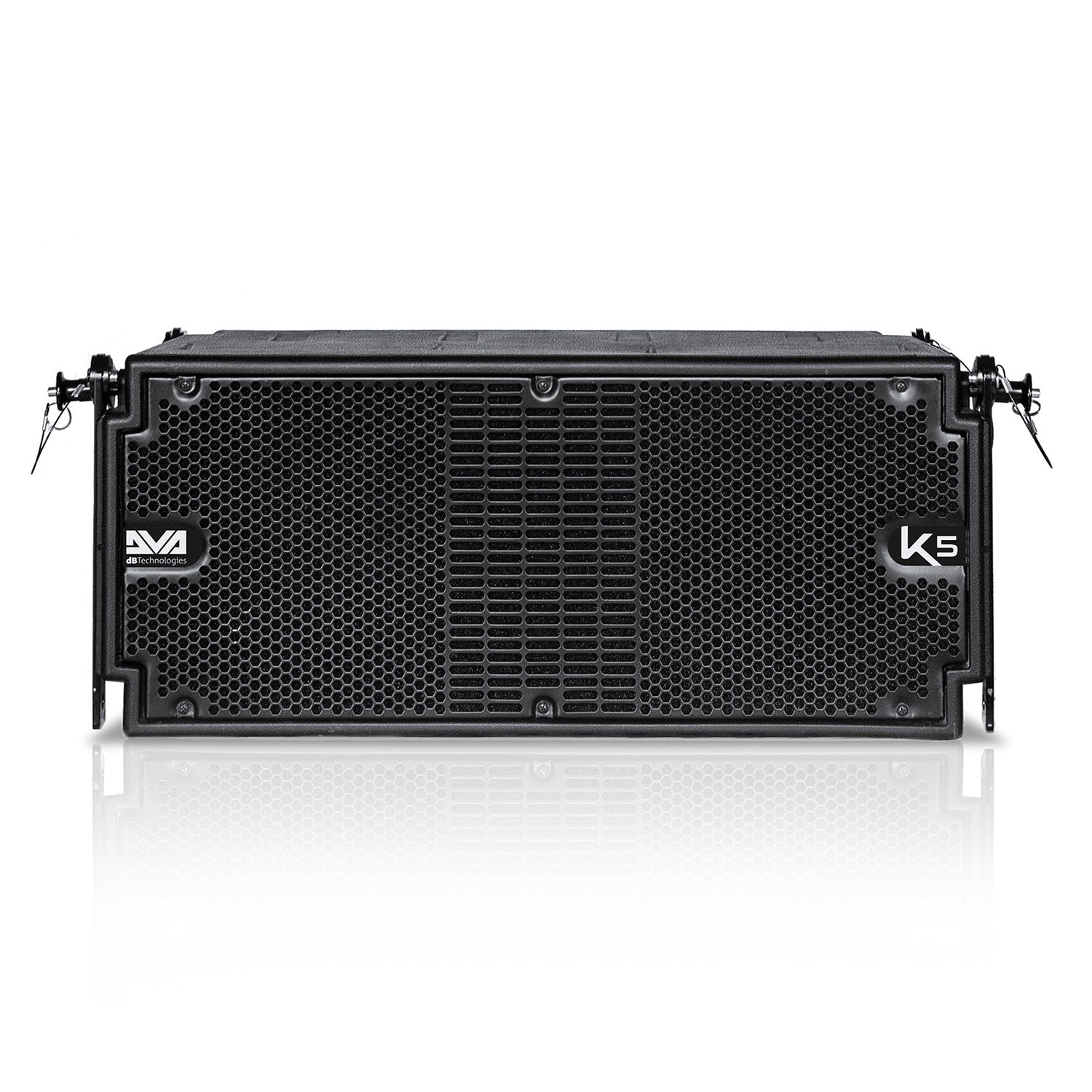

dBTechnologies DVA K5 - 3 Way Active Line Array Module
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The DVA K5 active line-array module is a 3-way speaker designed by building upon the innovation and professional quality of the DVA series. The 2 1" compression drivers (voice coil: 1.4"), 1 6.5" mid-range (voice coil: 2"), 1 8" woofer (voice coil: 2.5") are housed in a polypropylene cabinet, reinforced by a metal frame optimising its sound performance. The DSP, controlling the next-generation amplifier DIGIPRO G3, allows to easily and accurately configure the line-array sound behaviour according to: number of modules, angles of installation between the K5 modules, distance between line-array and audience. When coupled with the new DVA KS series subwoofers, finally, the module can meet all professional needs, in any context and installation.
Features:
- Powerful and noiseless amplification section , thanks to the new DIGIPRO G3 D-class amplifier, requiring no active ventilation
- SPL (peak) of 129 dB
- High-quality transducers, sound design optimised for line-array use, full-range frequency response for professional use
- Equipped as standard with pins and built-in brackets, pre-drilled and graduated, for easy, accurate and ready assembly / disassembly in a line-array configuration
- Quick and accurate DSP configuration through 2 rotary encoders, optimising coupling and high frequency compensation
- Easy to handle and transport
- Lightweight, thanks to the polypropylene box and to the use of neodymium magnet components
| Frequency Response [+- 3 dB] | 70 - 19000 Hz |
| Max SPL | 129 dB |
| HF | 2x 1” (Voice coil:1.4”) |
| Type HF | Ceramic |
| MF | 1x 6.5” (Voice coil: 2”) |
| LF | 1x 8” (Voice coil: 2.5”) |
| Type MF- LF | Neodymium |
| Crossover Frequency | 340 Hz (Low / Mid), 1800 Hz (Mid / High) |
| Amplifier Type | Digipro G3 |
| Amplification Class | D class |
| Amplification Power (Peak) | 1,000 W |
| Amplification Power (RMS) | 500 W |
| Power Supply | SMPS with PSU Auto-Range |
| Power Supply Connector | PowerCON In / Link |
| Cooling Technique | Convection |
| Internal Controller | DSP 25/56 bit/48 kHz |
| Advanced Functions | FIR filters |
| Limiter | Peak, Thermal |
| Controls | Sensitivity control, 2 8-position rotaries |
| Led | Limiter, Signal, Mute / prot, Ready |
| Power Supply Inputs and Links | PowerCON In / Link |
| Audio Input | 1x XLR IN, balanced |
| USB | 1x USB MINI, type B |
| Audio Output | 1x XLR link OUT, balanced |
| Material | metal-reinforced polypropylene |
| Grid | NC machining |
| Handles | built-in |
| Connecting Points | built into the cabinet |
| Direct Installation on Pole | No, with accessories only |
| Width | 580 mm (22.83 inch.) |
| Height | 240 mm (9.45 inch.) |
| Depth | 327 mm (12.87 inch.) |
| Weight | 14,7 kg (32,41 lbs) |
