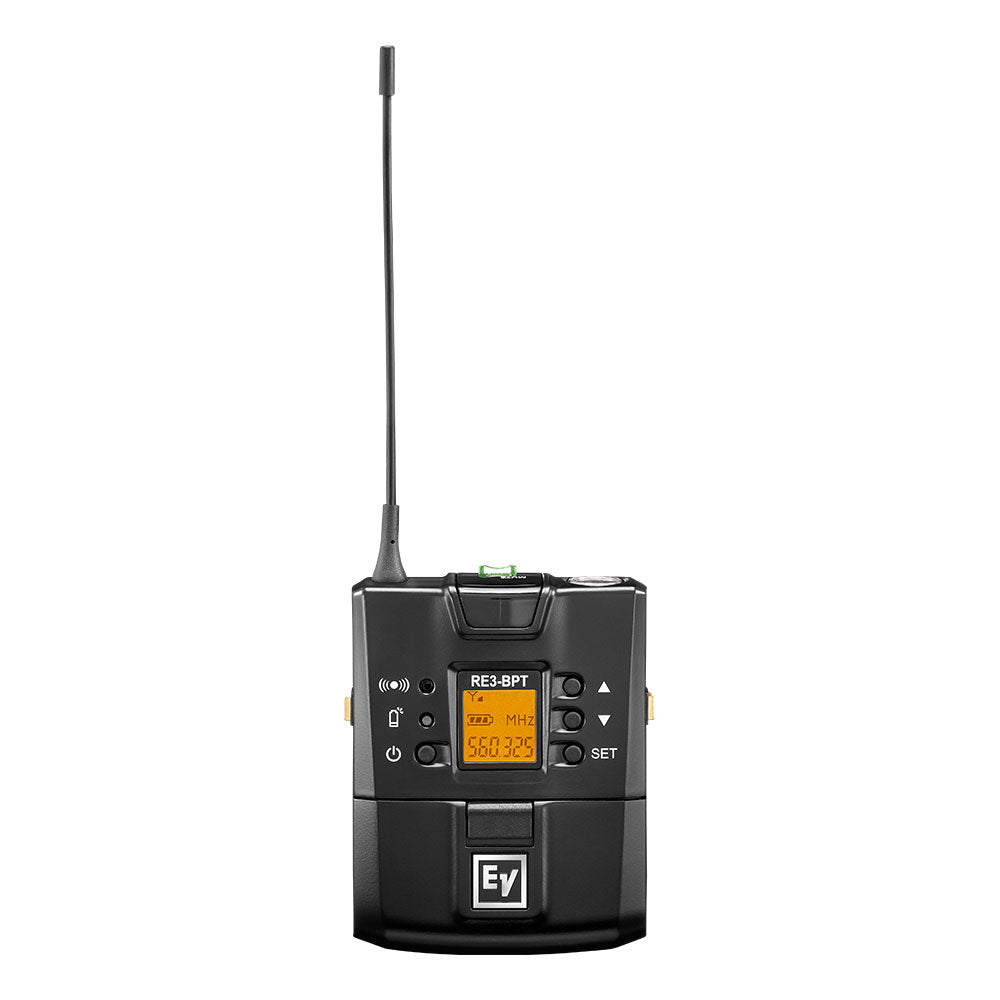

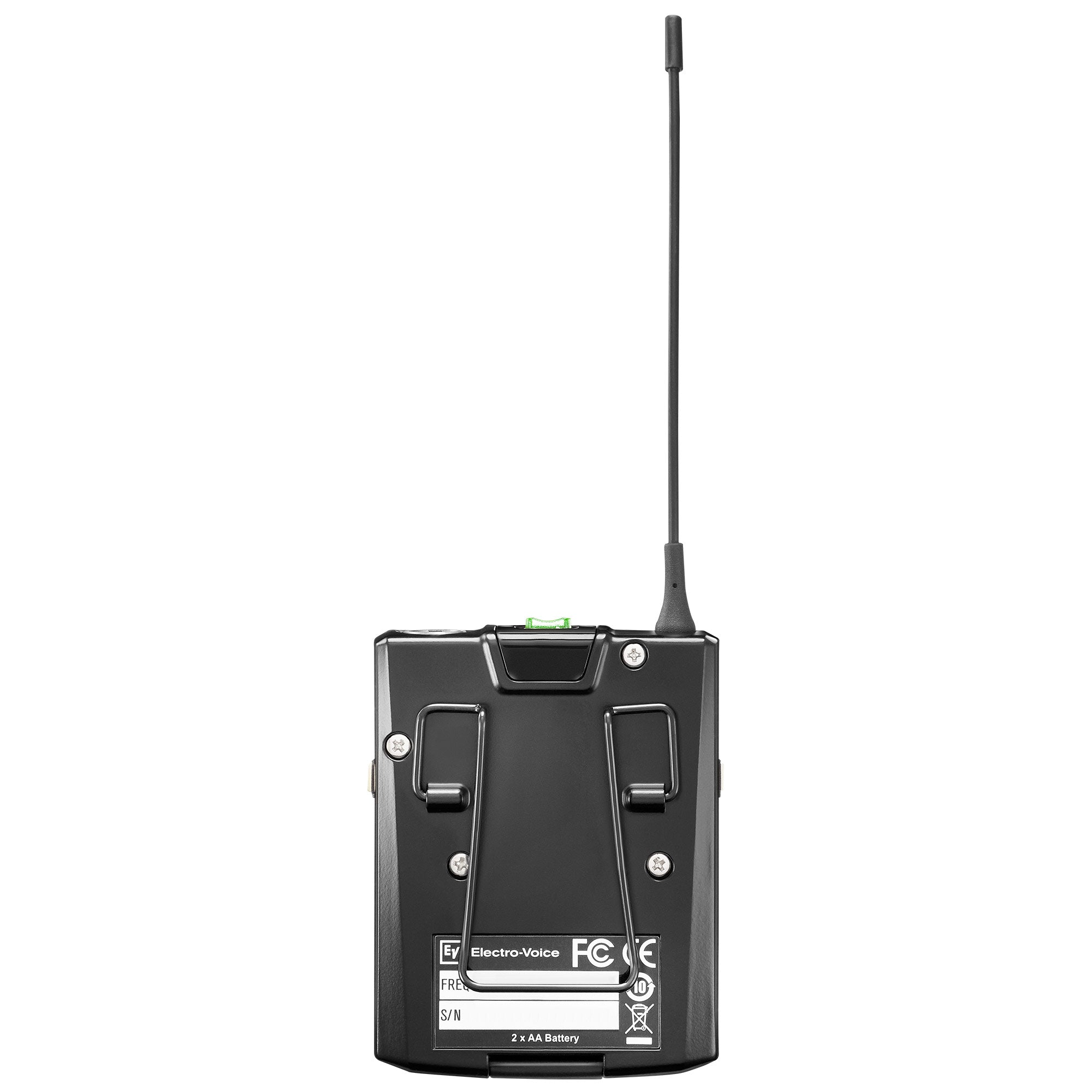

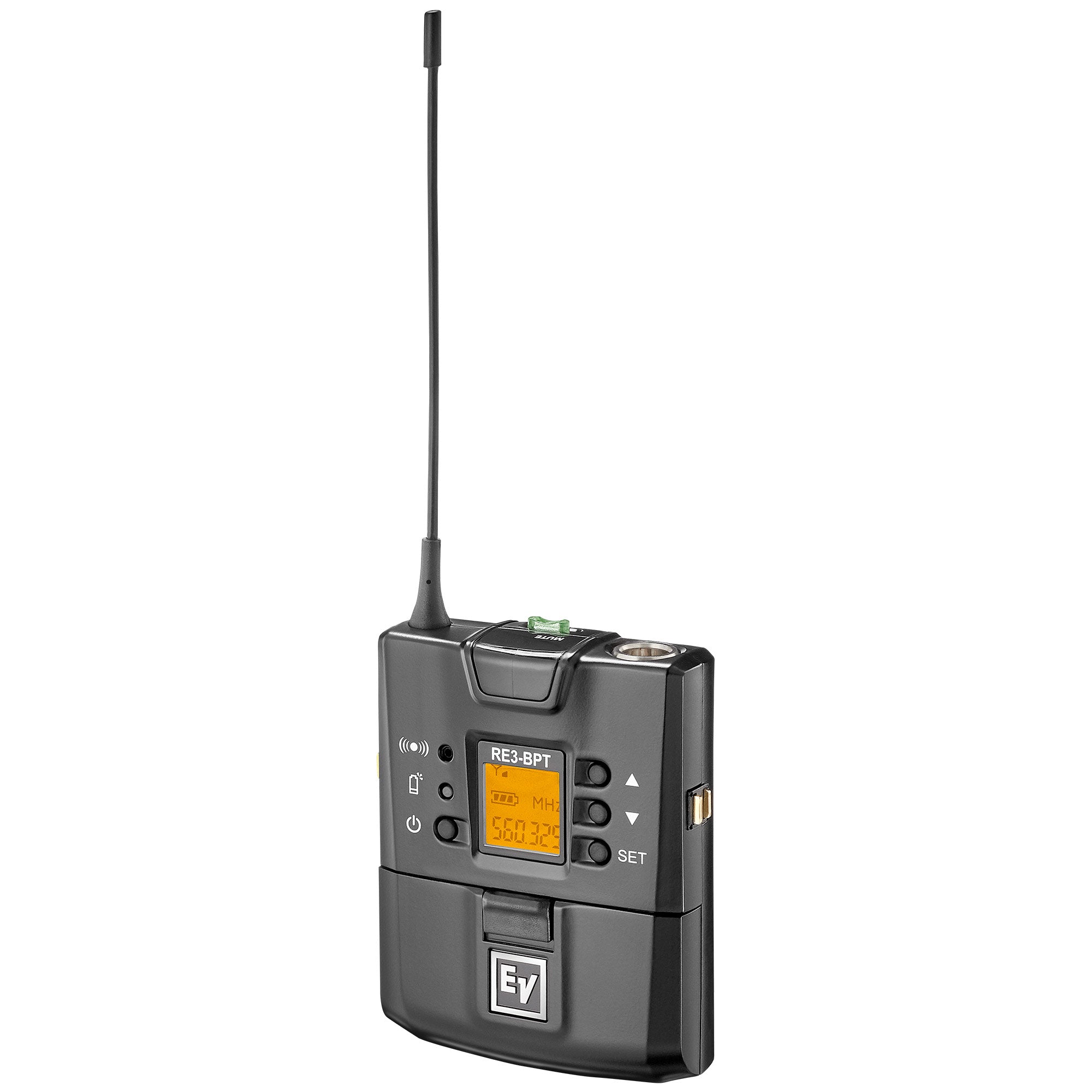

Electro-Voice RE3-BPT Bodypack Wireless Transmitter (5H Band / 560 - 596 MHz)

  • Dale #:

    EVI-RE3BPT5H
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The RE3-BPT is a small, lightweight yet robust UHF bodypack transmitter. It is easily worn and concealed, making it an ideal form factor for a wide variety of professional presentation and performance applications. From stand-up presentations, to theatrical and musical performances, to high-energ... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The RE3-BPT is a small, lightweight yet robust UHF bodypack transmitter. It is easily worn and concealed, making it an ideal form factor for a wide variety of professional presentation and performance applications. From stand-up presentations, to theatrical and musical performances, to high-energy fitness and athletic situations, this sleek and rugged transmitter fits comfortably and accepts a wide variety of input devices.

The all-metal body is robust and durable, and operates on 2 AA alkaline or rechargeable NiMH cells. The ultrasonic sync function makes for a simple system setup by syncing the transmitter to the receiver frequency tuning and other functional data. The selectable output power (band specific) assists in overcoming the challenges of both long, or short, transmission ranges. The tuning bandwidth affords generous frequency tuning options helping to avoid various sources of possible interference. The unique magnetic sliding latch and lock mechanism keeps the battery door closed securely and makes opening to access the batteries effortless.

Recharging contacts provide for functional use with the optional BC2 charging station allowing the NiMH rechargeable cells within two bodypack transmitters to be charged without removal.

Features:

  • Robust metal body
  • Sync function for easy frequency setup
  • Selectable low and high output power (band specific)
  • Up to 36 MHz tuning bandwidth (band specific)

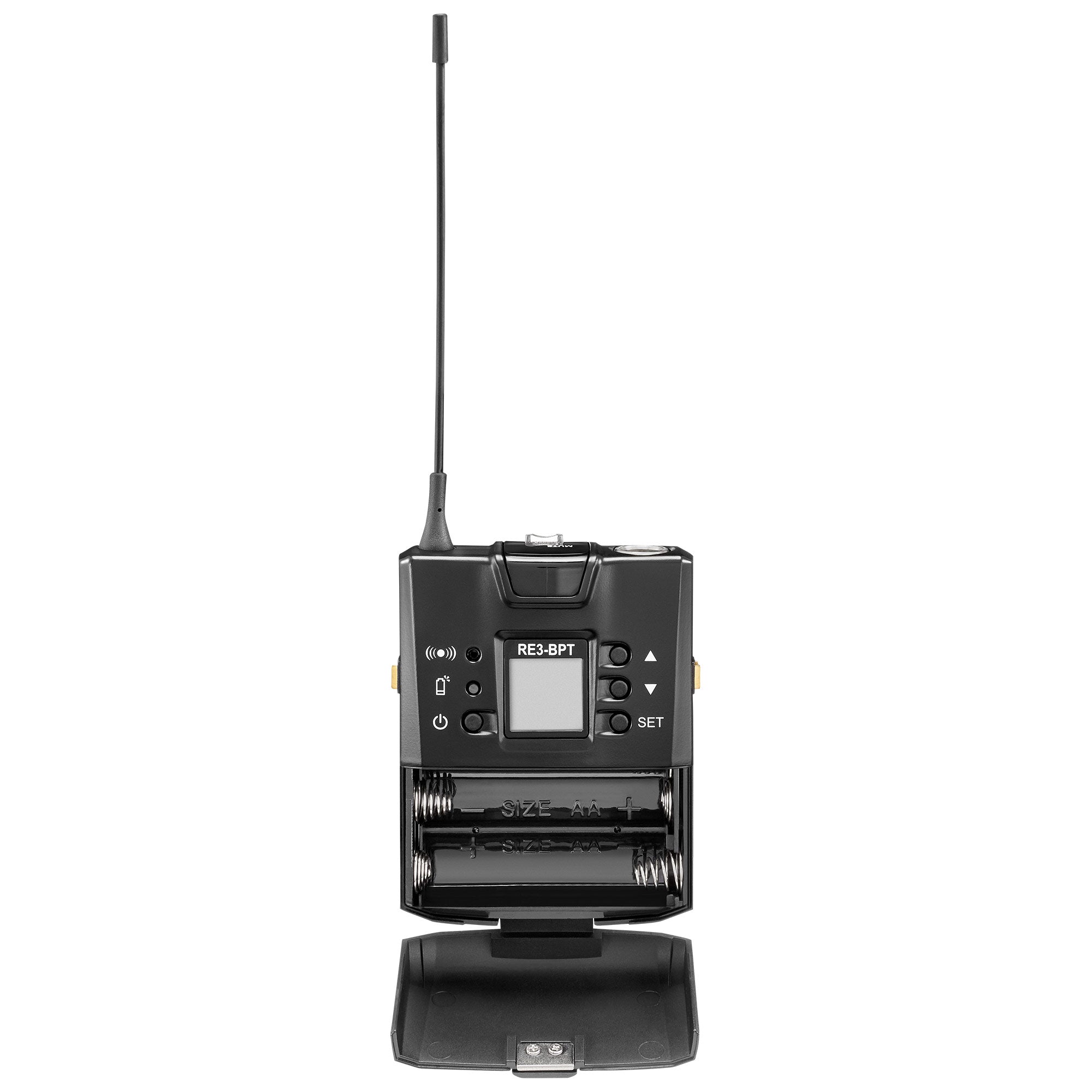

  • Unique magnetic latch and lock for easy access to batteries

More +

Product Specs

RE3-BPT bodypack transmitter
Frequency Oscillation Mode Phase-locked loop (PLL)
Frequency Ranges 5L: 36 MHz (488-524 MHz)
5H: 36 MHz (560-596 MHz)
Sync Frequency Ultrasonic
RF Power Output 5L (488-524MHz): Low 10mW / High 50mW
5H (560-596MHz): Low 10mW / High 50mW
Display By LCD + LED
Function Controls Power, mute, group, channel, frequency, sensitivity
adjustment, input level attenuation, RF power, auto off, key
lock.
RF Stability <±10kHz@Fc
Modulation Frequency Shift Wideband FM
±48kHz deviation
Harmonic Radiation <-50dBc
Input Jack 4-pin mini jack
Battery 2 x AA alkaline battery or NiMH rechargeable battery
Charging contacts Yes
Dimensions (without antenna) Height: 3.2 inch (81.5mm)
Width: 2.54 inch (64.5mm)
Depth: 0.98 inch (25mm)

More +
