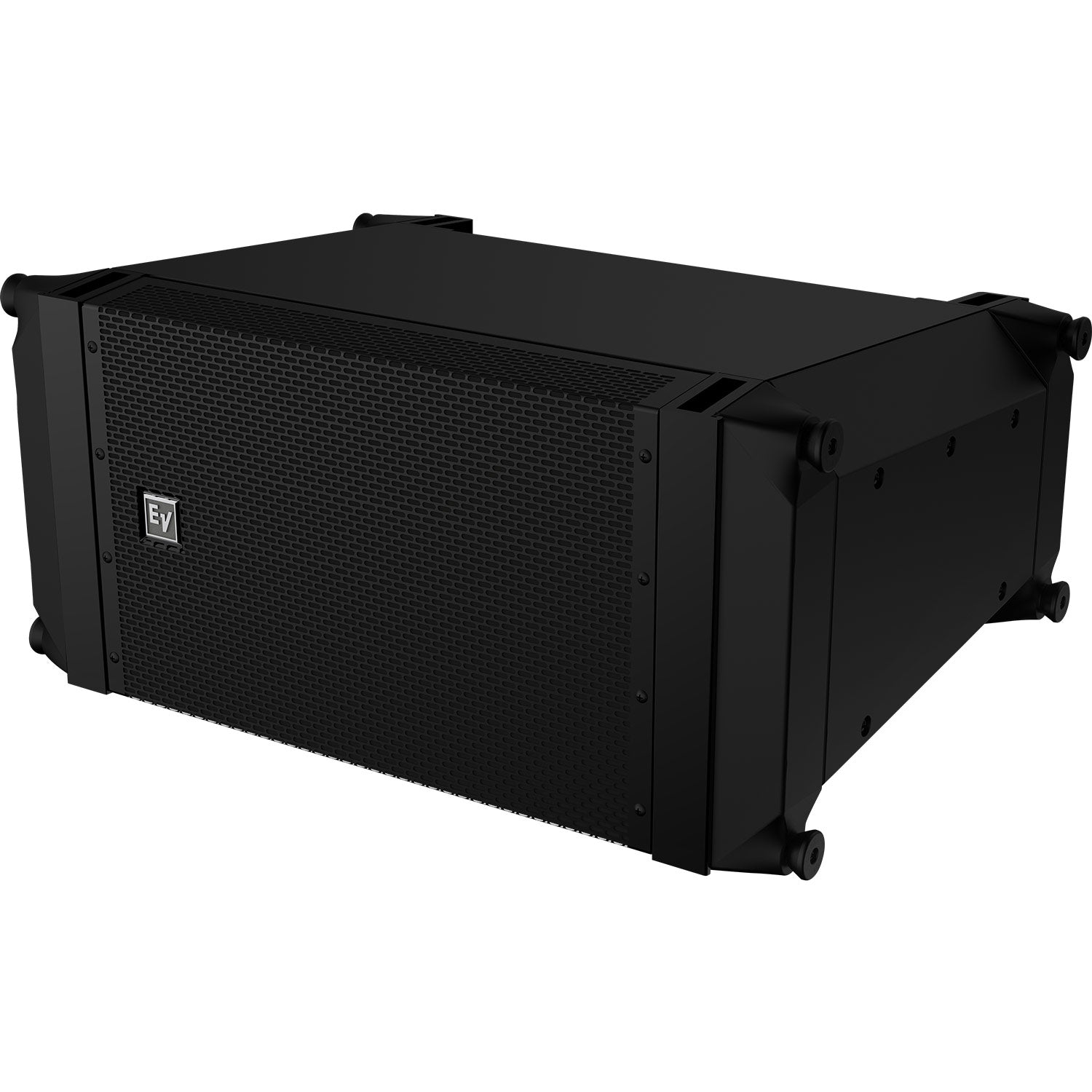

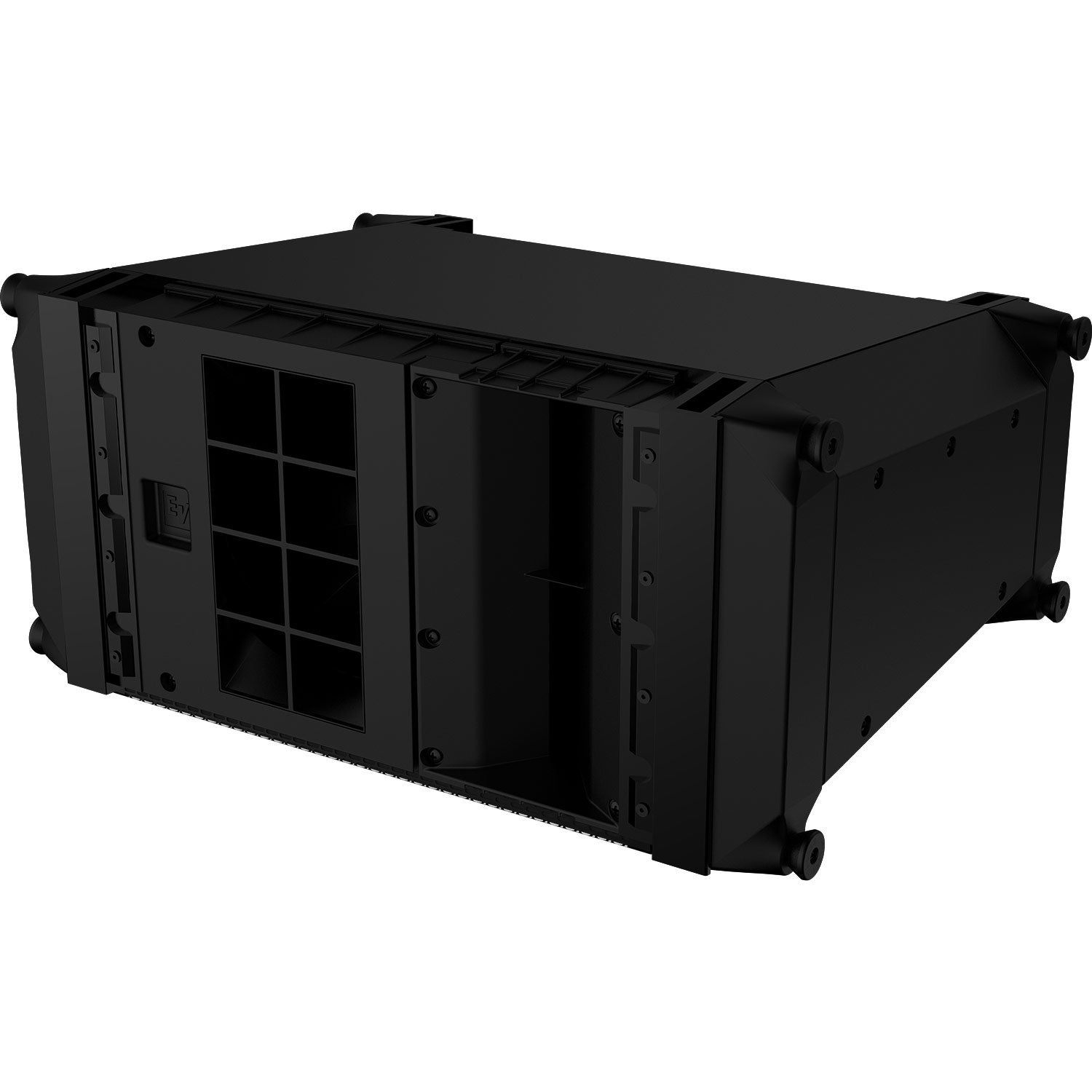

Electro-Voice X1-212/90 - Compact 12-Inch Verical Line Array Loudspeaker



  • Dale #:

    EVI-X121290

  • Availability:

    Not in Stock - Reserve Yours

  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The X1 system combines innovative new technologies and time-saving features to advance the state of high-end sound reinforcement. The compact design of the X1 enables its use in a wide variety of applications. Features: Mid-Band Hydra (MBH) Superior Box Coupling Wavefront-Shaping Circula... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The X1 system combines innovative new technologies and time-saving features to advance the state of high-end sound reinforcement. The compact design of the X1 enables its use in a wide variety of applications.

Features:

  • Mid-Band Hydra (MBH) Superior Box Coupling
  • Wavefront-Shaping Circular Hydra (WCH) Extended Linear HF Performance
  • Integrated Rigging System (IRS) Quick Setup

More +

Product Specs

Frequency Response (-3 dB) 57 Hz - 16 kHz
Horizontial Coverage 90¡
Vertical Coverage Array dependent
Rec. High-Pass Frequency 50 Hz
Max Calculated SPL 143 db Peak_
Configuration Passive, Bi-amp
Passvie Crossover Freq. 1600 Hz
Passive Axial Sensitivity 98 dB (1 W/1 m)?
Passive Power Handling 500 W continuous, 2000 peak
Passive Impedance 8 ? (nominal, 6.4 ? (min)
LF Transducer SMX2121, 12-in (305 mm) driver
LF Axial Sensitivity 98 dB (1 W/1 m)4
LF Power Handling 400 W continuous, 1600 W peak
LF Impedance 8 ? (nominal), 6.1 ? (min)
HF Transducer 2 x ND2R, 2-in (51 mm) diaphragm compression driver
HF Axial Sensitivity 110 dB (1 W/1 m)?
HF Power Handling 120 W continuous, 480 W peak_
HF Impedance 8 ? (nominal, 6.0 ? (min)
Connectors Dual NL8 type connector
Enclosure 13-ply weather resistant plywood with EVCoat
Grille 16 GA powder coated galvanneal
Suspension IRS - Integrated Rigging System
Dimensions (H x W x D) 13.5 in x 28.77 in x 12.04 in (342.9 mm x 730.8 mm x 534.4 mm)
Net Weight 92 lb (41.7 kg)
Shipping Weight 106 lb (48 kg)
