Juice Goose SL-350 Slim Line UPS Battery Backup System
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

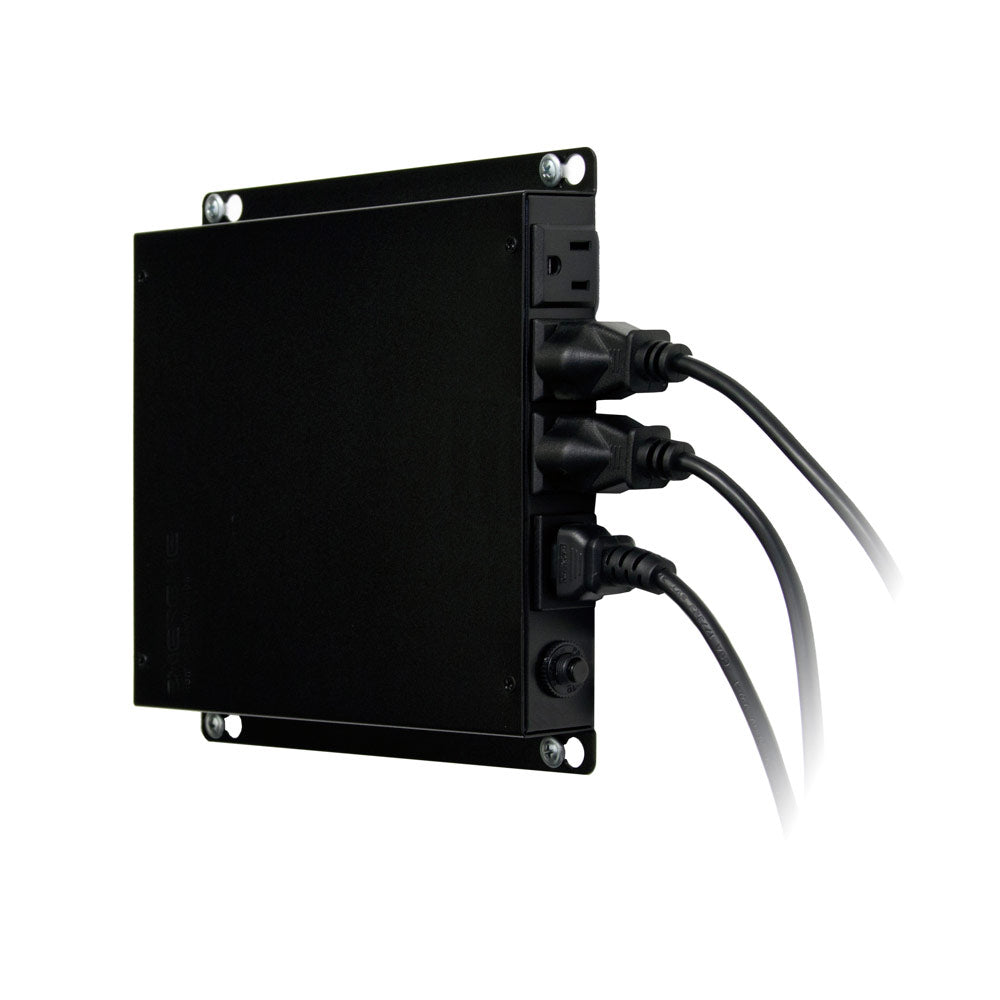

The SL-350 is a battery backup device (UPS) that features advanced lithium ion (LiFe) battery technology to achieve a light weight and thin profile design. Measuring only 6.9" x 8.5" x 1.25", this UPS is well suited for installation in small spaces previously impractical for an ordinary UPS. Learn more about these batteries.
In the commercial audio video market, the SL-350 provides power continuity to support video projectors and digital signage components. This product is also well suited for installation in kiosks, cabinets and small enclosures. In other markets, it has a convenient form for point of sale equipment.
This UPS has a power rating of 200 watts (350 VA). With a maximum electrical power load connected and with the UPS batteries fully charged, the unit will provide continuous electric power for approximately six minutes in the event of a utility power failure (blackout). The amount of time power is available increases as the connected load decreases. In addition to battery power, the SL-350 features 312 Joules of AC power surge protection.
The SL-350 is designed to be used with a detachable power cord. A three foot cord with a right angle plug is provided with the unit. Should a different length or style of cord be needed for a particular installation or application one can be purchased at-large and installed into this UPS. That cord should have a NEMA 5-15P plug as well as a female IEC style connector to attach to the UPS. The chassis is designed to make mounting to a wall or surface easy and reliable.
| Capacity | 350VA, 200 Watts |
| Input | |
| Voltage | 120 VAC |
| Frequency | 50 or 60 Hz |
| Output | |
| Voltage | 120 VAC |
| Waveform (Battery) | Simulated sine wave |
| Frequency | 50 or 60 Hz. Same as input |
| Battery | |
| Type | Lithium Iron Phosphate (LiFePo4) |
| Style | 18650 |
| Quantity | 8 |
| Run time | 6 mins. full load, 14 mins, half load |
| Dimensions (inches) | 6.9W x 8.5D x 1.25H |
| Weight | 3.4 lbs |
| Line Cord (provided) | 3 foot, C13 (IEC) to 5-15P (NEMA) right angle |
| Receptacles | 3 x 5-15R |
| Environment | |
| Operating Temperature Limits | 32 to 104 degrees F |
| Operating Humidity Limits | 0 to 90% RH |
| Operating Altitude Limit | 11,500 feet over sea level |
| Power Control | Push button on/off |
| Communications Port | USB |
| RoHS Compliance | Yes |
| Warranty | 3 years electronics and batteries (USA and Canada) |
