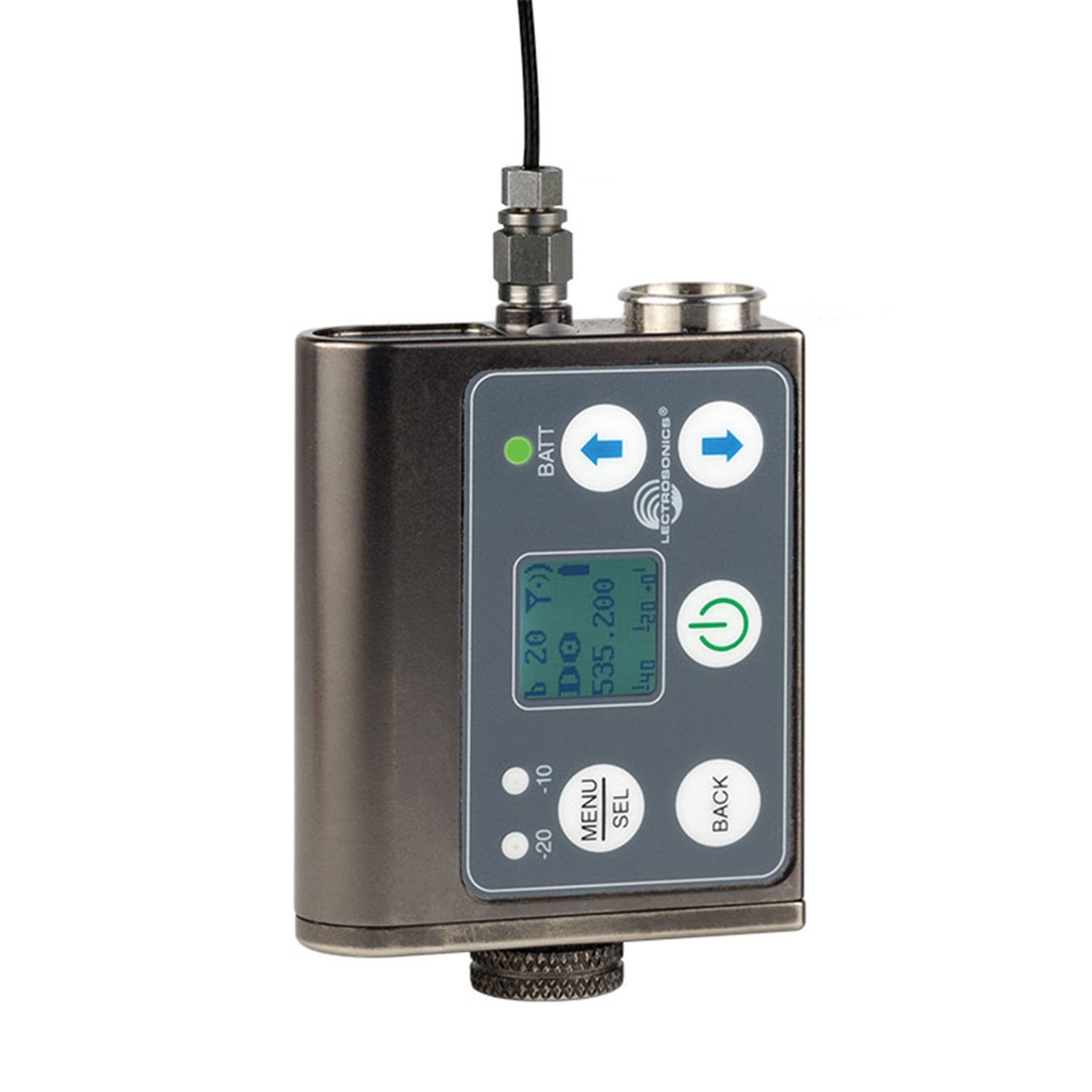

Lectrosonics SMWB - Single-Battery Digital Hybrid Wireless Transmitter (Block E07-941 / 941-960 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
To meet the demand for both extended operating range and extended battery life, the "WB" series SM transmitters offer selectable output power of 25, 50 and 100 mW. With higher power output, the operating range is improved at the of battery life. When range is not an issue, a lower power level can be to extend the battery life.
Features:
- Selectable output power to maximize battery life or operating range
- Ultra-lightweight, corrosion resistant housing
- Water resistant seals for use in damp environments
- LCD interface with lockout option
- Programmable compatibility modes for use with a wide variety of different receivers
- Servo Bias input circuitry
- IR (infrared) port for fast setup
- Covers 3 standard frequency blocks
- Update firmware in the field via Micro SD card reader
- Alternate use as recorder on internal microSDHC memory card
The transmitters offer hands free setup and adjustment using audible tones. They can be put to sleep to conserve battery power during setup while buried inside costuming, then awakened for normal operation when the production begins. Other features include input gain adjustment in 1 dB increments over a 44 dB range and adjustable low frequency audio roll-off for 3 dB down points at 35, 50, 70, 100, 120 or 150 Hz to control subsonic and very low frequency audio conten
The DSP-based design works with all Digital Hybrid receivers, and is backward compatible for use with Lectrosonics 200 and 100 Series, IFB receivers and some analog receivers from other manufacturers in addition to its native Digital Hybrid Wireless¨ operating mode.
| Operating Frequencies | Band A1: 470.100 - 537.575 Band B1: 537.600 - 614.375 (608.000 to 614.000 excluded) Band C1: 614.400 - 691.175* *Not available in USA and Canada Band E07: 941.525 - 959.825 NOTE: ItÍs the userÍs responsibility to select the approved frequencies for region where the transmitter is operating | ||||||||||||
| Channel Spacing | Selectable; 25 or 100 kHz | ||||||||||||
| RF Power output | Switchable; 25, 50 or 100 mW | ||||||||||||
| Compatibility Modes | Digital Hybrid Wireless¬ (NU Hbr), 200 Series, 100 Series, Mode 3, Mode 6, IFB | ||||||||||||
| Pilot tone (Digital Hybrid Mode) | 25 to 32 kHz; 5 kHz deviation | ||||||||||||
| Frequency stability | ± 0.002% | ||||||||||||
| Deviation | ± 75 kHz max. (Digital Hybrid Mode) | ||||||||||||
| Spurious radiation | Compliant with ETSI EN 300 422-1 | ||||||||||||
| Equivalent input noise | -125 dBV, A-weighted | ||||||||||||
| Input level | |||||||||||||
| If set for dynamic mic | 0.5 mV to 50 mV before limiting Greater than 1 V with limiting | ||||||||||||
| If set for electret lavaliere mic | 1.7 uA to 170 uA before limiting Greater than 5000 uA (5 mA) with limiting | ||||||||||||
| Line level input | 17 mV to 1.7 V before limiting Greater than 50 V with limiting | ||||||||||||
| Input impedance | |||||||||||||
| Dynamic mic | 300 Ohms | ||||||||||||
| Electret lavaliere | Input is virtual ground with servo adjusted constant current bias | ||||||||||||
| Line level | 2.7 k ohms | ||||||||||||
| Input limiter | Soft limiter, 30 dB range | ||||||||||||
| Bias voltages | Fixed 5 V at up to 5 mA Selectable 2 V or 4 V servo bias for any electret lavaliere | ||||||||||||
| Gain control range | 44 dB; panel mounted membrane switches | ||||||||||||
| Modulation indicators | Dual bicolor LEDs indicate modulation -20, -10, 0, +10 dB referenced to full modulation | ||||||||||||
| Controls | Control panel w/ LCD and 4 membrane switches | ||||||||||||
| Low frequency roll-off | Adjustable from 35 to 150 Hz | ||||||||||||
| Audio Frequency Response | 35 Hz to 20 kHz, +/-1 dB | ||||||||||||
| Signal to Noise Ratio (dB): (overall system, 400 Series mode) |
| ||||||||||||
| (Note: the dual envelope "soft" limiter provides exceptionally good handling of transients using variable attack and release time constants. The gradual onset of limiting in the design begins below full modulation, which reduces the measured figure for SNR without limiting by 4.5 dB) | |||||||||||||
| Total Harmonic Distortion | 0.2% typical (400 Series mode) | ||||||||||||
| Audio Input Jack | Switchcraft 5-pin locking (TA5F) | ||||||||||||
| Antenna | Flexible, unbreakable steel cable | ||||||||||||
| Battery | AA lithium, disposable | ||||||||||||
| Battery Life w/ Lithium AA | SMWB 50 mW (1 AA): 5.8 hrs SMWB 100 mW (1 AA): .4hrs | ||||||||||||
| Weight (w/ litium batteries) | SMWB: 3.2 oz. (90.72 grams) | ||||||||||||
| Overall Dimensions (without microphone) | SMWB: 2.366 x 1.954 x 0.642 inches 60.096 x 49.632 x 16.307 mm | ||||||||||||
| Emission Designator | 180KF3E | ||||||||||||
| Recorder | |||||||||||||
| Storage media | microSDHC memory card | ||||||||||||
| File format | .wav files (BWF) | ||||||||||||
| A/D converter | 24-bit | ||||||||||||
| Sampling rate | 44.1 kHz | ||||||||||||
| Recording modes/Bit rate | HD mono mode: 24 bit - 144 kbytes/s 32 bit - 192 kbytes/s Split gain mode: 24 bit - 288 kbytes/s 32 bit - 384 kbytes/s | ||||||||||||
| Input | |||||||||||||
| Type | Analog mic/line level compatible; servo bias preamp for 2V and 4V lavaliere microphones | ||||||||||||
| Input level | Dynamic mic: 0.5 mV to 50 mV Electret mic: Nominal 2 mV to 300 mV Line level: 17 mV to 1.7 V | ||||||||||||
| Input connector | TA5M 5-pin male | ||||||||||||
| Audio Performance | |||||||||||||
| Frequency response | 20 Hz to 20 kHz; +0.5/-1.5 dB | ||||||||||||
| Dynamic range | 110 dB (A), before limiting | ||||||||||||
| Distortion | < 0.035% | ||||||||||||
| Operating temperature range | |||||||||||||
| Celsius | -20 to 50 | ||||||||||||
| Fahrenheit | -5 to 122 | ||||||||||||
Specifications subject to change without notice
To meet the demand for both extended operating range and extended battery life, the "WB" series SM transmitters offer selectable output power of 25, 50 and 100 mW. With higher power output, the operating range is improved at the of battery life. When range is not an issue, a lower power level can be to extend the battery life.
Features:
- Selectable output power to maximize battery life or operating range
- Ultra-lightweight, corrosion resistant housing
- Water resistant seals for use in damp environments
- LCD interface with lockout option
- Programmable compatibility modes for use with a wide variety of different receivers
- Servo Bias input circuitry
- IR (infrared) port for fast setup
- Covers 3 standard frequency blocks
- Update firmware in the field via Micro SD card reader
- Alternate use as recorder on internal microSDHC memory card
The transmitters offer hands free setup and adjustment using audible tones. They can be put to sleep to conserve battery power during setup while buried inside costuming, then awakened for normal operation when the production begins. Other features include input gain adjustment in 1 dB increments over a 44 dB range and adjustable low frequency audio roll-off for 3 dB down points at 35, 50, 70, 100, 120 or 150 Hz to control subsonic and very low frequency audio conten
The DSP-based design works with all Digital Hybrid receivers, and is backward compatible for use with Lectrosonics 200 and 100 Series, IFB receivers and some analog receivers from other manufacturers in addition to its native Digital Hybrid Wireless¨ operating mode.
| Operating Frequencies | Band A1: 470.100 - 537.575 Band B1: 537.600 - 614.375 (608.000 to 614.000 excluded) Band C1: 614.400 - 691.175* *Not available in USA and Canada Band E07: 941.525 - 959.825 NOTE: ItÍs the userÍs responsibility to select the approved frequencies for region where the transmitter is operating | ||||||||||||
| Channel Spacing | Selectable; 25 or 100 kHz | ||||||||||||
| RF Power output | Switchable; 25, 50 or 100 mW | ||||||||||||
| Compatibility Modes | Digital Hybrid Wireless¬ (NU Hbr), 200 Series, 100 Series, Mode 3, Mode 6, IFB | ||||||||||||
| Pilot tone (Digital Hybrid Mode) | 25 to 32 kHz; 5 kHz deviation | ||||||||||||
| Frequency stability | ± 0.002% | ||||||||||||
| Deviation | ± 75 kHz max. (Digital Hybrid Mode) | ||||||||||||
| Spurious radiation | Compliant with ETSI EN 300 422-1 | ||||||||||||
| Equivalent input noise | -125 dBV, A-weighted | ||||||||||||
| Input level | |||||||||||||
| If set for dynamic mic | 0.5 mV to 50 mV before limiting Greater than 1 V with limiting | ||||||||||||
| If set for electret lavaliere mic | 1.7 uA to 170 uA before limiting Greater than 5000 uA (5 mA) with limiting | ||||||||||||
| Line level input | 17 mV to 1.7 V before limiting Greater than 50 V with limiting | ||||||||||||
| Input impedance | |||||||||||||
| Dynamic mic | 300 Ohms | ||||||||||||
| Electret lavaliere | Input is virtual ground with servo adjusted constant current bias | ||||||||||||
| Line level | 2.7 k ohms | ||||||||||||
| Input limiter | Soft limiter, 30 dB range | ||||||||||||
| Bias voltages | Fixed 5 V at up to 5 mA Selectable 2 V or 4 V servo bias for any electret lavaliere | ||||||||||||
| Gain control range | 44 dB; panel mounted membrane switches | ||||||||||||
| Modulation indicators | Dual bicolor LEDs indicate modulation -20, -10, 0, +10 dB referenced to full modulation | ||||||||||||
| Controls | Control panel w/ LCD and 4 membrane switches | ||||||||||||
| Low frequency roll-off | Adjustable from 35 to 150 Hz | ||||||||||||
| Audio Frequency Response | 35 Hz to 20 kHz, +/-1 dB | ||||||||||||
| Signal to Noise Ratio (dB): (overall system, 400 Series mode) |
| ||||||||||||
| (Note: the dual envelope "soft" limiter provides exceptionally good handling of transients using variable attack and release time constants. The gradual onset of limiting in the design begins below full modulation, which reduces the measured figure for SNR without limiting by 4.5 dB) | |||||||||||||
| Total Harmonic Distortion | 0.2% typical (400 Series mode) | ||||||||||||
| Audio Input Jack | Switchcraft 5-pin locking (TA5F) | ||||||||||||
| Antenna | Flexible, unbreakable steel cable | ||||||||||||
| Battery | AA lithium, disposable | ||||||||||||
| Battery Life w/ Lithium AA | SMWB 50 mW (1 AA): 5.8 hrs SMWB 100 mW (1 AA): .4hrs | ||||||||||||
| Weight (w/ litium batteries) | SMWB: 3.2 oz. (90.72 grams) | ||||||||||||
| Overall Dimensions (without microphone) | SMWB: 2.366 x 1.954 x 0.642 inches 60.096 x 49.632 x 16.307 mm | ||||||||||||
| Emission Designator | 180KF3E | ||||||||||||
| Recorder | |||||||||||||
| Storage media | microSDHC memory card | ||||||||||||
| File format | .wav files (BWF) | ||||||||||||
| A/D converter | 24-bit | ||||||||||||
| Sampling rate | 44.1 kHz | ||||||||||||
| Recording modes/Bit rate | HD mono mode: 24 bit - 144 kbytes/s 32 bit - 192 kbytes/s Split gain mode: 24 bit - 288 kbytes/s 32 bit - 384 kbytes/s | ||||||||||||
| Input | |||||||||||||
| Type | Analog mic/line level compatible; servo bias preamp for 2V and 4V lavaliere microphones | ||||||||||||
| Input level | Dynamic mic: 0.5 mV to 50 mV Electret mic: Nominal 2 mV to 300 mV Line level: 17 mV to 1.7 V | ||||||||||||
| Input connector | TA5M 5-pin male | ||||||||||||
| Audio Performance | |||||||||||||
| Frequency response | 20 Hz to 20 kHz; +0.5/-1.5 dB | ||||||||||||
| Dynamic range | 110 dB (A), before limiting | ||||||||||||
| Distortion | < 0.035% | ||||||||||||
| Operating temperature range | |||||||||||||
| Celsius | -20 to 50 | ||||||||||||
| Fahrenheit | -5 to 122 | ||||||||||||
Specifications subject to change without notice
