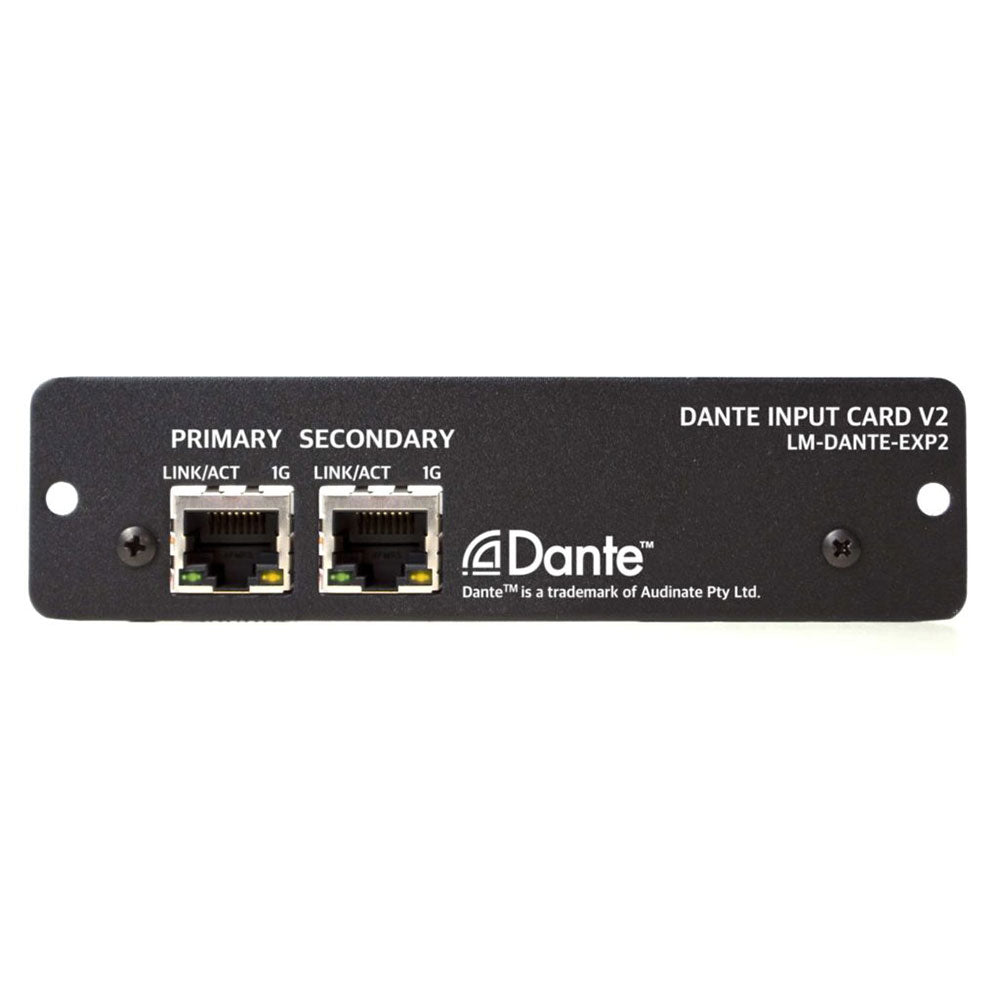

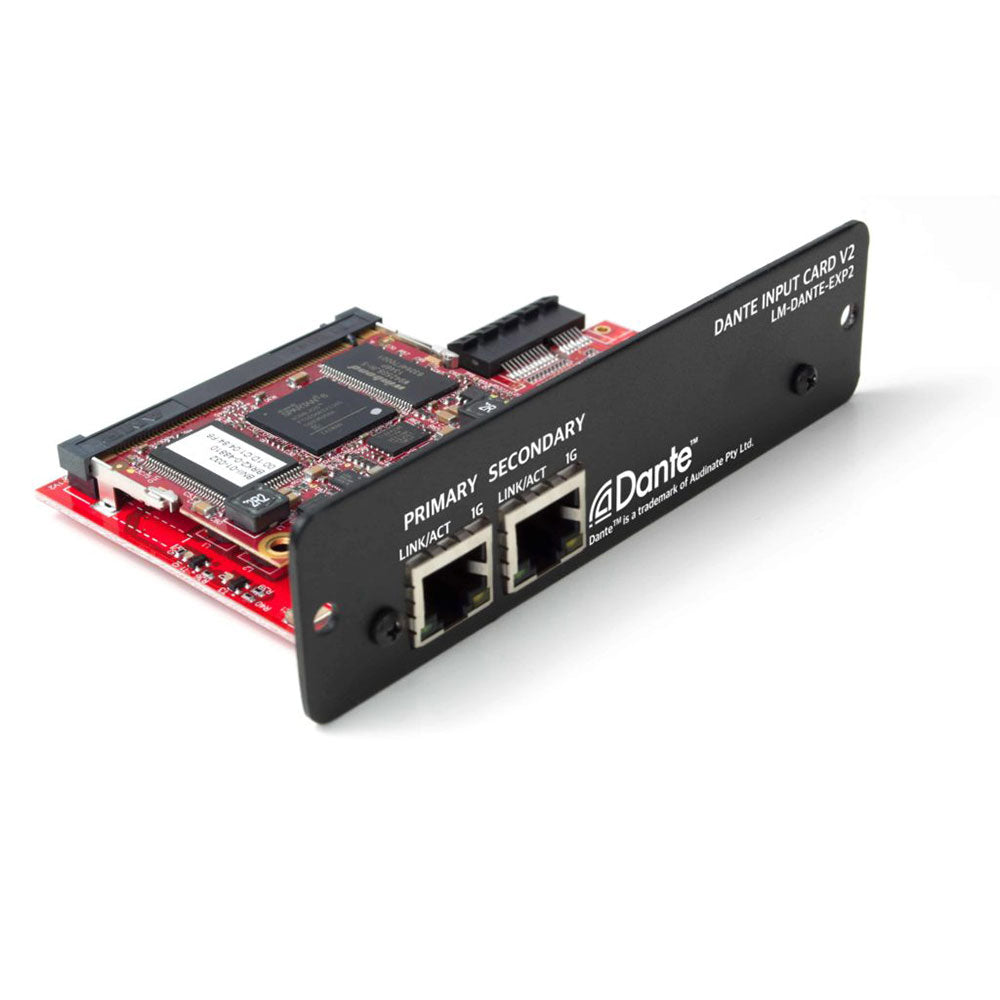

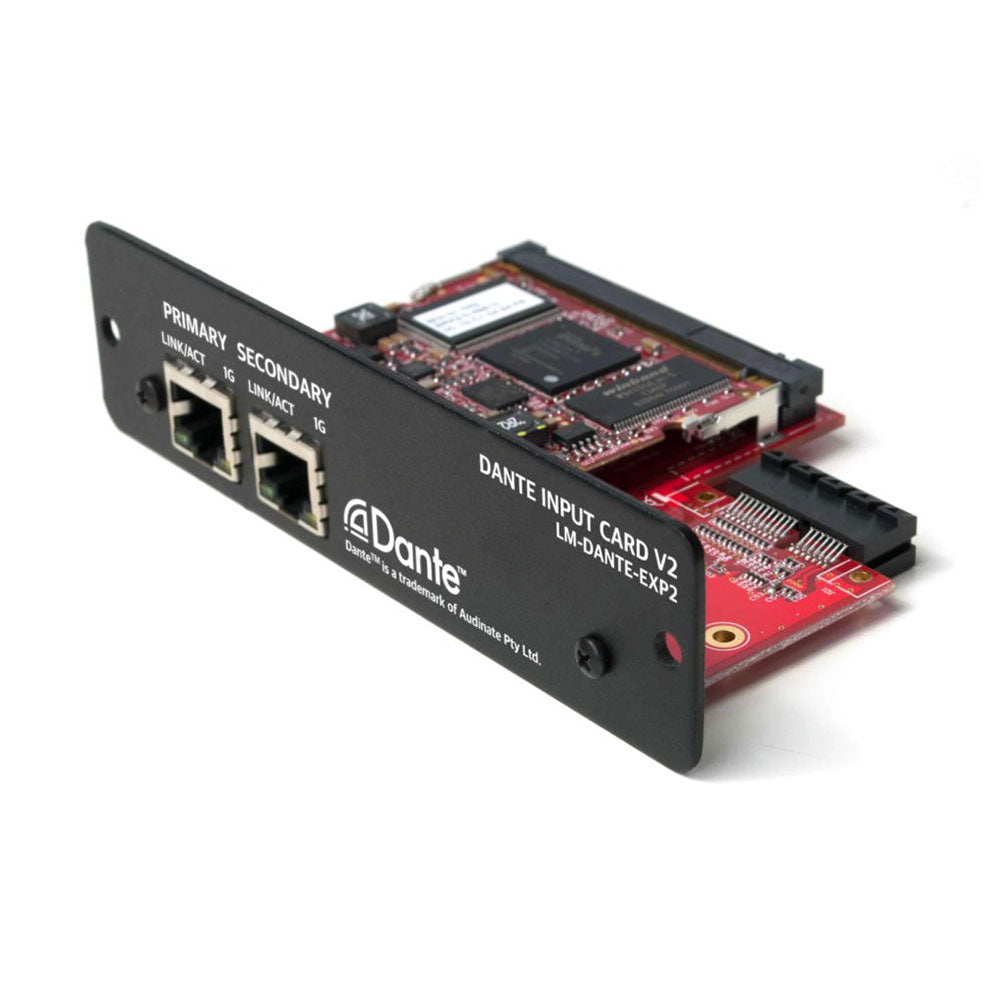

Livemix LM-DANTE-EXP2 Dante Input Card for MIX-16 or MIX-32

The Livemix LM-DANTE-EXP2 is a user installable option card for the MIX-16 and MIX-32. This input option card is for connecting to your Dante digital network. Audinate's Dante technology is a widely accepted and highly reliable standard for networked audio, especially in live and studio sound applications.

When using the Dante input option card (LM-DANTE-EXP2), the Livemix system integrates seamlessly into a Dante network. All the network subscriptions can be made using the touchscreen on the Livemix CS-SOLO or CS-DUO for quick and easy setup. Channels can be setup with a single "Import 1-24" button or each channel can be individually subscribed across multiple devices. Using the Import Names feature, channel names can be assigned to the Livemix channels.

Now AES67 Compatible.

Features:

• Option Card for MIX-16 and MIX-32
  The Dante Option Card for the MIX-16 and MIX-32 makes it incredibly easy to connect your Livemix system to a Dante™ network. It is preinstalled in a Livmix digital system and can be user installed if upgrading from the Livemix AD-24 analog input.
• Easy Configuration Via Personal Mixer
  With the built-in Dante™ setup on the Livemix CS-DUO and CS-SOLO personal monitor mixers, connecting Livemix to a Dante network is simple. The system will identify available devices and allow users to select and assign channels with minimal hassle.
• Receive up to 24 channels from multiple Dante™ devices
  Livemix can receive audio from any published Dante™ stream. Assign Dante channels from a single device or multiple devices to make up the 24 channels available for personal monitor mixing.
• Up to 96 kHz + 24-bit Audio
  The LM-DANTE-EXP2 receives 24-bit audio at up to 96kHz digital audio directly from the Dante™ network.
• Quick Channel Import Features
  A single press on the CS-DUO or CS-DOLO LCD touchscreen will immediately assign the first 24 channels on your selected device to the 24 Livemix channels.
• Import Dante™ channel labels to Livemix channels
  If you have a device that supports Dante channel labels, or are using Audinate's Dante Controller, a single button press on the CS-DUO or CS-SOLO LCD touchscreen will assign the channel names from the Dante device to the individual Livemix channel names.
