MBHO MBNM 410 - Small Diaphragm Omnidirectional Condenser Microphone


  • Dale #:

    MBHO-924100
  • Availability:

    Special Order Item
  • MBHO items are made to order in Germany - contact us for lead time.

Description

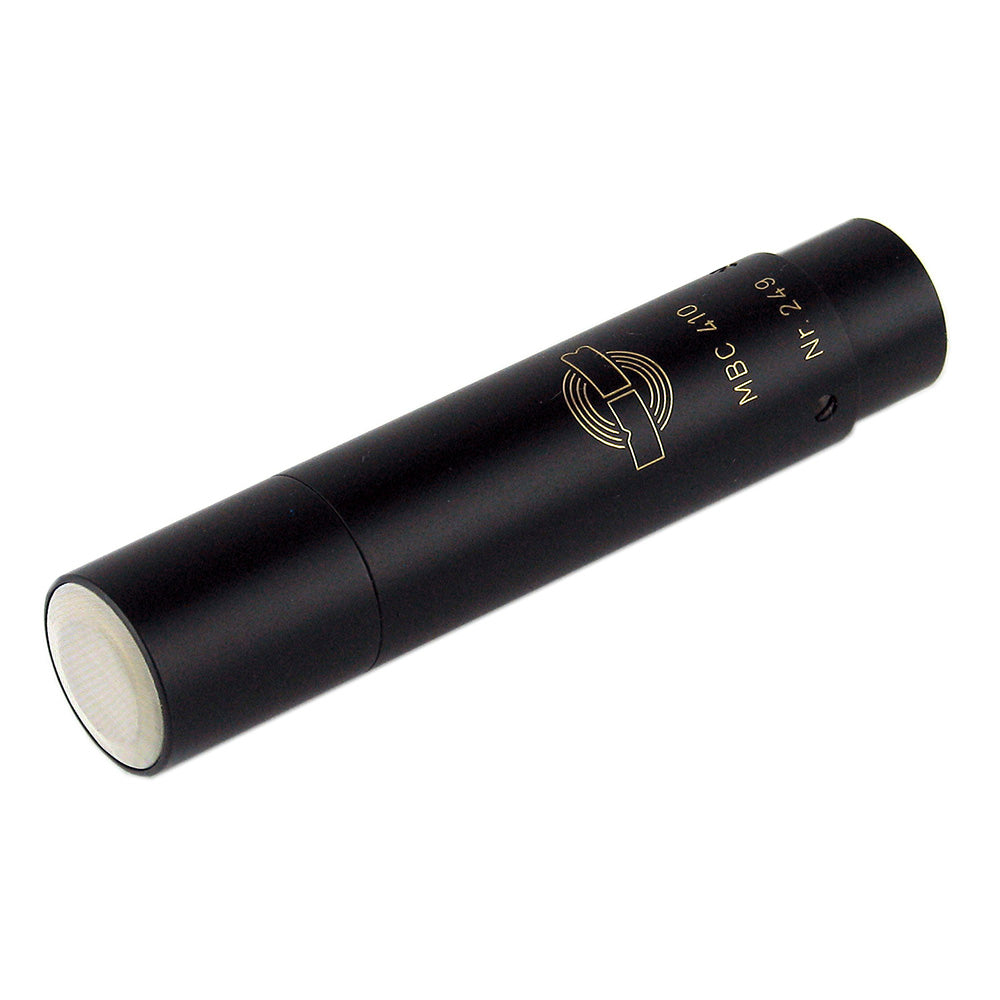

This compact body (only 85mm long) true condenser microphone with integrated capsule and amplifier is equipped with an omnidirectional polar pattern. Using advanced SMD technology with an extremely short signal path, and low phantom power consumption which accepts voltages from 22 to 48 V, these ... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

This compact body (only 85mm long) true condenser microphone with integrated capsule and amplifier is equipped with an omnidirectional polar pattern. Using advanced SMD technology with an extremely short signal path, and low phantom power consumption which accepts voltages from 22 to 48 V, these microphones are well suited for battery operation. With a non-reflective lacquered matte black housing, precise and stunning sound reproduction is available at an entry-level price!

Features:

  • Omnidirectional polar pattern
  • Compact 85mm body with integrated amplifier and capsule
  • Phantom Power voltage range from 22 to 48 volts is ideal for battery use or long cable runs
  • Advanced SMD circuitry reduces weight and shortens signal path
  • Hand made in Germany
  • Lifetime warranty

More +

Product Specs

Polar Pattern Omnidirectional
Frequency Response 15 - 20.000 Hz
Sensitivity of field idling 0,7 mV/μbar
1kΩat1kHz 7 mV/Pa
rated at 1 Pa CCIR 66 dB
Equivalent SPL rated at CCIR 28 dB 28 dB
Signal to noise ratio
A-rated at 1 Pa. 80 dB-A
Equivalent SPL rated at DIN/IEC 14 dB-A
Max.SPL at 1 kΩ 126 dB
Electrical impedance 200 Ω
Phantom power / feed current 22 - 48 volts, 1,7 mA
Dimensions 21mm diameter x 85mm long
Connector XLR
