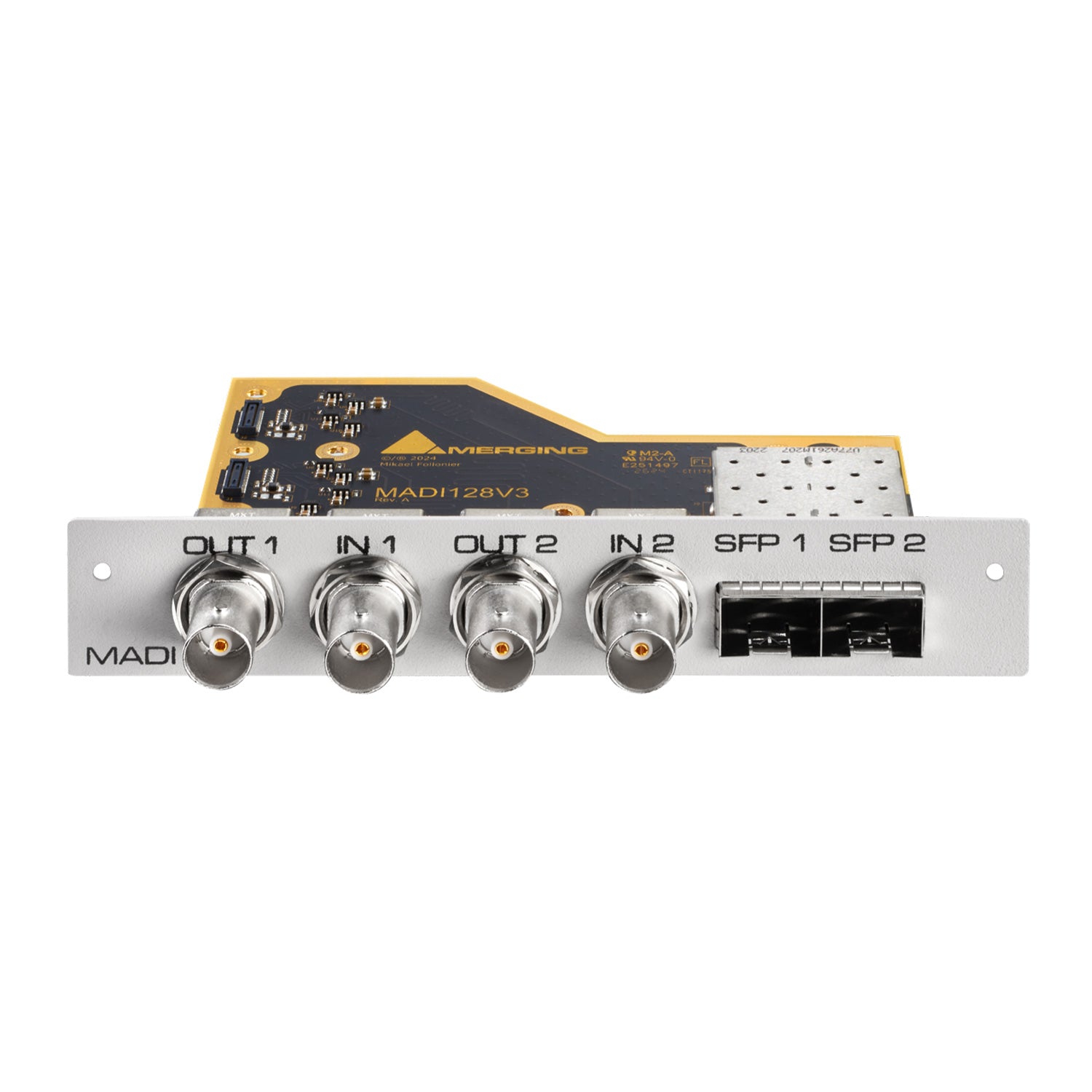

Merging Technologies MADI128V3 - 128-Channel MADI Option Card for Hapi MKIII
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

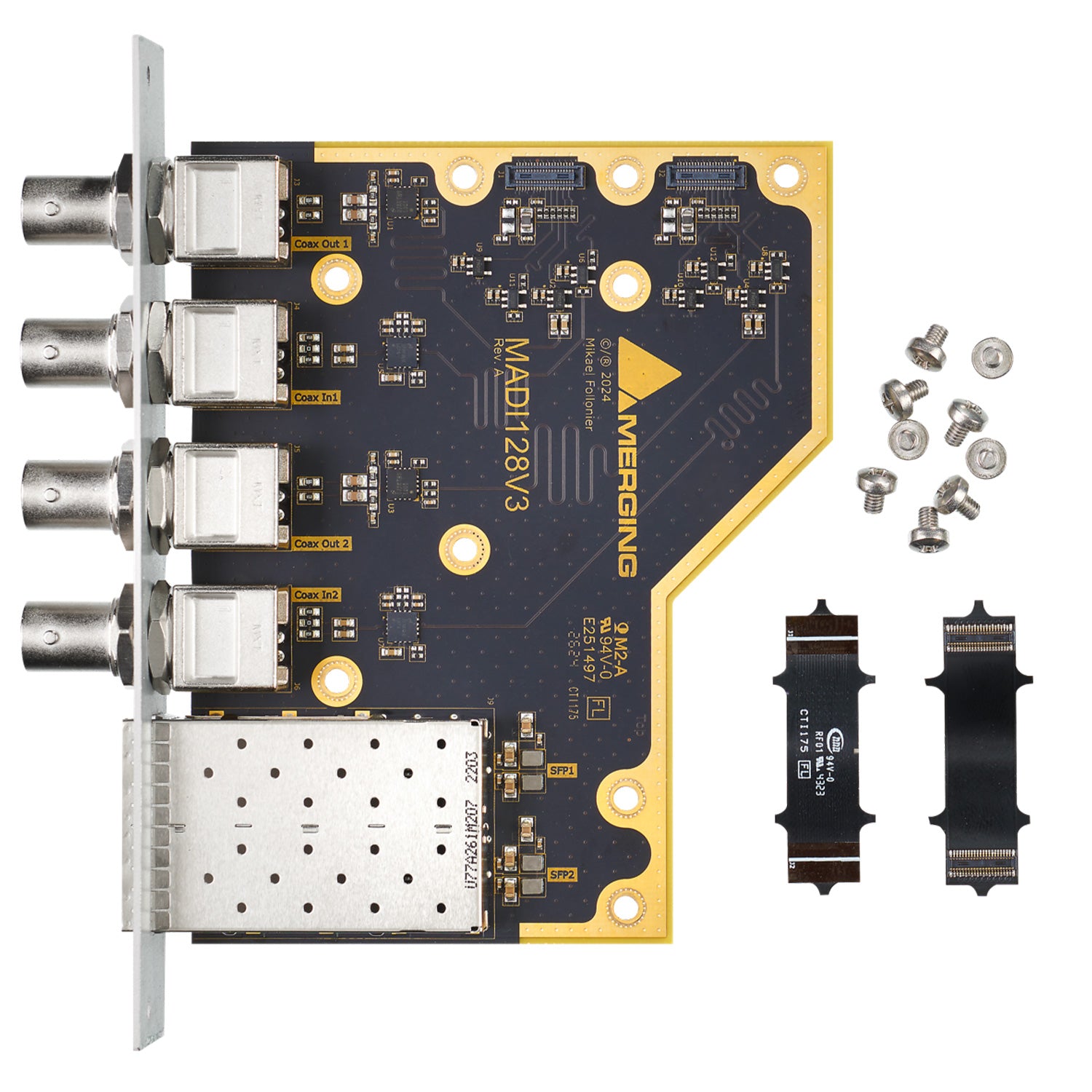

The Merging MADI128V3 expansion card doubles the total MADI channel count to up to 128 inputs and 128 outputs @1FS for Hapi MkIII. The MADI128V3 is also equipped with a two slots Small Form-factor Pluggable (SFP) cages, suitable SFP modules can be fitted. SFP transceivers for optical multi-mode or single-mode for transmission or mini BNC for coaxial transmission are not included.
Features:

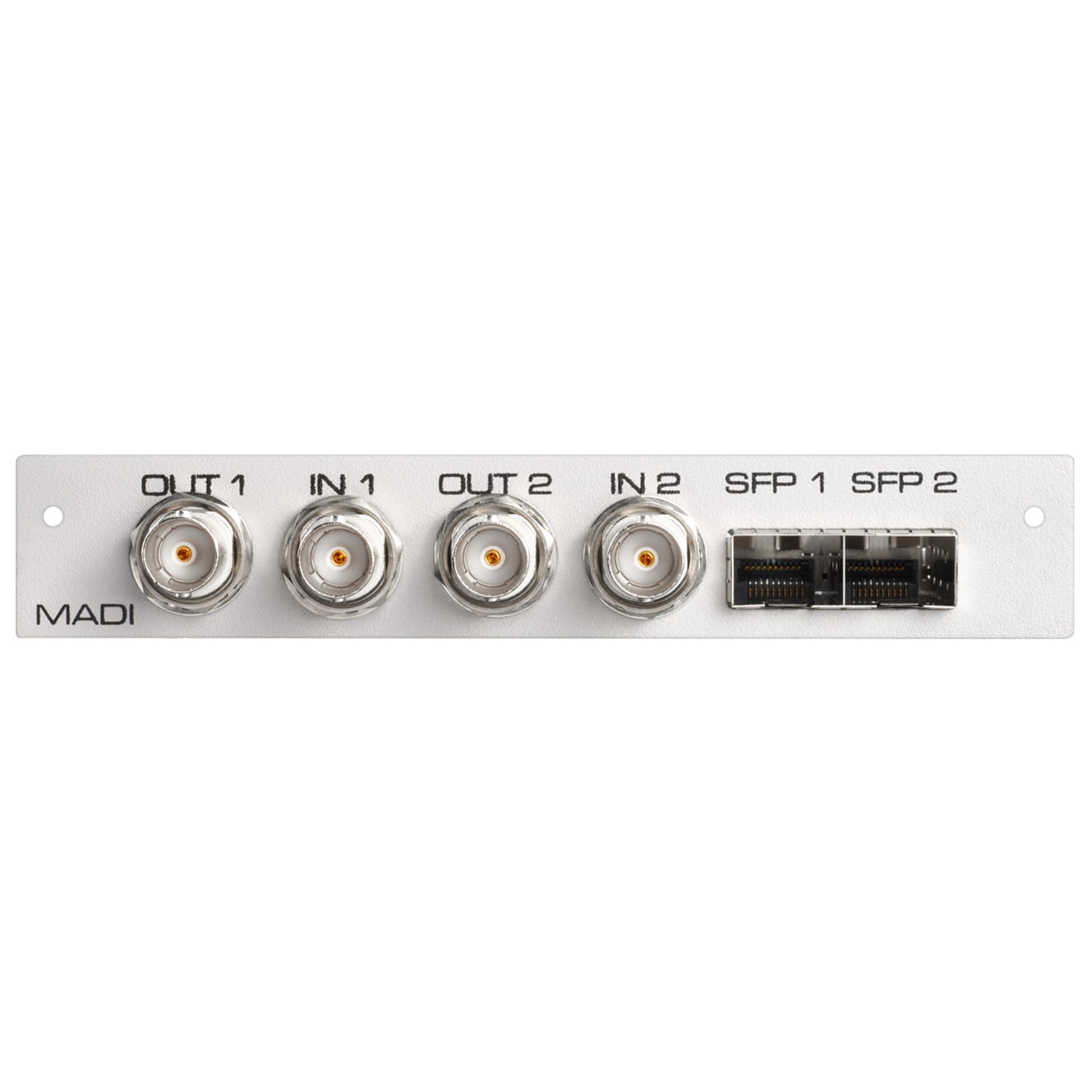

- Two pairs of MADI Coaxial inputs and outputs (4 X BNC connectors)
- 128 discrete channels of digital input and output (extended mode) at 1FS
- Up to 384 kHz sampling rate
- 24-bit resolution
- Fully compliant MADI (AES 10-1991)
- 2 x SFP Cages slots.
The Merging MADI128V3 expansion card doubles the total MADI channel count to up to 128 inputs and 128 outputs @1FS for Hapi MkIII. The MADI128V3 is also equipped with a two slots Small Form-factor Pluggable (SFP) cages, suitable SFP modules can be fitted. SFP transceivers for optical multi-mode or single-mode for transmission or mini BNC for coaxial transmission are not included.
Features:
- Two pairs of MADI Coaxial inputs and outputs (4 X BNC connectors)
- 128 discrete channels of digital input and output (extended mode) at 1FS
- Up to 384 kHz sampling rate
- 24-bit resolution
- Fully compliant MADI (AES 10-1991)
- 2 x SFP Cages slots.
