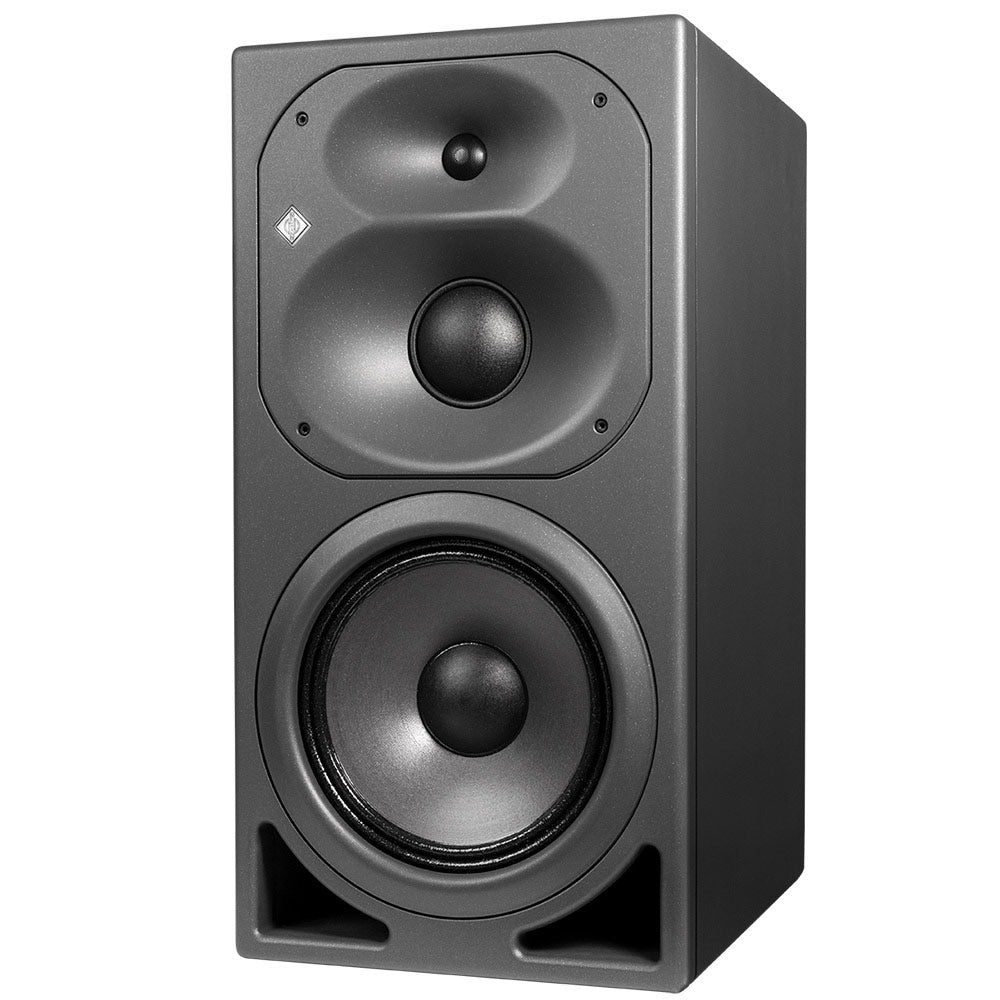

Neumann KH 420 3-Way Active Midfield Studio Monitor (Single)


  • Dale #:

    NEUM-KH420
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The KH 420 represents the result of using the latest techniques in acoustical, electronic and mechanical design to bring a new benchmark in audio reproduction quality. In-house computer optimized drivers, a waveguide featuring Mathematically Modeled Dispersion (MMD), flexible acoustical controls,... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The KH 420 represents the result of using the latest techniques in acoustical, electronic and mechanical design to bring a new benchmark in audio reproduction quality. In-house computer optimized drivers, a waveguide featuring Mathematically Modeled Dispersion (MMD), flexible acoustical controls, various input options, and an extensive mounting hardware range allow the KH 420 to be used in diverse acoustical conditions, with any source equipment, and in a wide variety of physical locations. The KH 420 has been designed for use as a mid-field or main monitor. It is particularly well-suited for use in music, broadcast, and post production studios for tracking, mixing, and mastering. The KH 420 can be used free-standing or flush mounted into a wall, and, in multichannel systems, can be mixed freely with other loudspeakers in the range.

Features:

  • Computer mechanically modeled three-way cabinet design using Low resonance Integral Molding (LRIM) materials
  • New in-house simulated magnetically shielded drivers
  • Powerful alloy fabric dome tweeter with built-in grille
  • Fabric dome, neodymium magnet, midrange driver
  • Long throw bass driver with Extremely Linear Force Factor (ELFF) and flow optimized die cast basket
  • High-capacity flow-optimized bass reflex ports with pipe damped
  • Elliptical Mathematically Modeled Dispersion (MMD) waveguide, with wide horizontal and narrow vertical dispersion
  • Two-color dimmable Neumann logo
  • Fast-acting independent thermo limiters for woofer, midrange dome and tweeter to protect the voice coils. Woofer soft clip and excursion limiters.
  • Production consistency due to individual hand-alignment in final test
  • 4-position bass, low-mid and treble acoustical controls and easy to use parametric equalizer
  • Wide range input gain and output level controls
  • Ground lift
  • Optional (DIM 1) digital XLR/BNC inputs and buffered BNC output
  • Optional (DIM 1) lipsync delay (0 ¦ 10/12 frames)
  • Optional (DIM 1) time-of-flight delay (0 ¦ 400 ms)
  • Universal dual (bass and mid/treble) switched-mode power
  • Fully documented extensive mounting hardware options
  • Optional robust metal grille
  • Optional transportation accessories

The active 3-way system (10+3+1) is ideal for larger 5.1 and 7.1 configurations and listening distances of up to 11 meters. With a corner frequency of 52 Hz, the KH 120 nearfield monitor set new standards in its class for low frequency performance. Neumann engineers have succeeded in raising the bar with the KH 420; its 26 Hz corner frequency is not only lower than other comparable midfield monitors, but a whole octave lower than the KH 120. Anyone requiring even lower bass reproduction for surround systems with a dedicated LFE channel can add the KH 870 woofer to extend the response down to 18 Hz.

Computer-optimized drivers, the Mathematically Modeled Dispersion Waveguide (MMDTM), acoustical controls for matching the speakers to the listening room, a highly flexible input section, and a wide range of mounting hardware make the KH 420 a versatile monitoring tool for the audio professional. The KH 420 has been designed to provide optimum dispersion regardless of the orientation of the cabinet. This is possible thanks to the rotatable waveguide section which contains both the high frequency and midrange drivers.

An optional Digital Input Module (DIM 1) is available for the KH 420 which provides the monitor with digital AES3 and S/P-DIF inputs and a delay function. This feature, which is available on both the digital and analog inputs, may be used for audio/video lip synchronization and to compensate for non-equidistant speaker placement. Maximum delay time is 409.5 ms with a minimum resolution of 0.1 ms.

More +

Product Specs

Acoustics
3 dB free field frequency response26 Hz - 22 kHz, ± 3 dB
Pass band free field frequency response28 Hz - 20 kHz, ± 2 dB
Self generated noise level at 10 cm< 20 dB(A)
Total harmonic distortion< 0.5 % at 95 dB SPL at 1 m >120 Hz
Max. SPL in full space / calc. in half space at 3% THD at 1m116.4 / 122.4 dB SPL
(averaged between 100 Hz and 6 kHz)
Bass capability: Max. SPL in half space at 3% THD at 1m 109.9 dB SPL (averaged between 50 Hz and 100 Hz)
Max. short term SPL with IEC-weighted noise (IEC 60286-5) at 1 m, in typical listening conditions109 dB(C) SPL
Max. short term SPL with music material at 2.3 m, in typical listening conditions (pair) 103 dB(C) SPL (full range)
109 dB(C) SPL (with subwoofer)
Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single/pair)90 / 96 dB(C) SPL (full range)
90 / 96 dB(C) SPL (with subwoofer)

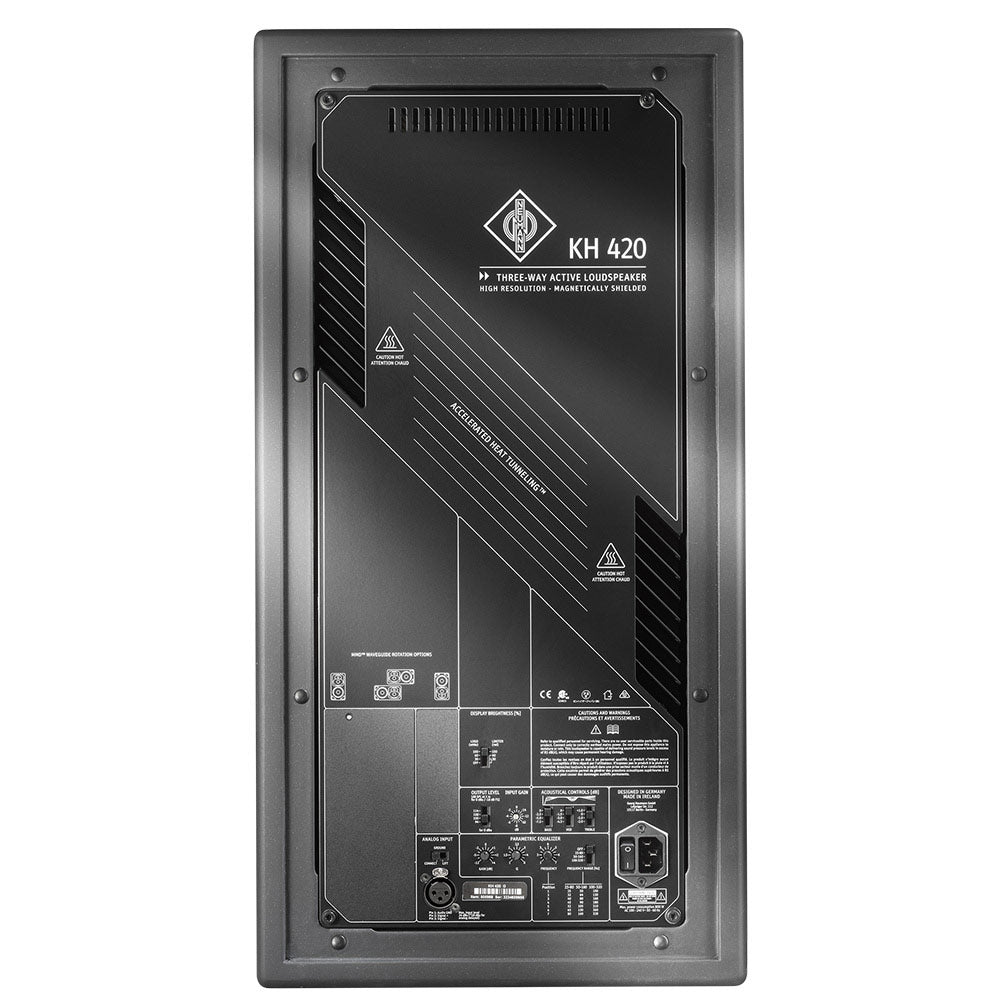

Analog Input
Infrasonic filter: frequency/slope9 Hz; 18 dB/oct
InputXLR, electronically balanced
Impedance, electrically balanced14k Ohms
Input gain control (sensitivity)0 dB to 15 dB
Output level control94, 100, 108, 114 dB SPL
CMRR>56 dB @ 100 - 16 kHz
Max. analog input level +24 dBu (18 dBu for analog delayed)
Digital Input (when optional DIM 1 accessory is fitted)
FormatBNC AES3, S/P-DIF
Impedance BNC, unbalanced75 (input/output)
FormatXLR AES3
Impedance XLR, balanced110 (input)
Input switchingAnalog, Digital A, Digital B, Digital A+B (all available with and without delay)
Digital converter: resolution, design16 ... 24-bit DAC,
Digital converter: sampling rate22.05, 24, 32, 44.1, 48, 64, 88.2, 96, 176.4, 192 kHz
Digital sensitivity18 dBFS = 100 dB SPL at 1 m
A-D-A, D-A dynamic range>116 dB(A), >123 dB(A)
THD+N: analog delayed, digital < -104 dB, < -106 dB
Maximum Audio-Video/lip sync and Time-of-Flight delay409.5 ms/ 140.87 m (462' 2")
Audio-Video/lip sync max. frames10.2 (40 ms) frames, 12.3 (33 ms) frames
Resolution: time/distance0.1 ms / 3.4 cm (1 3/8")
Latency D-A (A-D-A)0.22 - 1.85 ms (0.54 ms)
Delay setting acknowledgementNeumann logo "Red" 1 flash
Delay setting acknowledgementNeumann logo "Red" continuous flashes
Mains Power Supply, voltage; frequency100-240 V~; 50/60 Hz
Electronics
Bass / Midrange / Treble Class AB amplifiers, cont. (peak) output power295 W (330 W) / 130 W (140 W) / 130 W (140 W)
Controller designAnalog, active
Crossover - Frequencies570 Hz / 2 kHz
Crossover - Slope24 dB/oct
Equalization - Bass0; -2.5; -5; -7.5 dB
Equalization - Mid0; -1.5; -3; -4.5 dB
Equalization - High1; 0; -1; -2 dB
Parametric EqualizerBypassable
Parametric Equalizer - Gain+4 ... -12 dB
Parametric Equalizer - Frequency Bypass25 ... 80 Hz, 50 ... 160 Hz, 100 ... 320 Hz
Parametric Equalizer - Q1 ... 8
Protection circuitryExcursion limiter: Low
Peak limiter: Low
Thermo limiters: Low, Mid and High
Overheat: Amplifiers
Displays, indicators - power onNeumann logo "White"
Displays, indicators - limit / clipNeumann logo "Red"
Mains Power Supply, voltage; frequency100-240 V~, 50/60 Hz
Power consumption - idle 60 W(+5 W when DIM 1 fitted)
Power consumption - full output800 W
Mechanics
Cabinet surface finish, colourPainted wood and polyurethane, metallic anthracite. Aluminum electronics panel, Black.
Baffle cover Optional removable metal grille
Operating conditions+10° C to +40° C (+50° F to +104° F), <90% RH, non-condensing
Transport/storage condition25° C to +70° C ( 13° F to 158° F), <90% RH, non-condensing
DriversMagnetically shielded
Woofer 265 mm (10")
Midrange 76 mm (3")
Tweeter 25 mm (1")
Mounting points8 x M5 on rear
Product dimensions (height x width x depth), mm (inches)645 x 330 x 444 mm (25 3/8" x 13" x 17 1/2")
External volume93 liters
Product Weight35 kg (77 lbs 3 oz) (+ 100 g (3 oz) when DIM 1 fitted)
Packed dimensions (height x width x depth), mm (inches)775 x 610 x 590 mm (23 1/4" x 15" x 14 1/8")
Packed weight and cube41.0 kg (90 lbs 6 oz), 0.279 m³
Delivery includes1x KH 420
3x Power cables (Euro, UK, USA)
1x Operating manual
1x Getting Started Quickly Guide
