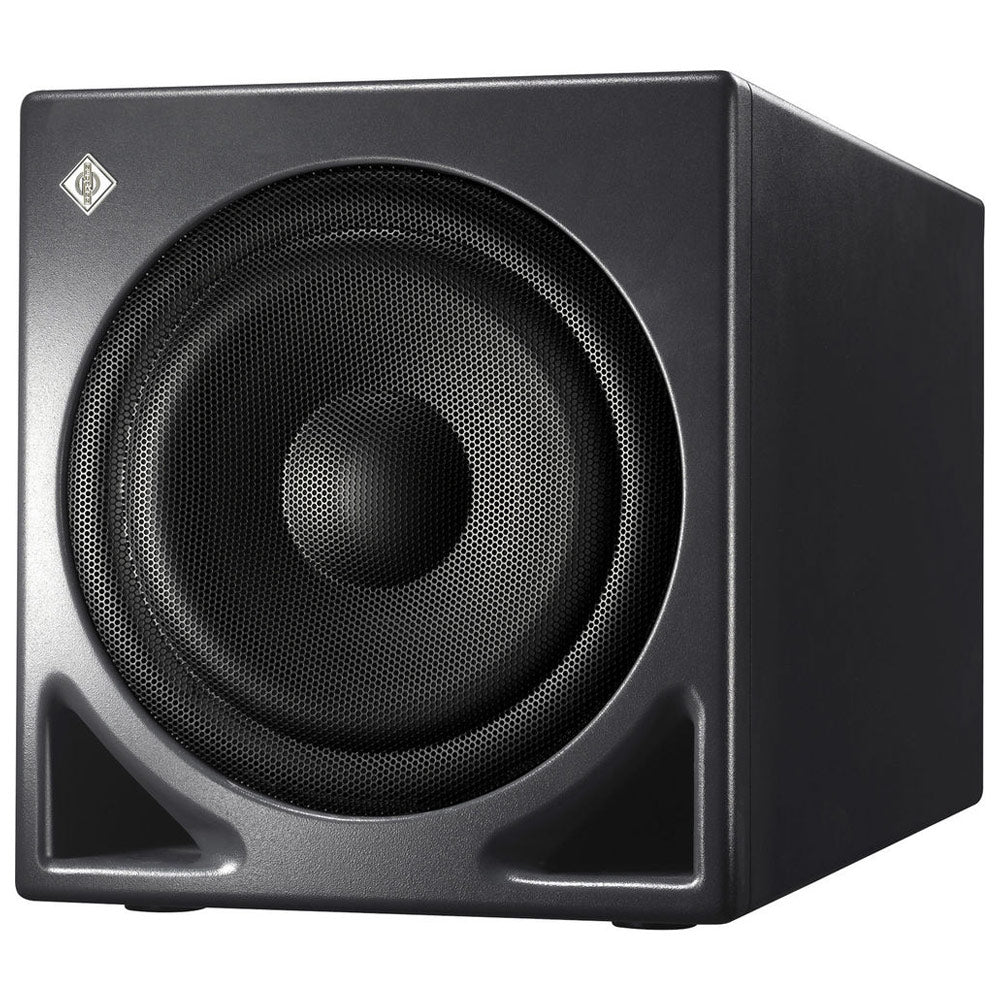

Neumann KH 810 Active Studio Subwoofer

  • Dale #:

  • Availability:

    Backordered - Not In Stock
  • the lead time prior to shipment is approximately 5-7 weeks after order placement.


As consumer technology advances at ever faster rates, professional technology increasingly finds itself trying to keep up. An example of this is the advent of the Blu-ray and other high definition formats that have increased the audio channel count to 7.1.The KH 810 is an answer to these new dema... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories


As consumer technology advances at ever faster rates, professional technology increasingly finds itself trying to keep up. An example of this is the advent of the Blu-ray and other high definition formats that have increased the audio channel count to 7.1.

The KH 810 is an answer to these new demands by offering a new 7.1 High Definition BassManager™. This is compatible with all standard consumer formats from mono through to the latest 7.1 HD systems. Eight channels of analog ensures flexible interconnectivity for modern studios. Four-mode LFE-channel processing guarantees compatibility across all formats and industries. Forth-order crossovers and flexible acoustical controls allow for seamless system integration. Built-in volume control and a hardware remote control allows for centralized system control independent of the source, and the electronics can be remote located to reduce cabling

The latest amplifier technology and acoustical components have been used to ensure the most accurate sound reproduction possible. Robust drivers, a rock-solid cabinet, and carefully designed ports guarantee a tight, articulate, and distortion-free low frequency reproduction, even at high replay levels. Using the sum output, Plane Wave Bass Array™ (PWBA™) techniques acoustically improves lateral consistency in the listening area. The bass extends down to 18 Hz.

The KH 810 subwoofer is designed to complement Neumann's extensive range of monitors, and can be used on its own, or daisy-chained to make larger systems capable of higher SPL. The KH 810 can be used in music, broadcast, and post production studios for tracking, mixing, and mastering. The cabinet can be positioned next to a wall or flush mounted into a wall due to the front mounted port, and can be mixed freely in multichannel systems with other loudspeakers from Neumann's range.


  • 7.1 Channel High Definition Bass Management™ compatible with all formats from mono to 7.1
  • Bypassable 4th order 80 Hz active crossover for maximum compatibility with consumer reproduction
  • 0 and +10 dB LFE gain and 4-mode LFE processing:
    • LFE to subwoofer and left/right
    • LFE to subwoofer only up to 80 Hz
    • LFE to subwoofer only up to 120 Hz
    • LFE to subwoofer with no filtering - for daisy chaining subwoofers and external signal processing systems
  • Independent control of bass management for front and back channels
  • Built-in 8 channel system volume control with remote control: NRC 1 and RS-232
  • Acoustical controls adapt the subwoofer's response to the environment
    • Output level
    • Low cut
    • Parametric equalizer
    • 45° step phase control with a built-in test signal
  • Larger systems and Plane Wave Bass Arrays™ maybe constructed using the Sum output
  • Remoteable electronics (REK 3 and an SC nn) for installation convenience, less cabling, and convenience of use
  • Integrated electronic limiter for amplifier and driver protection
  • Low heat dissipation amplifier
  • Electronics can be remotely powered on with two modes of operation (0 V and 12 V trigger)
  • Robust driver and cabinet:
    • Low frequency extension for main loudspeakers down to 18 Hz
    • Low distortion magnetically shielded long-throw driver
    • Reduced bass compression at high SPL from generously proportioned bass reflex ports
    • Allows main loudspeakers to play louder and with lower distortion
    • Wooden cabinet with a tough painted finish (anthracite or silver) and high density rubber isolating feet
    • Excellent self-damping properties leading to minimal cabinet resonances
    • Cabinet look conforms to the family design

Delivery Includes:

  • 1x KH 810
  • 3x Power Cables (Euro, UK, USA)
  • 1x Operating manual
  • 1x Supplement "Getting Started Quickly"
  • 1x Product guarantee

More +

Product Specs


-3 dB free field frequency response

18 - 300 Hz, ± 3 dB
Pass band free field frequency response19 - 300 Hz, ± 2 dB
Self-generated noise  level at 10 cm< 20 dB(A)
Sine wave output with a THD < 0.5 % at 1 m45 Hz @ 95 dB SPL
Max. SPL In half space at 3% THD110.7 dB SPL
Max. SPL with pink noise In half space at 1 m106 dB SPL
Averaged between40 and 90 Hz


Amplifier, cont. (peak) output power (THD < 0,1 %)

160 W (200 W)
Controller designAnalog, active
Main channel crossover frequency80 Hz
Crossover slope24 dB/oct
Equalization: Low cut30 Hz, 0 ... -12 dB
Parametric EqualizerBypassable
Parametric Equalizer - Gain+4 ... -12 dB
Parametric Equalizer - Frequency20 ... 120 Hz
Parametric Equalizer - Q1 ... 8
Time of Flight adjustment delay0 ... 4.69 ms @ 80 Hz (4-step 0, 45, 90, 135),- 180° Switch
Volume ControlHardware remote or RS-232
Calibration ToolsInternal signal generator
Protection circuitryPeak and Thermo Limiters
Infrasonic filter frequency; slope6.5 Hz; 12 dB/oct.
Remote controlOn a CAT-5
Analog Inputs and Outputs
Input/Output channels7.1 / 7+Sum
Impedance electrically balancedXLR, 13 k
Input sensitivity-8 and +6 dBu
Max. input level+19 dBu (6.9 Vrms) / per channel
CMRR>60 dB @ 15 kHz
Interchannel isolation (1 kHz), level matching-95 dB, ±0.1  dB
Volume control range, resolution118 dB, 0.25 dB
Dynamic range, THD+N119 dB(A), <0. 001% (-100 dB)
LFE Modes80+re-routing, 80, 120, wide
LFE Gain0 / +10 dB
Gain Control+2 ... -12 dB
Displays and Mains Power
Displays and indicators: power onRed LED
- limit/clipRed LED "Flashing"
- bass management activeGreen LED
Mains power220 - 240 / 100 - 120 V AC (switchable)
Power consumption - Idle35 W
Power consumption - Full output290 W


Cabinet surface finish

Color: standardAnthracite (RAL 7021)
Baffle coverIncluded metal grille
DriversMagnetically shielded
Woofer265 mm (10)
Height x width x depth360 x 330 x 645 mm (14.2 x 13 x 25.4)
Internal net volume41.5 l
External volume76.6 l
Weight26 kg (57.2 lbs)
AccessoriesFO 810, RC 2, RC 5, RC 10, RC 15, RC 20, RC 25, RC 30, REK 3, SC 2, SC 5, SC 10, SC 15, SC 20, SC 25, SC 30, SEA 1, NRC 1
