Neumann M147 Large Diaphragm Cardioid Tube Condenser Studio Microphone


  • Dale #:

    NEUM-M147TUBE
  • Availability:

    Usually ships in 5 - 10 Days
  • This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.

Description

The M 147 Tube is a vacuum tube condenser microphone with cardioid characteristic. At the heart of this microphone is the K 47 dual diaphragm capsule, inherited from this model's now legendary predecessors, the U 47 and the M 49.Features Universal tube microphone Pressure gradient transducer wit... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Description

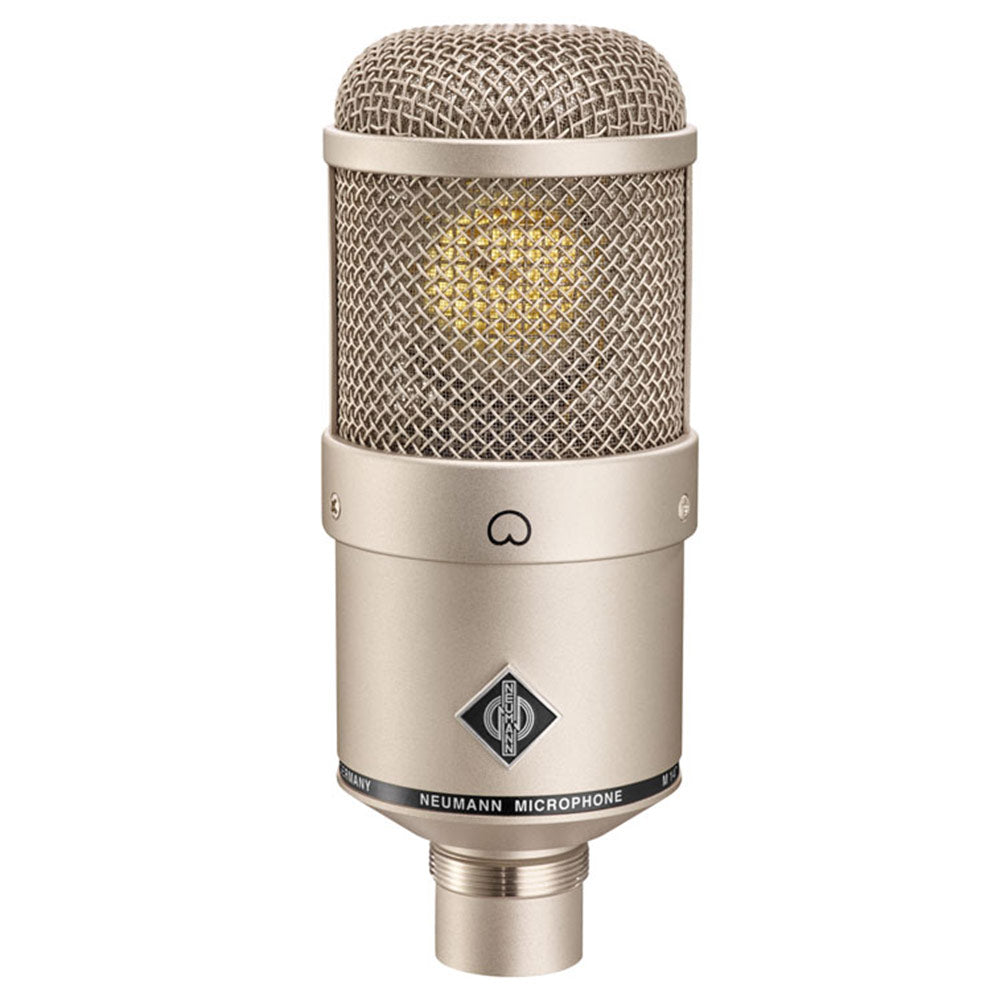

The M 147 Tube is a vacuum tube condenser microphone with cardioid characteristic. At the heart of this microphone is the K 47 dual diaphragm capsule, inherited from this model's now legendary predecessors, the U 47 and the M 49.

Features

  • Universal tube microphone
  • Pressure gradient transducer with the large diaphragm capsule from the legendary U 47 and M 49
  • Transformerless circuitry
  • Low self noise level

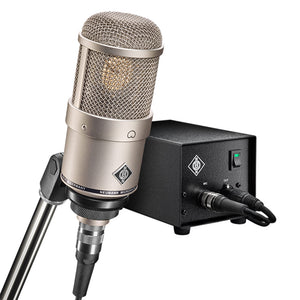

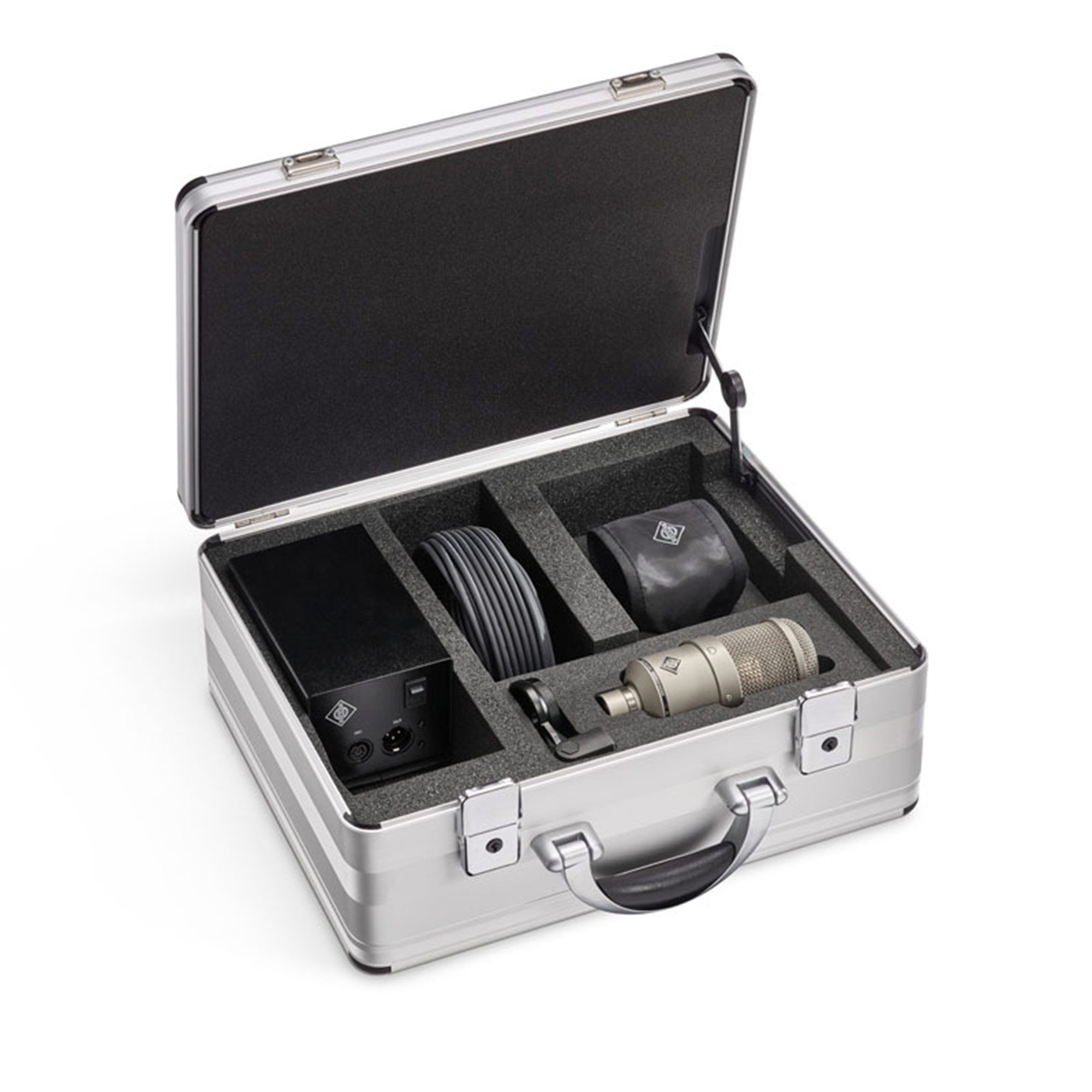

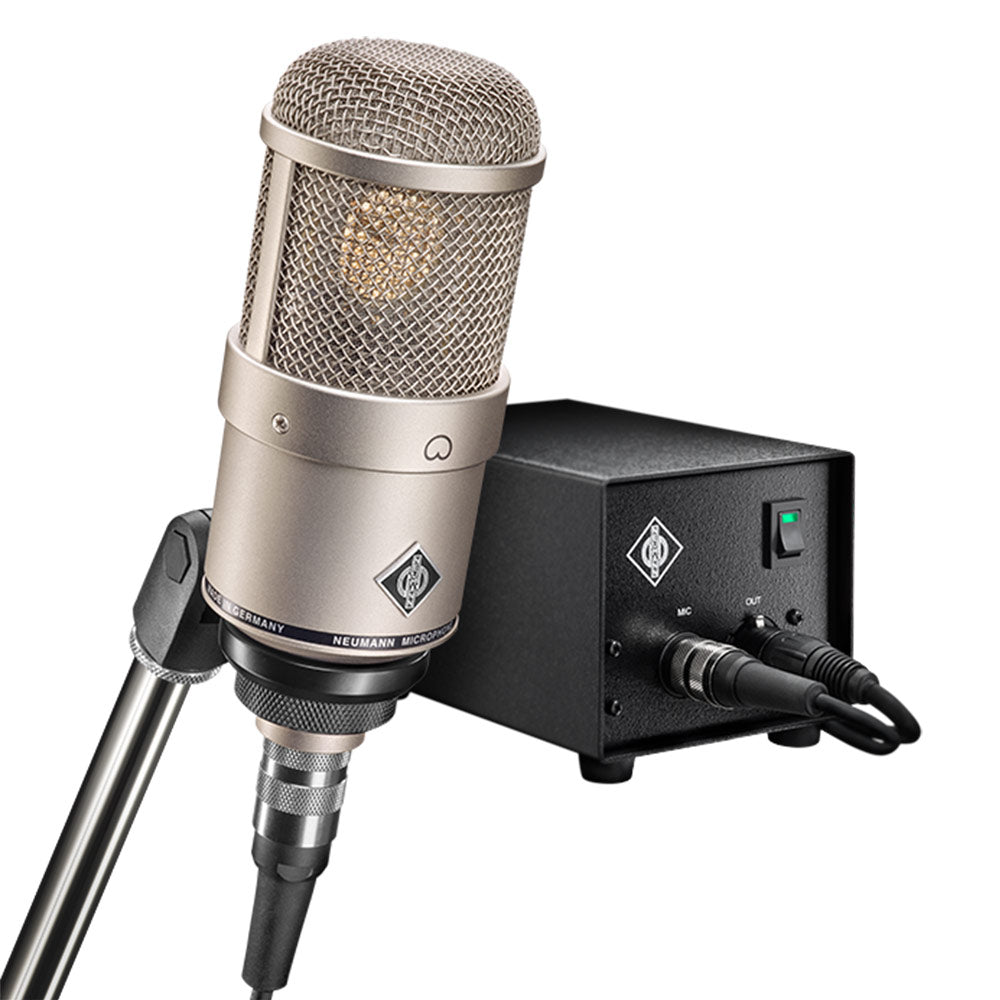

  • Comes with swivel stand mount made of metal, universal power supply, and cable in an attractive aluminium case

Following the capsule is a tube that functions as an impedance converter. The next stage is an efficient, transformerless output circuit, that guarantees an extremely low self-noise level. Note: This innovative combination of current tube technology with the most advanced solid-state circuitry was decisive in awarding the 1997 TEC Award to the related M 149 Tube mic. The M 147 Tube can feed extremely long microphone cables without affecting the quality of the audio signal. Like all Neumann tube microphones, the M 147 Tube comes with an elegant satin nickel finish.

More +

Product Specs

Acoustical operating principlePressure gradient transducer
Directional patternCardioid
Frequency range20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohm20 mV/Pa
Rated impedance50 ohms
Rated load impedance1 kohms
Equivalent noise level, CCIR1)24 dB
Equivalent noise level, A-weighted1)12 dB-A
Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL)70 dB
Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL)82 dB
Typical SPL (tube characteristic)2)114 dB for THD < 0.5 %, 134 dB for THD < 5 %
Maximum output voltage8 dBu
Dynamic range of the microphone amplifier (A-weighted)102 dB for THD < 0.5 %, 122 dB for THD < 5 %
PoweringPower supply N 149 A
Matching connectorMicrophone DIN 8F, Power Supply XLR3F
Weight460 g
Diameter57 mm
Length142 mm

More +
