Phonak Roger Base Station - Transmitter for Wireless IFB System
Contact us
Please Note: Orders will not be available for shipment until on or about Wednesday August, 19.
Description

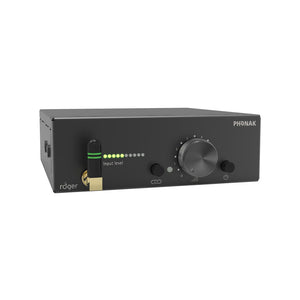

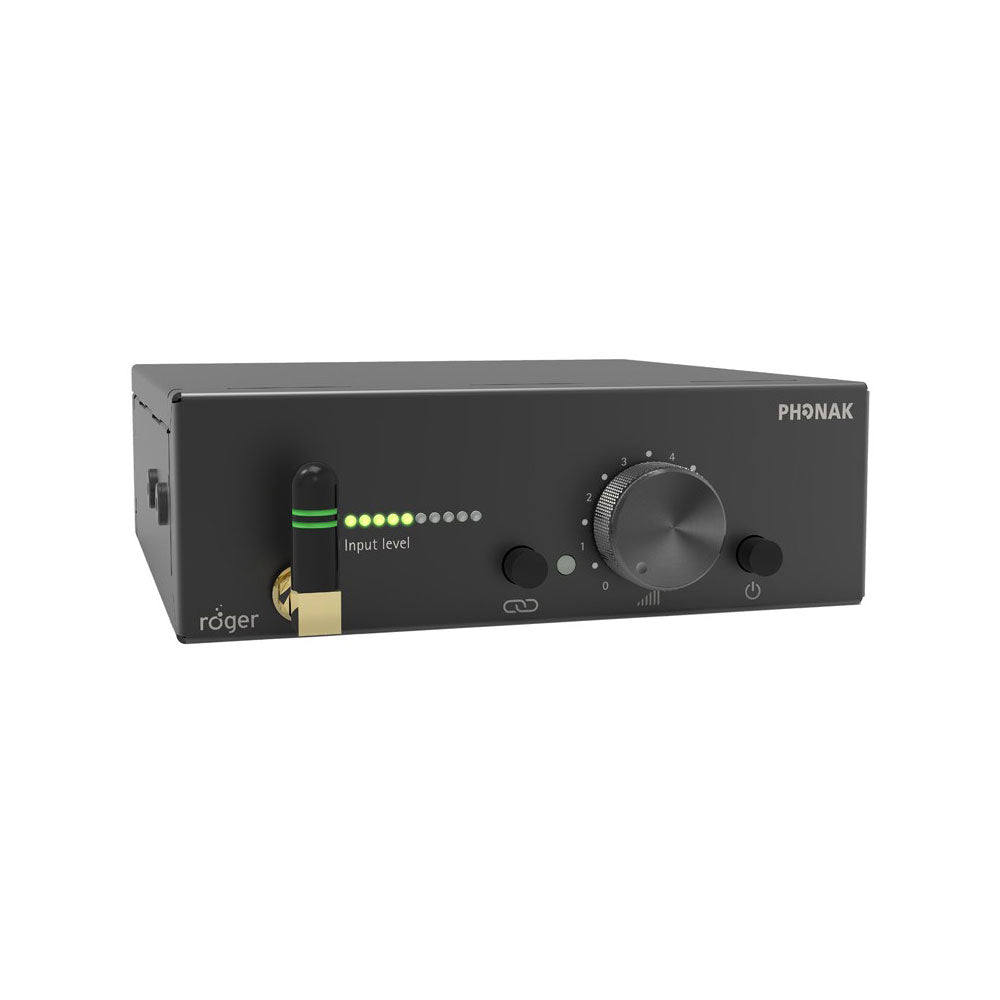

The Roger BaseStation stationary transmitter, delivers high quality speech signals to the wireless Roger Earpiece. Using Phonaks new digital standard at 2,4GHz and fully automatic frequency hopping technology ensures that the signal is transferred to the in-ear receiver in unrivalled sound quality.
The Roger technology uses the latest digital standard and operates on the license-free 2.4 GHz band. The wireless Roger communication system includes a transmitter and features an advanced microphone, which is used by the speaker, and a virtually invisible receiver that is hidden in the listener's comfortable, tiny earpiece. Roger systems are ideal for people working in broadcasting and show business, who rely on seamless communication with directors, producers, and sound technicians. They are utterly discreet, easy to use and install, and offer unrivalled intelligibility.
Features:
- License free 2.4 GHz transmission
- Adaptive automatic frequency hopping
- Balanced audio in (XLR or 6.3)
- Audio input graphical display
- Volume control: –14 to +12 dB
- Bandwidth: 100–7200 Hz
- Transmission range: 15–40 m (depending on environment)
- Rack and wall mount included
- Weight: 488 g
- Housing dimensions: 132 x 132 x 44 mm
| Housing Dimensions (L x W x H) | 132 x 132 x 44 mm (5.1Óx5.1Óx1.6Ó) |
| Weight | 488 g (1.1 lbs) |
| Color | Black |
| Operating conditions | 0¡ to + 45¡ Celsius (+32¡ to +113¡ Fahrenheit) and relative humidity of <95% (non condensing) |
| Transport and storage conditions | -20¡ to +60¡ Celsius (-4¡ to +140¡ Fahrenheit) and relative humidity of 90% for a long period |
| Power supply | 100-240 VAC to 5.3 VDC / 4 A |
| Power consumption | 225 mW (75 mA @ 3 V) |
| Audio bandwidth | 100 Hz - 7200 Hz |
| SNR | 55 dB (@ 1 kHz) |
| THD | -42 dB (< 0.8 % @ 1 kHz) |
| Connection information | |
| Range unbalanced input (jack 3.5) | Nominal: -27 dBu Max: 0 dBu |
| Range balanced input (XLR + jack 6.3) | Nominal: +4 dBu Max: + 20 dBu |
| Impedance unbalanced input | 25 k½ |
| Impedance balanced input (XLR + jack 6.3) | 2.2 k½ |
| Connections type and pinout input unbalanced (jack 3.5) | Tip: Audio left Ring: Audio right Sleeve: GND Compatible with mono or stereo inputs (Stereo signals are transformed into mono) |
| Connections type and pinout balanced input (XLR) | 1: GND 2: Hot (+) 3: Cold (-) |
| Connections type and pinout balanced input(jack 6.3) | Balanced input Tip: Hot (+) Ring: Cold (-) Sleeve: GND |
| Compatibility with Roger receivers | Roger Earpiece |
| Number of Roger receivers in use in a Roger network | Unlimited |
| Compatible Roger transmitters | Roger Touchscreen Mic |
| Number of Roger transmitters in use in a Roger network | 1 Roger BaseStation per network and up to 35 Roger Touchscreen Mics |
| Optional accessories | Dual Rack Mount Kit: Kit to install two Roger BaseStation in a 19ÕÕ rack |
| Power supply adapter | UK, AUS |
| Standards applied | Electrical safety: IEC/ EN 60950-1 Radiocom 2.4 GHz: EN 300 328 EMC: EN 301.489-1,-3,-9,-17 FCC: Part 15C IC: RSS-247 |
| Transmission technology | 2.4 GHz adaptive frequency hopping |
| Power emission | 100 mW |
| Operating range to Roger Earpiece | 15-40 m (49-131 ft) depending on environment |
| Operating range for Connect feature | 10 cm (4Ò) |
