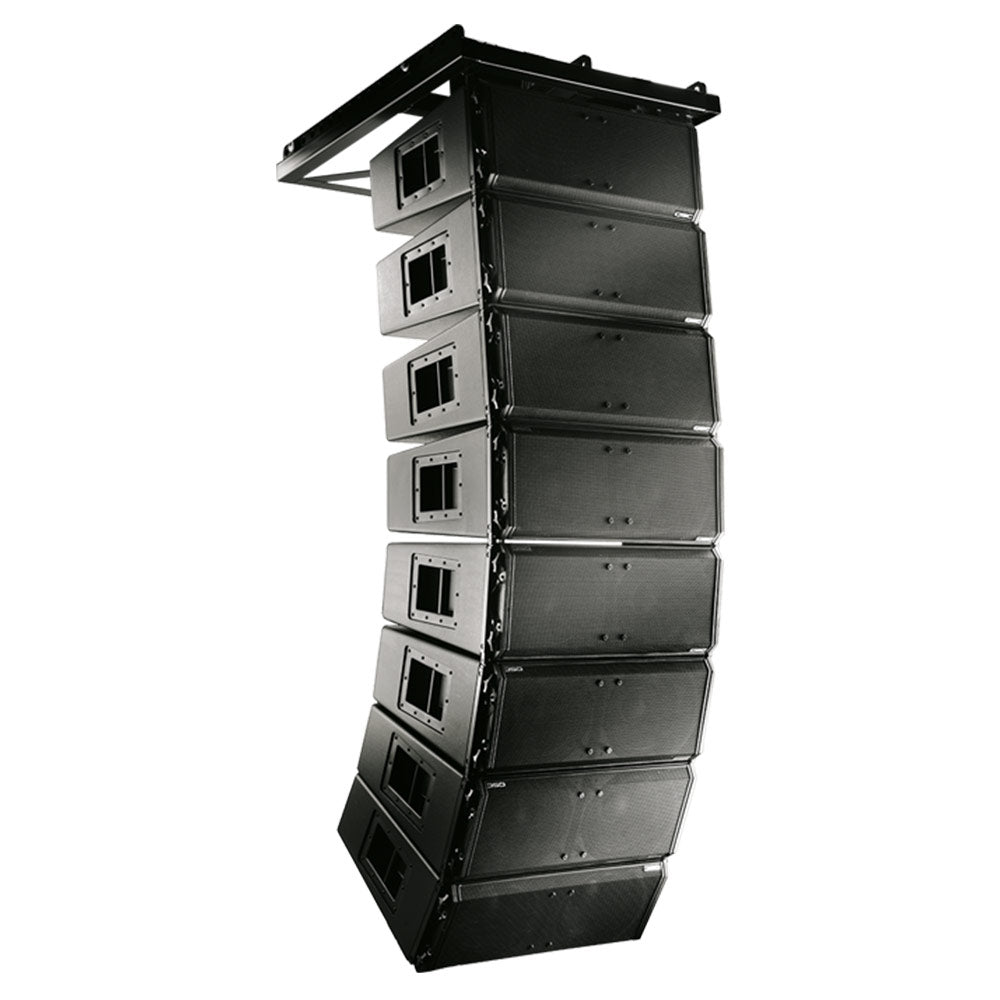

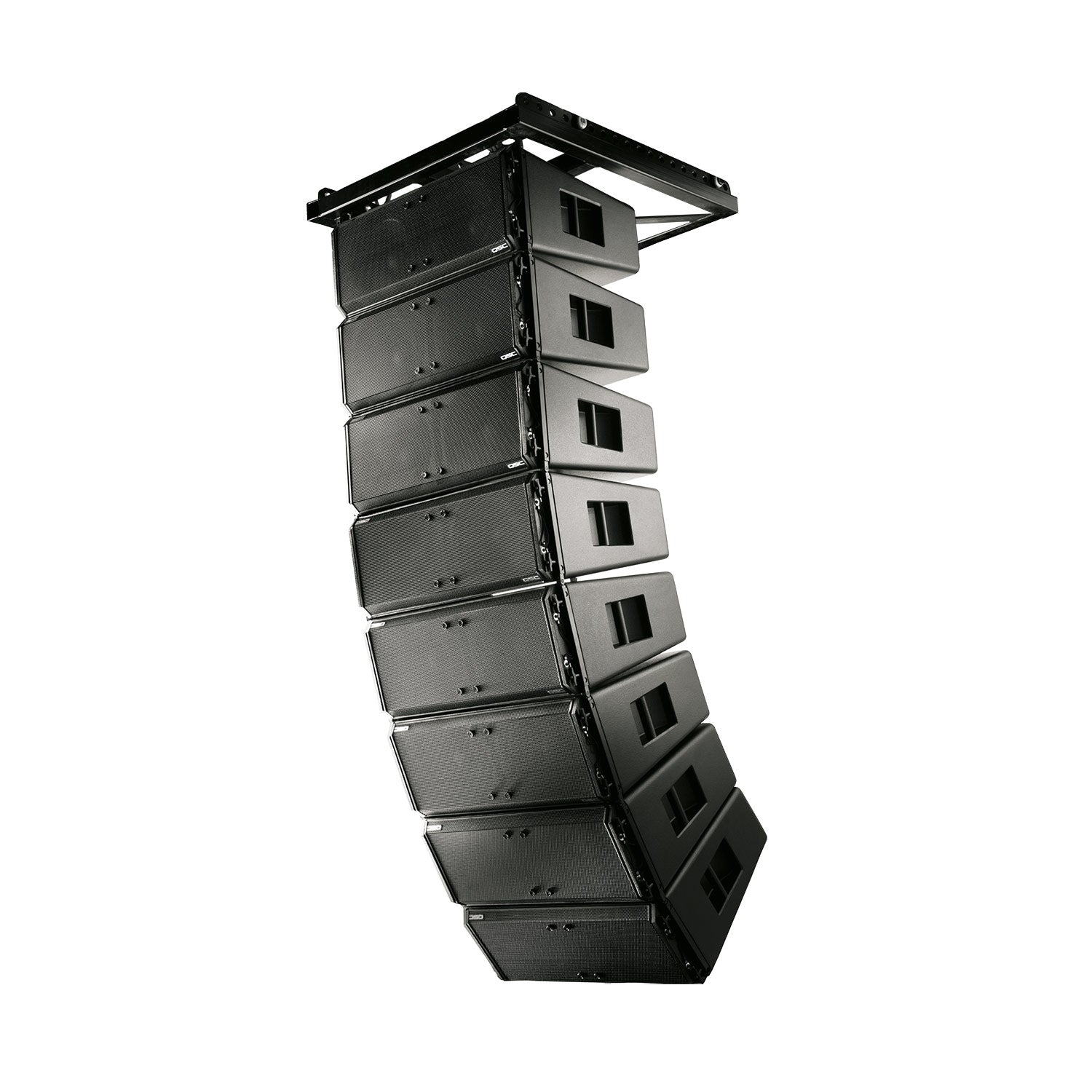

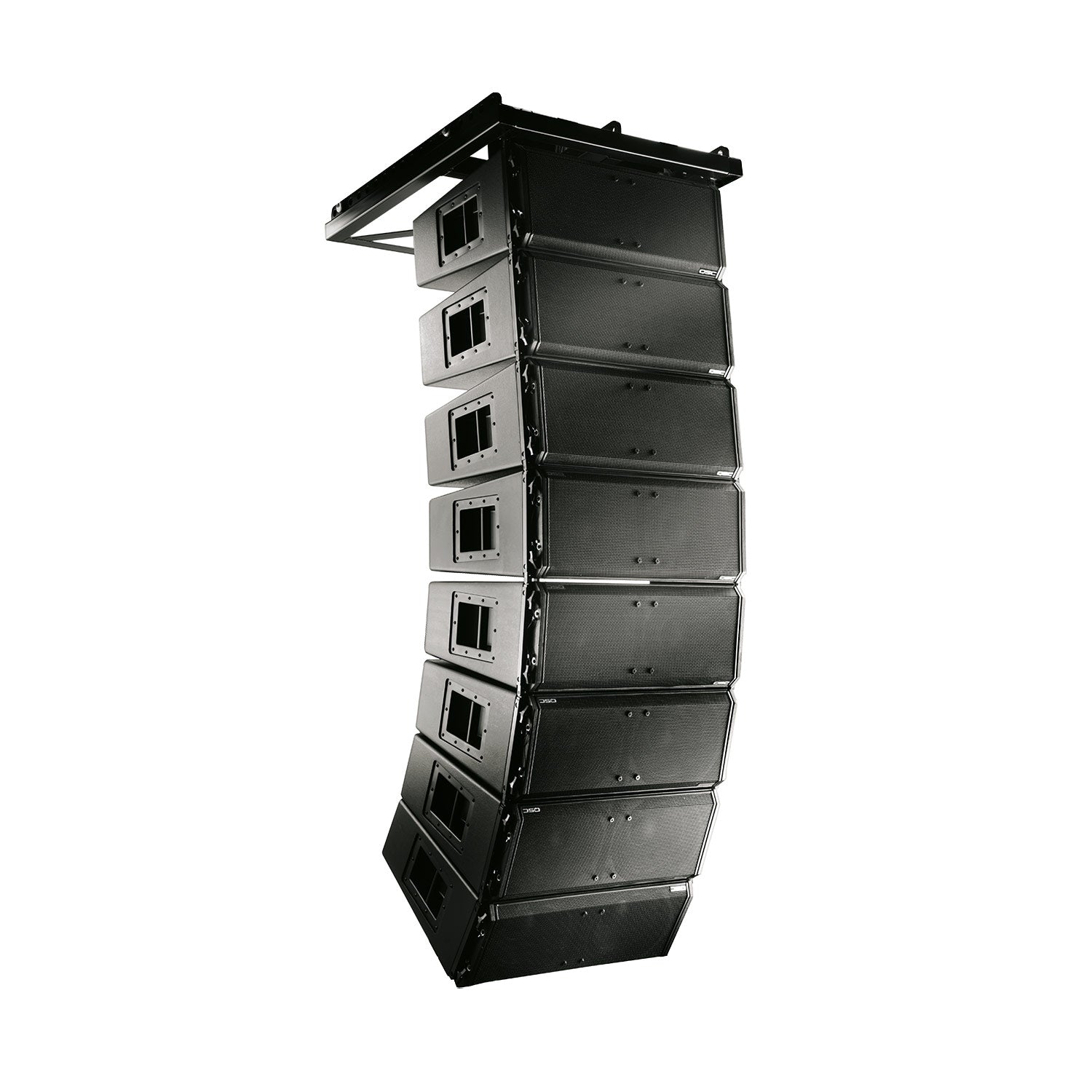

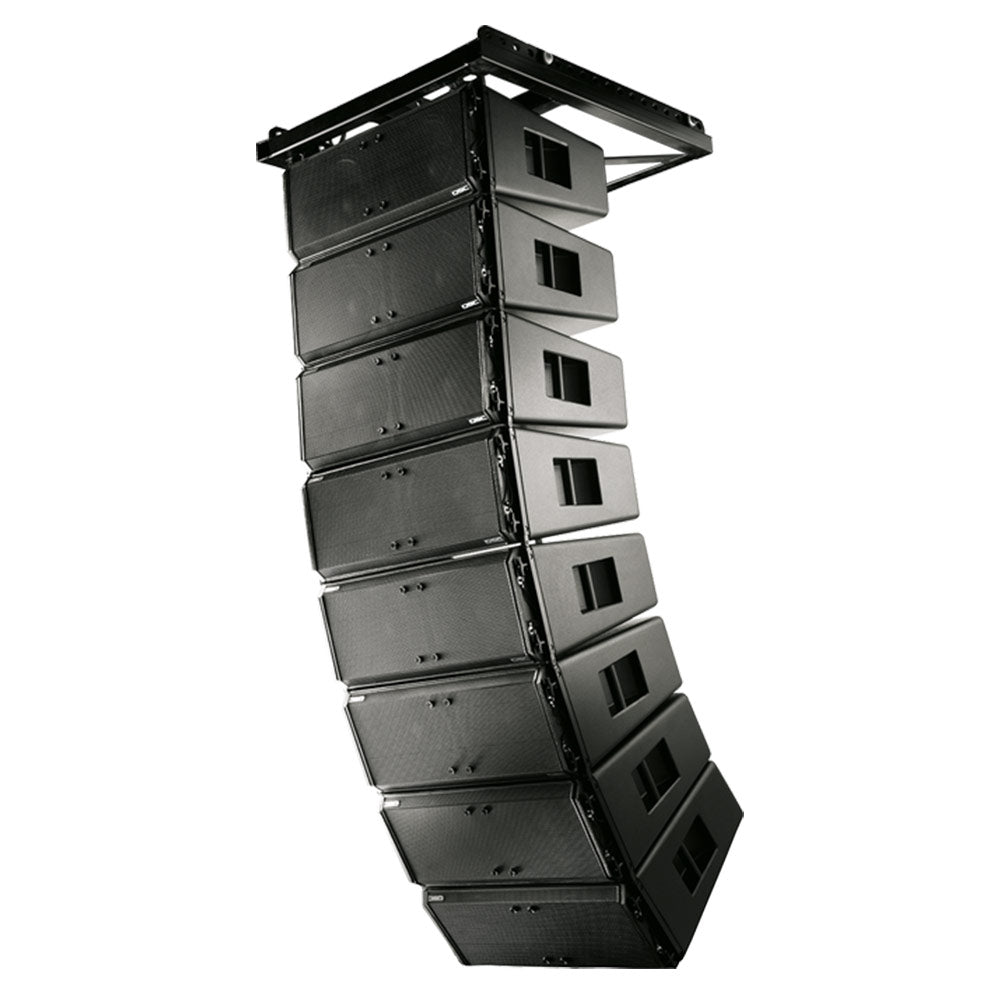

QSC WL2102-w WideLine 10 Series Wide Angle Line Array Loudspeaker

  • Dale #:

    QSC-WL2102WBK
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The QSC WideLine is a full range line array loudspeaker system designed for use in a wide variety of venues, ranging from ballrooms, theaters and nightclubs to concert halls, houses of worship and arenas. The WideLine features an open, natural sound quality and exceptionally wide 140° horizontal ... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The QSC WideLine is a full range line array loudspeaker system designed for use in a wide variety of venues, ranging from ballrooms, theaters and nightclubs to concert halls, houses of worship and arenas. The WideLine features an open, natural sound quality and exceptionally wide 140° horizontal coverage pattern - the widest of any line array system currently available.

The WideLine 10 Series features the WL2102w (two 10-inch woofers) along with two models of dual 18" subs; the "flying" WL218-sw and the ground-stacked GP218-sw.

Features:

  • Patented multiple aperture diffraction slot waveguide provides exceptionally wide horizontal coverage (140°) and a near ideal vertical line source.
  • Exceptionally high output capability in a very compact form factor.
  • May be operated as a bi-amplified or tri-amplified system. DSP settings are available on Q-SYS, SC-28, PLD amplifiers and CXD amplifiers.
  • Dual 10-inch long-excursion, high-power, low-frequency transducers.
  • Single 3-inch diaphragm neodymium compression driver.
  • Birch ply enclosures. Available with standard finish in black.
  • Fully captive hardware design incorporates all components necessary for box to box rigging.

More +

Product Specs

Configuration Biamp or Triamp mode
Transducers
  High Frequency
  Low Frequency

1.4-inch exit, 3-inch titanium diaphragm, neodymium magnet assembly
2 × 400 W, 16 ohm 10-inch woofer, 3-inch voice coil, ceramic magnet assembly
Frequency Response (±3 dB)
Frequency Response (-10 dB)
55 Hz to 18 kHz (with recommended DSP processing)
48 Hz to 20 kHz (with recommended DSP processing)
Nominal Impedance HF: 16 ohms
LF biamp mode: 8 ohms
LF triamp mode: 16 ohms (× 2)
Continuous Power Capacity HF: 80 W (2 hours, AES1984-2 method, 1 to 10 kHz)
LF biamp mode: 600 W (2 hours, AES1984-2 method, 80 to 800 Hz)
LF triamp mode: 400 W (×2) (2 hours, AES1984-2 method, 80 to 800 Hz)
Max Recommended Power HF: 300 W @ 16Ω
LF bi-amp mode: 1400 W @ 8Ω
LF tri-amp mode: 700 W @ 16Ω (x 2)
Sensitivity (1 W at 1 m)

HF: 107.5 dB (single cabinet measured in free space.)
LF: 98 dB (single cabinet measured in free space. LF drivers connected in parallel)
Maximum Output (SPL at 1 m)
  Continuous:
  Peak:
HF: 127 dB / LF: 127 dB
HF: 133 dB / LF: 133 dB
Maximum Output (dB SPL at 1 m)
Continuous / Peak

HF: 126 dB / 132 dB
LF: 122 dB / 128 dB
Nominal Coverage Horizontal: 140°
Vertical: Dependent on number of elements used
Enclosure
Cabinet Type Ported, trapezoidal
Material Baltic birch plywood
Finish Available in standard black finish
Grille Perforated, formed powder coated steel
Connectors 2 x Neutrik Speakon® NL8 in parallel
Pinout
Pins Bi-amp Tri-amp
1+/1- LF MF
2+/2- NC LF
3+/3- NC NC
4+/4- HF HF

Attachment Points Integral, adjustable rigging system, vertical splay adjustable in 1° increments from 2 ° to 10° and 0°
Weight 83 lb (37.7 kg) net
91 lb (41.4 kg) shipping
Dimensions (HxWxD) 10.75-inch × 27.5-inch × 20.25-inch
(27.3 cm × 69.85 cm × 51.43 cm)
Accessories Available AF2102-LA
