Radial Engineering MIX 2:1 Two-Channel Audio Combiner and Mixer

Sale price$179.99 Regular price$216.00
Save $36.01
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

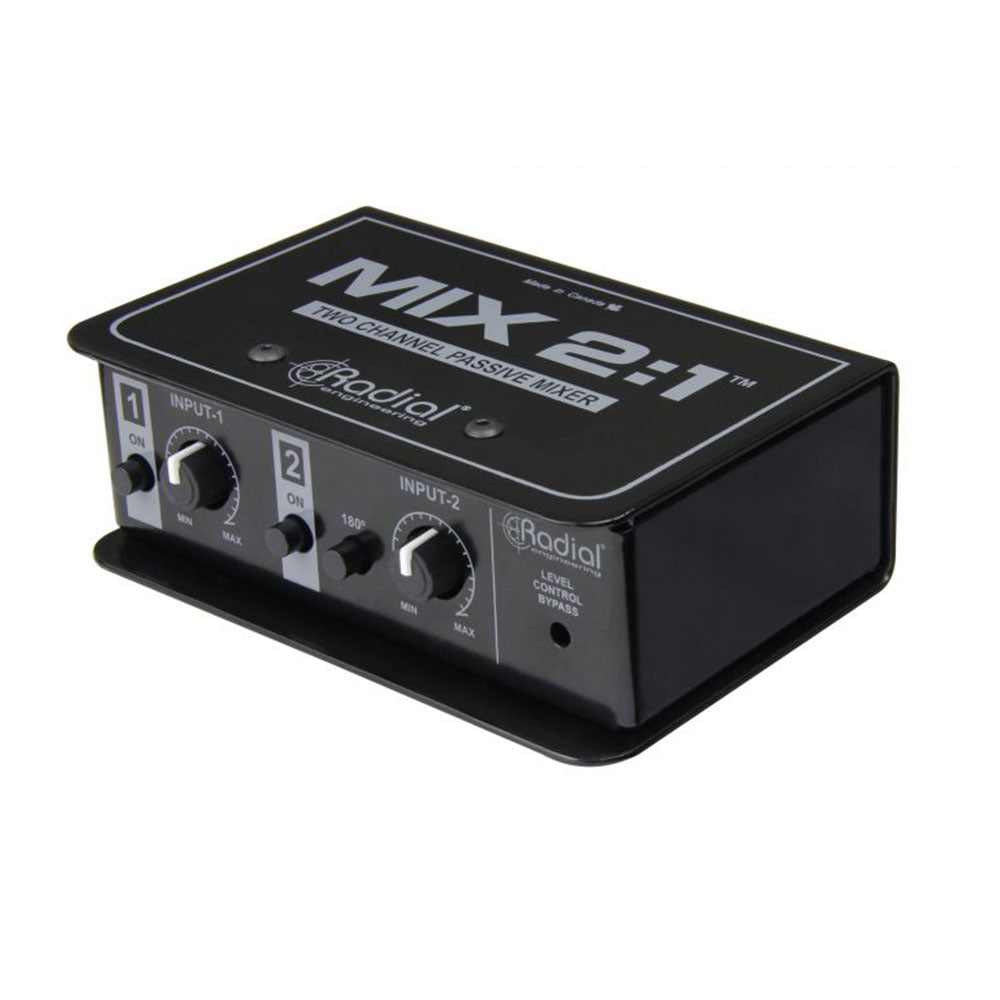

    The MIX 2:1™ is a simple yet highly useful mixer that passively sums two audio channels down to one. This enables you to easily sum the stereo outputs of a console, recording interface, or portable playback device down to mono, or to mix any two signals together and balance their relative input levels.

    Features:

    • Mix two channels to a single mono output
    • Individual level controls can be bypassed when not in use
    • Balanced 1/4" TRS and XLR inputs
    • Completely passive, no need for power


    Combine two balanced mic or line-level signals

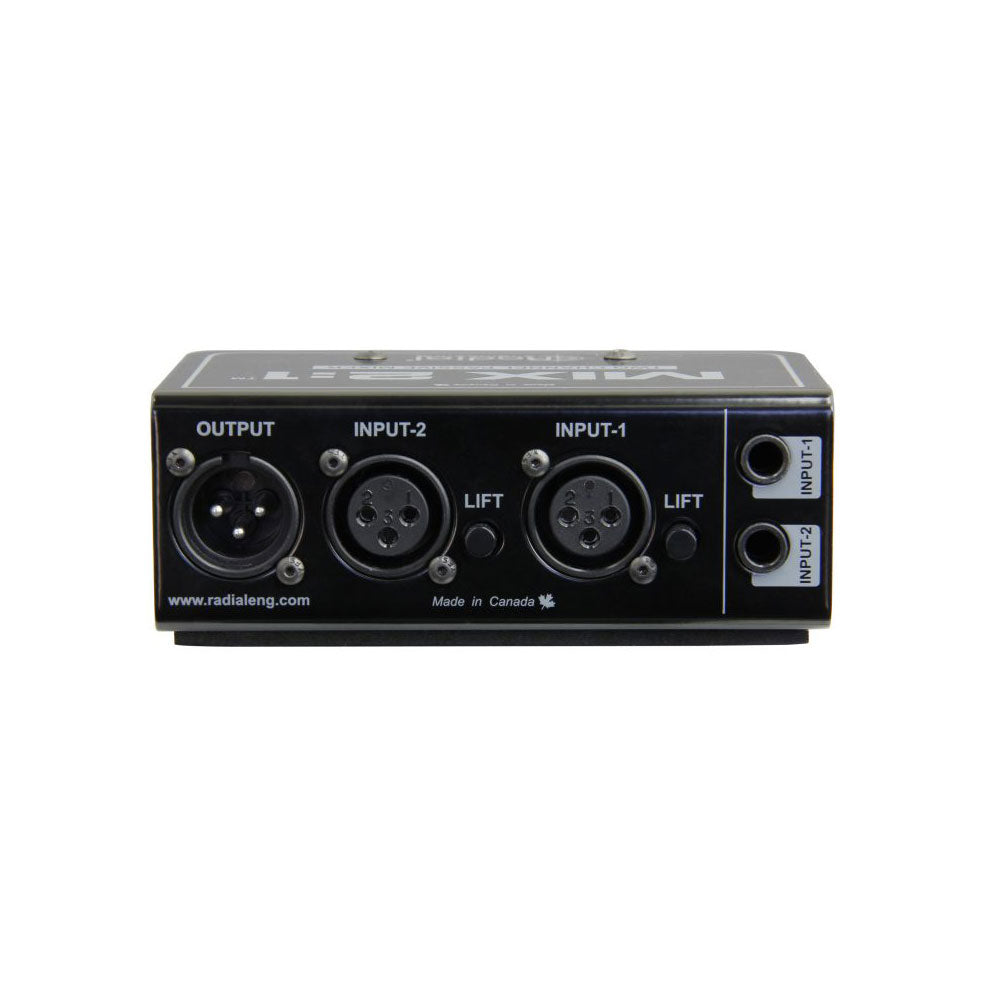

    The MIX 2:1 makes it easy to sum together any two signals, whether it's two microphones on a single guitar amplifier, or the stereo line outputs of a mixing console. At the inputs of the MIX 2:1, both 1/4" TRS and XLR connectors are available, with ground lift switches to eliminate buzz and hum from ground loops and ensure noise-free operation. A trim control is also featured on each input, so if you are connecting two separate mono sources such as the outputs of two mic preamps, they can each be attenuated as needed to match their levels at the output. After both signals are passively summed together, they feed a single XLR output that can be connected to a powered speaker, or the input of a console or recording interface.

    Mix the output of two mic preamps to a single track
    Combine two tracks to a single input on your audio interface. Use the 180° phase flip to ensure phase coherency between the two inputs.

    Summing a stereo aux to a mono input
    Engage the level control bypass to sum both channels at unity gain into the mono input of a powered speaker or a recording device.

    Summing a stereo source to a single channel on a console
    When you're short on channels, the MIX 2:1 allows you to sum a stereo output down to mono, using only one channel on the console.

    Audio circuit type: Passive mixer
    Frequency response: 20Hz to 20kHz
    Dynamic range: >133dB
    Total harmonic distortion: >0.005% @ 0dBu
    Intermodulation Distortion: >0.002% @ 0dBu
    Phase Deviation: 0¡ @ 20Hz, 0¡ @ 1kHz, +2¡ @10kHz
    Input Impedance: 8 k½
    Output Impedance: 1 k½
    Common Mode Rejection Ratio: >80dB
    Noise: -113dBu
    Maximum Input: >+ 20dBu
    Features
    180¡ polarity reverse, Ground lift, Level Control
    Input Connectors: 1/4", XLR
    Output Connectors: XLR
    General
    Construction: 14-gauge steel chassis and outer shell
    Size (L x W x D): 5" x 3.25" x 1.85" (12.7 x 8.3 x 4.7cm)
    Weight: 1.48lb (0.67kg)
    Shipping size (L x W x D): 6.25" x 4.12" x 3" (15.9 x 10.5 x 7.6cm)
    Shipping weight: 1.77lb (0.8kg)
    Power: Passive, no power required
    Conditions: For use in dry locations only between 5¡C and 40¡C
    Warranty: Radial 3-year, transferable
