Rapco Horizon DB-1 Passive Direct Box
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

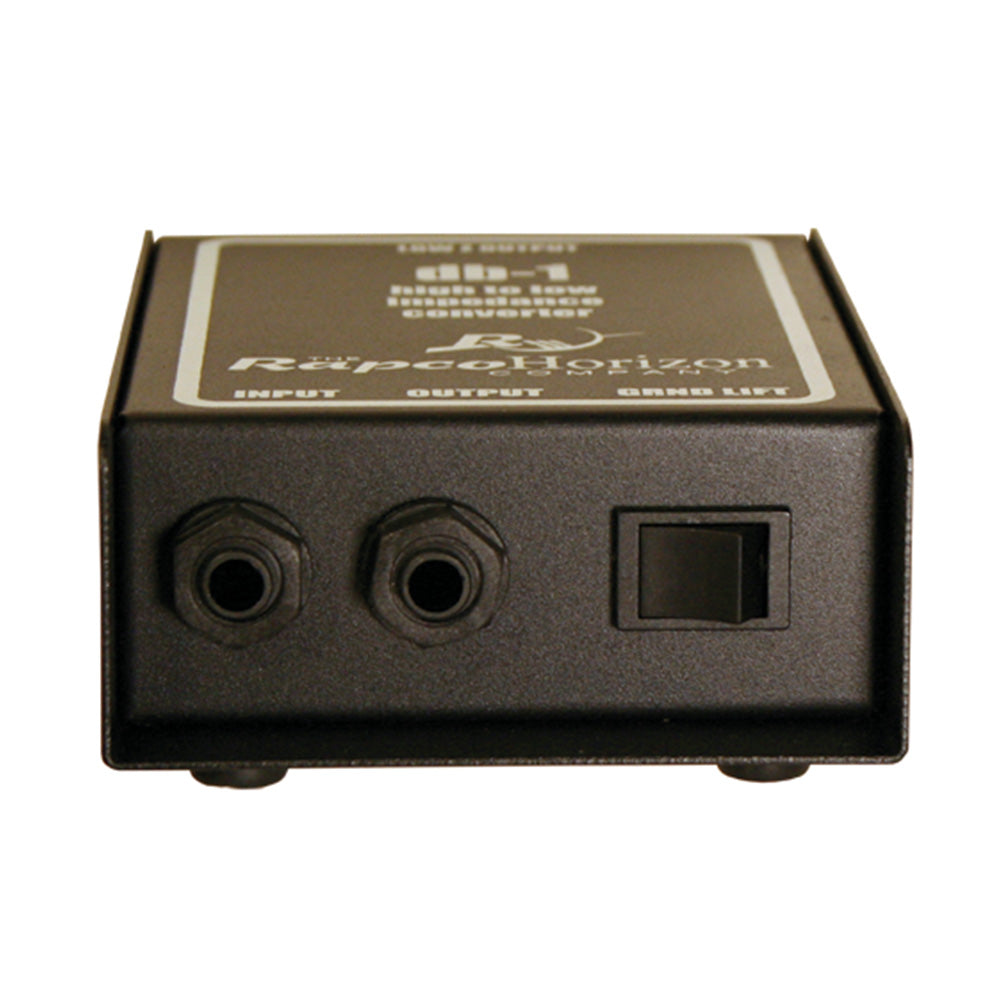

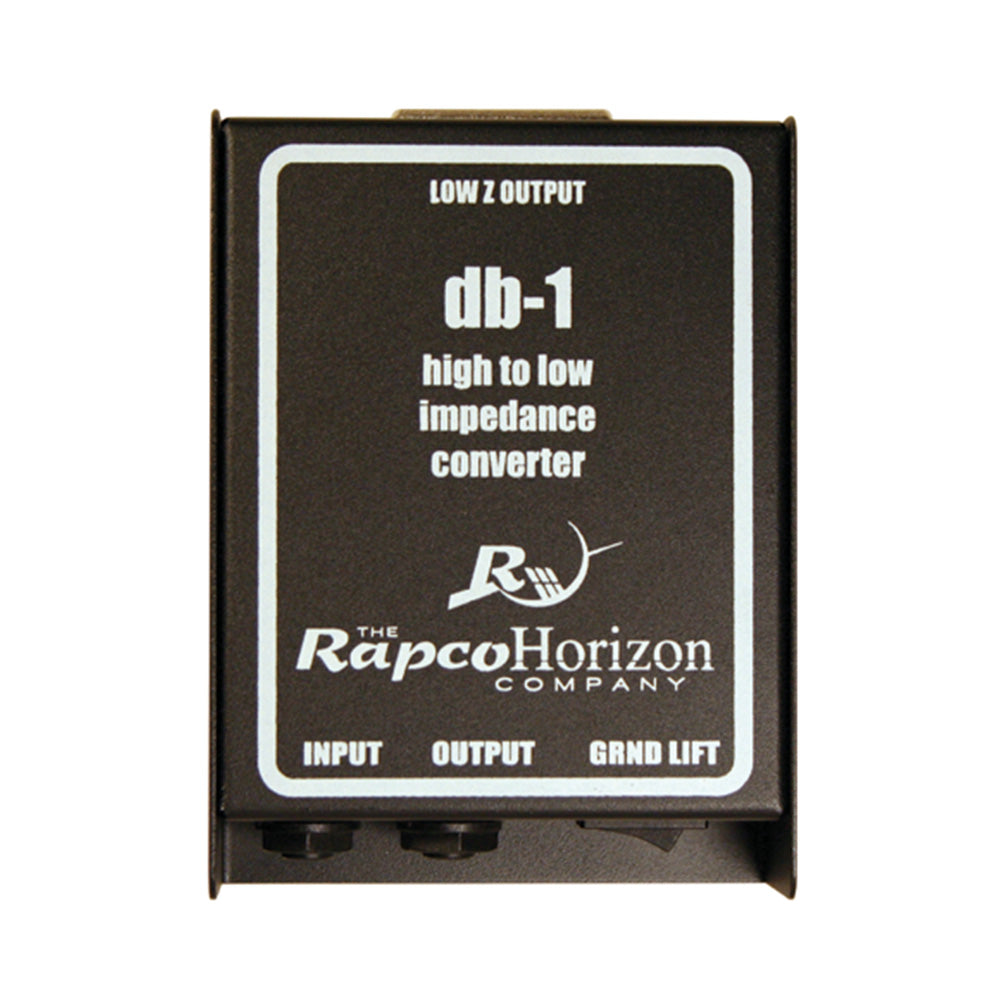

The DB-1's simple design offers reliable input jacks as well as a loop-through 1/4 inch jack. Plug any instrument level signal (and some line level) into the box, interface with a standard XLR mic cable into the Lo-Z output, and you're ready to plug the output "directly" into a mixing console. A ground lift switch is provided for buzz-free operation in almost any environment.
Features:
- Transforms Hi-Z 1/4 inch input to balanced Lo-Z XLR output
- Heavy duty steel box
- Superior quality connectors and transformer
- Recessed connectors and switches to prevent damage
- Ground lift switch to eliminate hum
- Paralleled 1/4 inch output for on-stage monitoring
- Individually tested for performance and quality
| Approximate size | 3 3/4"(w) x 4 1/8"(h) x 1 7/8"(d) |
| Connections | (1) XLR Male Output (2) 1/4 Stereo Input |
| Transformer | (1) DBT |
| Switches | Panel mount ground lift switch |
The DB-1's simple design offers reliable input jacks as well as a loop-through 1/4 inch jack. Plug any instrument level signal (and some line level) into the box, interface with a standard XLR mic cable into the Lo-Z output, and you're ready to plug the output "directly" into a mixing console. A ground lift switch is provided for buzz-free operation in almost any environment.
Features:
- Transforms Hi-Z 1/4 inch input to balanced Lo-Z XLR output
- Heavy duty steel box
- Superior quality connectors and transformer
- Recessed connectors and switches to prevent damage
- Ground lift switch to eliminate hum
- Paralleled 1/4 inch output for on-stage monitoring
- Individually tested for performance and quality
| Approximate size | 3 3/4"(w) x 4 1/8"(h) x 1 7/8"(d) |
| Connections | (1) XLR Male Output (2) 1/4 Stereo Input |
| Transformer | (1) DBT |
| Switches | Panel mount ground lift switch |
