RDL FP-AVDA4 Stereo Audio / Video Distribution Amplifier



Please Note: requires PS-24AS Power Supply (sold separately)

Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:RDL-FPAVDA4

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.
Free Shipping (Continental US)

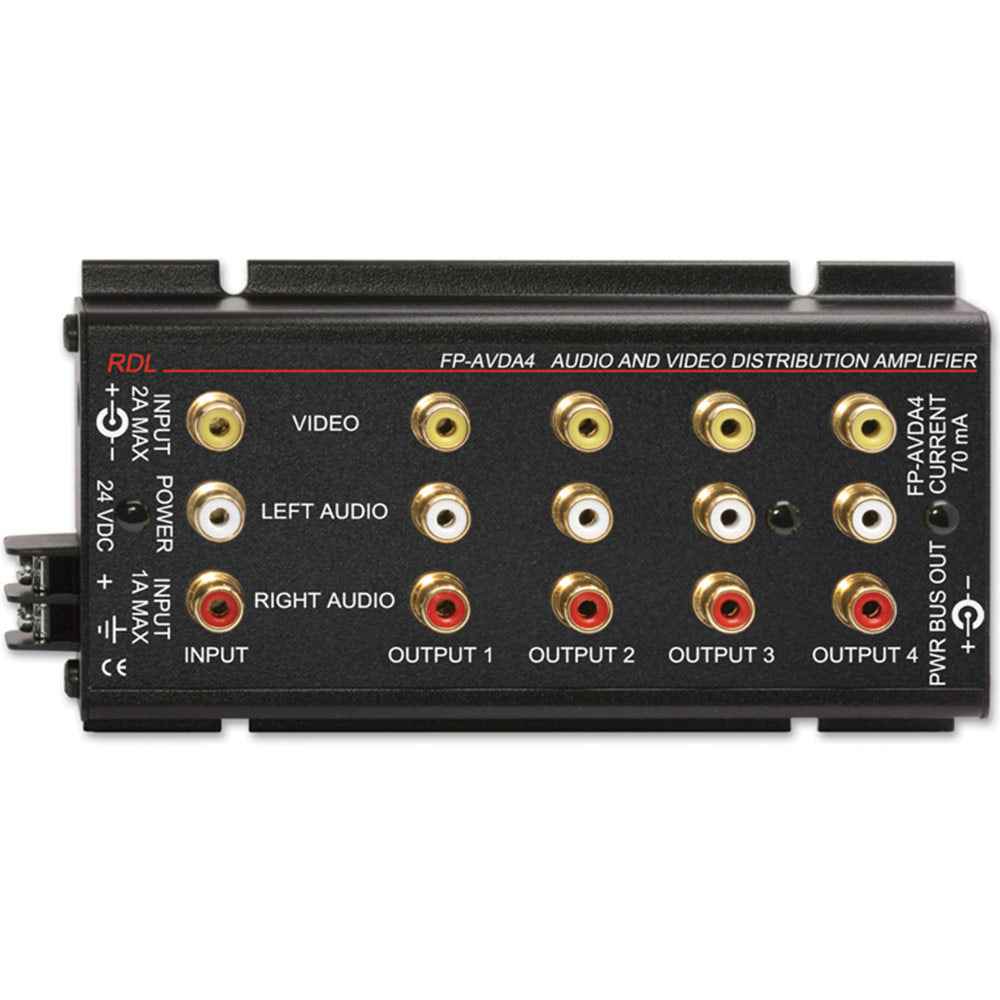

  • The FP-AVDA4 is the ideal choice in applications where consumer format audio and video signals need to be distributed simultaneously. Audio and video inputs and outputs are made on the top panel phono jacks. The FP-AVDA4 has a single 75 ohm input phono jack for the video signal and two phono jacks for the left and right audio inputs. Four source-terminated, 75 ohm video outputs are provided on the video output phono jacks. Four stereo audio outputs are provided on phono jack pairs located adjacent to the corresponding video output. Unused outputs need not be terminated. Audio and video outputs are at unity gain.

      Features:
    • Consumer Audio/Video Distribution
    • Four Outputs (Video + Stereo Audio)
    • Professional Quality Performance
    • 75 ohm Video Input/Outputs
    • Unbalanced Audio Input/Outputs
    • Wideband Video " Flat to 10 MHz
    • Ultra-Compact All Metal Construction

    The FP-AVDA4's low profile and compact size permit mounting in confined spaces and in various locations in equipment racks. The location of the input/output jacks permits high-density mounting against flat surfaces while maintaining accessibility to the connectors. Installations requiring multiple distribution amplifiers are ideally designed using FP-AVDA4s affixed to rack sides, or by mounting them to either the front or rear rack rails using the RDL FP-RRA.

    Wherever wide-band video and audio need to be distributed economically with professional quality, reliability, compactness and unsurpassed versatility, the FP-AVDA4 is the ideal choice. Use the FP-AVDA4 individually, or combine it with other RDL products as part of a complete audio/video system.

  • VIDEO
    Input:Phono jack, 1 V p-p
    Input Impedance:75
    Gain:Unity
    Outputs (4):Phono jack
    Output Level:1 V p-p (into 75 )
    Frequency Response:10 Hz to 10 MHz (+/- 0.2 dB)
    Noise:< -75 dB (below 1 V p-p)
    Output Isolation:> 45 dB
    Differential Gain:0.1%
    Differential Phase:0.1 degree (measured at 10% and 90% APL)
    AUDIO
    Inputs (2):Phono jacks (stereo), -10 dBV Unbalanced
    Input Impedance:10 k, bridging
    Gain:Unity
    Outputs (8):Phono jacks (4 stereo)
    Output Impedance:150 drives 10 k lines
    Frequency Response:20 Hz to 40 kHz (+/- 0.25 dB)
    THD+N:< 0.05% typ. 0.01% (1 kHz)
    IMD:< 0.02%
    Output Level:-10 dBV
    Headroom:> 18 dB
    Noise:< -85 dB below “10 dBV
    Crosstalk:Better than 75 dB (20 Hz to 20 kHz)
    typ < -90 dB (1 kHz)
    Power Requirement:GROUND-REFERENCED, 24 Vdc @ 60 mA

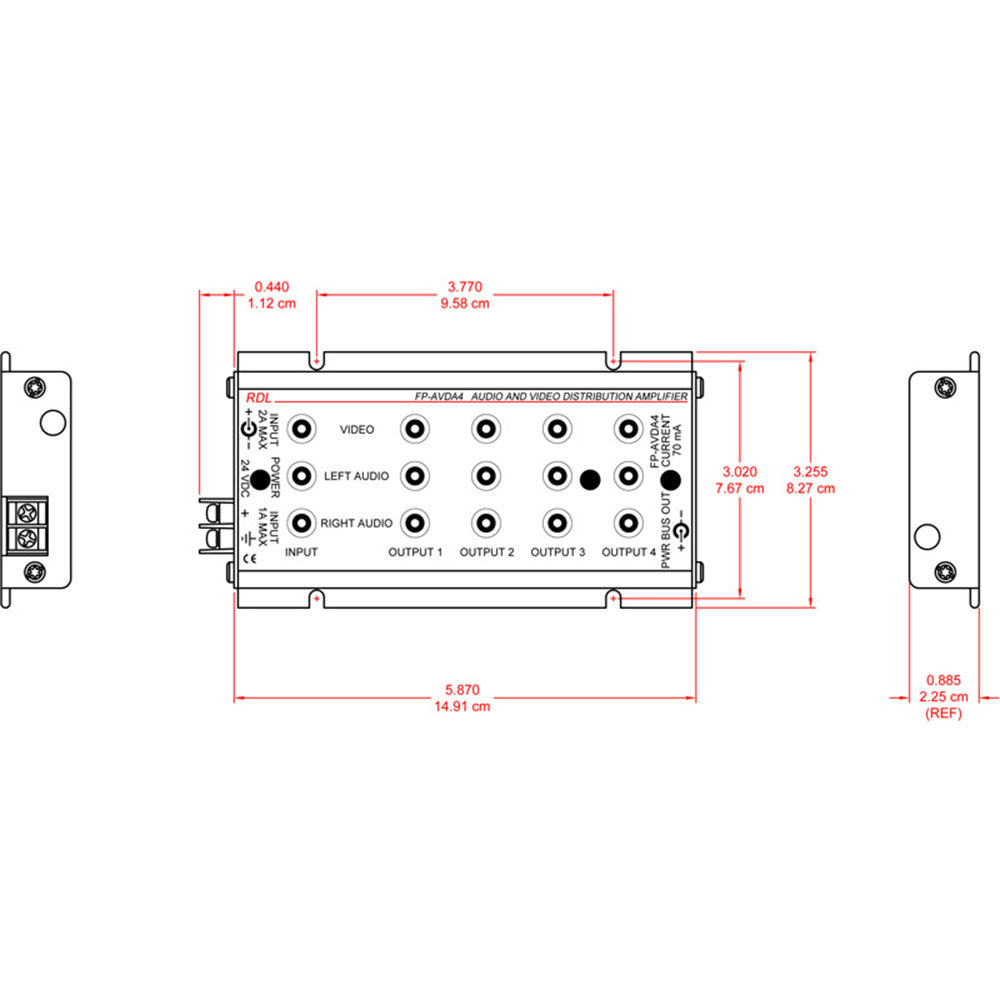

    Dimensions:
    Height: 1.20 in. 3.05 cm
    Width: 3.25 in. 8.26 cm
    Length: 6.41 in. 16.28 cm
    Ambient Operating Environment:0 degrees C to 55 degrees C
