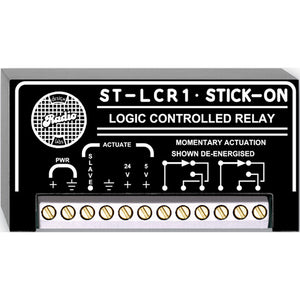

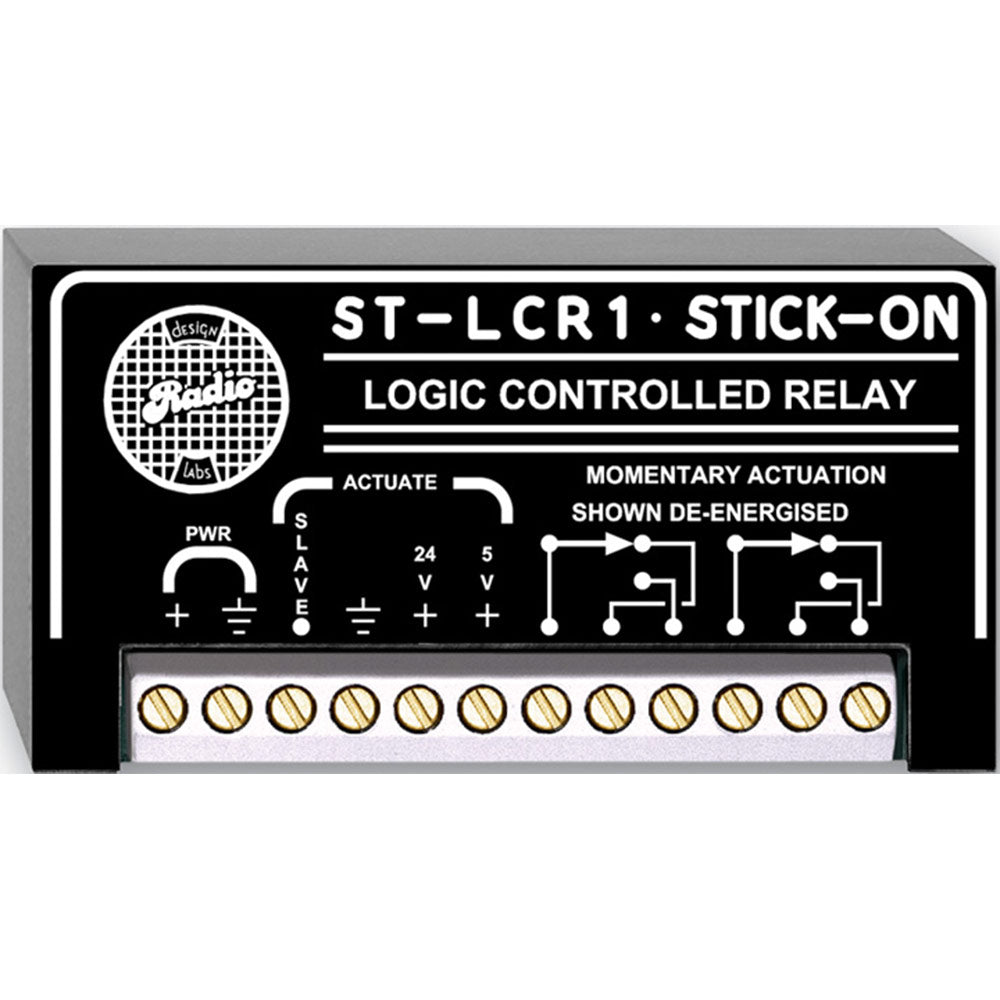

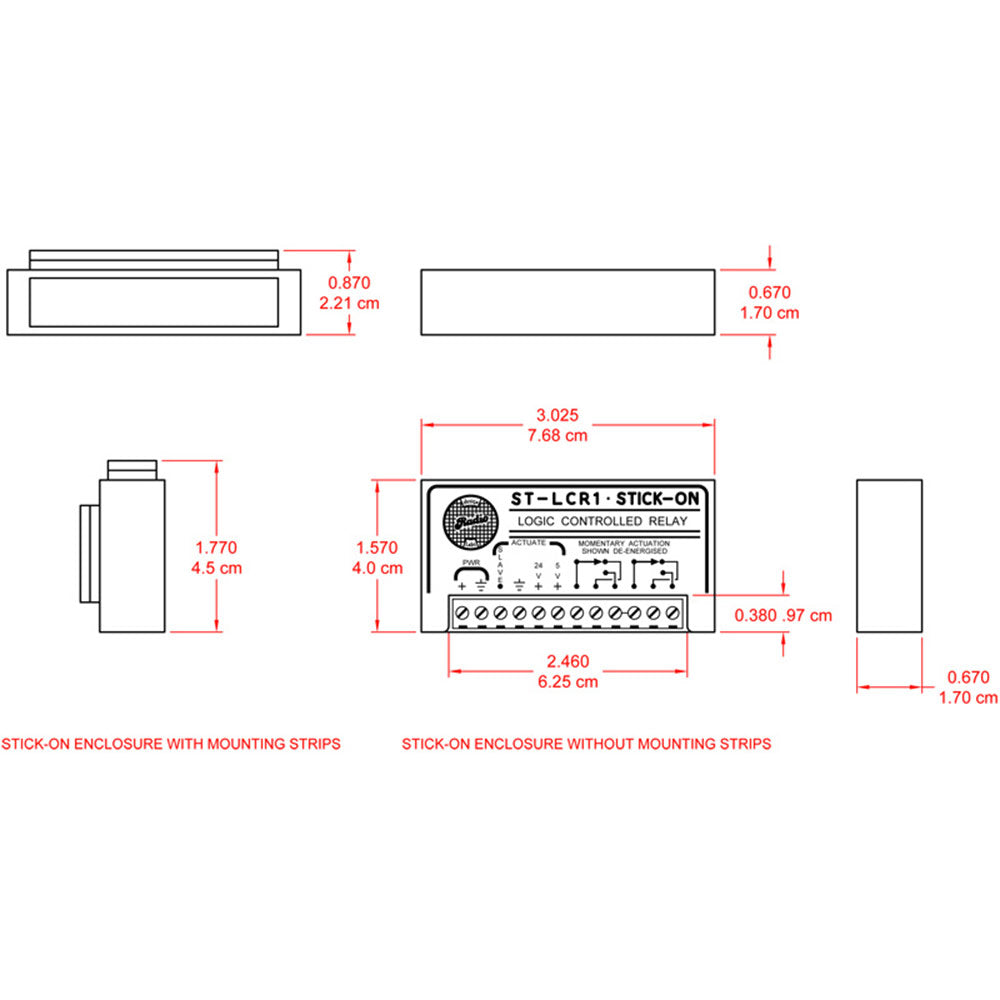

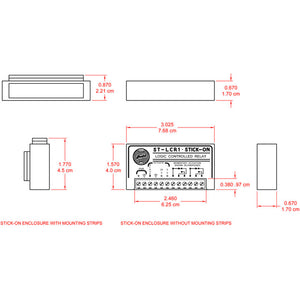

RDL ST-LCR1 Stick-On Logic Controlled Relay
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The ST-LCR1 provides double-pole, double-throw dry switching contacts and LED indicator for relay closure. The ST-LCR1 provides momentary operation and is ideally suited where additional switching contacts are needed to be added to nearly any type of control signal.
-
Features:
- Add Contacts to Any Control Signal
- Activation from Logic Circuits
- DPDT Switching Relay
- Open-Collector Switching
- Control from Switch, Button or Logic Circuits
| Control Inputs: | SLAVE terminal used as an input from remote push-button or switch turns on relay when that switch is on. Activation is by connecting this input to Ground. Input from other equipmentªs open-collector output turns relay on when open-collector is on. Note: RDL switching STICK-ONs have open-collector outputs suitable for driving an ST-LCR1. 5V+ accepts 3.5 to 12 Vdc to turn on relay. Relay is on only when this control signal is applied. 24V+ accepts 12 to 35 Vdc to turn on relay. Relay is on only when this control signal is applied. |
| Control Output: | SLAVE terminal open-collector @ 25 mA suitable to drive indicators or slave LCRs |
| Switching Contacts: | Double-pole, double-throw |
| Maximum Switching Power: | 60 W (220 Vdc, 125 Vac, 2 A) |
| Power Requirement: | GROUND-REFERENCED, 24 to 33 Vdc @ 50 mA * * Assumes 20 mA max load at SLAVE output |
| Ambient Operating Environment: | -10 degrees C to 55 degrees C |
The ST-LCR1 provides double-pole, double-throw dry switching contacts and LED indicator for relay closure. The ST-LCR1 provides momentary operation and is ideally suited where additional switching contacts are needed to be added to nearly any type of control signal.
-
Features:
- Add Contacts to Any Control Signal
- Activation from Logic Circuits
- DPDT Switching Relay
- Open-Collector Switching
- Control from Switch, Button or Logic Circuits
| Control Inputs: | SLAVE terminal used as an input from remote push-button or switch turns on relay when that switch is on. Activation is by connecting this input to Ground. Input from other equipmentªs open-collector output turns relay on when open-collector is on. Note: RDL switching STICK-ONs have open-collector outputs suitable for driving an ST-LCR1. 5V+ accepts 3.5 to 12 Vdc to turn on relay. Relay is on only when this control signal is applied. 24V+ accepts 12 to 35 Vdc to turn on relay. Relay is on only when this control signal is applied. |
| Control Output: | SLAVE terminal open-collector @ 25 mA suitable to drive indicators or slave LCRs |
| Switching Contacts: | Double-pole, double-throw |
| Maximum Switching Power: | 60 W (220 Vdc, 125 Vac, 2 A) |
| Power Requirement: | GROUND-REFERENCED, 24 to 33 Vdc @ 50 mA * * Assumes 20 mA max load at SLAVE output |
| Ambient Operating Environment: | -10 degrees C to 55 degrees C |
