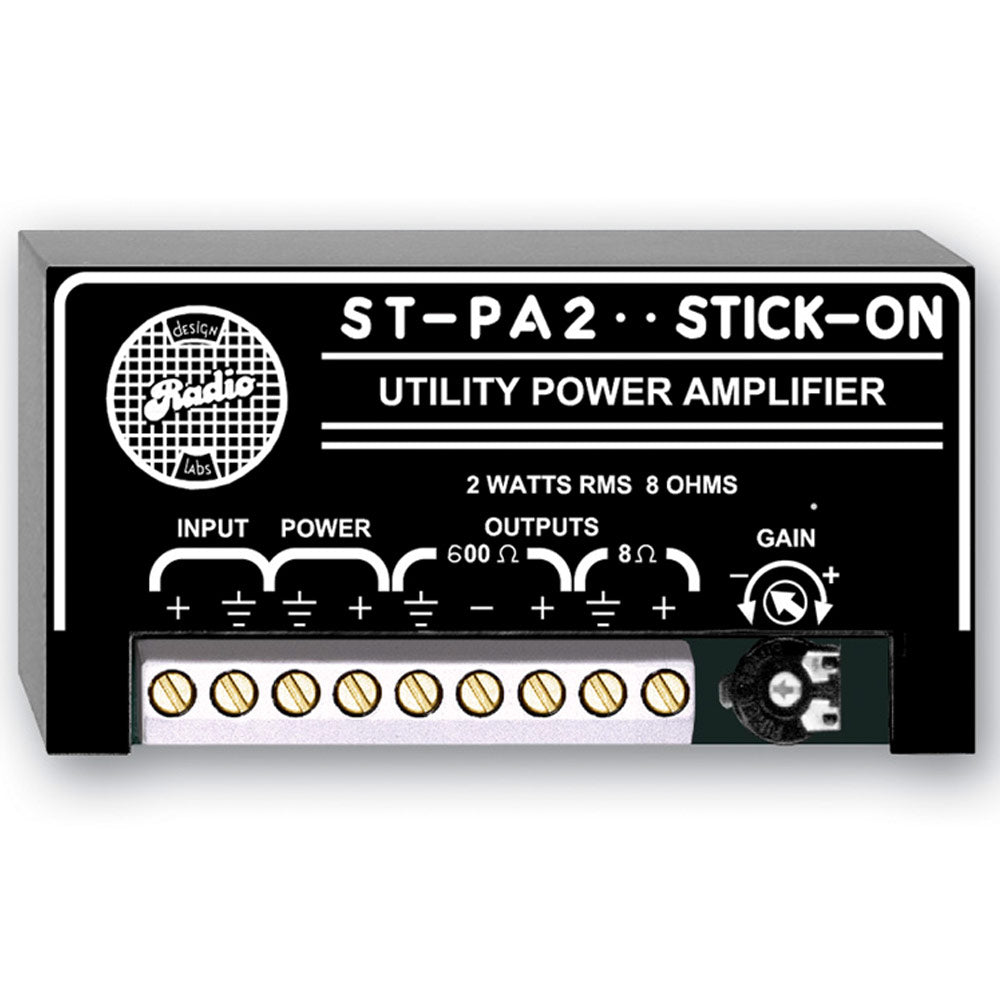

RDL ST-PA2 Stick-On Two-Watt Utility Power Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The ST-PA2 features a single, unbalanced audio input, a gain control, and two outputs. The first output is designed to deliver a clean 2 watts RMS into an 8 ohm speaker. The second output is intended to drive 600 ohm transformers, typically on equipment inputs. This makes the ST-PA2 uniquely suited to applications such as music-on-hold inputs on telephone systems which may have either 8 ohm or 600 inputs. If desired, both outputs may be used at the same time.
-
Features:
- 2 Watts RMS into 8 ohm
- +12 dBu Into 600 ohm
- Quality Utility Amplifier
- Intercom Driver
- Music-On-Hold Driver
| Input: | Unbalanced 10 k |
| Input Level: | -15 dBV minimum (for rated power output) -20 dBV minimum (for 1 watt RMS into 8 |
| Frequency Response: | 35 Hz to 30 kHz (8 +/- 1.5 dB) 20 Hz to 30 kHz (600 +/- 0.5 dB) |
| THD+N: | < 0.75% 0.5% typical |
| Noise: | < -80 dB (8 @ 2 W RMS) < -70 dB (600 , referred to +4 dBu) |
| Outputs (2): | 1 @ 8 , 2 watts RMS maximum 1 @ 600 , +12 dBu maximum |
| Power Requirement: | GROUND-REFERENCED, 24 to 33 Vdc @ 250 mA |
| Ambient Operating Environment: | 0 degrees C to 50 degrees C |
The ST-PA2 features a single, unbalanced audio input, a gain control, and two outputs. The first output is designed to deliver a clean 2 watts RMS into an 8 ohm speaker. The second output is intended to drive 600 ohm transformers, typically on equipment inputs. This makes the ST-PA2 uniquely suited to applications such as music-on-hold inputs on telephone systems which may have either 8 ohm or 600 inputs. If desired, both outputs may be used at the same time.
-
Features:
- 2 Watts RMS into 8 ohm
- +12 dBu Into 600 ohm
- Quality Utility Amplifier
- Intercom Driver
- Music-On-Hold Driver
| Input: | Unbalanced 10 k |
| Input Level: | -15 dBV minimum (for rated power output) -20 dBV minimum (for 1 watt RMS into 8 |
| Frequency Response: | 35 Hz to 30 kHz (8 +/- 1.5 dB) 20 Hz to 30 kHz (600 +/- 0.5 dB) |
| THD+N: | < 0.75% 0.5% typical |
| Noise: | < -80 dB (8 @ 2 W RMS) < -70 dB (600 , referred to +4 dBu) |
| Outputs (2): | 1 @ 8 , 2 watts RMS maximum 1 @ 600 , +12 dBu maximum |
| Power Requirement: | GROUND-REFERENCED, 24 to 33 Vdc @ 250 mA |
| Ambient Operating Environment: | 0 degrees C to 50 degrees C |
