DALE SKU # RDL-STVP2

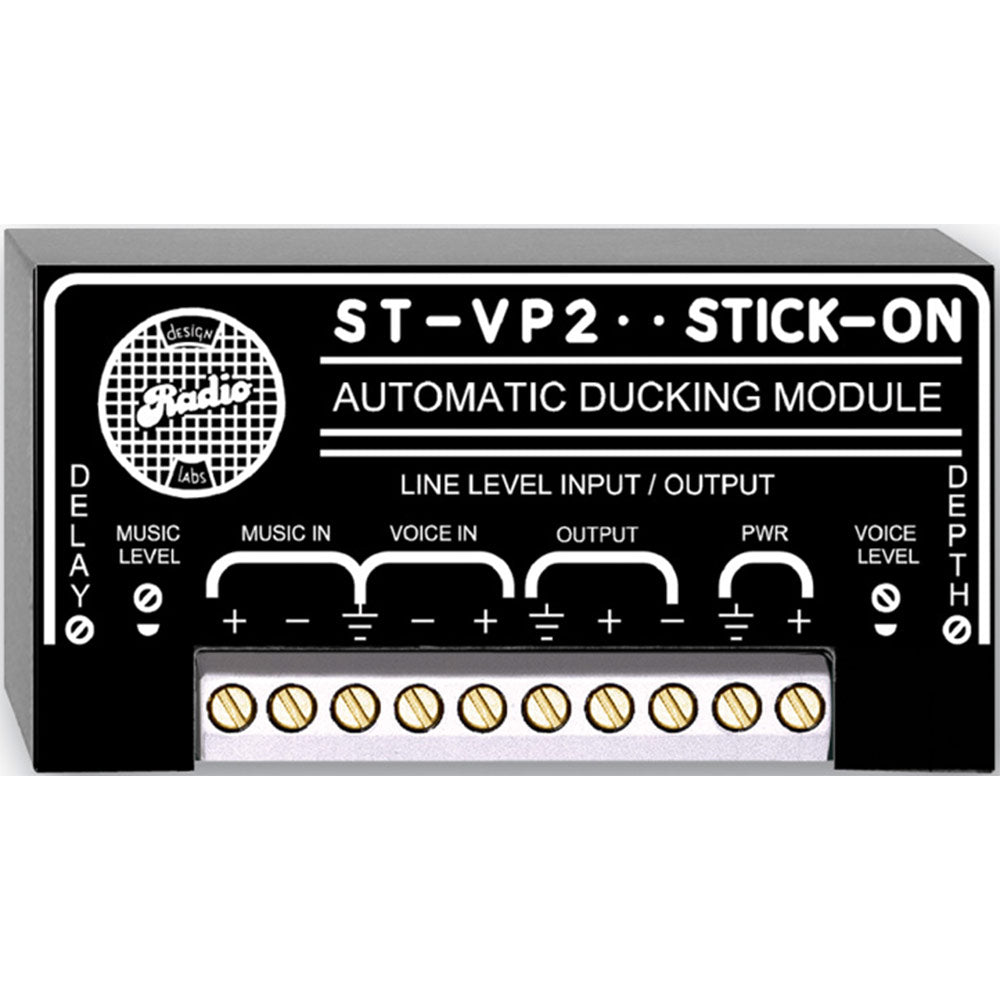

RDL ST-VP2 Automatic Ducking Module - Stick-On Design

Sale price$224.76 Regular price$299.68
Save $74.92
  • Availability:

    In Stock
  • Available for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.

  • Please Note: requires PS-24AS Power Supply (sold separately)


    LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The ST-VP2 can be wired into any line-level input of a paging amplifier. A line-level music source may be provided from a receiver, satellite decoder, tape or CD source. A line-level voice source may be provided from a telephone paging system at line level, or from a microphone which has been preamplified up to line level (See RDL
    STM-1, STM-2, STM-2X, STM-3, STM-LDA3 Microphone Preamplifiers). When a page is initiated, the module automatically senses the audio at the input, turns the music down to the desired level, and automatically fades the music back up after the page is completed. The VOICE input is completely turned off by the module until the next paging signal is received. Setup is made easy by two LED indicators at the front of the module. LEDs are provided to show correct operating level for each of the two inputs.

    The music input provides an AGC/Compressor which transparently produces a consistent audio level for varying music sources and protects against excessive music levels which would otherwise mask the voice signal during voice-overs.
      Features:
    • Fully AUTOMATIC Voice-Over Mixing
    • Noiseless Paging
    • Adjustable Fade Depth
    • Setting to Fade Music Fully Off
    • Adjustable Recovery Rate
    • Built-in AGC Compressor on Music Input
    Inputs (2): Balanced line level (or unbalanced)
    Input Impedance: 20 k
    Input Signal Range: -20 dBu to +18 dBu
    Output: 0 dBu balanced (into 600 )
    Gain: Adjustable using multiturn potentiometer
    THD+N: < 0.02% (20 Hz to 20 kHz, no compression)
    Frequency Response: 25 Hz to 20 kHz (+/- 1 dB)
    Noise: < -70 dB
    Indicators (2): 1 LED indicating proper music level 1 LED indicating proper voice level
    AGC/Compressor: 18 dB range 6 dB compression at normal input level
    Attack Time: 25 ms
    Release Time: 2.5 seconds
    Voice Trigger Level: 24 dB below operating level
    Music Fade Depth: Adjustable 0 dB to Ò25 dB, or off
    Music Recovery Delay: Adjustable 2 seconds to 4 seconds
    Power Requirement: GROUND-REFERENCED, 24 to 33 Vdc @ 35 mA
    Ambient Operating Environment:0 degrees C to 55 degrees C

    The ST-VP2 can be wired into any line-level input of a paging amplifier. A line-level music source may be provided from a receiver, satellite decoder, tape or CD source. A line-level voice source may be provided from a telephone paging system at line level, or from a microphone which has been preamplified up to line level (See RDL
    STM-1, STM-2, STM-2X, STM-3, STM-LDA3 Microphone Preamplifiers). When a page is initiated, the module automatically senses the audio at the input, turns the music down to the desired level, and automatically fades the music back up after the page is completed. The VOICE input is completely turned off by the module until the next paging signal is received. Setup is made easy by two LED indicators at the front of the module. LEDs are provided to show correct operating level for each of the two inputs.

    The music input provides an AGC/Compressor which transparently produces a consistent audio level for varying music sources and protects against excessive music levels which would otherwise mask the voice signal during voice-overs.
      Features:
    • Fully AUTOMATIC Voice-Over Mixing
    • Noiseless Paging
    • Adjustable Fade Depth
    • Setting to Fade Music Fully Off
    • Adjustable Recovery Rate
    • Built-in AGC Compressor on Music Input
    Inputs (2): Balanced line level (or unbalanced)
    Input Impedance: 20 k
    Input Signal Range: -20 dBu to +18 dBu
    Output: 0 dBu balanced (into 600 )
    Gain: Adjustable using multiturn potentiometer
    THD+N: < 0.02% (20 Hz to 20 kHz, no compression)
    Frequency Response: 25 Hz to 20 kHz (+/- 1 dB)
    Noise: < -70 dB
    Indicators (2): 1 LED indicating proper music level 1 LED indicating proper voice level
    AGC/Compressor: 18 dB range 6 dB compression at normal input level
    Attack Time: 25 ms
    Release Time: 2.5 seconds
    Voice Trigger Level: 24 dB below operating level
    Music Fade Depth: Adjustable 0 dB to Ò25 dB, or off
    Music Recovery Delay: Adjustable 2 seconds to 4 seconds
    Power Requirement: GROUND-REFERENCED, 24 to 33 Vdc @ 35 mA
    Ambient Operating Environment:0 degrees C to 55 degrees C
