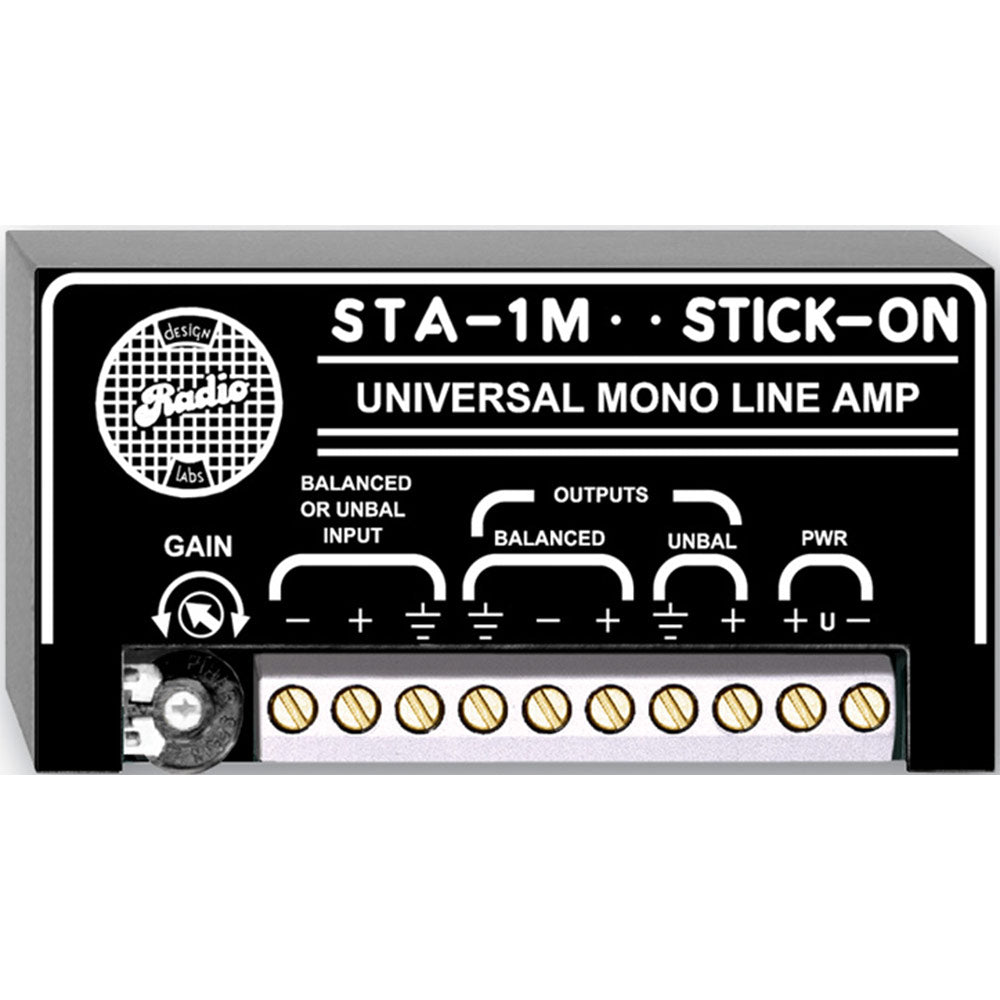

RDL STA-1M Stick-On Series Mono Audio Line Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The M allows bridging any audio line, adjusting the gain, and driving a balanced or unbalanced line. The circuit design allows the input to accept either balanced or unbalanced signals, of either high or low impedance. This is an instrumentation type input stage which will amplify the differential input, regardless of ground reference. The output is capable of driving either high or low impedance loads, and the output may be connected either balanced or unbalanced.
RDL™s SupplyFlex power input configuration is included in the M. The power supply input may be fed from a floating (not ground-referenced) 24 Vdc power source, from a bipolar power supply (+/ 12 Vdc or +/-15 Vdc) or from a ground-referenced 24 Vdc power supply.-
Features:
- Single-Channel Audio Line Amplifier
- Balanced or Unbalanced Inputs and Outputs
- Bridge a Line to Avoid Loading
- High to Low Impedance Conversion
- Low to High Impedance Conversion
- Instrumentation Input to Isolate Ground Loops
- Precisely Match Audio Levels
- RDL SupplyFlex&trade Power Input Configuration
| Input: | 10 k balanced or unbalanced bridge |
| Outputs (2): | 150 balanced to drive low or high-Z 75 unbalanced |
| Output Signal: | +4 dBu (nominal, adjustable) |
| Frequency Response: | 10 Hz to 20 kHz (+/-0.25 dB) |
| THD+N: | < 0.05% |
| Headroom above +4 dBu: | > 18 dB |
| CMRR: | > 50 dB at full gain (100 Hz) |
| Gain: | Adjustable per chart below |
| Input/Output | Min Gain/Max Gain |
| Unbal. Balanced | -7 dB +14 dB |
| Bal. Balanced | -7 dB +14 dB |
| Bal. Unbalanced | -14 dB +7 dB |
| Unbal. Unbalanced | -14 dB +7 dB |
| Power Requirement: | GROUND-REFERENCED or FLOATING, 24 to 33 Vdc @ 50 mA |
| Ambient Operating Environment: | 0 degrees C to 55 degrees C |
The M allows bridging any audio line, adjusting the gain, and driving a balanced or unbalanced line. The circuit design allows the input to accept either balanced or unbalanced signals, of either high or low impedance. This is an instrumentation type input stage which will amplify the differential input, regardless of ground reference. The output is capable of driving either high or low impedance loads, and the output may be connected either balanced or unbalanced.
RDL™s SupplyFlex power input configuration is included in the M. The power supply input may be fed from a floating (not ground-referenced) 24 Vdc power source, from a bipolar power supply (+/ 12 Vdc or +/-15 Vdc) or from a ground-referenced 24 Vdc power supply.-
Features:
- Single-Channel Audio Line Amplifier
- Balanced or Unbalanced Inputs and Outputs
- Bridge a Line to Avoid Loading
- High to Low Impedance Conversion
- Low to High Impedance Conversion
- Instrumentation Input to Isolate Ground Loops
- Precisely Match Audio Levels
- RDL SupplyFlex&trade Power Input Configuration
| Input: | 10 k balanced or unbalanced bridge |
| Outputs (2): | 150 balanced to drive low or high-Z 75 unbalanced |
| Output Signal: | +4 dBu (nominal, adjustable) |
| Frequency Response: | 10 Hz to 20 kHz (+/-0.25 dB) |
| THD+N: | < 0.05% |
| Headroom above +4 dBu: | > 18 dB |
| CMRR: | > 50 dB at full gain (100 Hz) |
| Gain: | Adjustable per chart below |
| Input/Output | Min Gain/Max Gain |
| Unbal. Balanced | -7 dB +14 dB |
| Bal. Balanced | -7 dB +14 dB |
| Bal. Unbalanced | -14 dB +7 dB |
| Unbal. Unbalanced | -14 dB +7 dB |
| Power Requirement: | GROUND-REFERENCED or FLOATING, 24 to 33 Vdc @ 50 mA |
| Ambient Operating Environment: | 0 degrees C to 55 degrees C |
