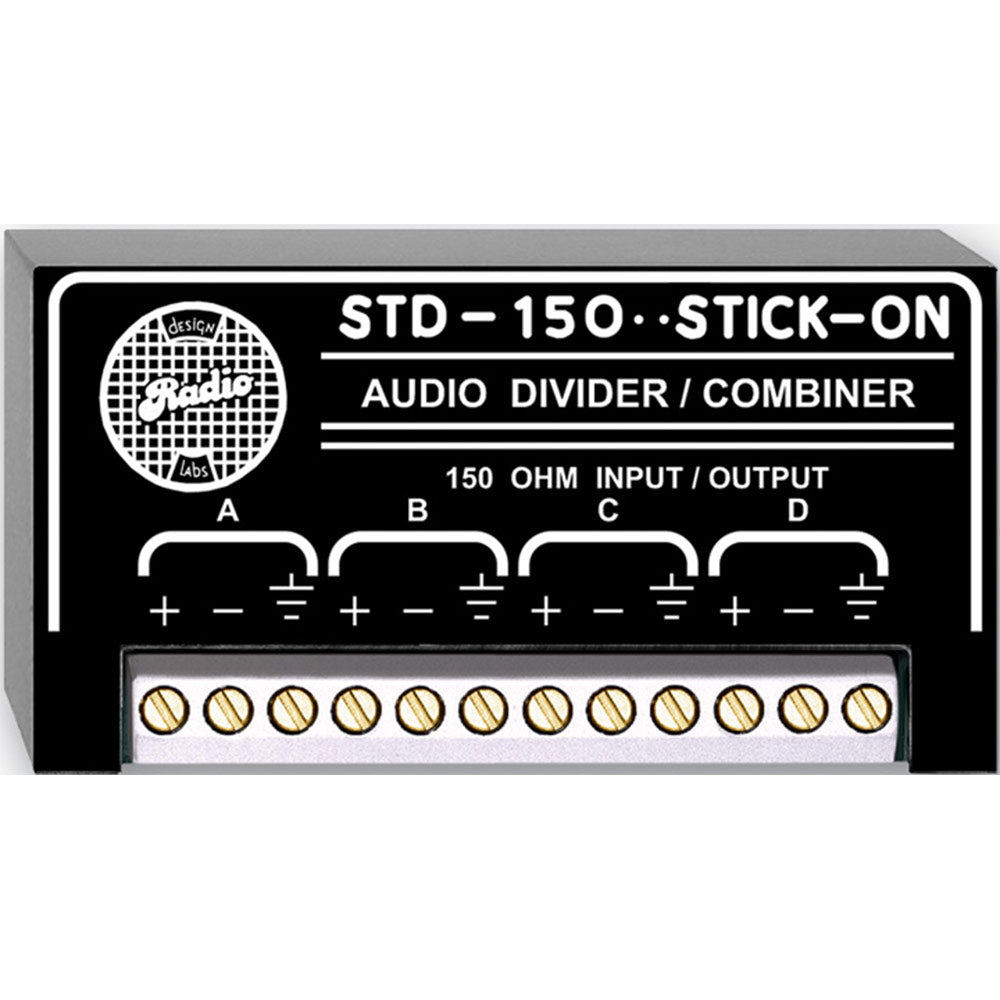

RDL STD-150 Passive Audio Divider/Combiner - 150 Ohm


  • Dale #:

    RDL-STD150
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Each STD module is a resistive branching network with RF filtering on each of the four channels. Any channel, A through D, may be either an input or an output. This permits combining stereo signals into mono inputs, splitting mono signals to multiple inputs, and even combining microphones with ou... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Each STD module is a resistive branching network with RF filtering on each of the four channels. Any channel, A through D, may be either an input or an output. This permits combining stereo signals into mono inputs, splitting mono signals to multiple inputs, and even combining microphones with output shorting switches into a single amplifier input. The STD modules are available in 150 ohm , 600 ohm and 10 k ohm models. All inputs and outputs are balanced.

    Features:
  • 150, 600 or 10 k ohm Operation
  • Combine Audio Signals to a Single Output
  • Filter RF from an Audio Line
  • Combine Stereo Signals
  • Feed a Mono Signal to Stereo Inputs
  • Combine Multiple Mics to a Single Amp
  • Compactness of RDL STICK-ONs

More +

Product Specs

Circuit Type: Passive
Circuit Configuration: Balanced
Input/Output Impedance: 150 , 600 , or 10 k, as marked
Number of Inputs / Outputs: 4 total usable in any combination split
1 in to 3 out 2 in to 2 out 3 in to 1 out
Insertion Loss: 3 dB
Isolation Between Channels: 3 dB (use RDL mixers or distribution
amps for isolation)
Maximum Signal Input: +28 dBu (at 600 )
+22 dBu (at 150 )
Power Requirement: Passive (not required)
