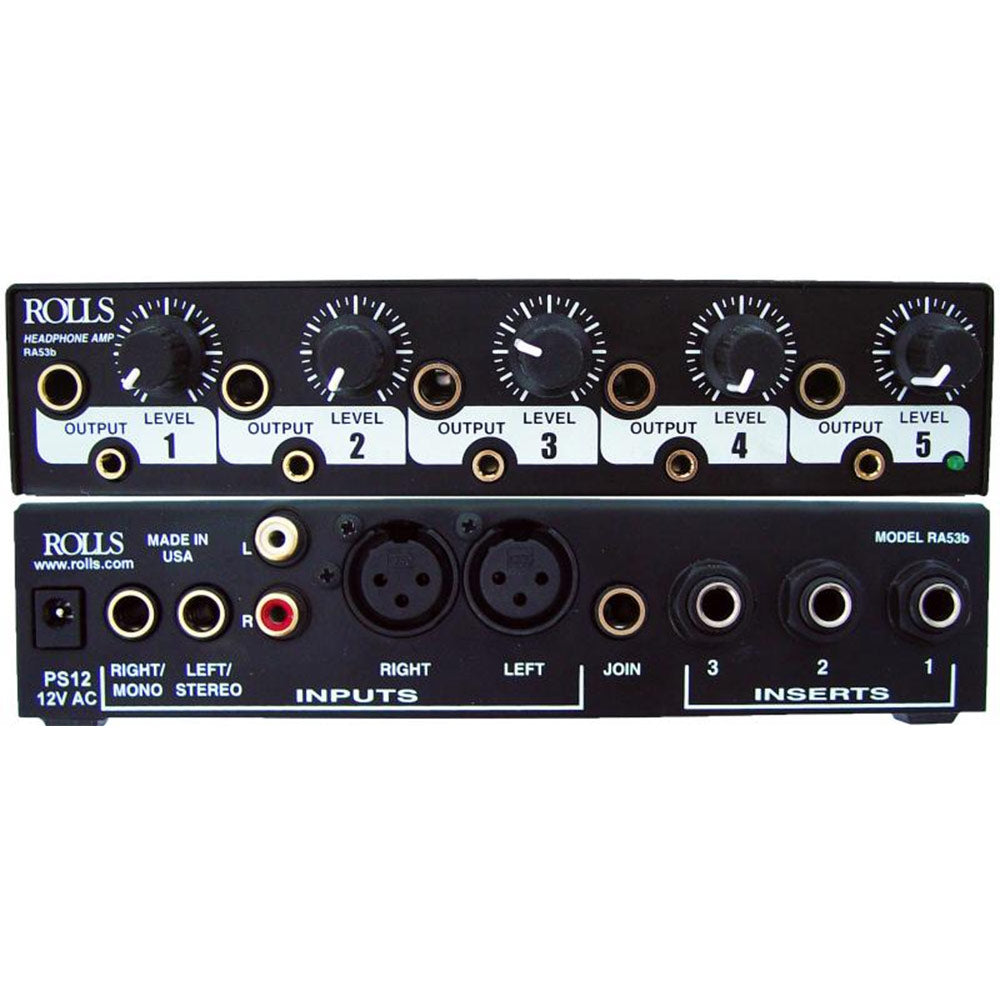

Rolls RA53B 5-Channel Stereo Headphone Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Rolls RA53B is a 5-channel, 1/2 space, rackmountable stereo headphone amplifier featuring 1/4 TRS and 1/8 stereo mini simultaneous outputs for each channel. Two units may be linked for 10-channel, 6-insert operation, and a total of 3 channel inserts enable direct access to channels 1,2 and 3, potentially feeding 3 independent stereo mixes to those channels.
The RA53B is inexpensive, ruggedly built, and equally viable as a multi-client stage or studio headphone monitoring solution.
Features:
- 5-channel, 1/2-space rackmount headphone amplifier
- 1/4 and 1/8 stereo headphone outputs for each channel can be used simultaneously for total of 10 outputs
- 3 Channel Insert points allow direct access to channels 1, 2, and 3 for independent stereo mix feeds to those channels
- Join I/O allows linking of two units for 10-channel operation with six inserts from master stereo signal
- Versatile stereo input connector complement includes XLR, 1/4 Mono and Stereo, and RCA
| Number of Channels | 5 |
| Input Connections | 2 x XLR Female 2 x L, R RCA Phono 1 x 1/4 TRS Left/Stereo In 1 x 1/4 TRS Right/Mono In 3 x 1/4 TRS Inserts 1 x 12 VDC In |
| Output Connectors | 5 x 1/4 Stereo Phone 5 x 1/8 Stereo Mini 1 x 1/4 TRS Phone Join Output |
| Function Controls | 5 x Front Panel Level Controls |
| THD + N | 008% |
| Noise | 008% |
| Display | No |
| Dimensions | 8.4 x 1.7 x 5 (213 x 43 x 130mm) |
| Weight | 2.5 lb (1.14 kg) |
| Specialties | Two Headphone Outs per Channel Join Connector Links 2 Units |
The Rolls RA53B is a 5-channel, 1/2 space, rackmountable stereo headphone amplifier featuring 1/4 TRS and 1/8 stereo mini simultaneous outputs for each channel. Two units may be linked for 10-channel, 6-insert operation, and a total of 3 channel inserts enable direct access to channels 1,2 and 3, potentially feeding 3 independent stereo mixes to those channels.
The RA53B is inexpensive, ruggedly built, and equally viable as a multi-client stage or studio headphone monitoring solution.
Features:
- 5-channel, 1/2-space rackmount headphone amplifier
- 1/4 and 1/8 stereo headphone outputs for each channel can be used simultaneously for total of 10 outputs
- 3 Channel Insert points allow direct access to channels 1, 2, and 3 for independent stereo mix feeds to those channels
- Join I/O allows linking of two units for 10-channel operation with six inserts from master stereo signal
- Versatile stereo input connector complement includes XLR, 1/4 Mono and Stereo, and RCA
| Number of Channels | 5 |
| Input Connections | 2 x XLR Female 2 x L, R RCA Phono 1 x 1/4 TRS Left/Stereo In 1 x 1/4 TRS Right/Mono In 3 x 1/4 TRS Inserts 1 x 12 VDC In |
| Output Connectors | 5 x 1/4 Stereo Phone 5 x 1/8 Stereo Mini 1 x 1/4 TRS Phone Join Output |
| Function Controls | 5 x Front Panel Level Controls |
| THD + N | 008% |
| Noise | 008% |
| Display | No |
| Dimensions | 8.4 x 1.7 x 5 (213 x 43 x 130mm) |
| Weight | 2.5 lb (1.14 kg) |
| Specialties | Two Headphone Outs per Channel Join Connector Links 2 Units |
