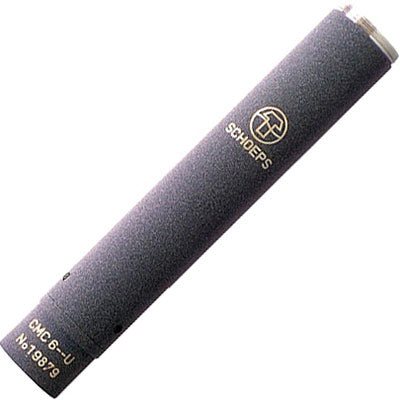

Schoeps CMC 6UG 12-48 Volt Phantom Power Supply for Colette Capsules

The Schoeps CMC6-U is a balanced output stage and +12 to +48V phantom power supply for the Schoeps Colette series modular capsules. The transformer-less output stage ensures low-noise and pristine audio reproduction throughout. The CMC6-U is terminated with a standard balanced 3-pin XLR connection for use with standard microphone inputs and preamplifiers.

The capsules of condenser microphones (the only type which SCHOEPS manufactures) can't be connected directly to microphone cables or inputs; a microphone amplifier is required in between. Thus a complete microphone of the Colette series comprises any of the twenty available types of capsules combined with an amplifier.

The CMC 6 Ug is designed for standard 48- and 12-Volt phantom powering. Its circuitry recognizes the supply voltage and adjusts itself automatically. Its performance characteristics remain essentially the same either way; mainly, the difference is that the current drawn at 12 Volts is greater than at 48 Volts. However, the 12-Volt mode consumes less power and might be preferred for battery-powered recording.

Features:

• Flat frequency response
• Extremely low noise and distortion
• Balanced, very low-impedance output
• Can be used with very long cables
• Well-protected against RFI
• For use with 12- or 48-Volt phantom powering
