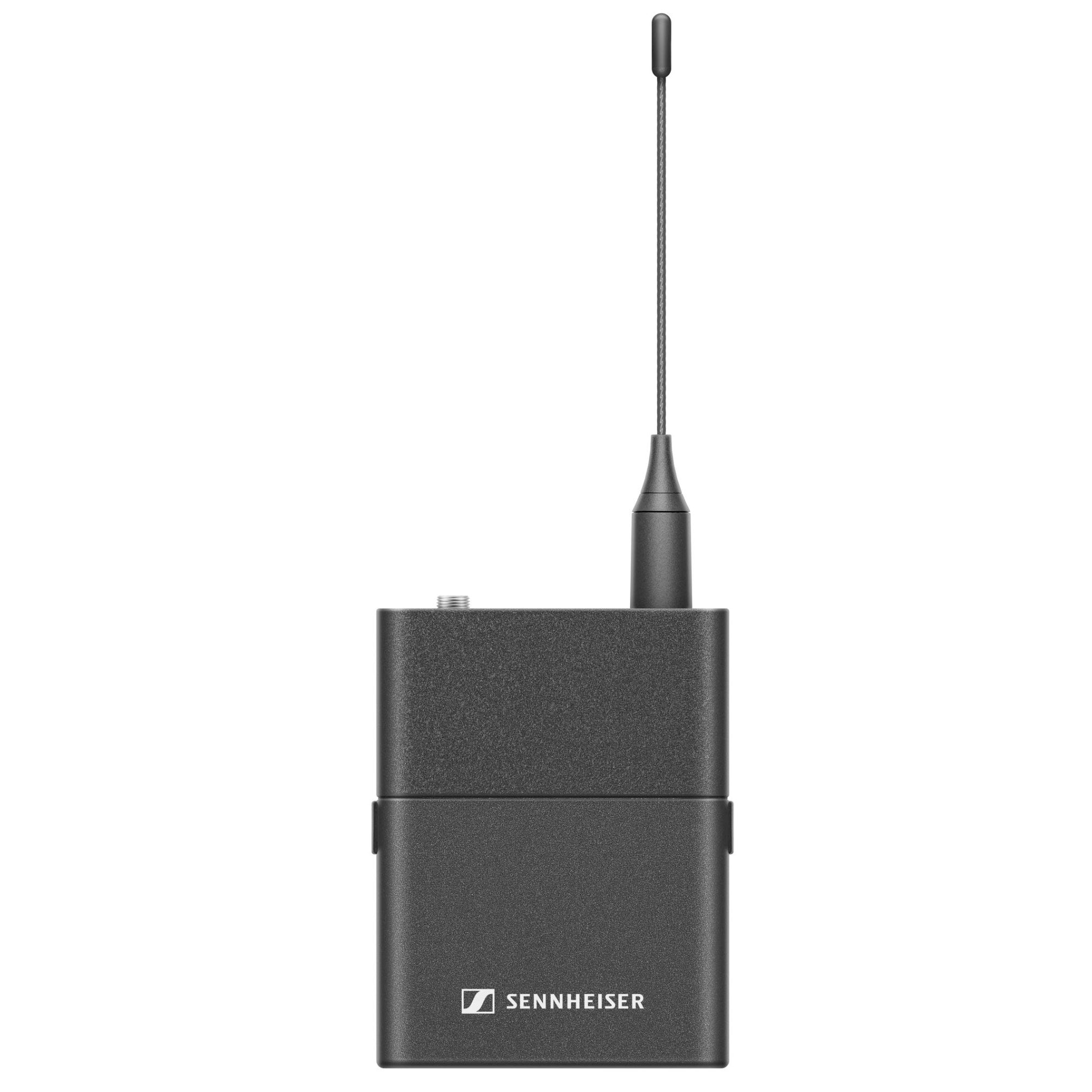

Sennheiser EW-D SK Digital Bodypack Transmitter for EW-D Wireless (Q1-6 Band / 470-550 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Sennheiser EW-D SK Digital Bodypack Transmitter for EW-D Wireless (Q1-6 Band / 470-550 MHz)
Sale price$299.95
Regular price$349.00
Description
Compact and versatile bodypack transmitter for use with Evolution Wireless Digital receivers. Lavalier, headmic or input cable sold separately
What's In The Box:
- (1) EW-D SK bodypack transmitter
- (2) AA batteries
| System | |
| Audio link frequency ranges | Q1-6 470.2 - 526 MHz R1-6 520 - 576 MHz R4-9 552 - 607.8 MHz |
| Bluetooth¨ Low Energy (BLE) frequency range | 2402 - 2480 MHz |
| Audio frequency response | 20 Hz - 20 kHz (-3 dB) @ 3 dBfs |
| Audio THD | ? -60 dB for 1 kHz @ -3 dBfs input level |
| Operating temperature | -10 deg.C - +55 deg.C (14 deg.F - 131 deg.F) |
| Relative humidity | 5 - 95 % (non-condensing) |
| EW-D SK (Bodypack Transmitter) | |
| Input voltage | 2.0 - 4.35 V |
| Input current | < 300 mA |
| Power supply | 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack |
| Occupied bandwidth | 200 kHz |
| Transmit power (radiated) | Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) BLE: max. 10 mW EIRP |
| Dimensions | 63 x 80 x 20 mm (without antenna) |
| Weight (without batteries) | approx. 120 g |
Compact and versatile bodypack transmitter for use with Evolution Wireless Digital receivers. Lavalier, headmic or input cable sold separately
What's In The Box:
- (1) EW-D SK bodypack transmitter
- (2) AA batteries
| System | |
| Audio link frequency ranges | Q1-6 470.2 - 526 MHz R1-6 520 - 576 MHz R4-9 552 - 607.8 MHz |
| Bluetooth¨ Low Energy (BLE) frequency range | 2402 - 2480 MHz |
| Audio frequency response | 20 Hz - 20 kHz (-3 dB) @ 3 dBfs |
| Audio THD | ? -60 dB for 1 kHz @ -3 dBfs input level |
| Operating temperature | -10 deg.C - +55 deg.C (14 deg.F - 131 deg.F) |
| Relative humidity | 5 - 95 % (non-condensing) |
| EW-D SK (Bodypack Transmitter) | |
| Input voltage | 2.0 - 4.35 V |
| Input current | < 300 mA |
| Power supply | 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack |
| Occupied bandwidth | 200 kHz |
| Transmit power (radiated) | Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) BLE: max. 10 mW EIRP |
| Dimensions | 63 x 80 x 20 mm (without antenna) |
| Weight (without batteries) | approx. 120 g |
