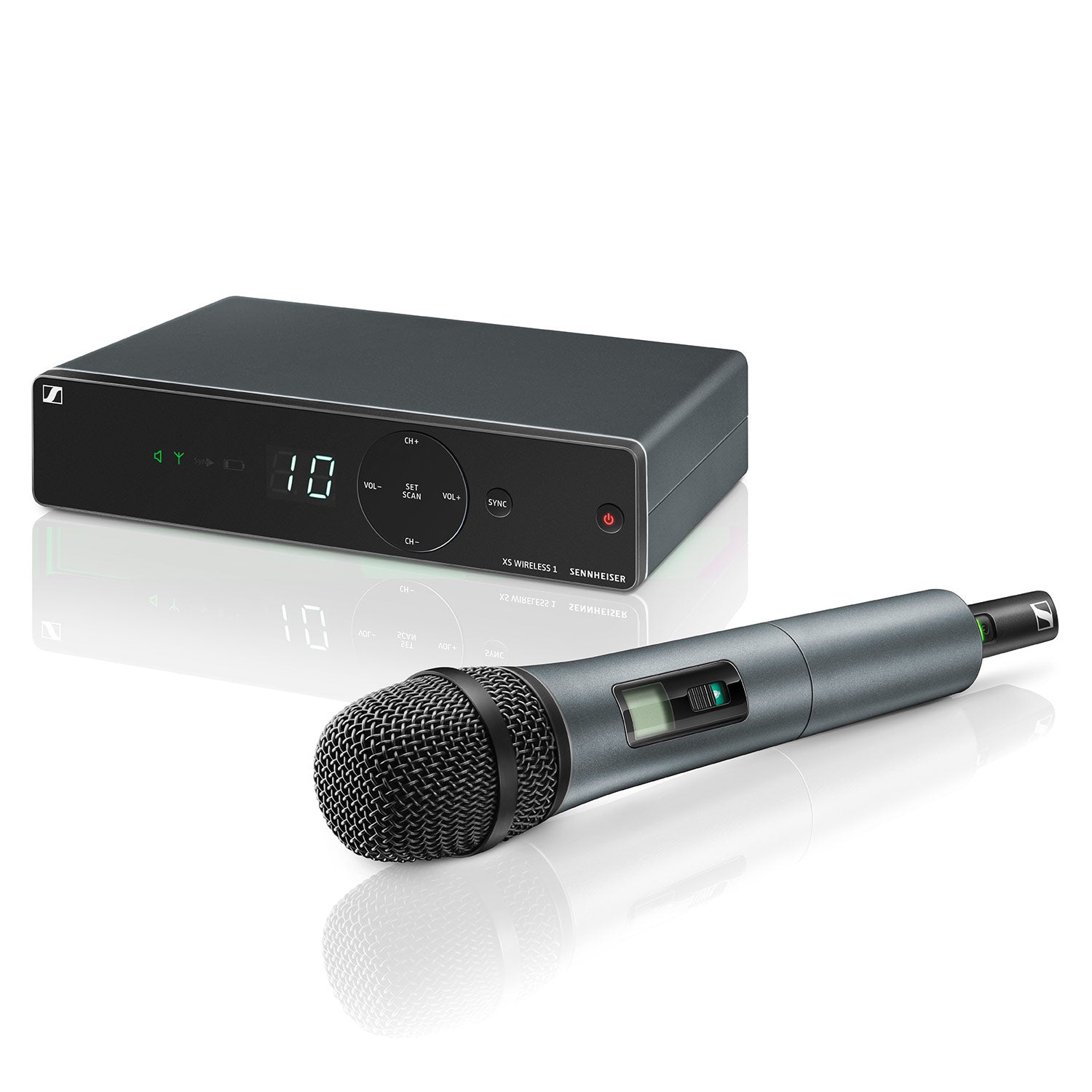

Sennheiser XSW 1-835 Handheld Wireless System (A Band - 548-572 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Raise Your Voice. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters, excellent for live sound featuring Sennheiser’s renowned evolution microphone capsules, e825 (dynamic, cardioid) to get started, or e835 (superior dynamic, cardioid) to perform under pressure. The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a vocal microphone and microphone clamp.
Features:
- Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules (e825 or e835)
- Antenna-switching diversity reception
- Integrated antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Selectable UHF frequencies within a large bandwidth
- Up to 10 compatible channels
What's In The Box:

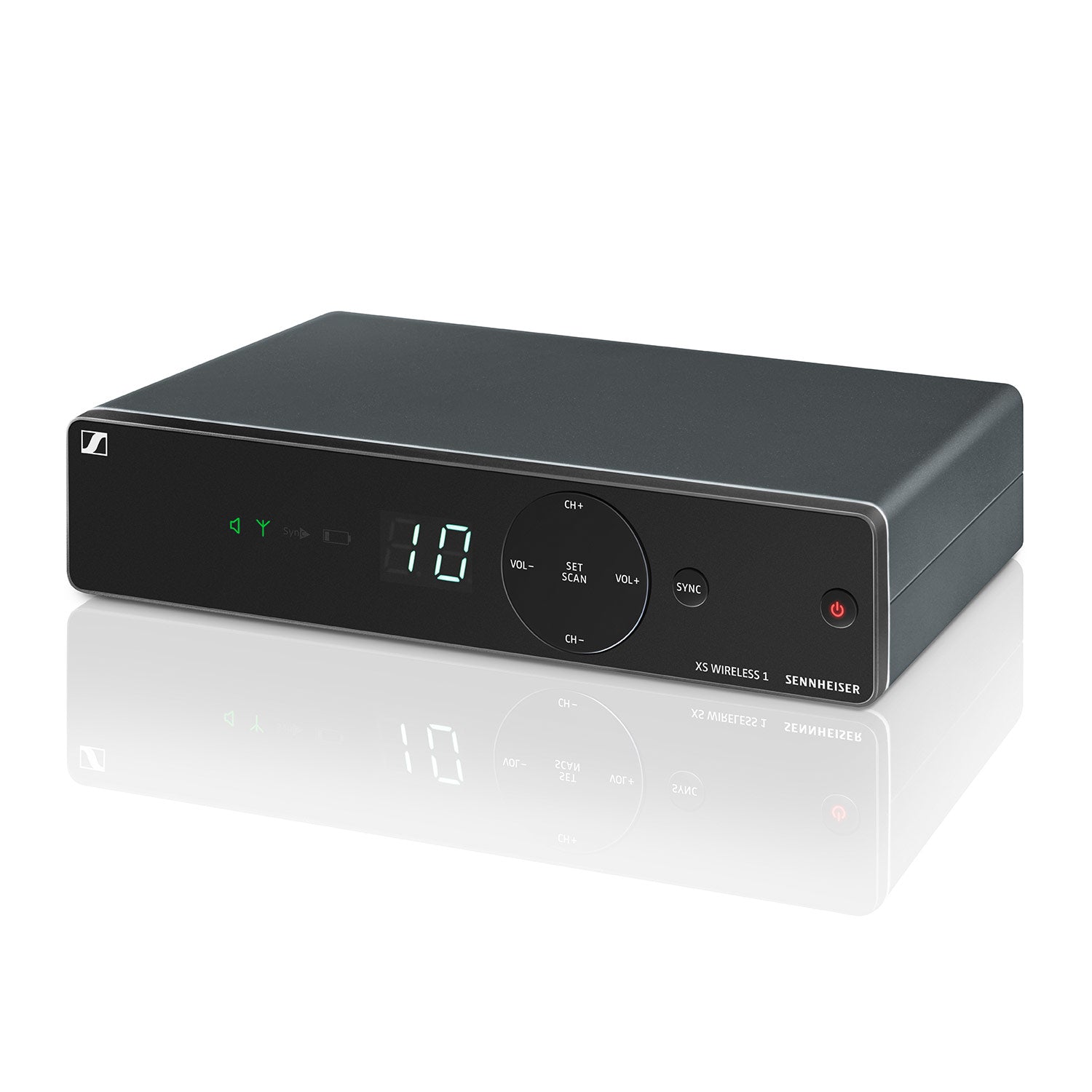

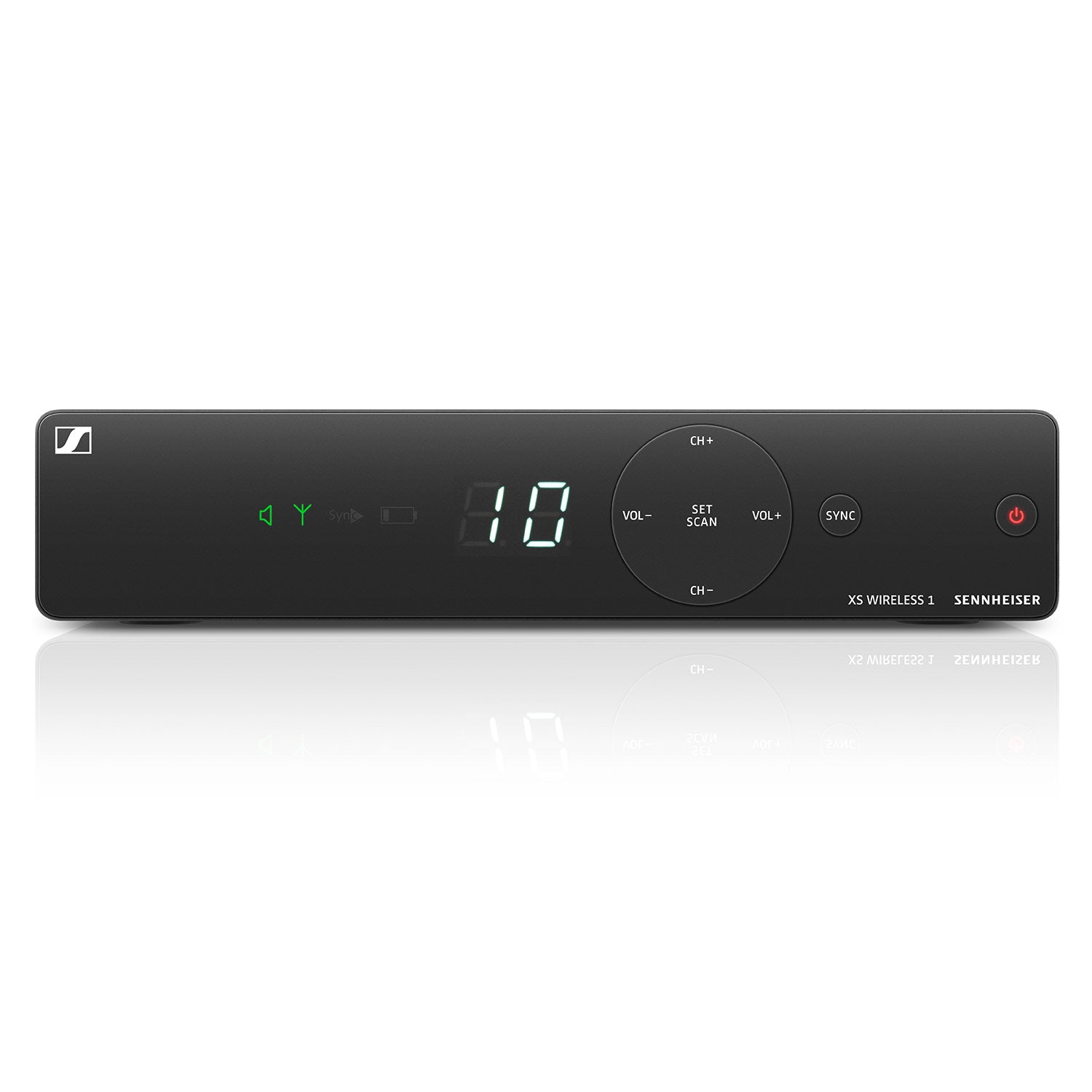

- 1 receiver EM-XSW 1

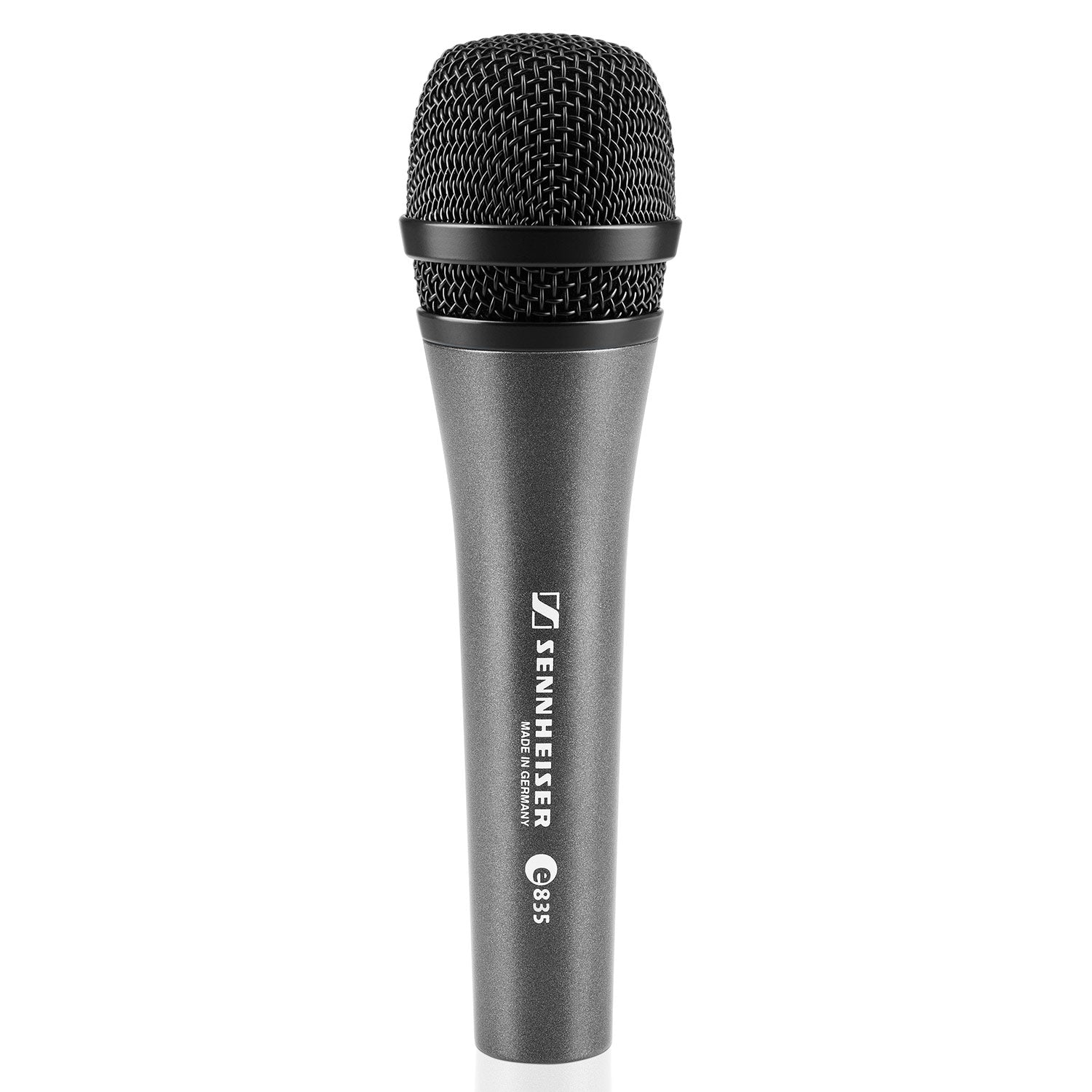

- 1 handheld transmitter SKM 835-XSW
- 1 microphone clamp MZQ 1
- 1 power supply NT 12-5 CW
- 2 AA batteries
| Modulation | wideband FM |
| Frequency ranges | A: 548-572 MHz |
| Switching bandwidth | up to 24 MHz |
| Frequencies | 8 frequency banks, each with up to 10 factory-preset channels |
| Signal-to-noise ratio | ³ 103 dBA |
| THD | ² 0.9% |
| Temperature range | operation: 0¡C to +40¡C storage: Ð20¡C to +70¡C |
| Transmitter sychronization | 2.4 GHz, Low Power OQPSK (only active during synchronization) |
| RECEIVER (EM-XSW 1) | |
| Receiver principle | double superheterodyne |
| Diversity principle | antenna switching diversity via internal antennas |
| Sensitivity (at peak deviation) | < 3 _V at 52 dB(A)rms S/N |
| AF frequency response | 50 to 16,000 Hz (Ð3 dB) |
| Max. AF output voltage (at peak deviation, 1 kHz AF) |

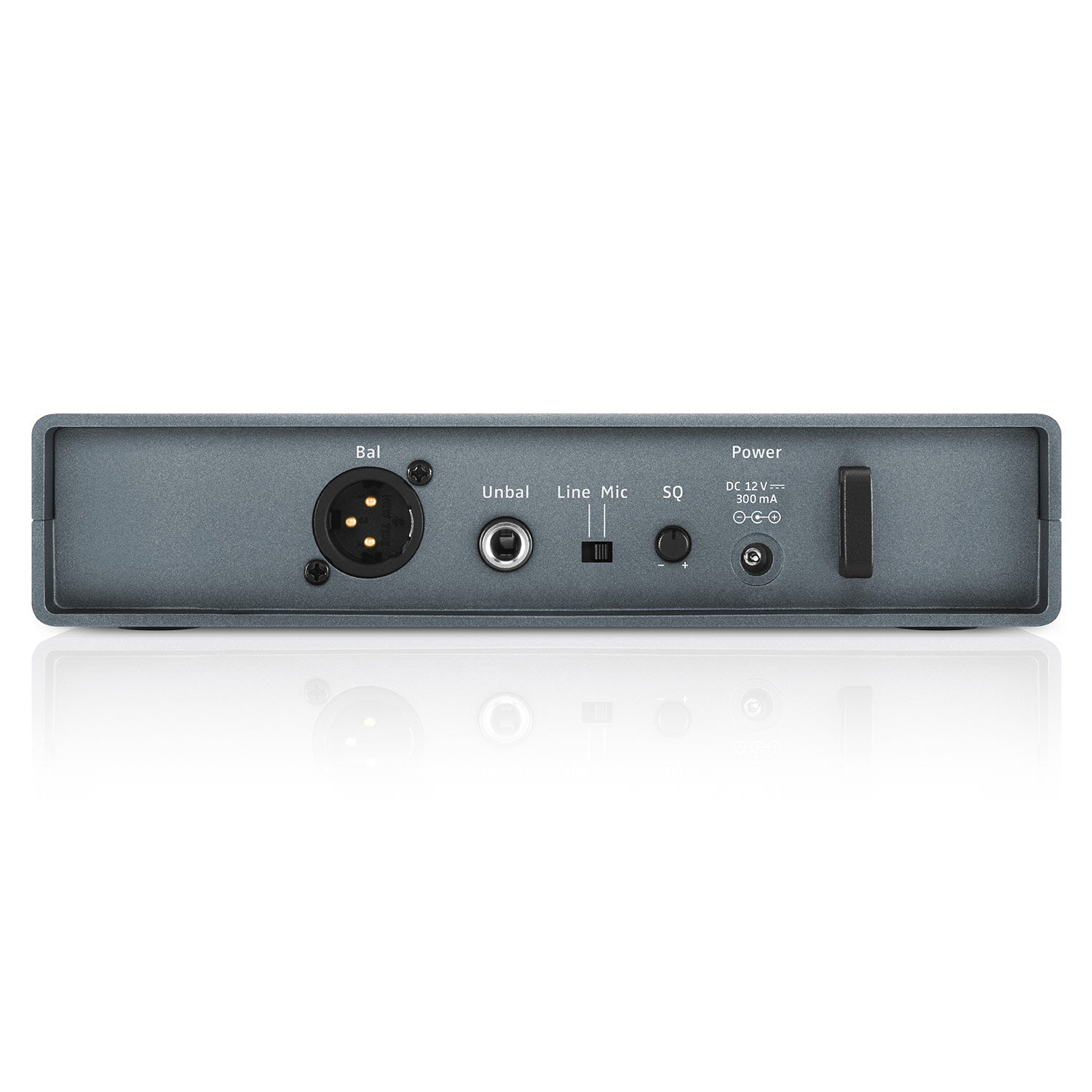

1/4Ò (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu |
| Audio adjustment range | 45 dB, adjustable in 5-dB steps |
| Power supply | 12 V DC nom. / 300 mA |
| Squelch | adjustable from 3 dB_V to 28 dB_V (combined with pilot tone) |
| Line/Mic level | 20 dB, switchable |
| Housing material | rugged ABS housing |
| Dimensions (W x H x D) | approx. 200 x 42 x 127 mm |
| Weight | approx. 340 g |
| MICROPHONES (SKM 825-XSW 1, SKM 835-XSW 1) | |
| RF output power | 10 mW |
| AF frequency response | 80-14,000 Hz |
| Power supply | 2 AA size batteries, 1.5 V |
| Operating time | approx. 10 hrs |
| Microphone type | dynamic |
| Pick-up pattern | cardioid |
| Input sensitivity (caspsule) | 1.5 mV / Pa |
| Adjustment range of transmitter sensitivity | 0 to -30 dB, adjustable in 10 dB steps |
| Housing material | rugged ABS housing |
| Dimensions (L x ¯) | approx. 260 x 50 mm |
| Weight | approx. 245 g |
