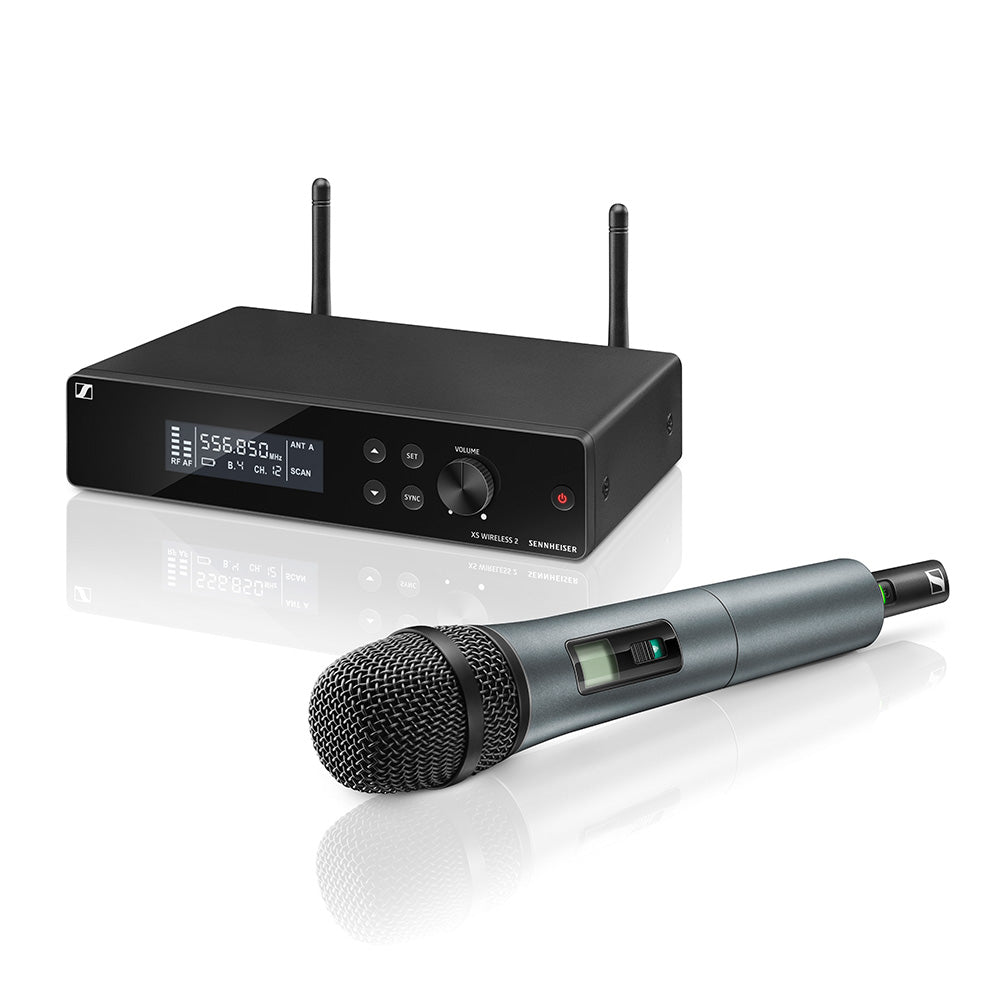

Sennheiser XSW 2-835 VOCAL SET Handheld Wireless System (A Band - 548-572 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Raise your voice. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions. The XS WIRELESS 2 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters featuring Sennheiser's renowned evolution microphone capsule e835 (superior dynamic, cardioid) to perform under pressure. True Diversity receiver in a metal housing and rackmount kit included.
Features:
- Excellent live sound featuring Sennheiser's renowned evolution microphone capsules
- True diversity receiver with metal housing
- External antennas
- Automatic frequency management and synchronization via
- remote channel for easy setup
- Fully tunable over a wide range of UHF frequencies
- Rackmount kit included
- Up to 12 compatible channels
What's In The Box:
- 1 receiver EM-XSW 2
- 1 handheld transmitter SKM 835-XSW
- 1 microphone clamp MZQ 1
- 1 power supply NT 12-5 CW
- 2 AA batteries
- 1 rackmount kit
- 1 pouch
- user manual
| Receivers | |
| Dimensions | approx. 200 x 42 x 127 mm, microphone: approx. 260 x 50 mm |
| Weight | approx. 680g |
| Power supply | 12 V DC nom. / 300 mA |
| Housing | Metal, microphone: robust ABS |
| AF frequency response | 50 to 16,000 Hz (Ð3 dB) |
| Microphone | dynamic |
| Frequency response | 50 to 16,000 Hz (Ð3 dB) |
| THD, total harmonic distortion | ² 0.9% |
| Pick-up pattern | cardioid |
| Signal-to-noise ratio | ³ 103 dBA |
| RF output power | 10 mW |
| Switching bandwidth | up to 24 MHz |
| Operating time | approx. 10 hrs |
| Modulation | wideband FM |
| Output voltage | 1/4Ò (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu |
| Frequency | 8 frequency banks, each with up to 12 factory-preset channels |
| Frequency range | A: 548-572 MHz GB: 606-630 MHz B: 614-638 MHz C: 766-790 MHz D: 794-806 MHz E: 821-832 MHz, 863-865 MHz K: 925-937.5 MHz |
| Sensitivity | < 3 _V at 52 dB(A)rms S/N |
| Squelch | switchable from 3 dB_V to 28 dB_V (via Pilot Tone) |
| Synchronization | 2.4 GHz, Low Power OQPSK (only active during synchronization) |
| Line | 20 dB, switchable |
| Input sensitivity | 1.5 mV / Pa |
| Adjustment Range (Transmitter) | 0 to -30 dB, adjustable in 10 dB steps |
| Audio adjustment range | 40 dB, adjustable in 5-dB steps |
| Temperature Range | operation: 0¡C to +40¡C storage: Ð20¡C to +70¡C |
| Receiver Principle | double superheterodyne |
| Diversity principle | True Diversity |
Raise your voice. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions. The XS WIRELESS 2 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters featuring Sennheiser's renowned evolution microphone capsule e835 (superior dynamic, cardioid) to perform under pressure. True Diversity receiver in a metal housing and rackmount kit included.
Features:
- Excellent live sound featuring Sennheiser's renowned evolution microphone capsules
- True diversity receiver with metal housing
- External antennas
- Automatic frequency management and synchronization via
- remote channel for easy setup
- Fully tunable over a wide range of UHF frequencies
- Rackmount kit included
- Up to 12 compatible channels
What's In The Box:
- 1 receiver EM-XSW 2
- 1 handheld transmitter SKM 835-XSW
- 1 microphone clamp MZQ 1
- 1 power supply NT 12-5 CW
- 2 AA batteries
- 1 rackmount kit
- 1 pouch
- user manual
| Receivers | |
| Dimensions | approx. 200 x 42 x 127 mm, microphone: approx. 260 x 50 mm |
| Weight | approx. 680g |
| Power supply | 12 V DC nom. / 300 mA |
| Housing | Metal, microphone: robust ABS |
| AF frequency response | 50 to 16,000 Hz (Ð3 dB) |
| Microphone | dynamic |
| Frequency response | 50 to 16,000 Hz (Ð3 dB) |
| THD, total harmonic distortion | ² 0.9% |
| Pick-up pattern | cardioid |
| Signal-to-noise ratio | ³ 103 dBA |
| RF output power | 10 mW |
| Switching bandwidth | up to 24 MHz |
| Operating time | approx. 10 hrs |
| Modulation | wideband FM |
| Output voltage | 1/4Ò (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu |
| Frequency | 8 frequency banks, each with up to 12 factory-preset channels |
| Frequency range | A: 548-572 MHz GB: 606-630 MHz B: 614-638 MHz C: 766-790 MHz D: 794-806 MHz E: 821-832 MHz, 863-865 MHz K: 925-937.5 MHz |
| Sensitivity | < 3 _V at 52 dB(A)rms S/N |
| Squelch | switchable from 3 dB_V to 28 dB_V (via Pilot Tone) |
| Synchronization | 2.4 GHz, Low Power OQPSK (only active during synchronization) |
| Line | 20 dB, switchable |
| Input sensitivity | 1.5 mV / Pa |
| Adjustment Range (Transmitter) | 0 to -30 dB, adjustable in 10 dB steps |
| Audio adjustment range | 40 dB, adjustable in 5-dB steps |
| Temperature Range | operation: 0¡C to +40¡C storage: Ð20¡C to +70¡C |
| Receiver Principle | double superheterodyne |
| Diversity principle | True Diversity |
