DescriptionADX2FD/B87, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth. The ADX2FD/B87 is a handh... Read More
Retail Price: $3,616.00 Our Price: $2,893.00
Free Shipping (Continental US)
ADX2FD/B87, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.

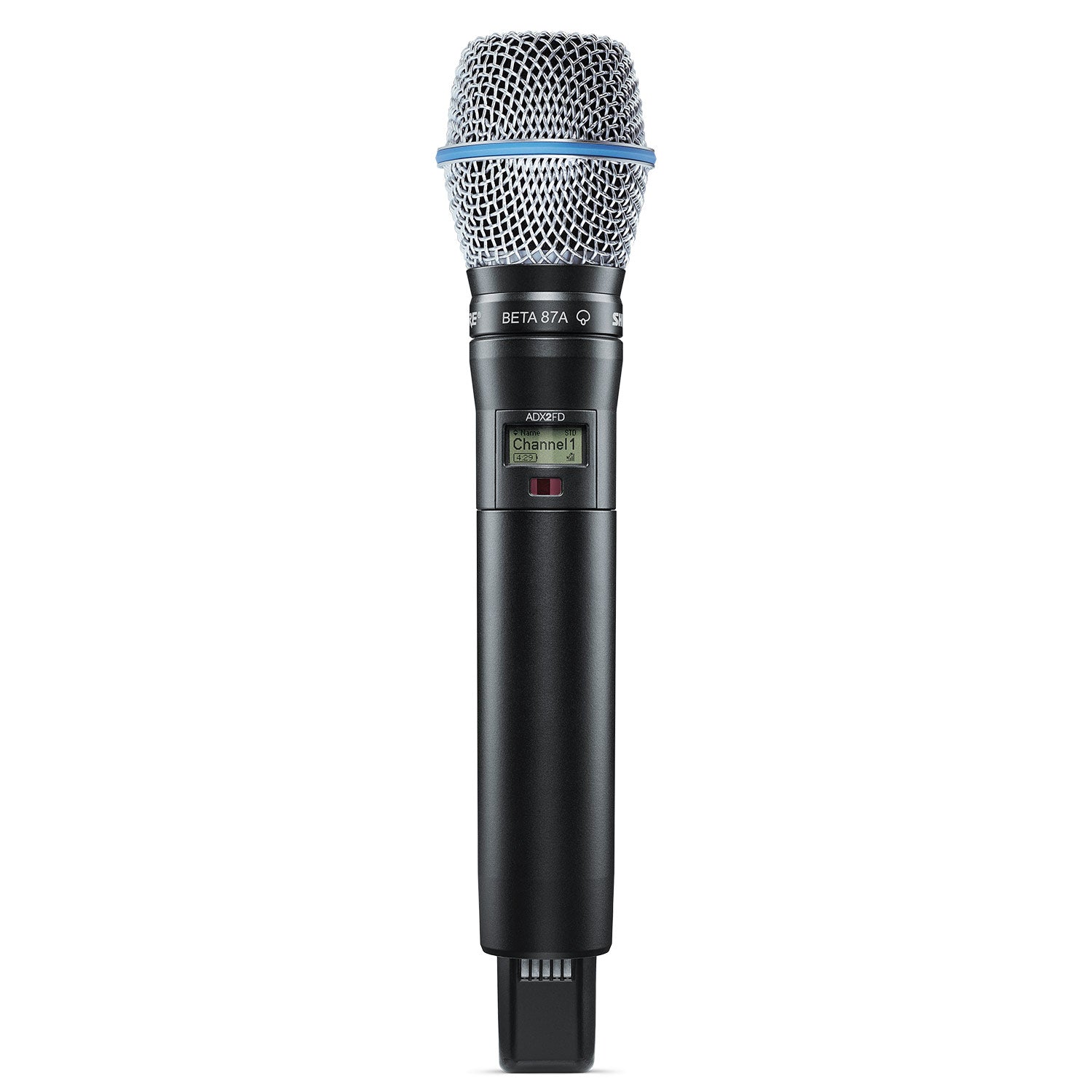

The ADX2FD/B87 is a handheld wireless microphone transmitter compatible with Axient® Digital Wireless Systems.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
|Mic Offset Range||–12 to 21 dB (in 3 dB steps)|
|Battery Type||Shure SB920 Rechargeable Li-Ion|
|Battery Runtime @ 10 mW||Single Carrier Mode: Up to 9 hours
Frequency Diversity: Up to 6.5 hours
|Dimensions||254 mm × 51 mm (10.0 in. × 2.0 in.) L × Dia.|
|Weight||179 g (6.3 oz.), without battery|
|Maximum Input Level
1 kHz at 1% THD
|145 dB SPL, typical (SM58)
Note: dependent on microphone type
|Antenna Type||Integrated Dual-Band Helical|
|Occupied Bandwidth||<200 kHz|
|Channel-to-Channel Spacing||Standard Mode: 350 kHz
High-Density Mode: 125 kHz
|Modulation Type||Shure Axient Digital Proprietary|
|Power||Single Carrier Mode: 2 mW, 10 mW, 20 mW, 50 mW
Frequency Diversity Mode: 2 × 20 mW
Varies by Region; See Available Frequency Bands and Ouput Power table.
|Network Type||IEEE 802.15.4|
|Antenna Type||ZigBee Dual Conformal|
|Frequency Range||2.40 to 2.4835 GHz (24 Channels)|
|RF Output Power||Varies by Region 10 dBm (ERP)|
