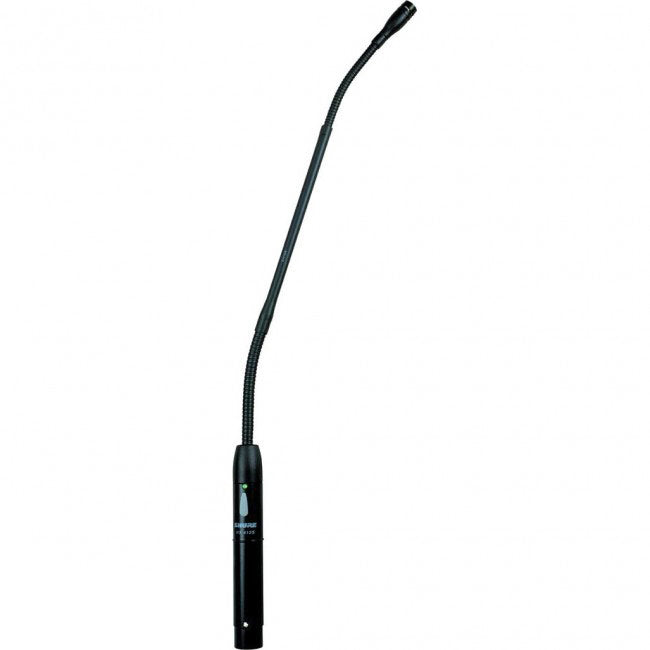

Shure MX418/C Microflex 18 Inch Cardioid Gooseneck Microphone



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:SHUR-MX418C

Availability: In Stock

Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 8:30 am to 5:30 pm
Free Shipping (Continental US)
  • Microflex® Standard Gooseneck microphones bring a whole new meaning to the word flexible with their fully adjustable gooseneck. Designed for easy replacement and available in cardioid, supercardioid and omnidirectional polar patterns, the interchangeable cartridges offer wide frequency response and accurate sound reproduction for a wide variety of applications, such as houses of worship, courtrooms and conference centers. Plus, the condenser cartridges fit every model in the Microflex product line for enhanced convenience and consistent sound.

    MX418/C: Cardioid, 18, Attached XLR Preamp, Shock & Flange Mount, Snap-Fit Foam Windscreen

    Features:

    • Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
    • Interchangeable cartridges provide the right polar pattern for every application
    • Balanced, transformerless output for increased immunity to electromagnetic hum and RF interference over long cable runs
    • Shock mount provides over 20 dB isolation from surface vibration noise
    • Locking flange mount for permanently securing microphone to lecterns, pulpits, or conference tables
    • Snap-fit foam windscreen
    • Programmable on/off switch and LED on/off indicator (MX412D/MX418D)
    • New brighter LED improves visibility under strong ambient lighting (MX412D/MX418D)
    • Logic input and output terminals for remote control or use with automatic microphone mixers (MX412D/MX418D)
    • Supplied shock mount for more than 20 dB isolation from surface transmitted noise (MX412SE/MX418SE)
    • Supplied threaded flange mount for permanently securing the microphone to a lectern, pulpit, or conference table (MX412SE/MX418SE)

    Microflex Gooseneck microphones are available in four models with a variety of heights and mounting styles to choose from. One model includes a silent mute switch with LED indicator, a Shure Microflex exclusive. And every Microflex Gooseneck features high sensitivity and balanced, transformerless output for maximum resistance to electromagnetic hum and RF interference, even over long cable runs.

    The polar pattern of the cartridge is indicated by the model number suffix:
    C = Cardioid, S = Supercardioid, N = No Cartridge

    MX418 C/S/N: 457.2 mm (18 in.) gooseneck Attached XLR Preamp, Shock Mount, Flange Mount, Snap-Fit Foam Windscreen

    Features:

    • Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
    • Interchangeable cartridges provide the right polar pattern for every application
    • Balanced, transformerless output for increased immunity to noise over long cable runs
    • Shock mount provides over 20 dB isolation from surface vibration noise
    • Locking flange mount for permanently securing microphone to lecterns, pulpits, orconference tables
    • Snap-fit foam windscreen
  • Frequency Response50 to 17,000 Hz
    Output Impedance (at 1000 Hz)180 ohms actual (rated at 150 ohms)
    Sensitivity (At 1,000 Hz, open circuit voltage)Cardioid: -35.0 dBV/Pa (17.8 mV)
    Supercardioid: -33.5 dBV/Pa (21.1 mV)
    Omnidirectional: -27.5 dBV/Pa (42.2 mV)
    All values -12 dB at 0 gain; 1 Pascal = 94 dB SPL
    Maximum SPL (1 kHz at 1% THD, 1 k ohm load)Cardioid: 124.2 dB
    Supercardioid: 122.7 dB
    Omnidirectional: 116.7 dB
    All values +6 dB at 0 gain
    Signal to Noise Ratio (referenced at 94 dB SPL)Cardioid: 66.0 dB
    Supercardioid: 67.5 dB
    Omnidirectional: 73.5 dB
    Equivalent Output Noise (A-weighted)Cardioid: 28.0 dB SPL
    Supercardioid: 26.5 dB SPL
    Omnidirectional: 20.5 dB SPL
    Dynamic Range at 1 k ohm Load96.2 dB
    100 dB at 0 gain
    Common Mode Rejection45 dB minimum
    Preamplifier Output Clipping Level (1% THD)-6.0 dBV (0.5 V)
    -12 dBV at 0 gain
    PolarityPositive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of the preamplifier XLR output connector.
    Power Requirements11 to 52 Vdc phantom
    2.0 mA current consumption
    Operating Temperature Range-18 to 57 degrees C (0 to 135 degrees F)
    Relative Humidity0 to 95%
