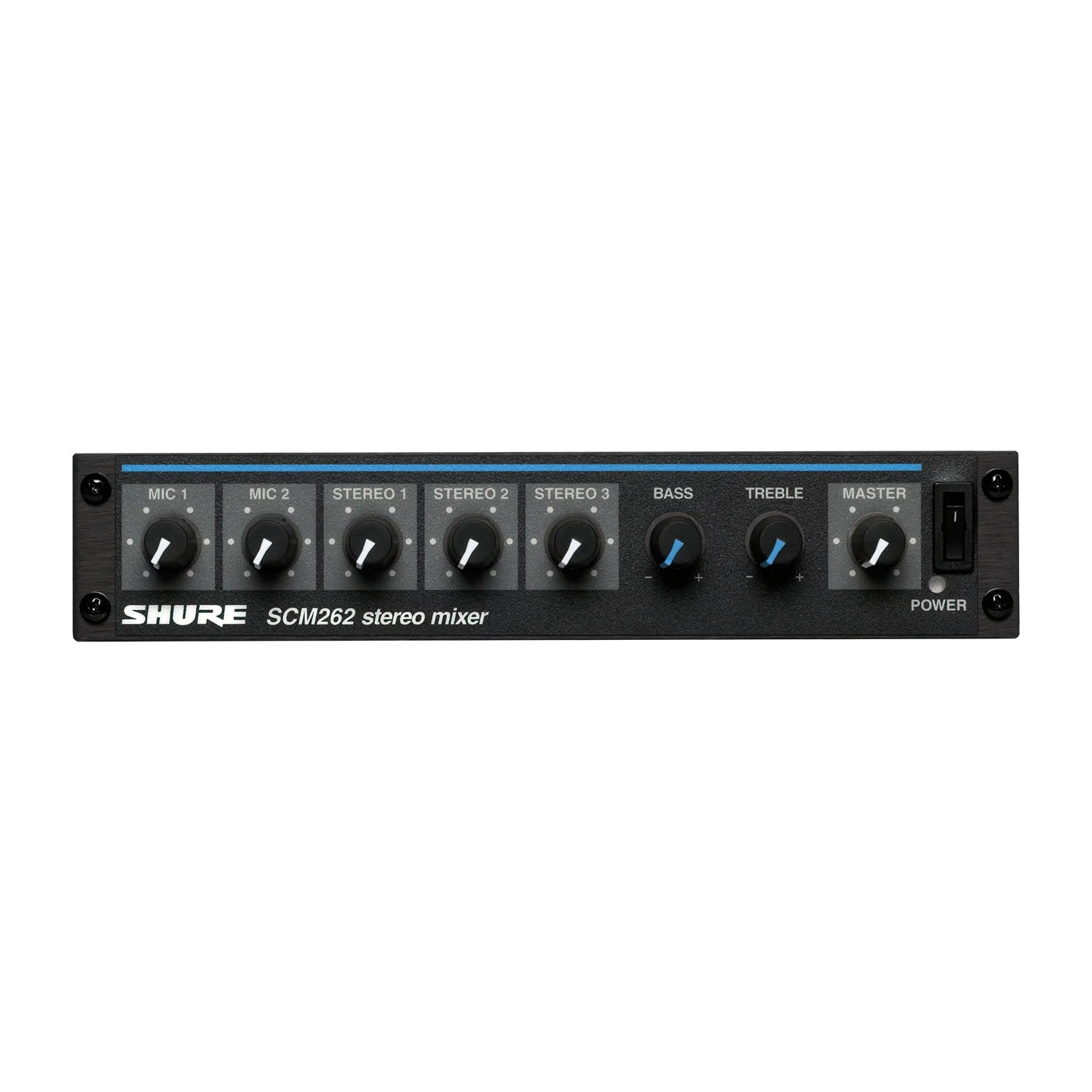

Shure SCM262 Compact Stereo Microphone Mixer



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:SHUR-SCM262_

Availability: In Stock

Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 8:30 am to 5:30 pm
Free Shipping (Continental US)
  • The Right Amount of Mixer

    Many smaller installations require a mixer with very specific features and capabilities. One that is easy to use. You need to integrate your microphones and stereo equipment without paying for features you'll never use. And of course, you'll need dependability.  Enter Shure's SCM262. Part of Shure's growing SCM mixer family, the SCM262 provides features tailor-made for your smaller application -- such as defeatable ducking, jukebox mute, and 12V Phantom. All in a compact, user-friendly package.

    For Simplicity's Sake

    The SCM262 has been designed with simplicity in mind, allowing you to focus on your job, not your audio system. Providing the right combination of features, benefits and ease-of-use, the SCM262 is perfect for the following applications:

    Precision Capabilities

    The SCM262 offers the particular features and benefits required by many smaller applications -- providing all the required flexibility

    Part Of Our Growing Line Of Quality SCM Mixers

    The SCM262 is the latest addition to our growing Installed Sound category and provides all the performance, durability, and value synonymous with the Shure name.

    Compact, easy to set up and use mixer with features that are customized for small installations, such as ducking, jukebox mute and 12v phantom power. Ideal for restaurants, health clubs, and paging applications.

  • Measurement Conditions (unless otherwise specified)Tone controls centered; Line voltage 120 Vac, 60 Hz (SCM262) or 230 Vac, 50 Hz (SCM262E); full gain; 1 kHz, one channel activated; source impedances: Mic 150 ohms; Line/Aux 40 ohms, terminations: Line/Mic/Aux 20 kilohms.
    Frequency Response (Ref 1 kHz, channel controls centered)MIC/LINE Inputs: 150 Hz to 20 kHz +/- 2 dB
    Aux Inputs: 20 Hz to 20 kHz +/- 2 dB
    Low-Cut Filter (Microphone inputs only)3dB down at 80 Hz, 6 dB/octave
    Voltage Gain (typical, controls full clockwise)Output
    Input Mic Line Aux
    Low-impedance mic
    150 ohms 32 dB 72 dB 60 dB
    Line -9 dB 31 dB 19 dB
    Stereo -5 dB 35 dB 23 dB
    Total Harmonic Distortion<0.25% at +4 dBu output level, (through 22 Hz -- 22 kHz filter; MIC Input 1 and Master at center, all other controls full counterclockwise)
    Equivalent Input Hum and Noise(150 ohm source; through 22 Hz-22 kHz filter)125 dBV
    Output Hum and Noise (through 22 Hz-22 kHz filter; channel controls full counterclockwise)
    Master full counterclockwise-85 dBV
    Master full clockwise-60 dBV
    Common Mode Rejection>70 dB at 1 kHz
    PolarityAll inputs to all outputs are non-inverting
    Overload and Shorting ProtectionShorting outputs, even for prolonged periods, causes no damage. Microphone inputs are not damaged by signals up to +10 dBV; Line and Aux inputs by signals up to +28 dBV
    EqualizationBass (Low-frequency shelving, corner frequency at 250 Hz): +/- 6 dB
    Treble (High-frequency shelving, corner frequency at 4 kHz): +/- 6 dB
    DuckingMic channels 1 and 2 Levels: -20 dB or infinite dB
    Activation time: 10 ms (typical)
    Mic Deactivation time: 2 s (typical)
    Jukebox Mute Deactivation Time: 30 s (typical)
    Phantom Power12 Vdc open-circuit through 680 ohm resistors
    Operating Voltage100--120 Vac, 50/60 Hz, 60 mA
    Temperature RangeOperating: -7 degrees to 49 degrees C (20 degrees to 120 degrees F )
    Storage: -29 degrees to 74 degrees C (-20 degrees to 165 degrees F)
    Overall Dimensions43 x 218 x 162 mm (1.72 x 8.60 x 6.37 in.)
