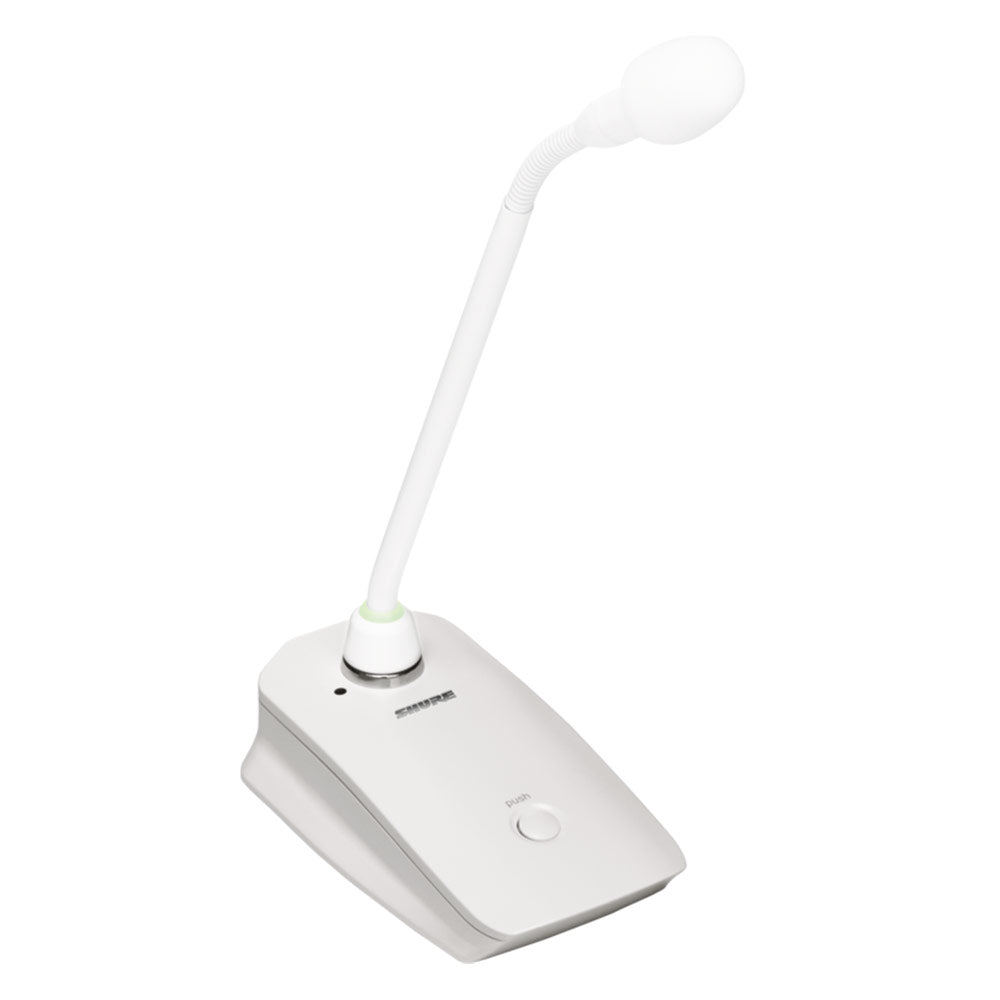

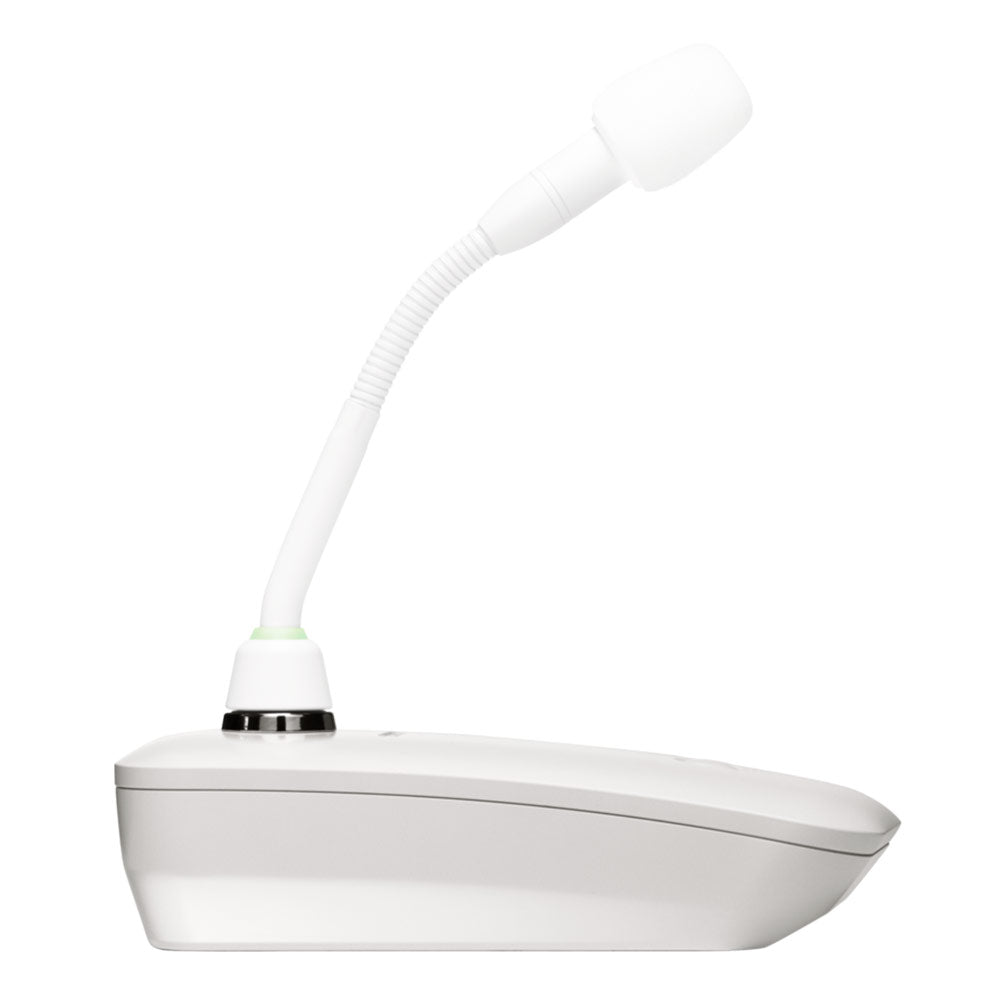

Shure ULXD8 Gooseneck Base Transmitter for ULX-D Wireless (White / H50 Band - 534-598 MHz)


  • Dale #:

    SHUR-ULXD8WH50
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

This unit requires a MicroFlex gooseneck microphone to operate. Microphones are not included and sold separately.The ULXD8 Gooseneck Base Transmitter offers a flexible gooseneck mic form factor that is ideal for use at meetings and events where wired microphones are impractical. Paired with a ULX... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

This unit requires a MicroFlex gooseneck microphone to operate. Microphones are not included and sold separately.

The ULXD8 Gooseneck Base Transmitter offers a flexible gooseneck mic form factor that is ideal for use at meetings and events where wired microphones are impractical. Paired with a ULX-D or QLX-D digital receiver, the the ULXD8 creates a system with low latency, long transmission range, and high channel count, delivering exceptional performance in large meeting venues where live sound reinforcement is required.

Features:

  • Designed for use with Shure Microflex MX405, MX410, and MX415 gooseneck microphones, as well as Microflex MX410DF and MX415DF Dualflex gooseneck microphones
  • Very low latency makes the ULXD8 ideal for meetings that require live sound reinforcement
  • Long transmission range (up to 300 feet/100 meters) for reliable performance in very large meetings at conference and convention centers
  • Compatible with the full line of Shure antennas and distribution components, allowing up to 200 ULXD8 gooseneck base transmitters to be used with just one pair of receiving antennas for efficient setup
  • Compatible with ULX-D and QLX-D digital receivers
  • Optional SB900A rechargeable batteries provide up to 9 hours of runtime
  • Compatible with standard AA alkaline batteries
  • Optional SBC450 (4-bay) and SBC850 (8-bay) Networked Charging Stations allow convenient docking and charging when transmitters are not in use
  • Configurable Mute button (Toggle, Push-to-Mute, Push-to-Talk, disabled) and Mute LED behavior
  • Adjustable RF power, high-pass filter, and power lock settings

More +

Product Specs

RF Carrier Range174-216 MHz, 470-865 MHz, 1492-1525 MHz, 1785-1805 MHz
Note: Varies by region (See Frequency Range and Ouput Power table)
Working Range100 m (328 ft)
Note: Actual range depends on RF signal absorption, reflection and interference.
RF Tuning Step Size25 kHz, varies by region
Image Rejection>70 dB, typical
RF Sensitivity-98 dBm at 10-5 BER
Latency<2.9 ms
Audio Frequency ResponseULXD1: 20 Hz - 20 kHz (±1 dB)
ULXD2: 30 Hz - 20 kHz (±1 dB)
Note: Dependent on microphone type
Audio Dynamic Range
System Gain @ +10
XLR Analog Output: >120 dB, A-weighted
Dante Digital Output (Dual and Quad receivers): 130 dB (typical), A-weighted
Total Harmonic Distortion?12 dBFS input, System Gain @ +10 <0.1%
System Audio PolarityPositive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.
Operating Temperature Range?18 °C (0 °F) to 50 °C (122 °F)
Note: Battery characteristics may limit this range.
Storage Temperature Range?29°C (?20°F) to 74°C (165°F)
Note: Battery characteristics may limit this range
Gain Offset Range0 to 21 dB (in 3 dB steps)
Battery Type Shure SB900A Rechargeable Li-Ion or AA batteries
Battery Runtime
@ 10 mW
Shure SB900A: Up to 9 hours
Alkaline: Up to 8 hours 20 minutes
Dimensions137 mm × 78 mm × 41 mm (5.4 in. × 3.1 in. × 1.6 in.) H × W × D
Weight293 g (10.3 oz.), with 2 AA batteries
HousingMolded Plastic
Audio Input
Connector6-pin connector for Shure MX405/MX410/MX415
ConfigurationUnbalanced
Impedance>20 k?
RF Output
Antenna TypeIntegrated PIFA
Impedance50 ?
Occupied Bandwidth<200 kHz
Modulation TypeShure Proprietary Digital
Power1 mW, 10 mW, 20 mW
See Frequency Range and Ouput Power table, varies by region

More +
